ChamSys QuickQ 10 Lighting Control Console

Product Overview

The ChamSys QuickQ 10 is a compact DMX lighting control console built for stage, studio, and small live entertainment rigs running dimmers and LED color-mixing fixtures. It controls one DMX universe (512 channels) through a 9.7-inch multi-touch display with a smartphone-style interface that guides novice users through setup, programming, and playback. This entry-level lighting desk outputs DMX over 5-pin XLR or across the network via Art-Net, sACN, and Pathport. Built-in Wi-Fi adds remote control from the free QuickQ app on iOS and Android.

The QuickQ 10 lighting console pairs hands-on faders and bump buttons with touchscreen programming, giving theaters, schools, and houses of worship an affordable DMX controller that scales into the ChamSys MagicQ range. Shows built on a QuickQ 10 load directly onto any MagicQ system for a clear upgrade path.

Product Description

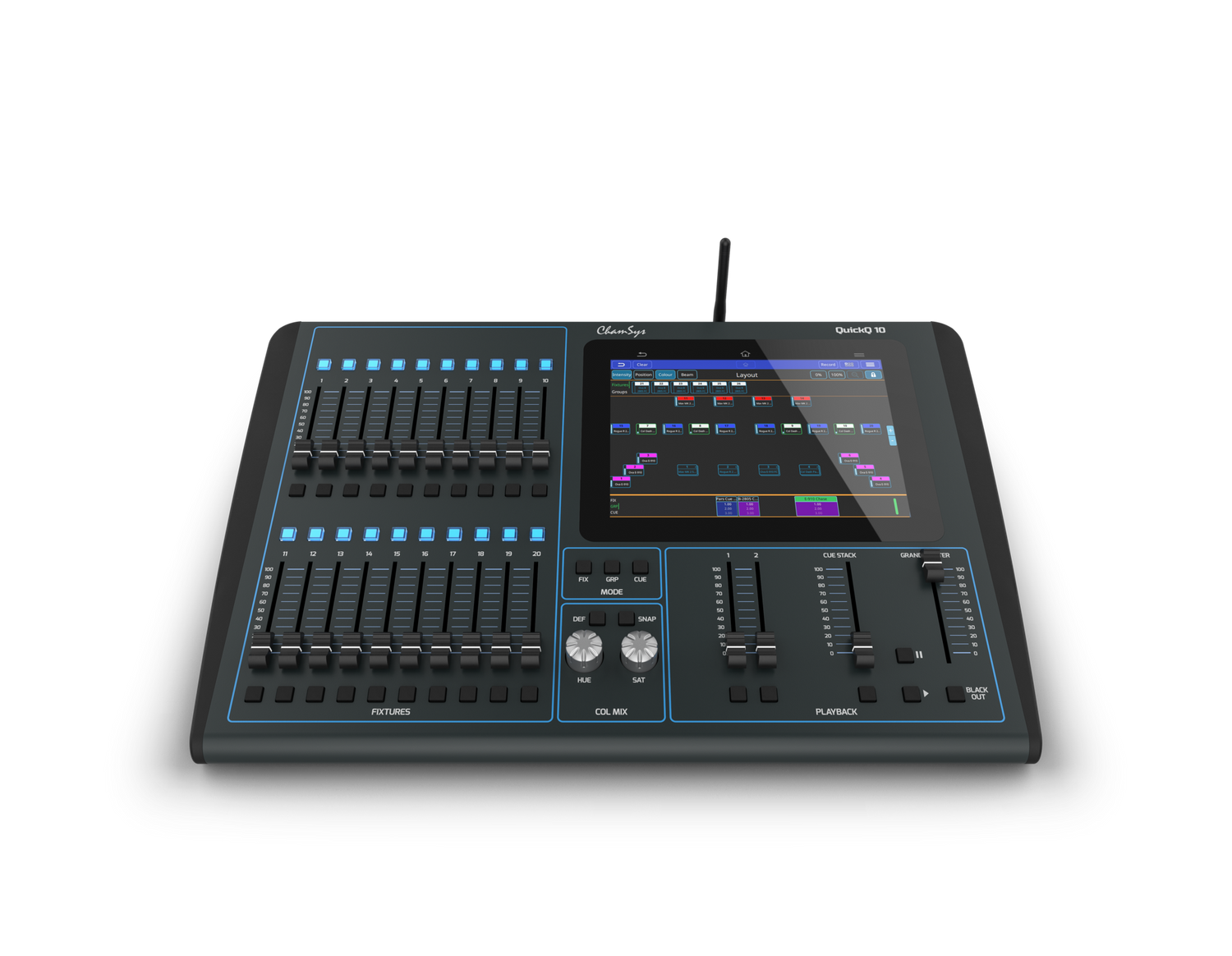

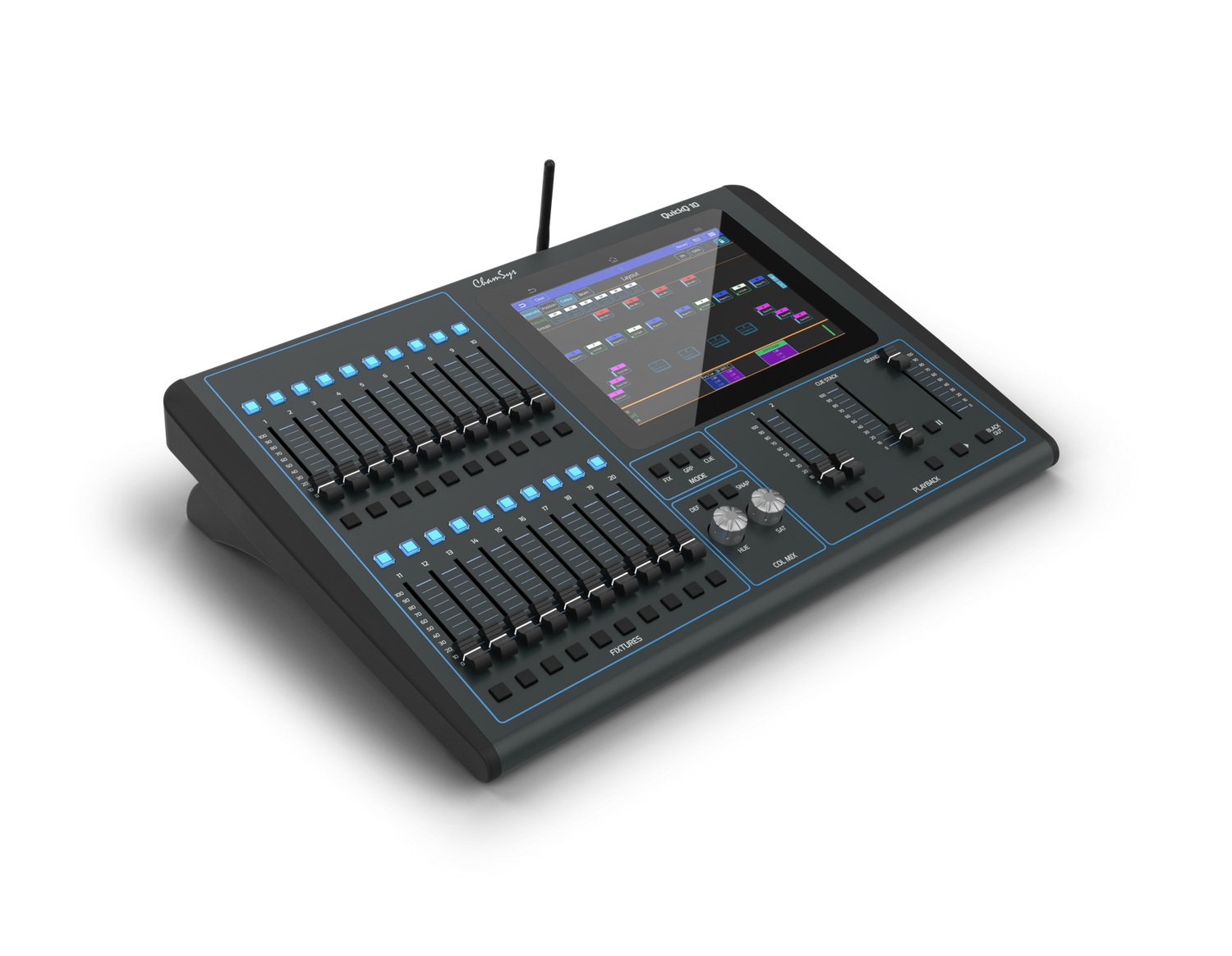

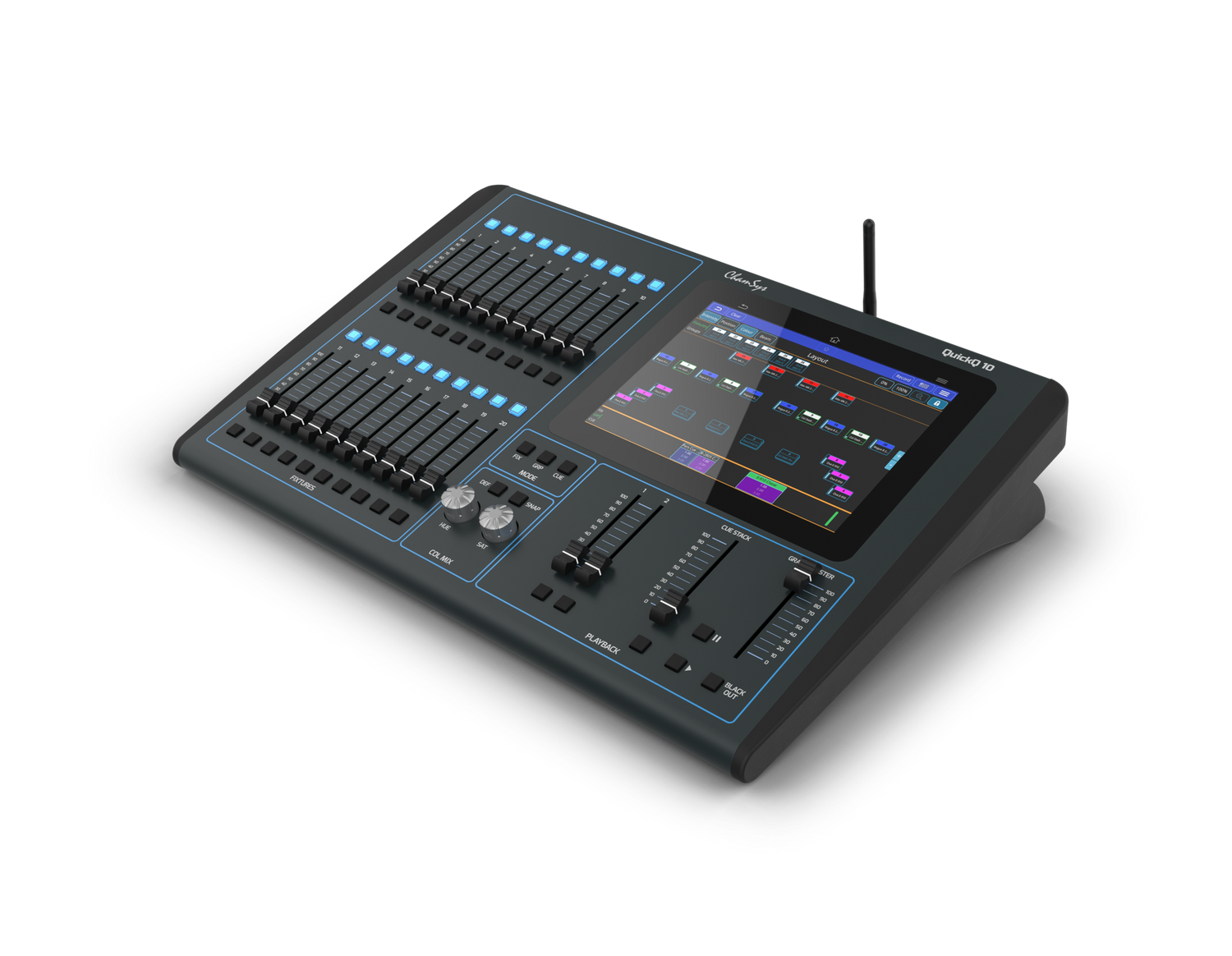

The console provides 20 multi-function fixture faders with three modes (Fixture, Group, and Cue), plus three playback faders configured as two chase controllers and one cue stack, all legended on screen. A dedicated Grand Master fader sets overall level. A dedicated color control area with hue and saturation encoders, inbuilt gel libraries, and a color picker handles LED color mixing directly from the touchscreen. RDM Autopatch detects and patches RDM-compliant fixtures automatically, and the personality library covers tens of thousands of fixture profiles spanning LEDs, dimmers, and moving lights.

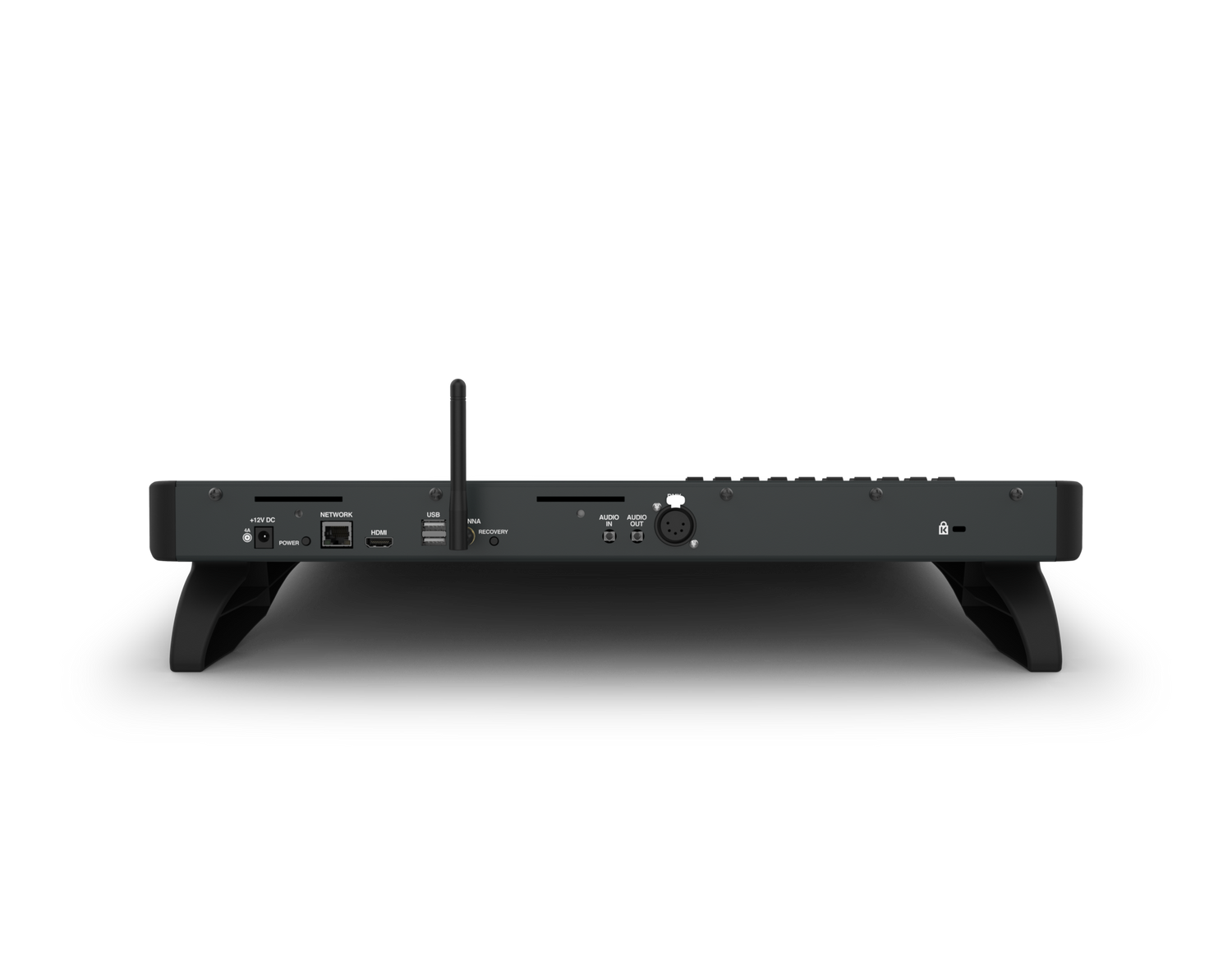

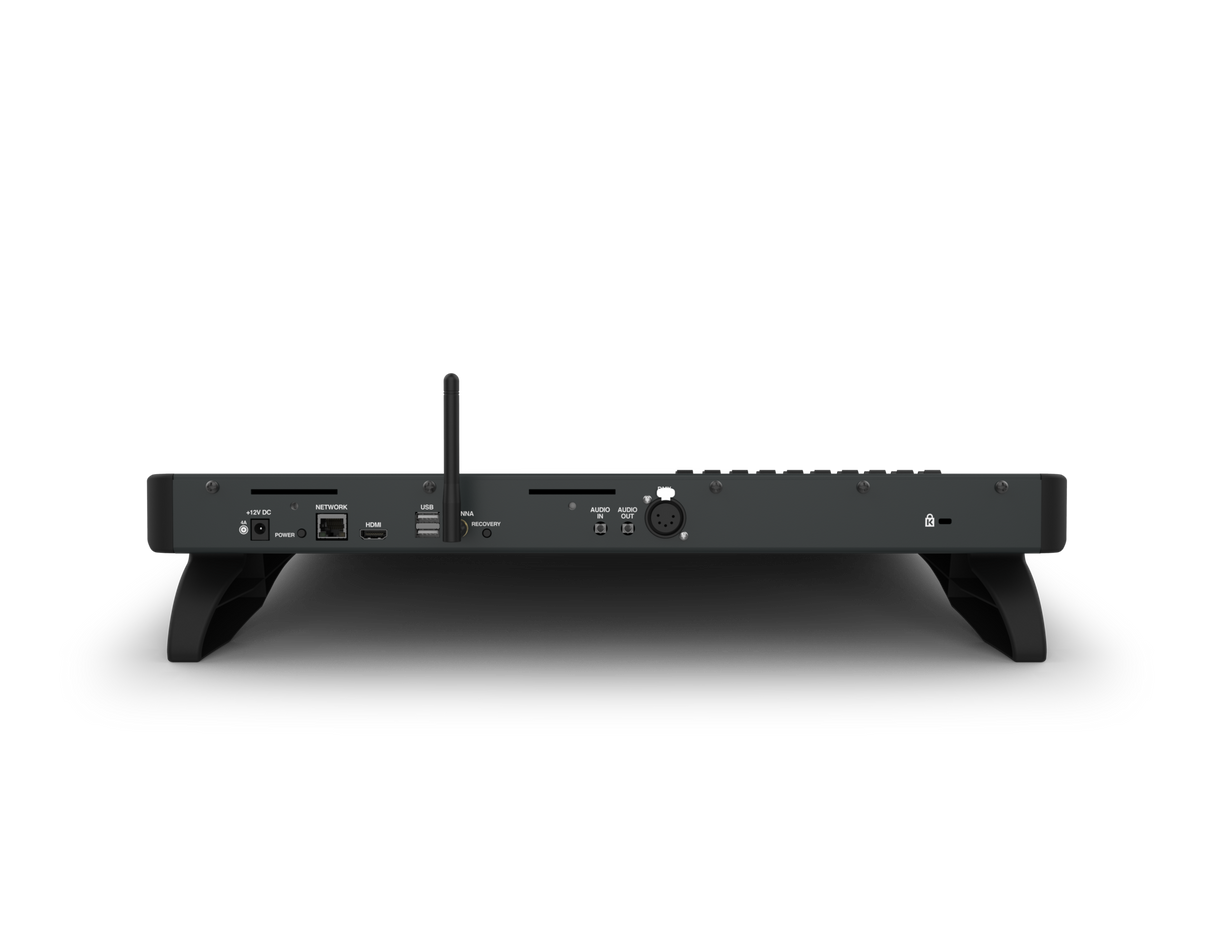

An HDMI output drives an external 1920 x 1080 monitor for additional Output and Home windows. The console includes two USB ports, a network port, and audio input and output for audio triggering. Free offline editor software for Windows and macOS lets programmers build shows on a computer, save to a USB drive, and load onto the console. The QuickQ 10 runs from an included 12V DC power supply.

Key Features

• 9.7-inch multi-touch display — Smartphone-style interface with pinch-zoom and scroll gestures for setup and playback.
• One DMX universe — Controls 512 channels over 5-pin XLR or Art-Net, sACN, and Pathport.
• 20 multi-function faders — Switch between Fixture, Group, and Cue modes, plus three playback faders and a Grand Master.
• Hue and saturation encoders — Dedicated color control area with gel libraries and a color picker for LED fixtures.
• Built-in Wi-Fi — Remote control from the free QuickQ app on iOS and Android via QR-code connection.
• RDM Autopatch — Detects and patches RDM-compliant fixtures automatically.
• HDMI output — Drives an external 1920 x 1080 monitor for added windows.
• MagicQ compatibility — QuickQ shows load onto any MagicQ system for an upgrade path.
• Offline editor — Free programming software for Windows and macOS.

Typical Applications

• School and community theater stage lighting on a single DMX universe.
• House of worship rigs mixing LED color and dimmer control.
• Small studio and live entertainment lighting requiring touchscreen programming.
• Venues planning future migration to the ChamSys MagicQ console range.

Technical Specifications

Frequently Asked Questions

How many DMX channels does the QuickQ 10 control?

It controls one DMX universe of 512 channels, output over a 5-pin XLR connector or across the network using Art-Net, sACN, or Pathport.

Can I control it remotely?

Yes. Built-in Wi-Fi connects to the free QuickQ app on iOS and Android. You connect by scanning the QR code shown on the console display.

Is it suitable for first-time lighting operators?

Yes. The smartphone-style interface on the 9.7-inch touchscreen guides users through setup, programming, and playback, making it well suited to novice operators.

Can I upgrade to a larger ChamSys console later?

Yes. QuickQ shows load onto any MagicQ system, so programming carries forward when moving to the ChamSys MagicQ range.

Does it support automatic fixture patching?

Yes. RDM Autopatch detects and patches RDM-compliant fixtures, and the ChamSys personality library covers tens of thousands of fixture profiles.

What warranty and support are included?

The console carries a limited 2-year manufacturer warranty. For warranty service, software downloads, and technical support, contact our team at Creation Networks (https://creationnetworks.net).
