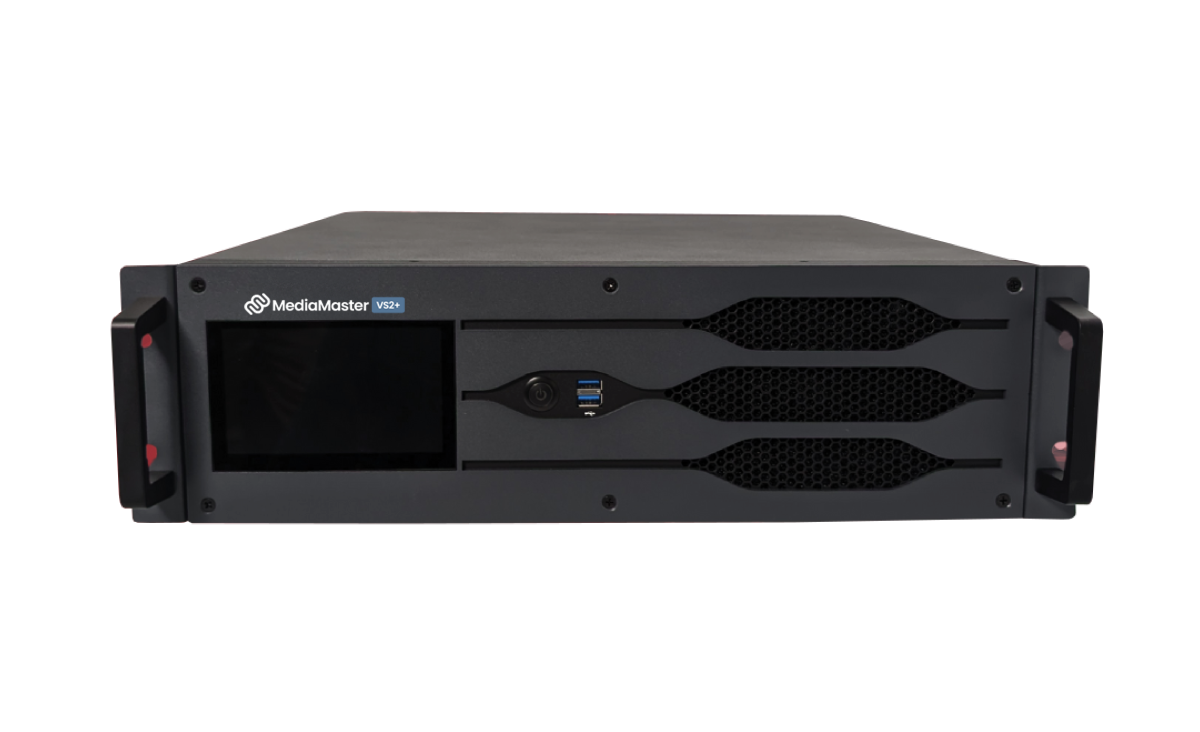

ChamSys MediaMaster VS2+

Product Overview

The ChamSys MediaMaster VS2+ is a compact 3U rack-mount media server engineered for video playback and pixel mapping in rental, touring, and live production environments. This rack-mount media server runs MediaMaster Pro and delivers dual 4K outputs with up to 48 playback layers from a road-ready chassis. Built around an Intel i5 13500 processor and NVIDIA RTX A2000 graphics, it is suited to rental houses and touring productions that need dependable performance in a transportable package. The VS2+ integrates with lighting consoles over Art-Net and sACN for unified show control.

Product Description

The VS2+ packages a fast graphics engine into a rugged, compact enclosure built for the demands of repeated rental deployment and live production. It drives two DisplayPort 4K media outputs plus two DisplayPort interface outputs for monitoring, and runs MediaMaster Pro on Windows 11 Pro with 48 playback layers, 250 surfaces, and 4096 presets. The integrated toolset covers LED Mapper, Kling Net Mapper, Video Mapper, and soft-edge and geometric correction for projection and LED wall integration.

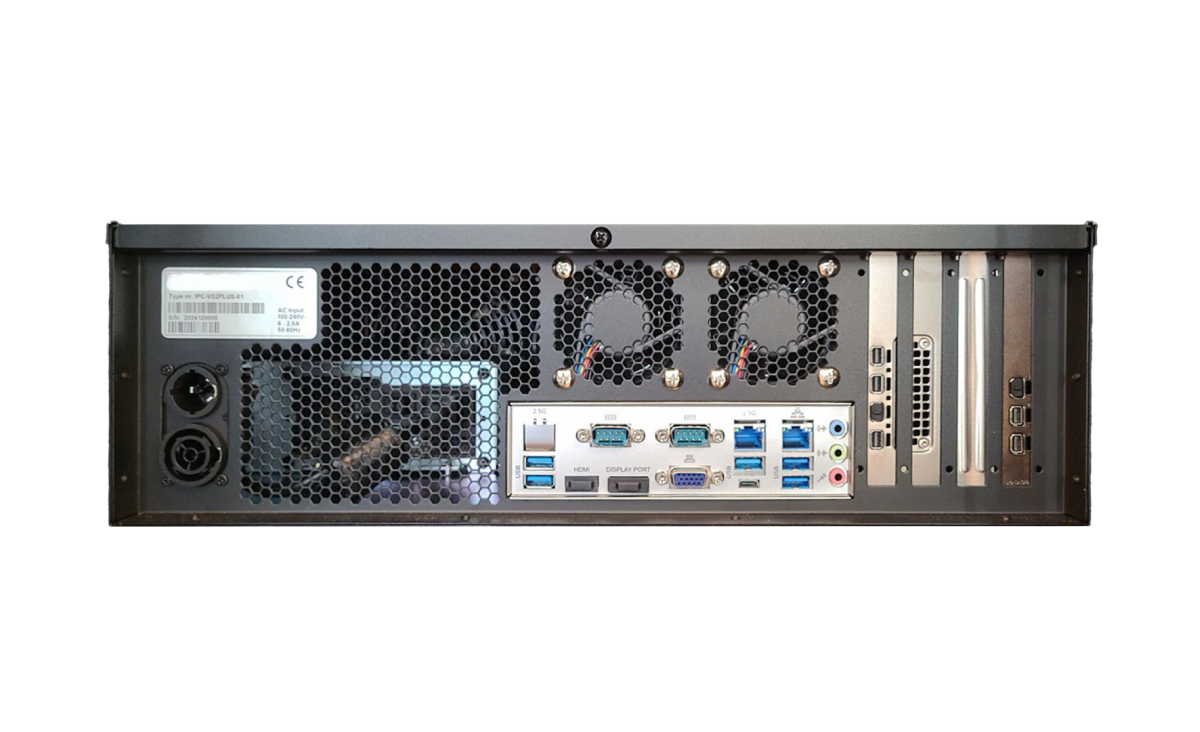

Connectivity is extensive, with two 2.5 Gigabit Ethernet ports, multiple USB 3.0 and USB-C ports, and optional 2x or 4x SDI or HDMI capture inputs for live sources. The server supports NDI 5, CITP/MSEX, and GDTF personality export for interoperability with modern video and lighting workflows. A 1TB SSD system drive and factory system restore support fast storage and reliable recovery in demanding production schedules.

Control is available over Art-Net, sACN, stand-alone keyboard, and the front panel, with DMX control via the optional MagicDMX interface. The compact 3U form factor and 10.4kg weight make the VS2+ a practical component for transportable AV system integration and fixed installation alike.

Key Features

• Dual 4K Video Outputs — Two DisplayPort 4K media outputs deliver high-resolution program video, with two additional DisplayPort interface outputs for monitoring.
• MediaMaster Pro Software — The included MediaMaster Pro license provides 48 playback layers, 250 surfaces, and 4096 presets for advanced content programming.
• Intel i5 and RTX A2000 — An Intel i5 13500 with 20 threads and NVIDIA RTX A2000 12GB graphics provide responsive, reliable playback performance.
• Integrated Mapping Tools — Built-in LED Mapper, Kling Net Mapper, and Video Mapper with soft-edge and geometric correction support projection and LED integration.
• NDI 5 and CITP/MSEX Support — Native NDI 5, CITP/MSEX, and GDTF personality export enable IP video workflows and interoperability with lighting consoles.
• Dual 2.5Gb Ethernet — Two 2.5 Gigabit Ethernet ports provide the network bandwidth for high-resolution distribution and IP-based transport.
• Lighting Console Integration — Control over Art-Net, sACN, keyboard, and front panel, plus optional MagicDMX for DMX control, lets the server integrate with lighting consoles.

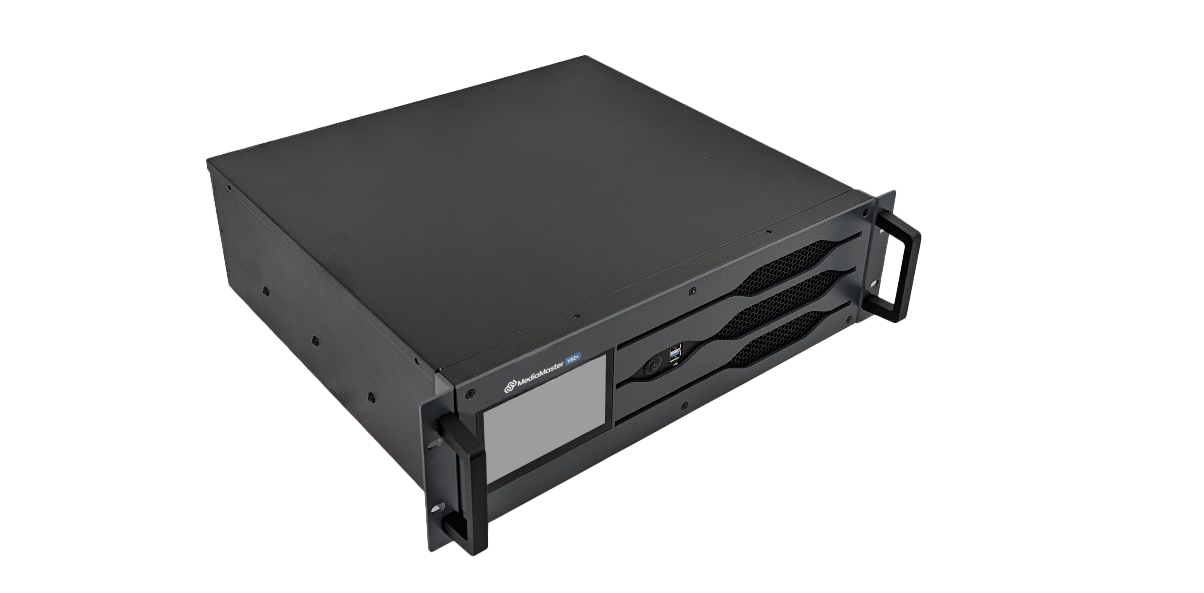

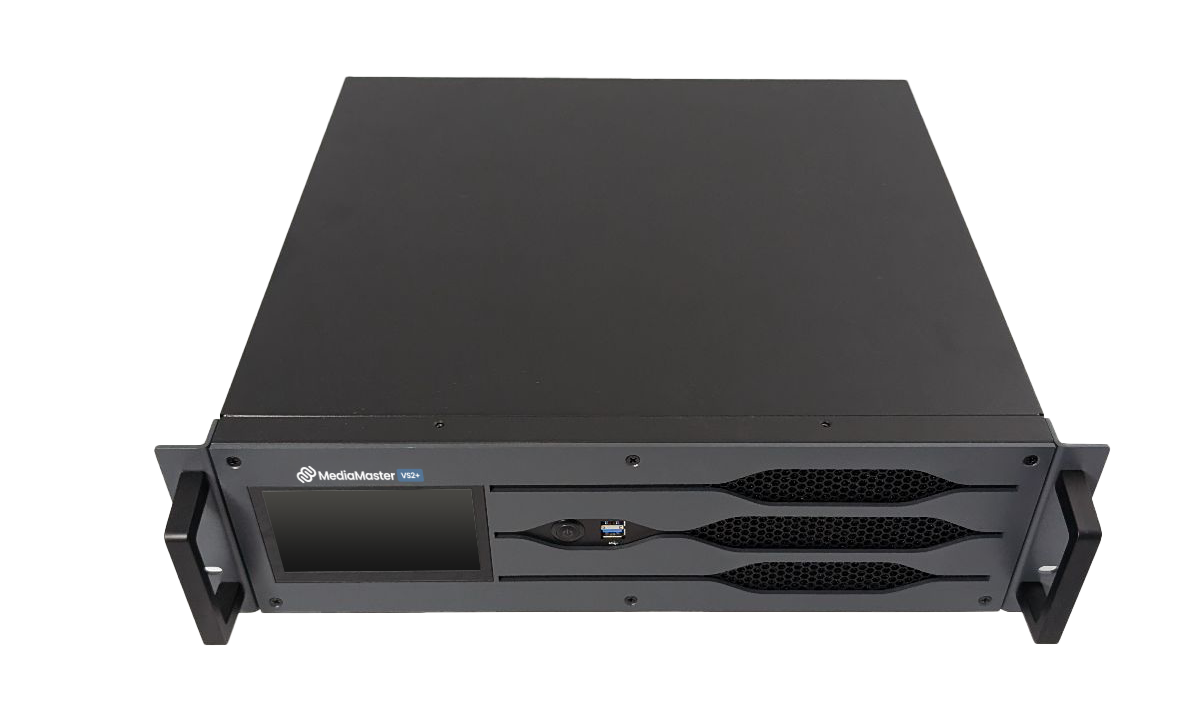

• Compact 3U Road-Ready Chassis — A rugged 3U enclosure at 10.4kg is built for the transport demands of rental houses and touring productions.
• Optional Capture Inputs — Optional 2x or 4x SDI or HDMI inputs allow live source capture for production and event workflows.

Typical Applications

• Rental house and dry-hire inventory
• Concert and touring video systems
• Live events and multi-purpose performance venues
• House of worship
• Broadcast studio and television production

Technical Specifications

Frequently Asked Questions

How many 4K outputs does the VS2+ provide?

The server provides two DisplayPort 4K media outputs for program video, plus two DisplayPort interface outputs for monitoring screens.

Which lighting consoles is the VS2+ compatible with?

It controls over Art-Net and sACN, so it integrates with any lighting console outputting these protocols; DMX control is available through the optional MagicDMX interface.

Does the VS2+ support NDI and IP video workflows?

Yes. It supports NDI 5 along with CITP/MSEX, and its dual 2.5 Gigabit Ethernet ports provide bandwidth for IP-based video distribution.

Can the server capture live video inputs?

Live capture is available through optional 2x or 4x SDI or HDMI input cards for production and event sources.

What rack space does the VS2+ require?

The unit is a 3U enclosure measuring 430 x 405 x 135 mm and weighing 10.4 kg, sized for standard equipment racks in touring and installed setups.

What software does the VS2+ run?

It runs MediaMaster Pro on Windows 11 Pro, supporting 48 playback layers, 250 surfaces, and 4096 presets, with integrated LED, Kling Net, and video mapping tools.

What support and warranty resources are available?

ChamSys provides cutsheets, documentation, and training resources through its support channels; confirm warranty terms and service options with Creation Networks at the time of purchase.
