ChamSys MagicQ Compact Wing

Product Overview

The ChamSys MagicQ Compact Wing is a playback expansion wing that adds physical playbacks to an existing MagicQ console or PC system. As a MagicQ playback expansion surface, it gives lighting operators 20 additional playbacks with tactile faders and executor buttons for touring, live events, and installed venues. Styled to match the MagicQ Compact series, it connects over USB to MagicQ consoles or to MagicQ on PC and Mac. It suits theatre, broadcast studio, and commercial venue deployments where an operator needs more hands-on playback control.

Product Description

MagicQ Compact Wing expands the number of physical playbacks available to a MagicQ user without replacing the existing console. It is compatible with current MagicQ console and PC systems and connects over USB, with up to two Compact Wings supported per system for scalable expansion. This makes it a practical addition for venues growing an existing MagicQ rig rather than buying a larger console.

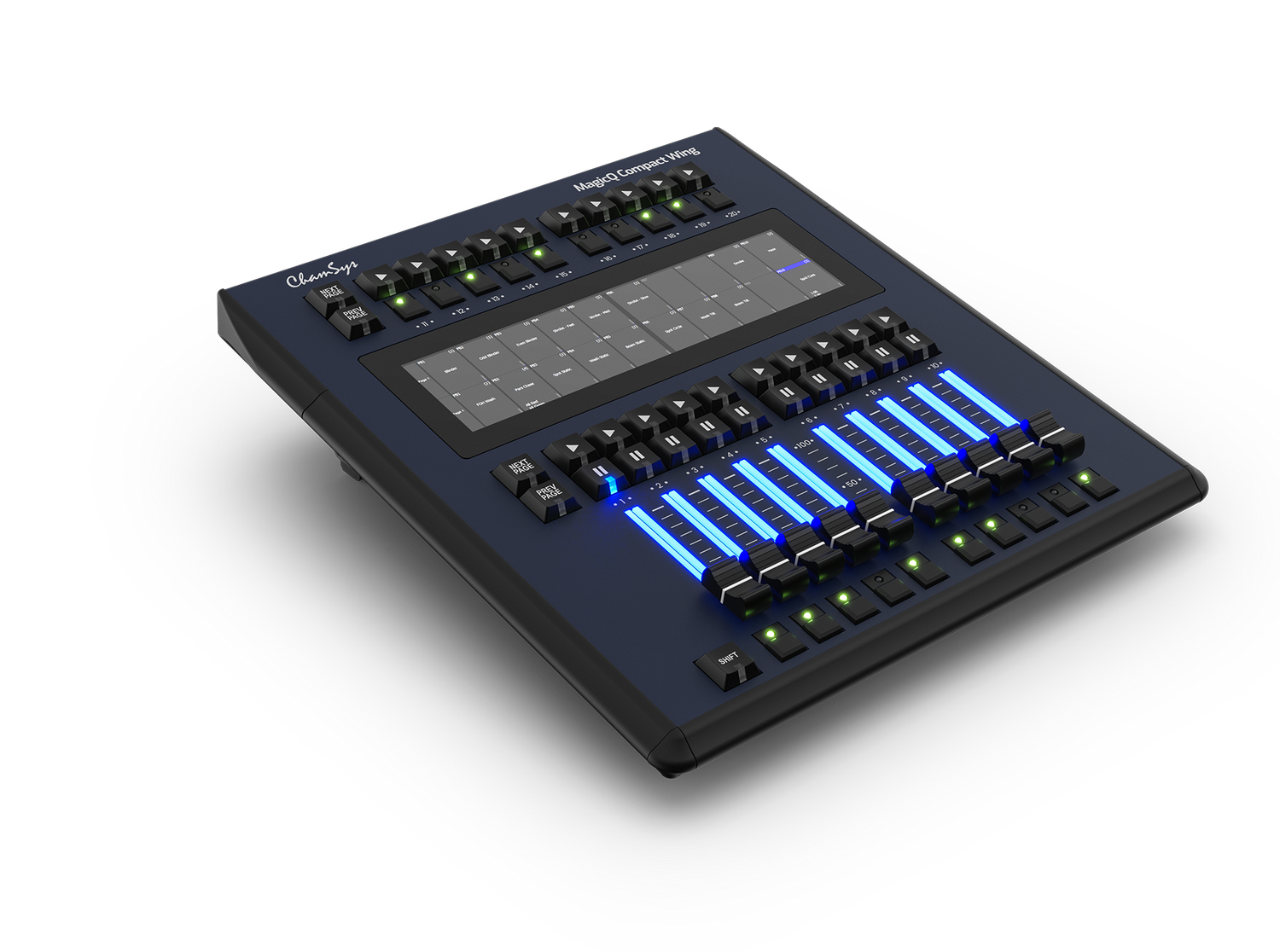

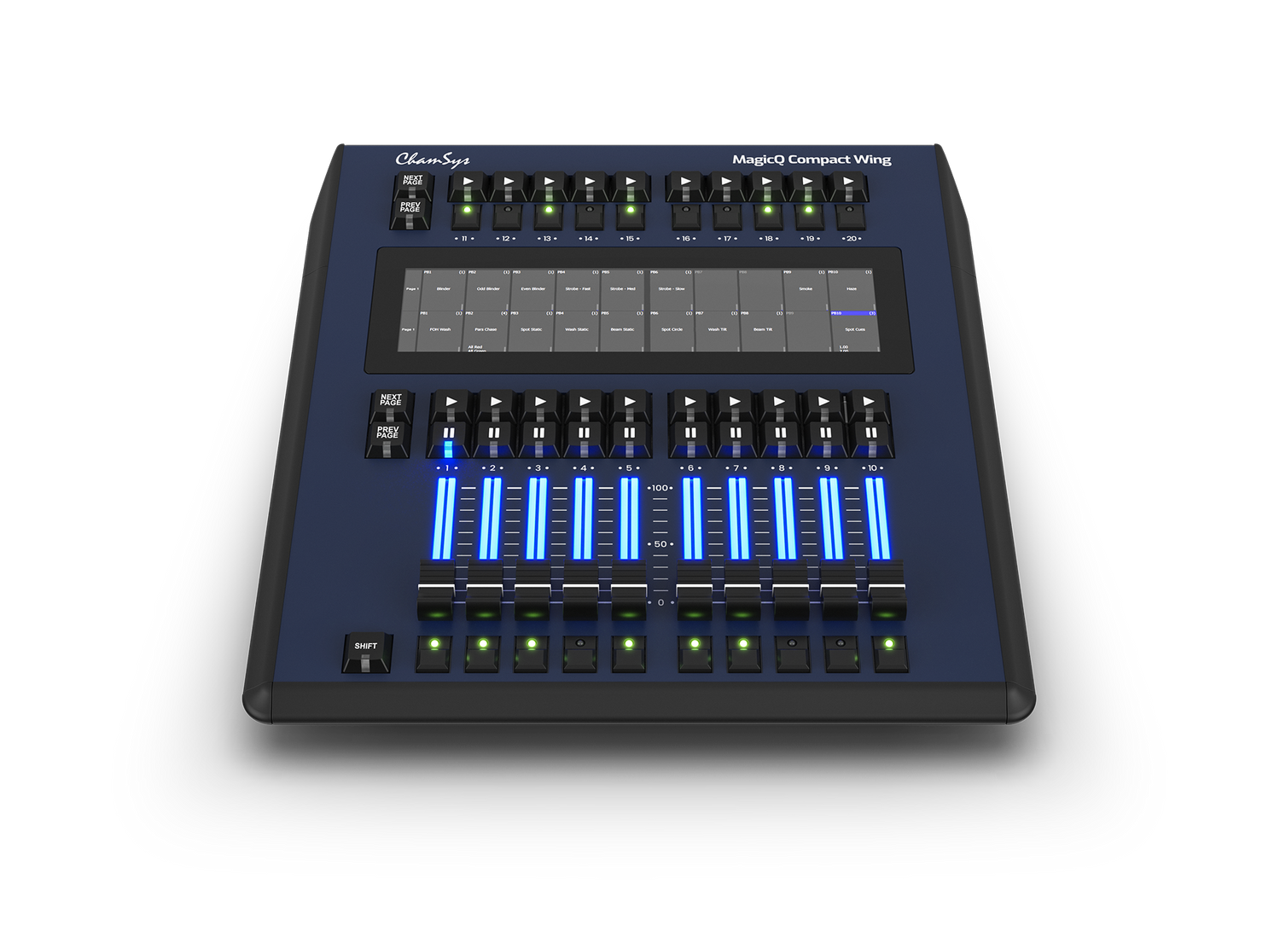

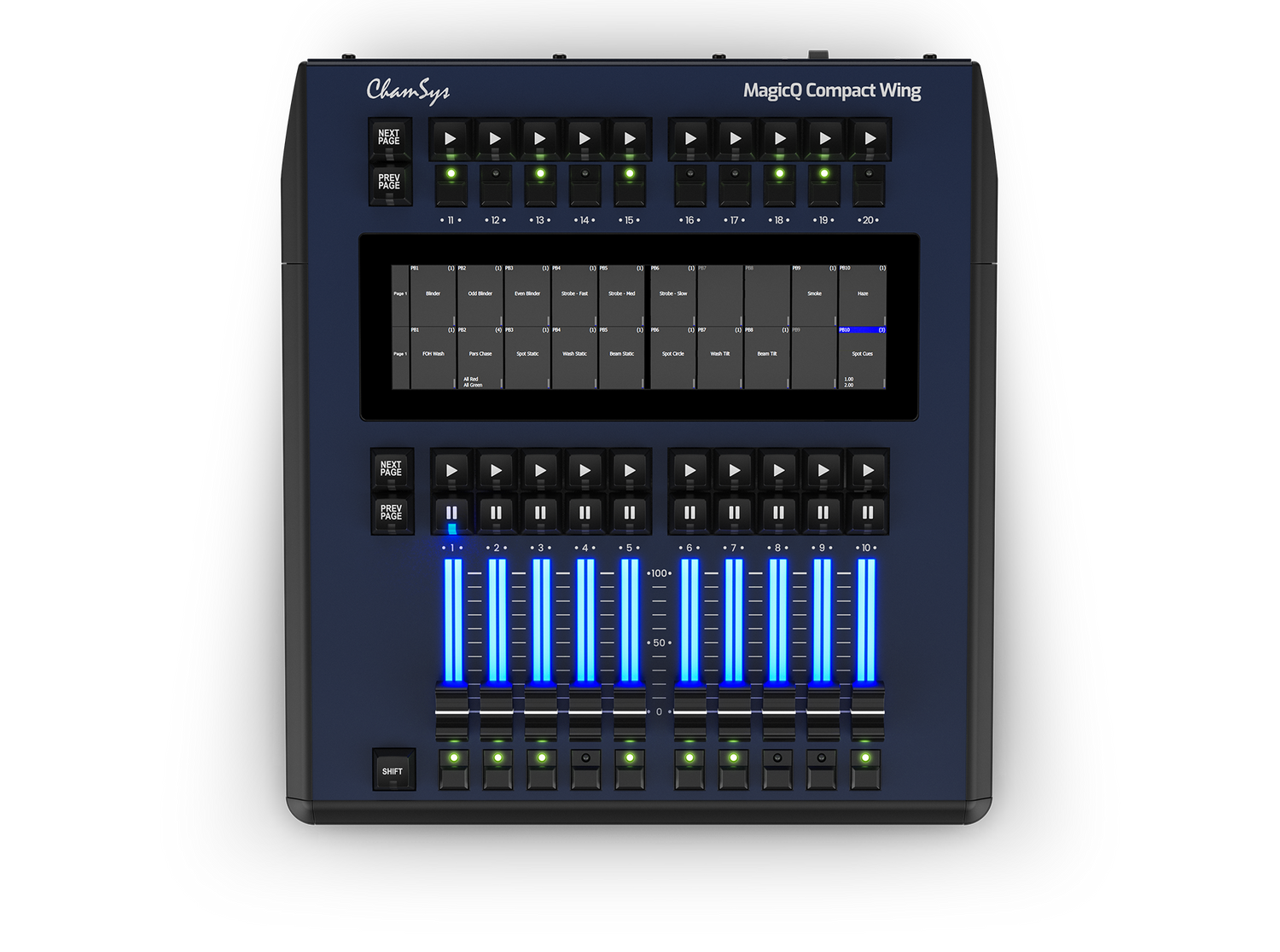

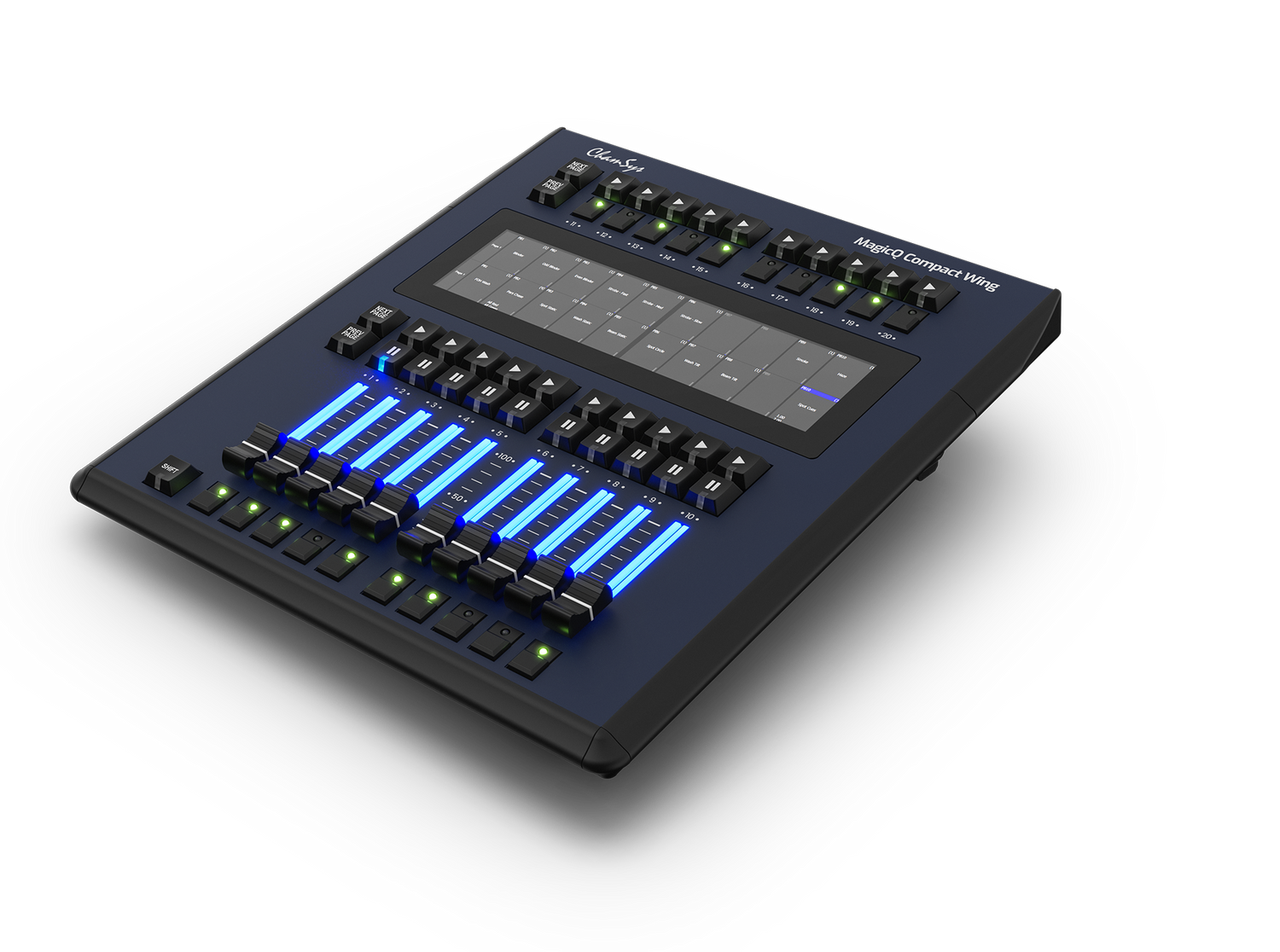

The wing provides 20 playbacks split into 10 fader playbacks and 10 executor playbacks. Each fader playback features Flash, Go, and Pause buttons, while the executor section adds Select and Flash buttons per playback. Both sections page independently through multiple playback pages using separate page up/down buttons. A large full-colour touchscreen handles fully electronic playback legending, so labels update automatically as pages change.

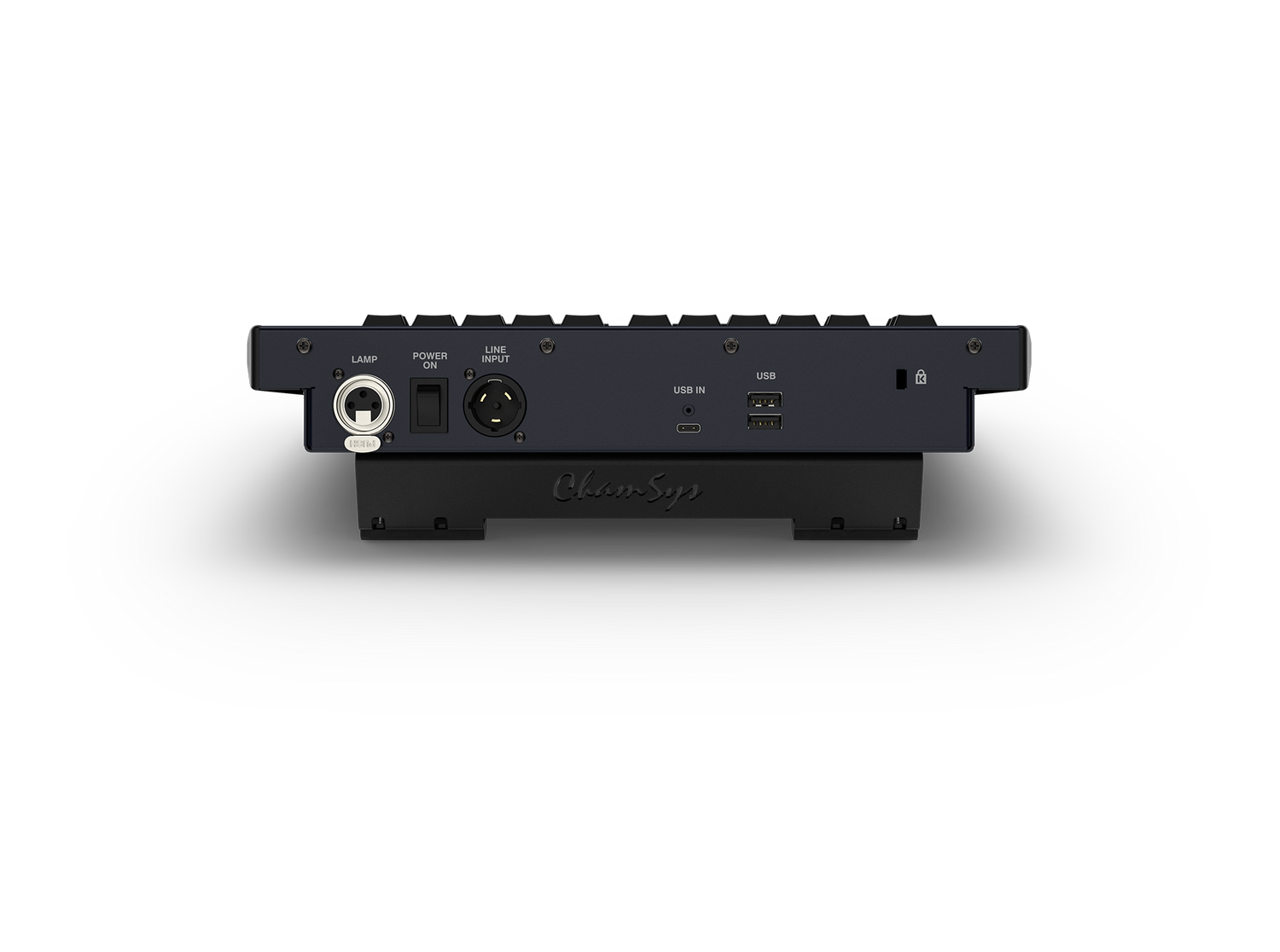

The rear panel includes USB connections, a dimmable working light socket, and a locking Neutrik powerCON TRUE1 connector into the wing's built-in power supply, accepting 100 to 240 VAC. A Kensington security lock fixing supports installation in fixed venues. With illuminated fader tracks and a balanced, portable form factor, the Compact Wing adds tactile control to any MagicQ system while matching the look of the MagicQ Compact range.

Key Features

• 20 added playbacks — Provide 10 fader playbacks and 10 executor playbacks to expand physical control on an existing MagicQ system.
• Full-colour touchscreen legending — Displays electronic playback labels that update automatically as the operator pages through playbacks.
• Independent paging sections — Let the fader and executor sections page through playback pages separately using dedicated page buttons.
• Broad console compatibility — Connects to MQ50, MQ70, MQ80, MQ250M, MQ500, MQ500M, and MQ500M+ consoles as well as MagicQ PC and macOS systems.
• Scalable USB expansion — Supports up to two Compact Wings per system over USB for larger playback layouts.
• Dimmable working light — Includes a dual-colour working light socket for visibility in dark performance environments.
• Locking powerCON TRUE1 input — Accepts 100 to 240 VAC into the built-in power supply for reliable touring and installed power.
• Kensington lock fixing — Allows the wing to be physically secured in permanent installations.

Typical Applications

• Touring and live events lighting control
• Theatre and auditorium installations
• Broadcast studios
• School and education performance spaces
• Nightclubs and bars
• Commercial venues expanding an existing MagicQ system

Technical Specifications

Frequently Asked Questions

Which consoles is the Compact Wing compatible with?

It connects to MQ50, MQ70, MQ80, MQ250M, MQ500, MQ500M, and MQ500M+ consoles, as well as MagicQ running on PC or macOS systems.

How does the Compact Wing connect to a system?

The wing connects over USB, and up to two Compact Wings can be added per system for scalable playback expansion.

Does the wing output DMX on its own?

The Compact Wing is a playback expansion surface that adds physical playbacks to a MagicQ system; DMX and universe output is handled by the connected console or PC system it operates with.

How are playbacks labelled?

A large full-colour touchscreen provides fully electronic playback legending, so playback labels update automatically as the operator changes pages.

Can it be secured in a fixed installation?

Yes. The wing includes a Kensington security lock fixing for installed venues while remaining portable for touring use.

What support is available?

ChamSys publishes the MagicQ manual and training resources, and the wing ships with the standard MagicQ accessories. Contact Creation Networks for integration, deployment, and support guidance.
