ChamSys GeNetix GW2O
Product Overview
The ChamSys GeNetix GW2O is a two-port, PoE-powered wall mount DMX node with female DMX connectors, built to deliver Art-Net and sACN control to fixed installations. It fits standard single-gang US, UK, and EU back boxes and provides two RDM-capable DMX ports, each configurable for input or output. With an inbuilt web server, ChamNet support, and configuration from MagicQ or QuickQ consoles, the GW2O converts network data to DMX behind a discreet wall plate. Interchangeable black and white faceplates are supplied.
Product Description
The GeNetix GW2O is a wall mount network node that converts Art-Net and sACN lighting data to DMX at the point of use, removing the need for long home-run DMX cabling in permanent installations. It provides two RDM Direct DMX ports with female connectors, each independently configurable as input or output, plus a single network port on a punchdown connector for clean in-wall termination. PoE delivers both data and power over a single Ethernet cable.
As part of the GeNetix node family, the GW2O supports Art-Net V1 through V4 and sACN with per-universe priorities, plus Remote Device Management for fixture addressing. DMX timings are fully configurable, including refresh rate, break time, frame time, and MAB. DMX redundancy support and configurable lost-data behavior (hold, none, or zeros) keep output predictable in critical installs. Configuration is handled from ChamSys consoles, over Art-Net, or through the built-in web server.
The GW2O is available in US, UK, and EU back box variants; this version carries female DMX ports. The US version measures 70 x 37.5 x 115 mm and weighs 0.15 kg. Interchangeable black and white faceplates are included to match the interior. Note that the GW2O does not unlock demo mode on MagicQ PC systems.
Key Features
- Two RDM DMX ports — Female DMX connectors, each independently configurable as input or output with RDM support.
- PoE powered — A single Ethernet cable supplies both data and power for clean installation.
- Art-Net and sACN — Supports Art-Net V1 through V4 and sACN with per-universe priorities.
- Inbuilt web server — Configure the node over the network without dedicated software.
- Configurable DMX timings — Adjust refresh rate, break time, frame time, and MAB.
- DMX redundancy support — Maintains output reliability with configurable lost-data behavior.
- Single-gang fit — Available in US, UK, and EU back box variants.

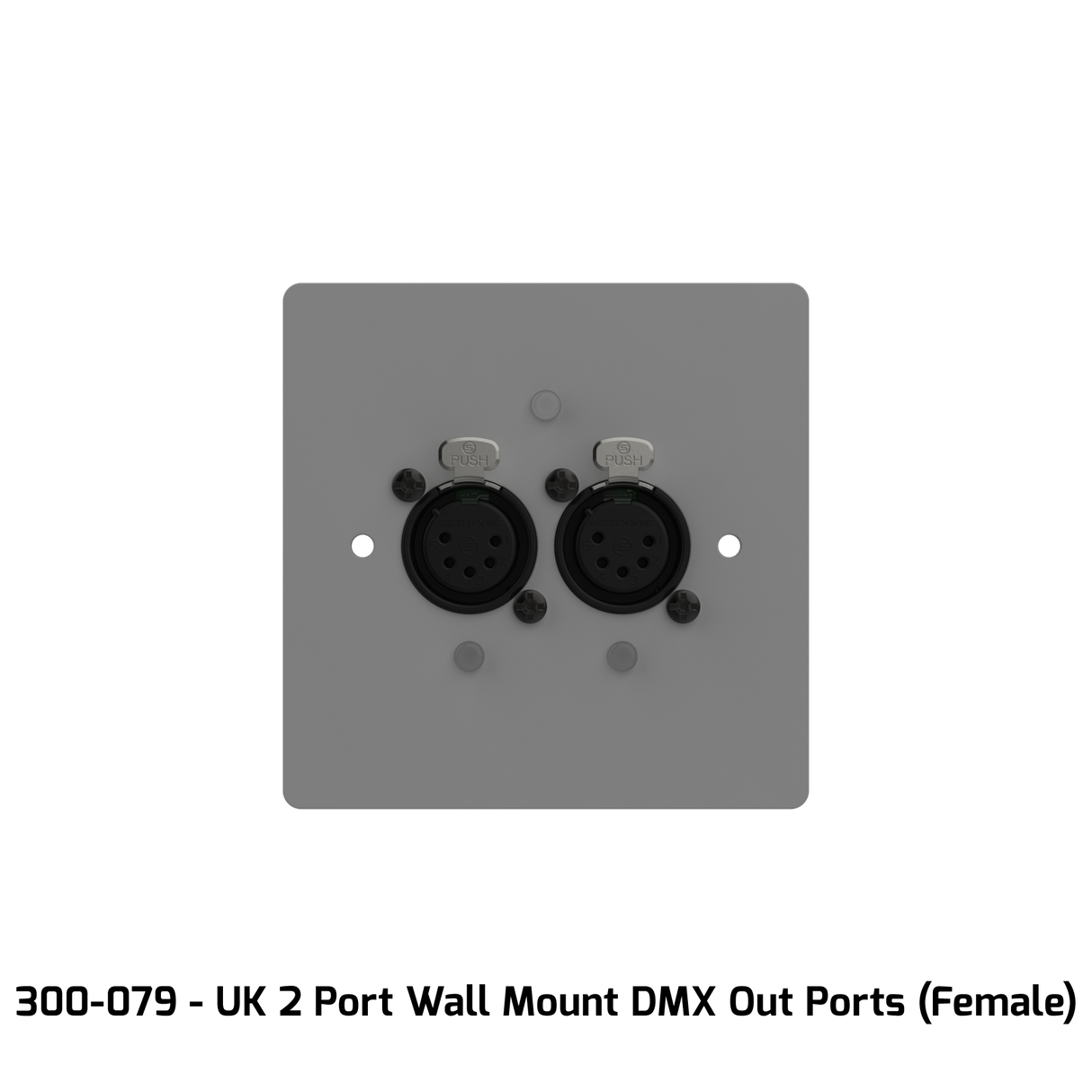

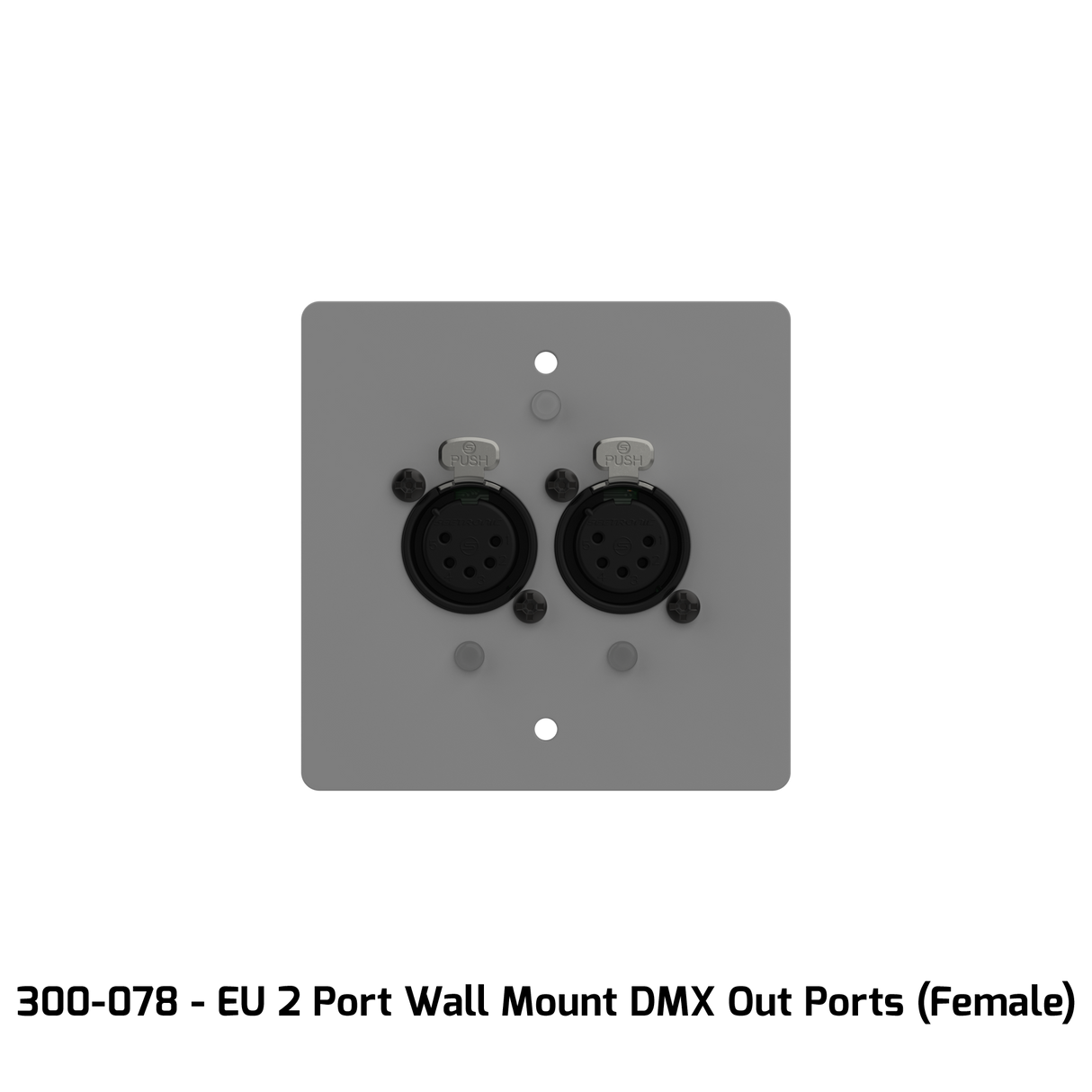

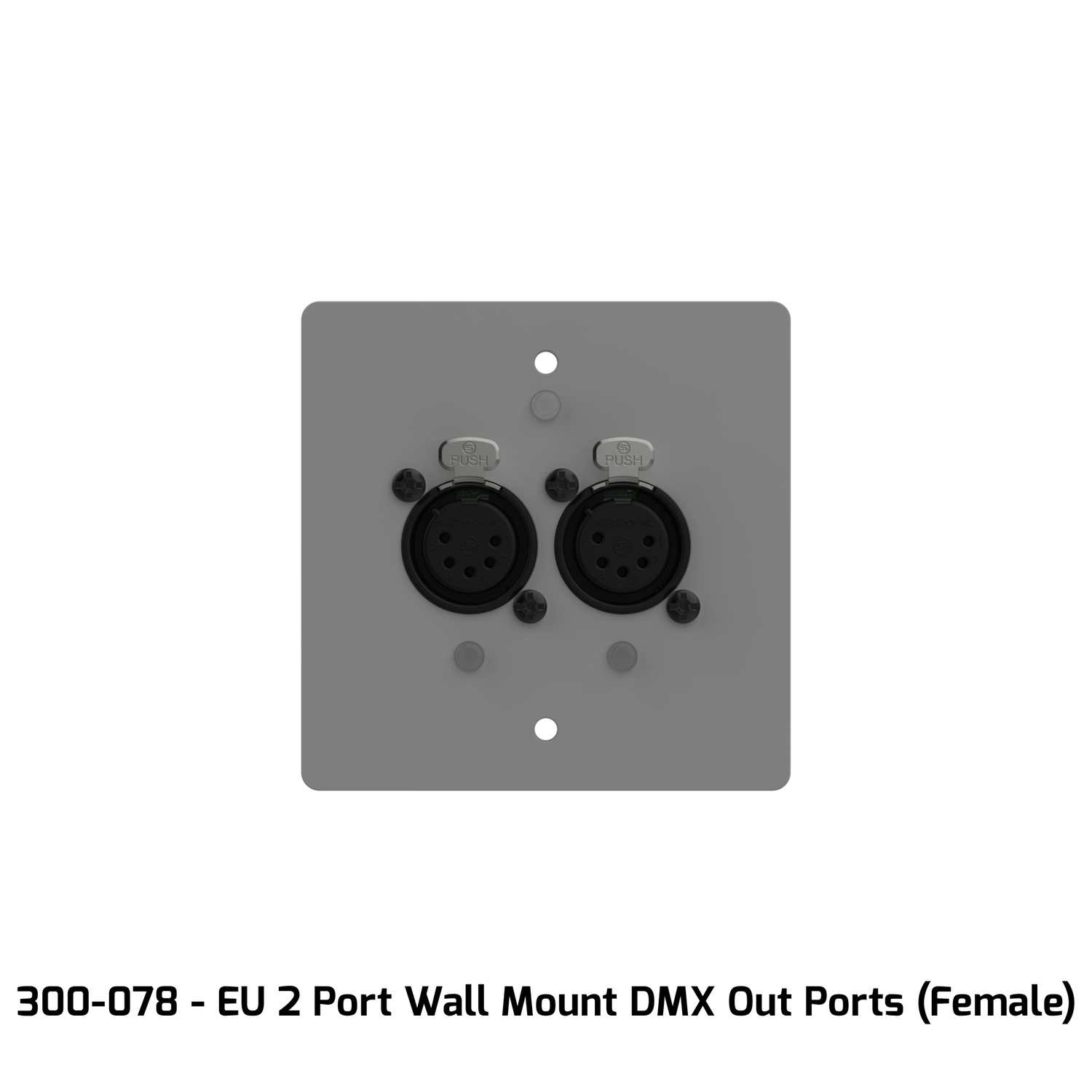

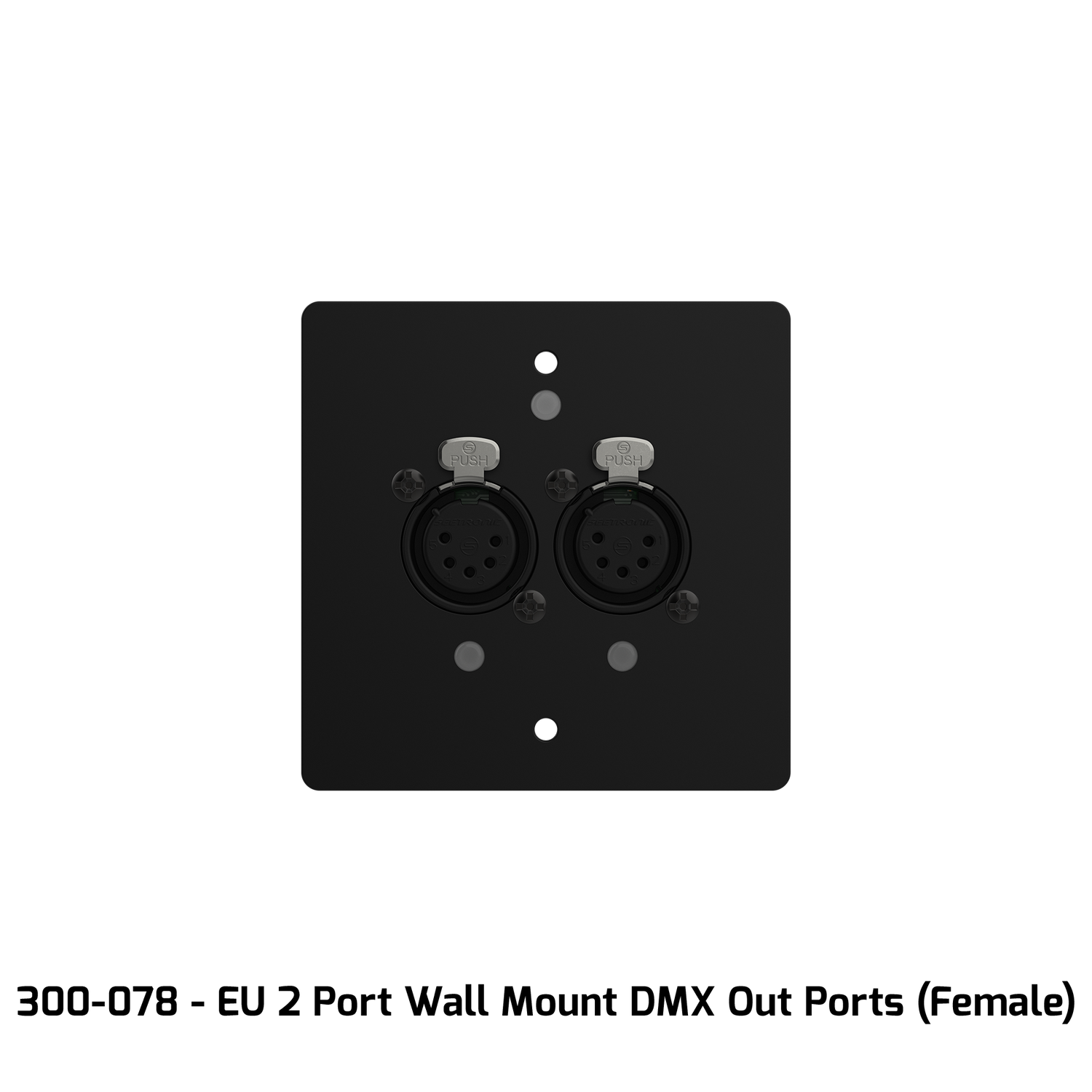

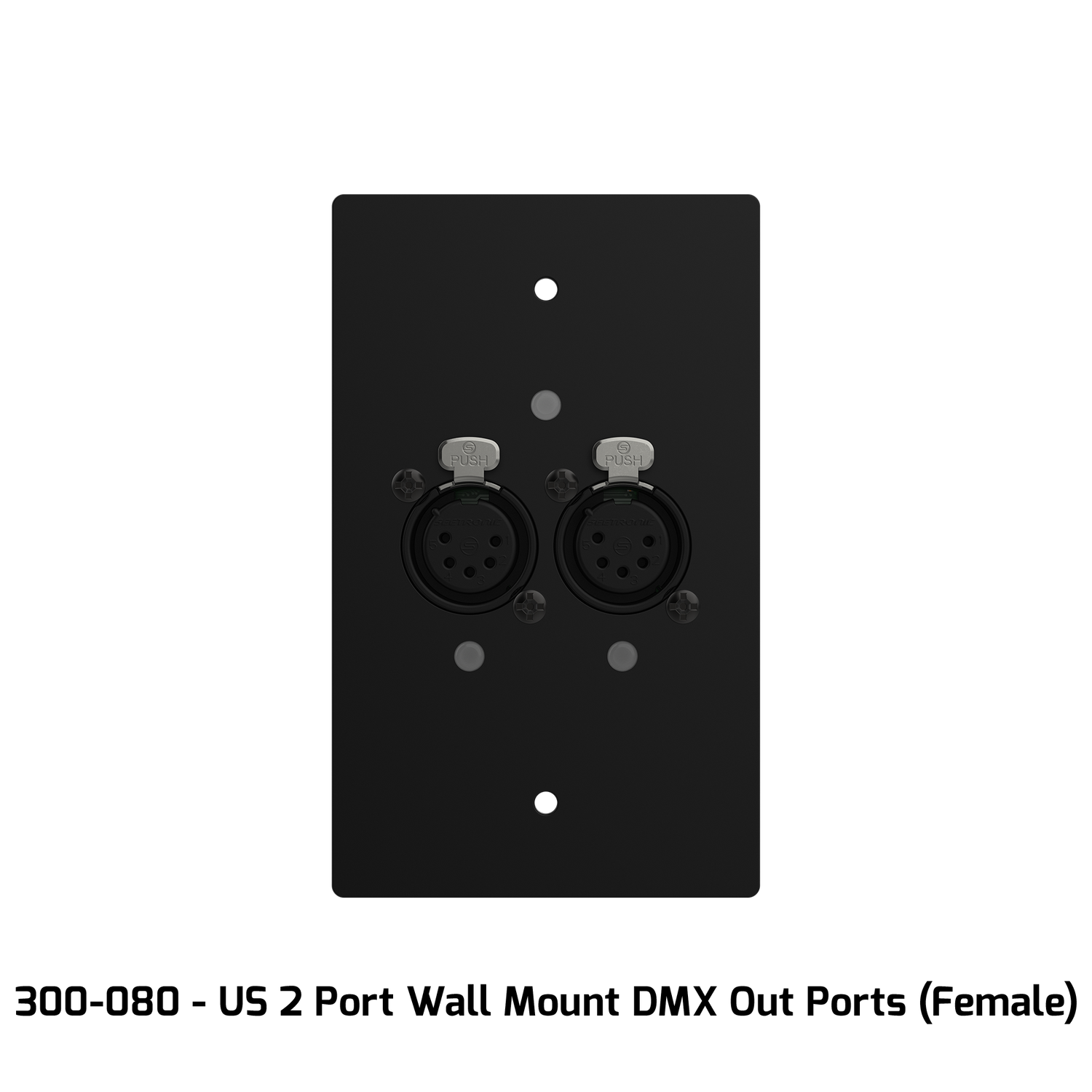

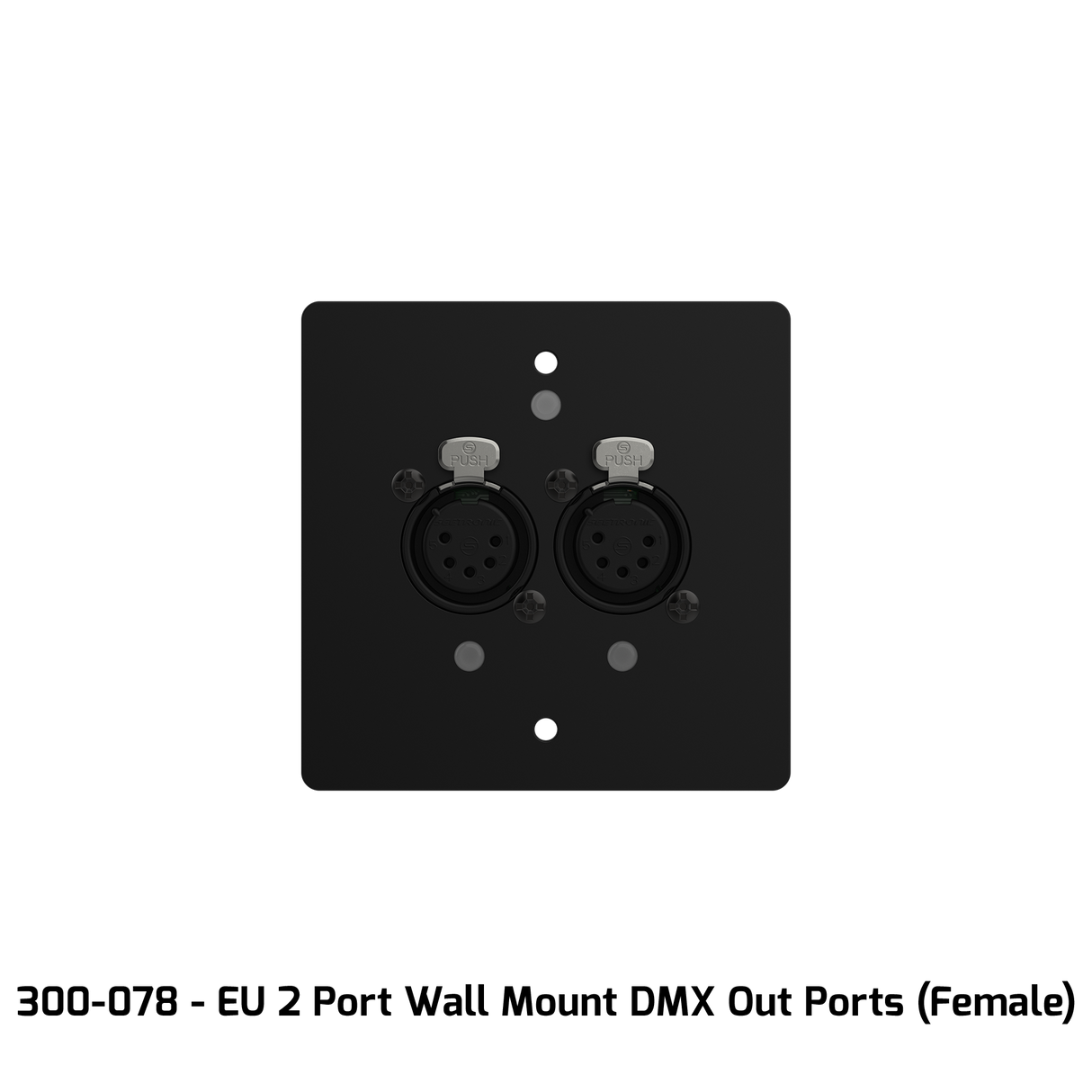

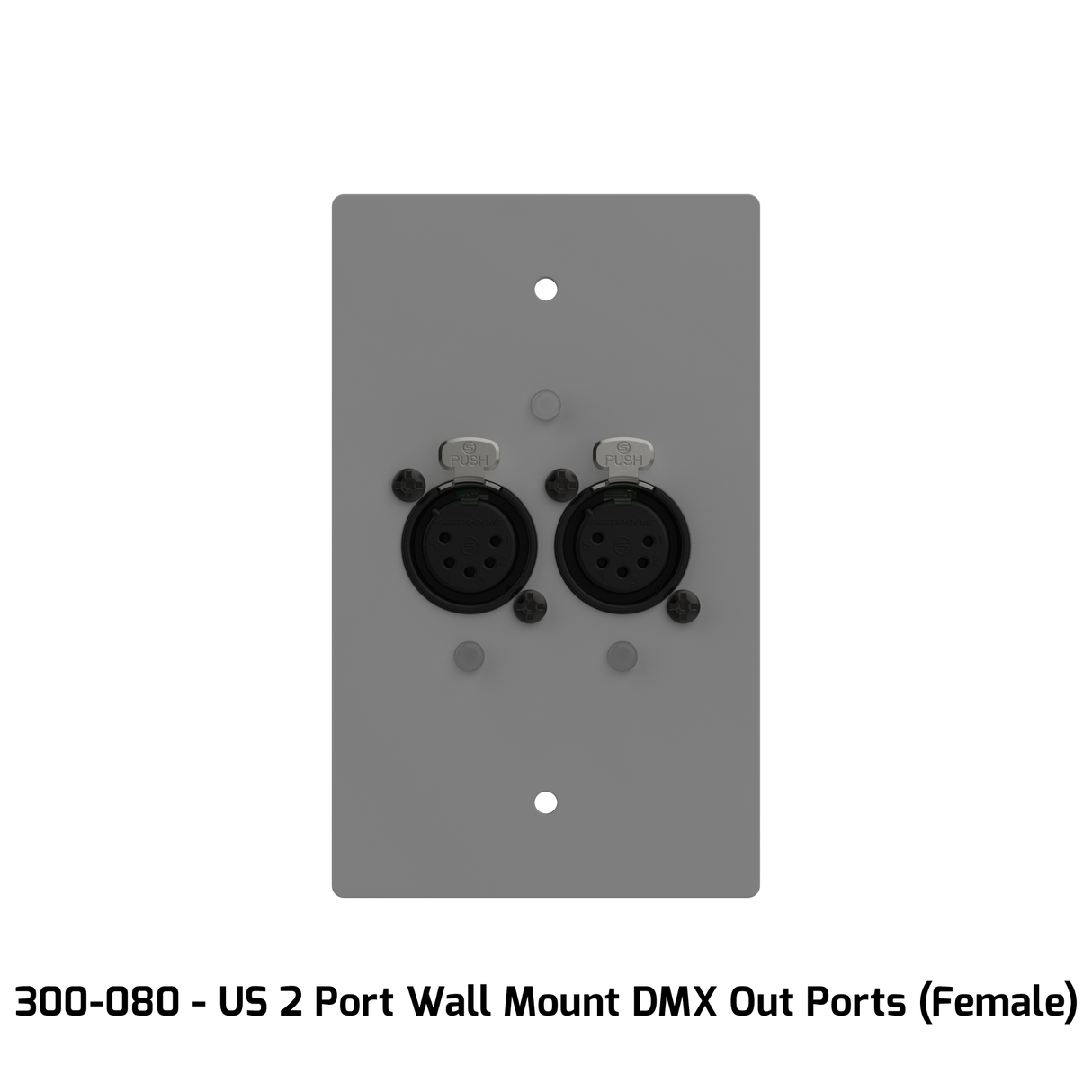

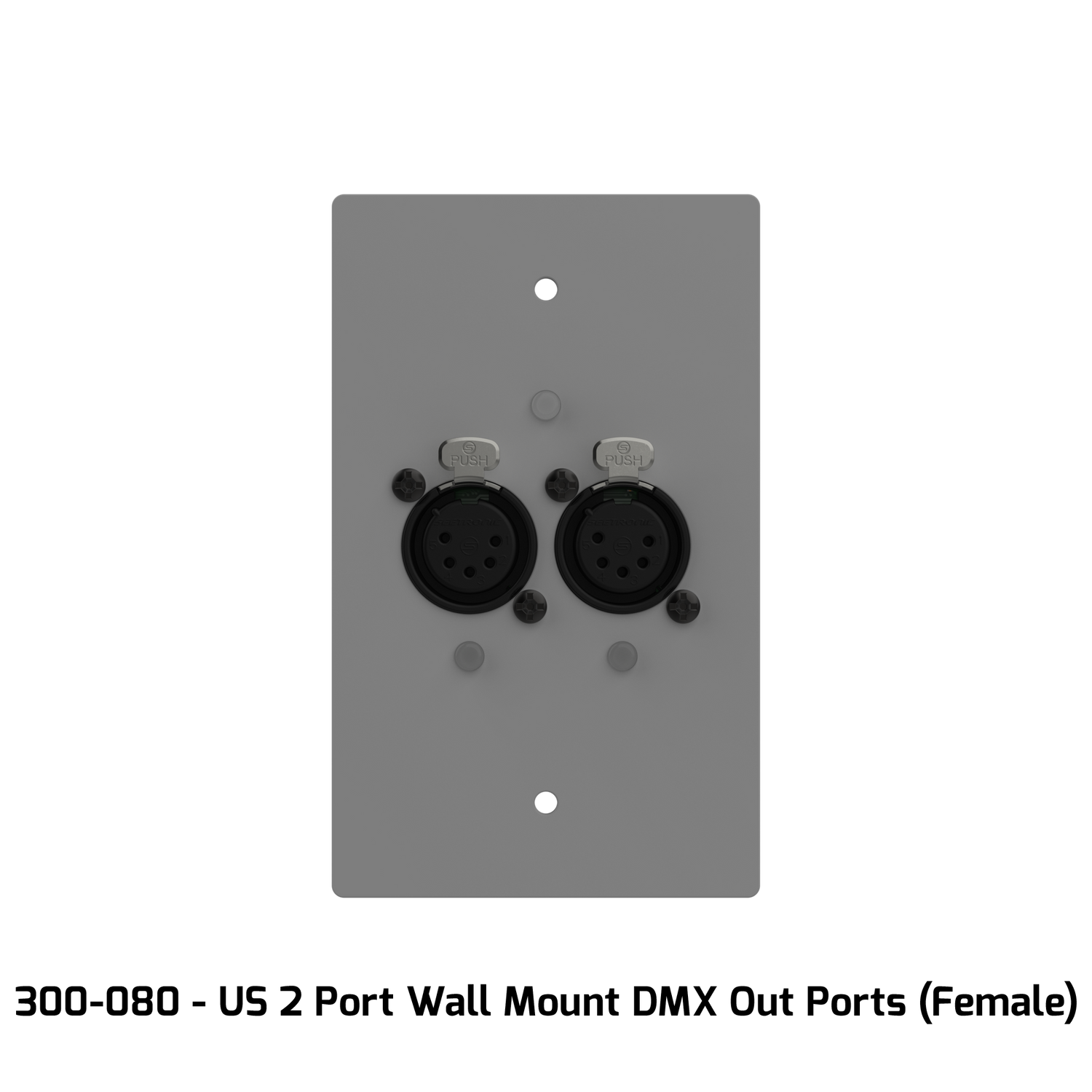

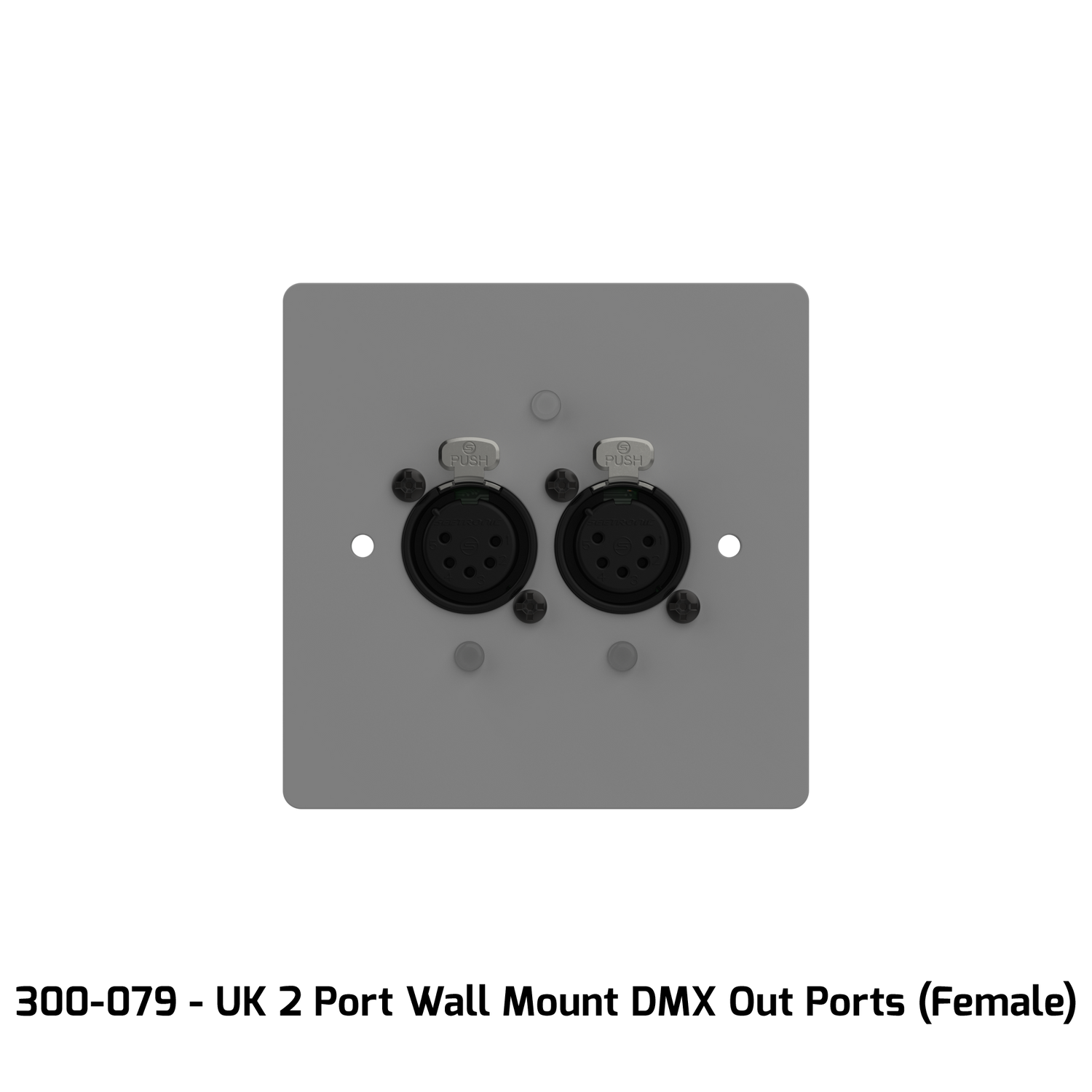

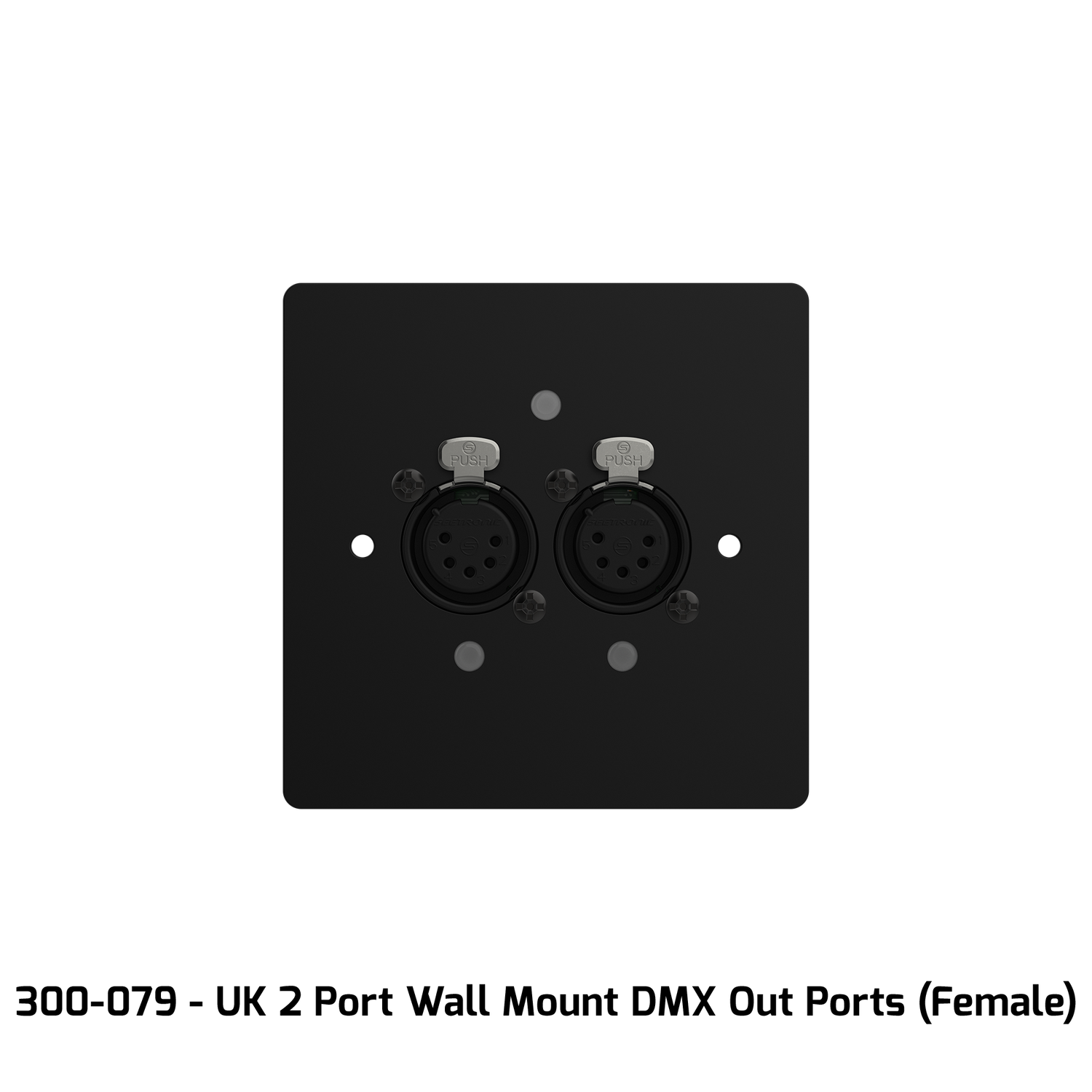

- Interchangeable faceplates — Supplied with both black and white faceplates to match the interior.
Typical Applications
- Architectural and interior lighting installations needing in-wall DMX nodes
- House of worship venues distributing Art-Net or sACN to local fixtures
- Hospitality, retail, and corporate spaces requiring discreet wall-mounted control
- Theatre and studio installs converting network data to DMX at fixture positions
- Permanent installations replacing long DMX cable runs with structured cabling
Technical Specifications
| RDM Direct DMX Ports | 2 (Female, Input or Output) |
| Network Ports | 1 (punchdown connector) |
| PoE Powered | Yes |
| Back Box Variants | US, UK, EU single gang |
| Art-Net/sACN | Yes |
| ChamNet Support | Yes |
| Configurable DMX Timings | Yes |
| Web Server | Yes |
| DMX Redundancy Support | Yes |
| US Version Dimensions | 70 x 37.5 x 115 mm |
| Weight | 0.15 kg (0.33 lb) |
| Included Accessories | Black and White Faceplates |
Frequently Asked Questions
What is the difference between the GW2O and the GW2I?
The GW2O ships with female DMX ports, while the GW2I ships with male DMX ports. Both support DMX input or output on each port.
Can the GW2O ports be used for both input and output?
Yes. Both RDM Direct DMX ports support either DMX input or output and are independently configurable.
How is the GW2O powered?
It is PoE powered, so a single Ethernet cable carries both data and power.
Which back boxes does it fit?
It is available in variants to fit standard single-gang US, UK, and EU back boxes.
What protocols does it support?
It supports Art-Net V1 through V4 and sACN with per-universe priorities, plus RDM.
Does the GW2O unlock demo mode on MagicQ PC systems?
No. The GW2O does not unlock demo mode on MagicQ PC systems.
