ChamSys GeNetix GN8

Product Overview

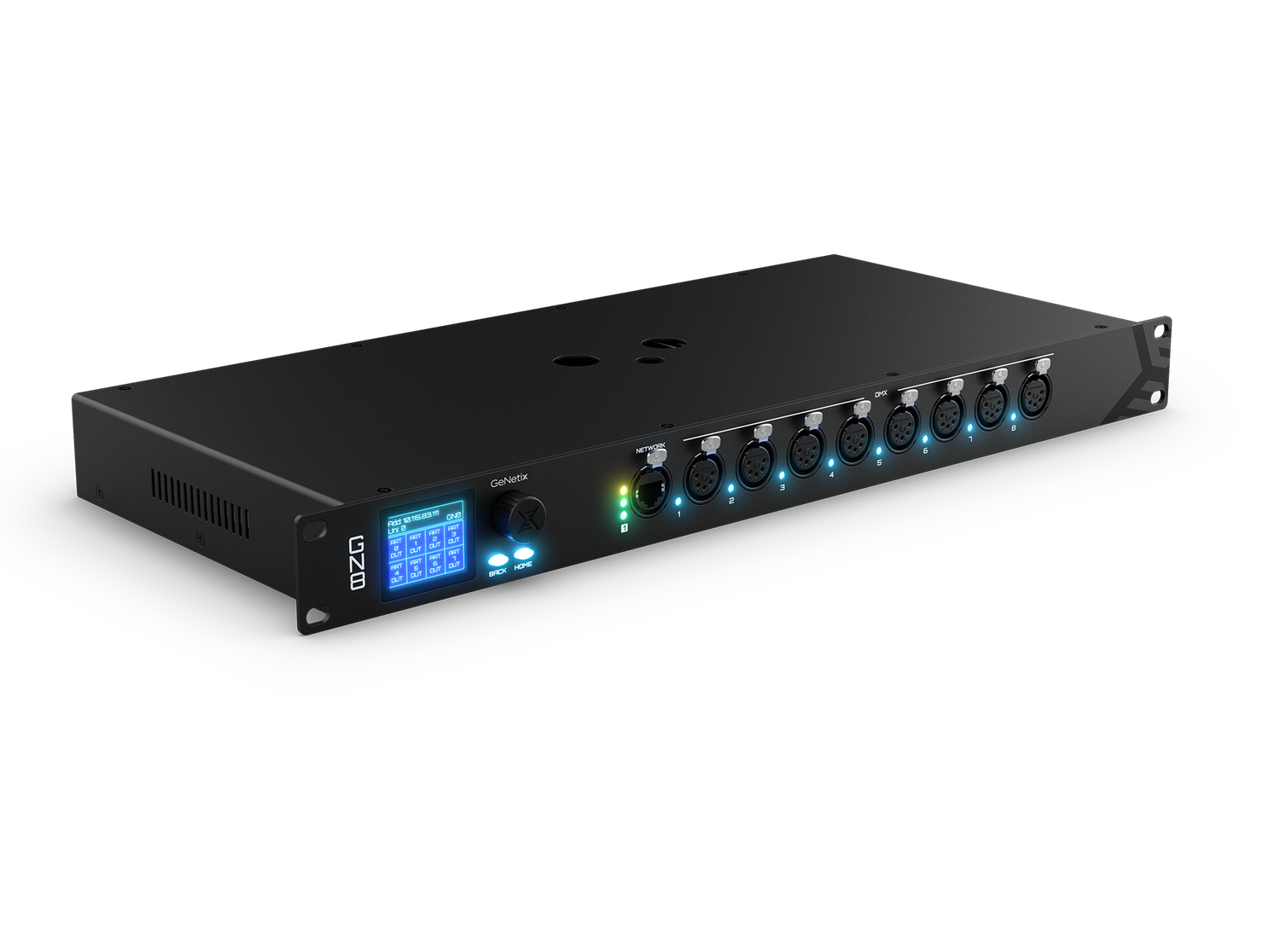

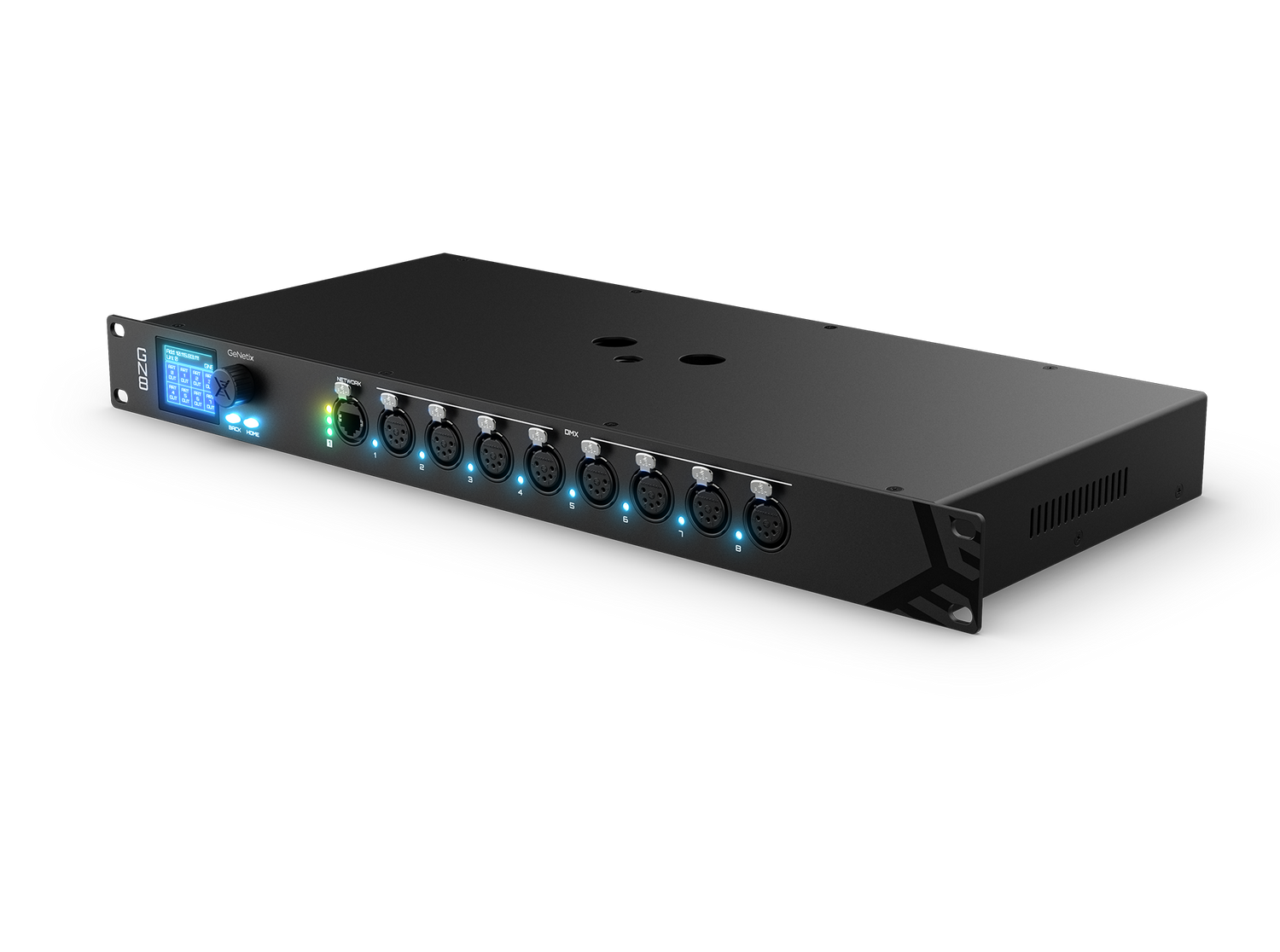

The ChamSys GeNetix GN8 is a straightforward Art-Net and sACN to DMX node built for both installed and live applications. It provides 8 RDM DMX output ports with configurable DMX timing and supports remote configuration from ChamSys consoles, its built-in web server, or the front-panel display. The node mounts in a truss via its M12 receiver or in a rack via its rack ears. It is mains powered through a powerCON TRUE1 input with a link-out for daisy-chaining power.

Product Description

The GeNetix GN8 is a cost-effective, reduced feature set DMX network node that converts Art-Net and sACN network data into 8 ports of physical DMX output. Each port supports RDM for remote device management, and DMX timings are fully configurable including refresh rate, break time, frame time, and MAB. The node supports Art-Net V1 through V4 and sACN with per-universe priorities. Lost data behaviour is configurable across three modes: hold last values, output nothing, or output zeroes on all channels.

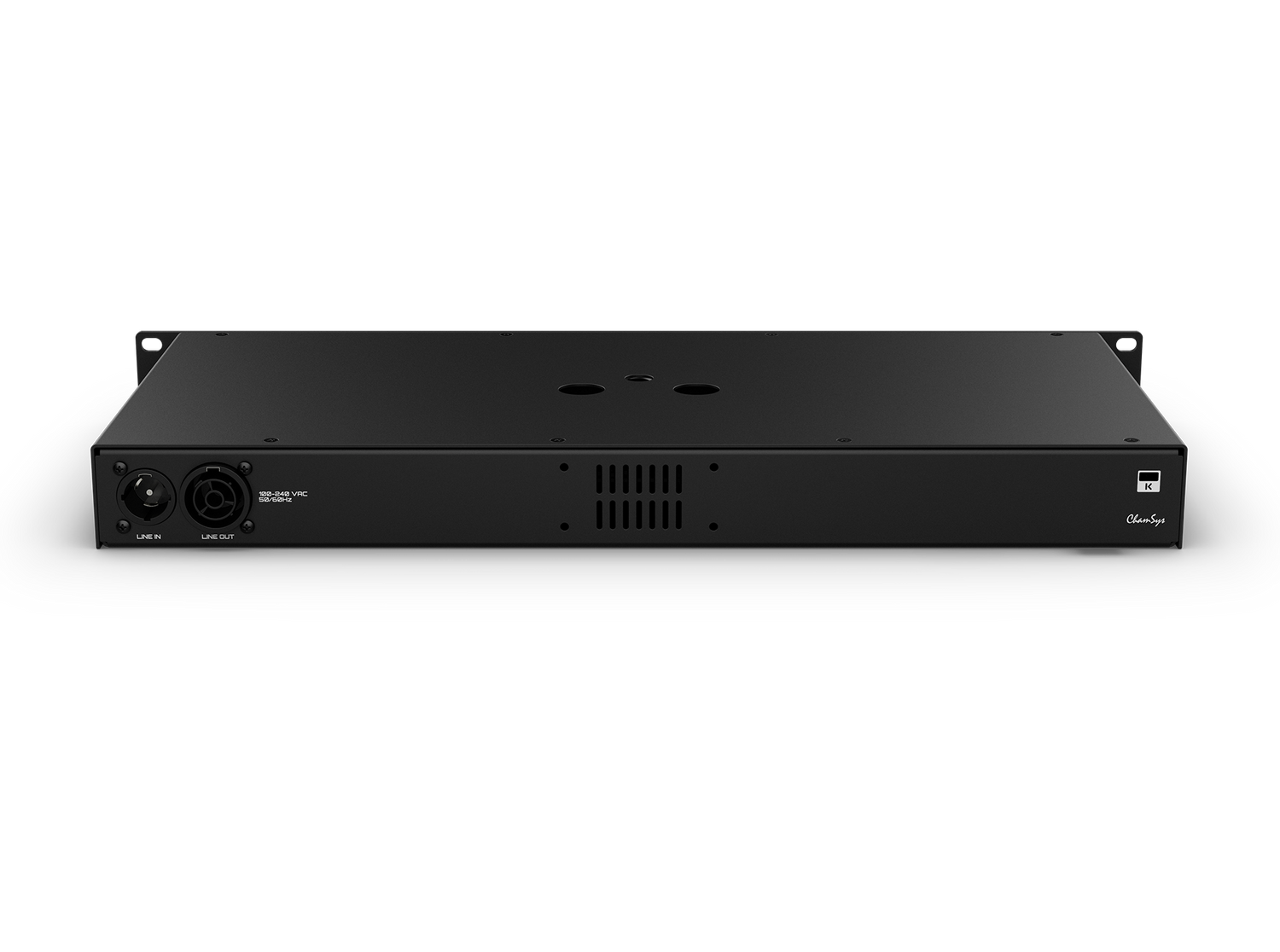

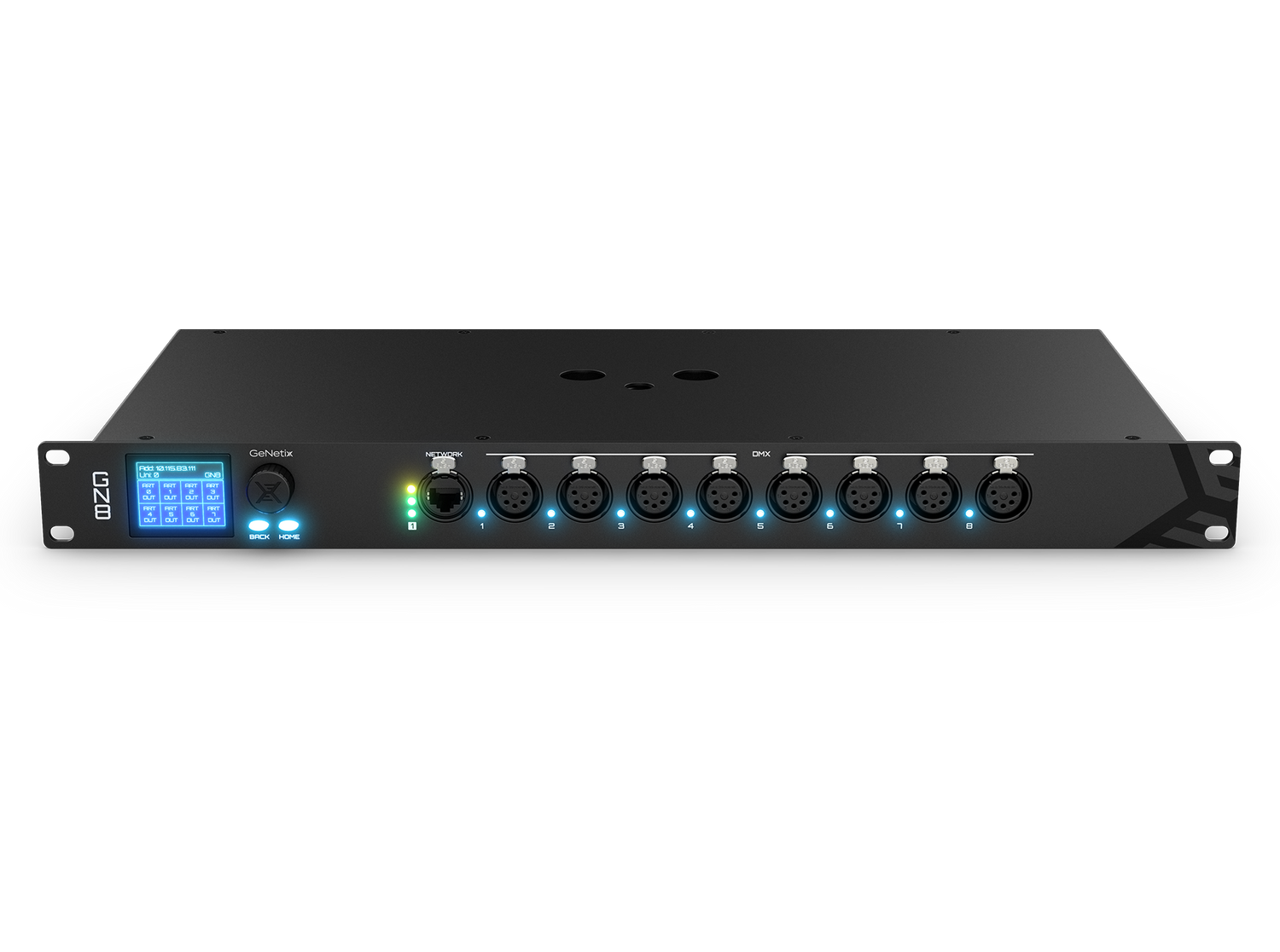

Configuration is handled remotely from MagicQ and QuickQ consoles, through the built-in web server, or locally on the front-panel display and encoder, with a lock PIN to prevent unauthorised front-panel changes. When used with MagicQ consoles, the GN8 supports synchronised DMX output over ChamNet to reduce tearing. A single network port feeds the node, and a powerCON TRUE1 link out allows power to be passed to another device. A Kensington security lock fixing is provided. Note that the GN8 does not unlock demo mode on MagicQ PC systems.

Key Features

• 8 RDM DMX Output Ports — Eight DMX output ports with RDM support for remote device management.
• Art-Net and sACN — Supports Art-Net V1 to V4 and sACN with per-universe priorities.
• Configurable DMX Timing — Adjustable refresh rate, break time, frame time, and MAB.
• Lost Data Behaviour — Selectable hold, none, or zeroes output when network data is lost.
• DMX Synchronisation — Synchronised DMX output over ChamNet with MagicQ consoles to reduce tearing.
• Multiple Configuration Methods — Configure from ChamSys consoles, the built-in web server, or the front-panel display.
• Lock PIN — Front-panel lock PIN prevents unauthorised configuration changes.
• powerCON TRUE1 with Link Out — Mains input at 110 to 240 VAC with a link out for power daisy-chaining.
• Flexible Mounting — Truss-mount via M12 receiver or rack-mount via rack ears.
• Kensington Lock Fixing — Security lock point for installed applications.

Typical Applications

• Permanent Installations — Rack-mounted Art-Net or sACN to DMX distribution for fixed systems.
• Concert and Touring Rigs — Truss-mounted DMX output for live production lighting.
• Theatres — Network-to-DMX conversion with configurable lost-data behaviour.
• House of Worship — Straightforward multi-port DMX distribution from a network backbone.

Technical Specifications

Frequently Asked Questions

How many DMX outputs does the GeNetix GN8 have?
The GN8 provides 8 RDM DMX output ports.

What network protocols does the GN8 support?
It supports Art-Net V1 through V4, sACN with per-universe priorities, RDM, and ChamNet.

How is the GN8 powered?
It is mains powered through a powerCON TRUE1 input at 110 to 240 VAC, with a powerCON TRUE1 link out for daisy-chaining power.

Does the GN8 unlock MagicQ PC demo mode?
No. The GN8 does not unlock demo mode on MagicQ PC systems.

What happens if the GN8 loses network data?
It supports three lost-data modes: hold the last DMX values, output nothing, or output zeroes on all channels.

How is the GN8 configured?
It can be configured remotely from ChamSys consoles, via its built-in web server, or locally on the front-panel display, with a lock PIN to protect settings.

How does the GN8 mount?
It can be truss-mounted via its M12 receiver or rack-mounted using its rack ears.
