ChamSys GeNetix GD4D

Product Overview

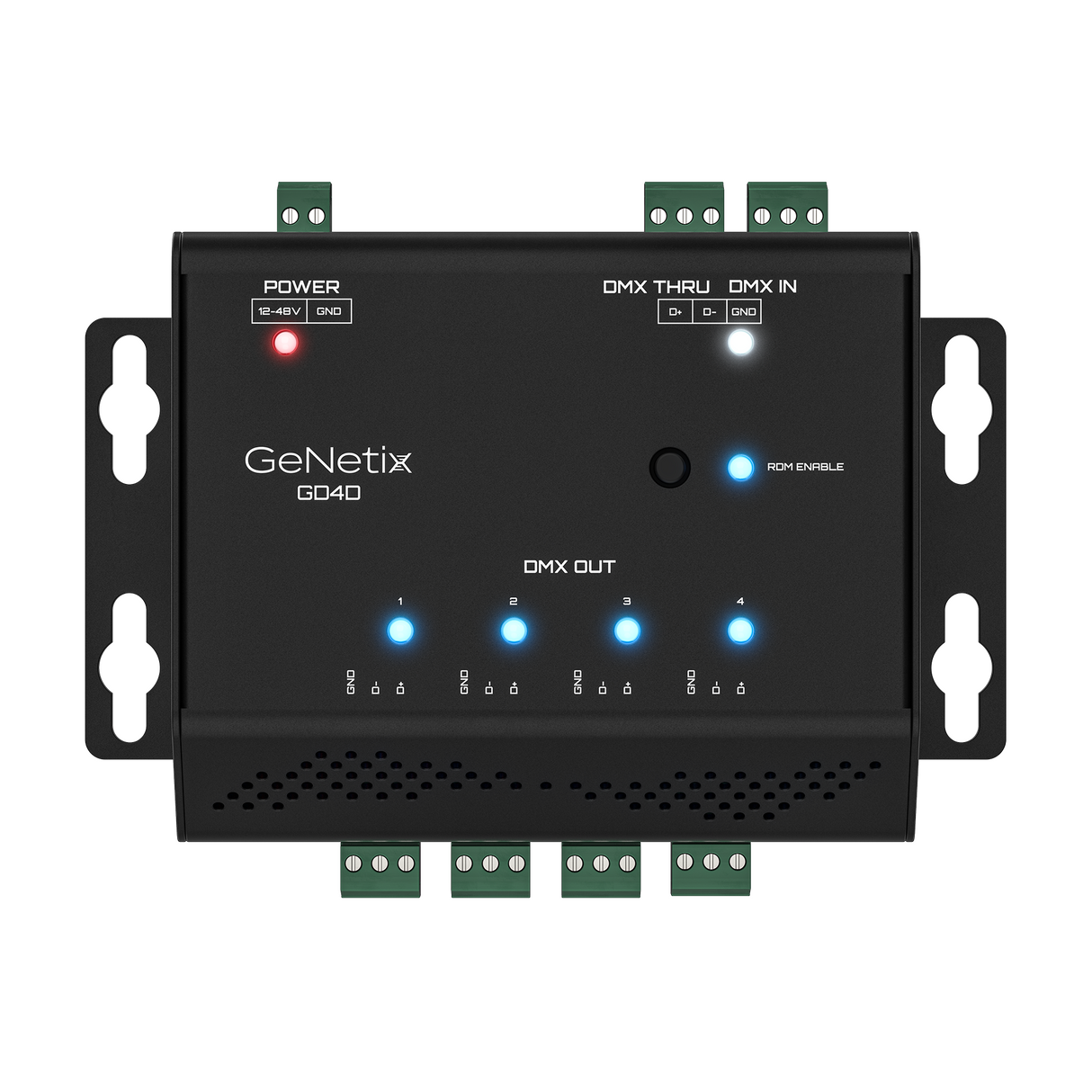

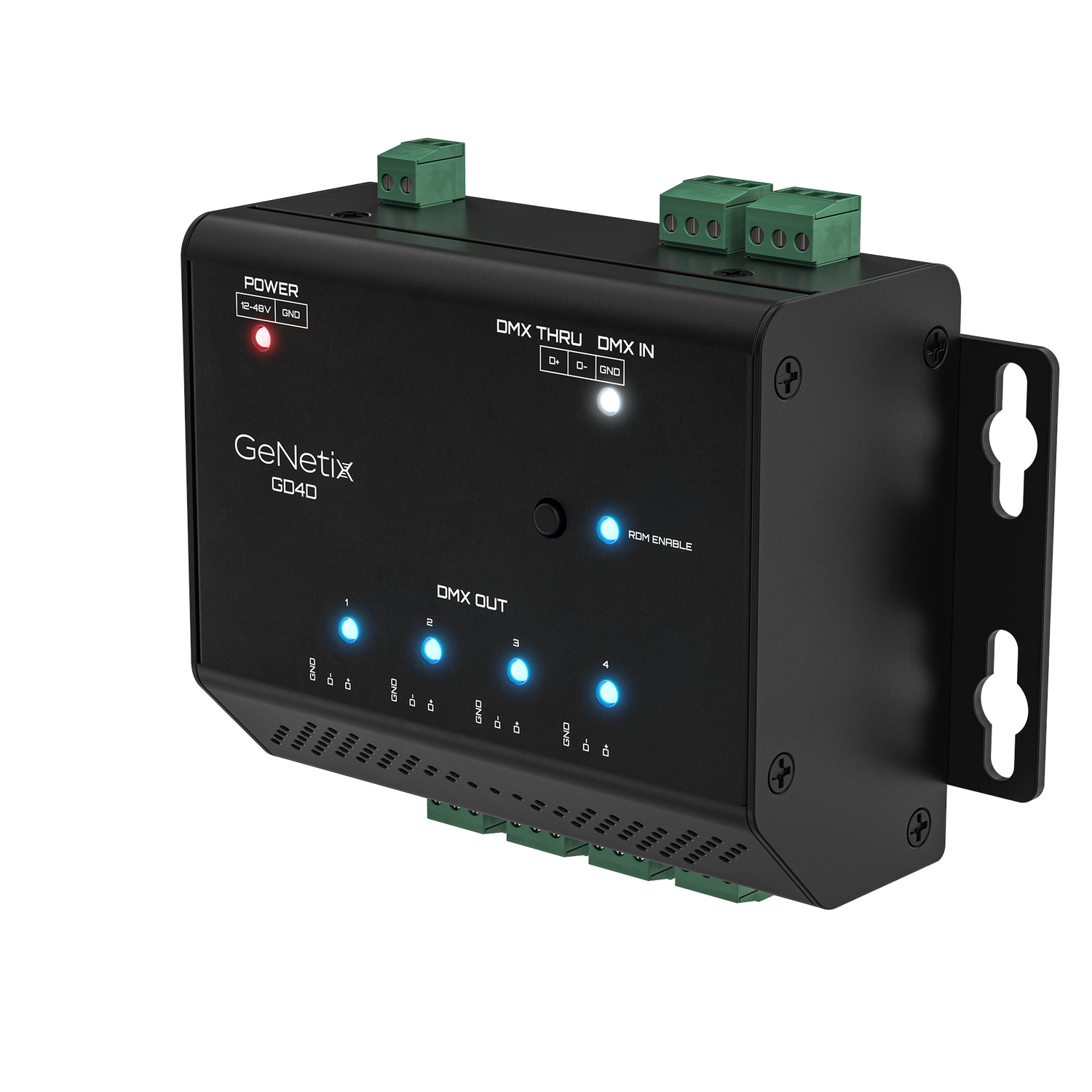

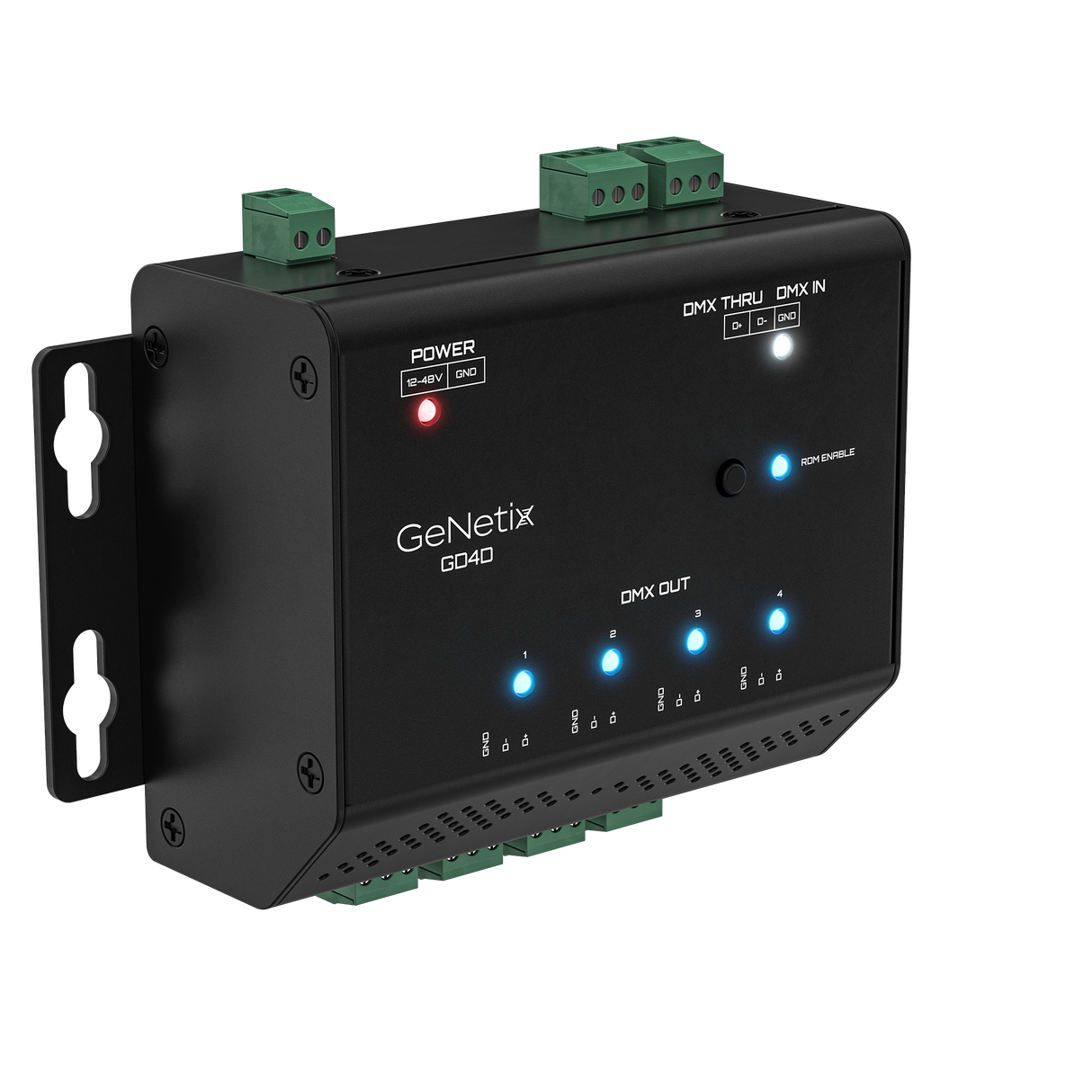

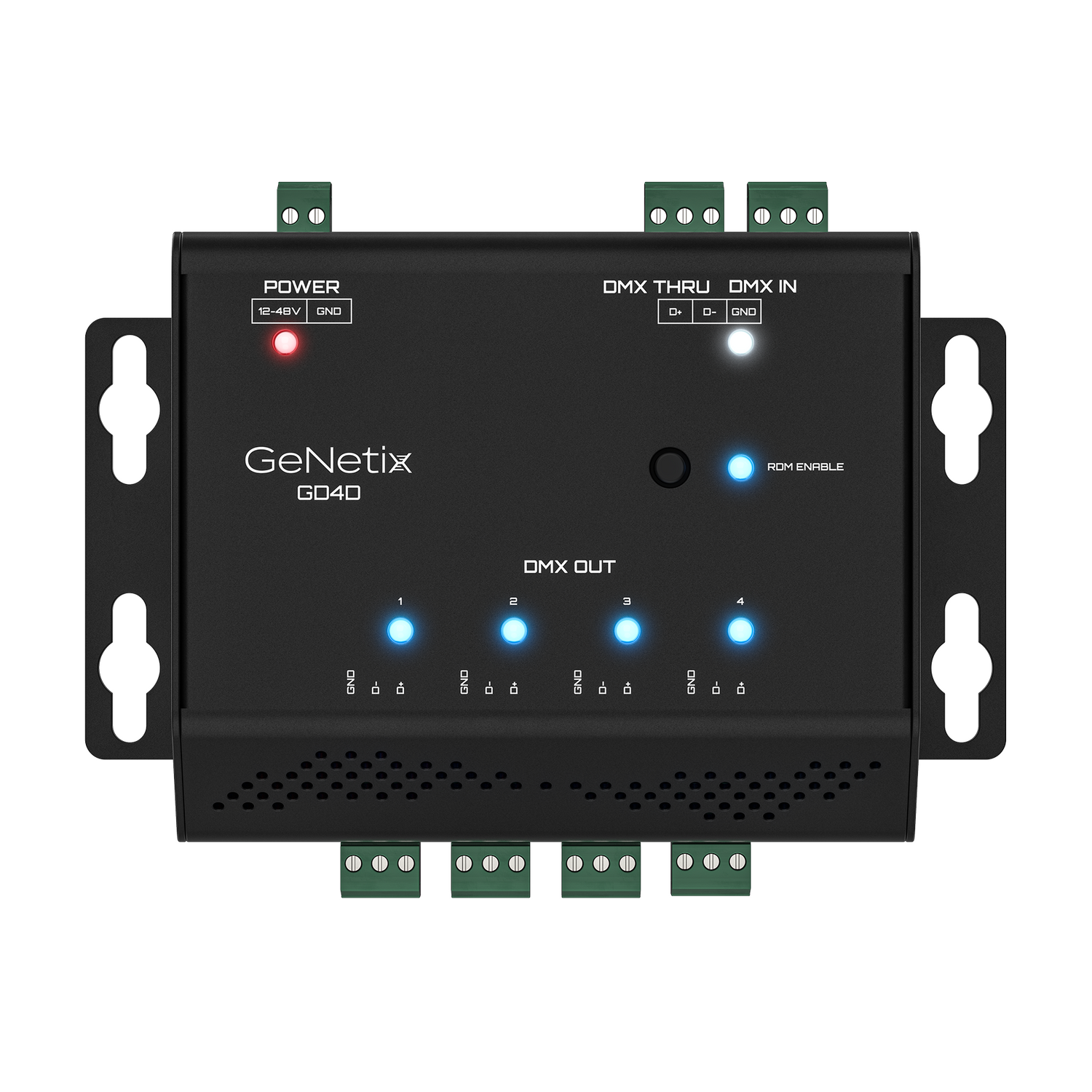

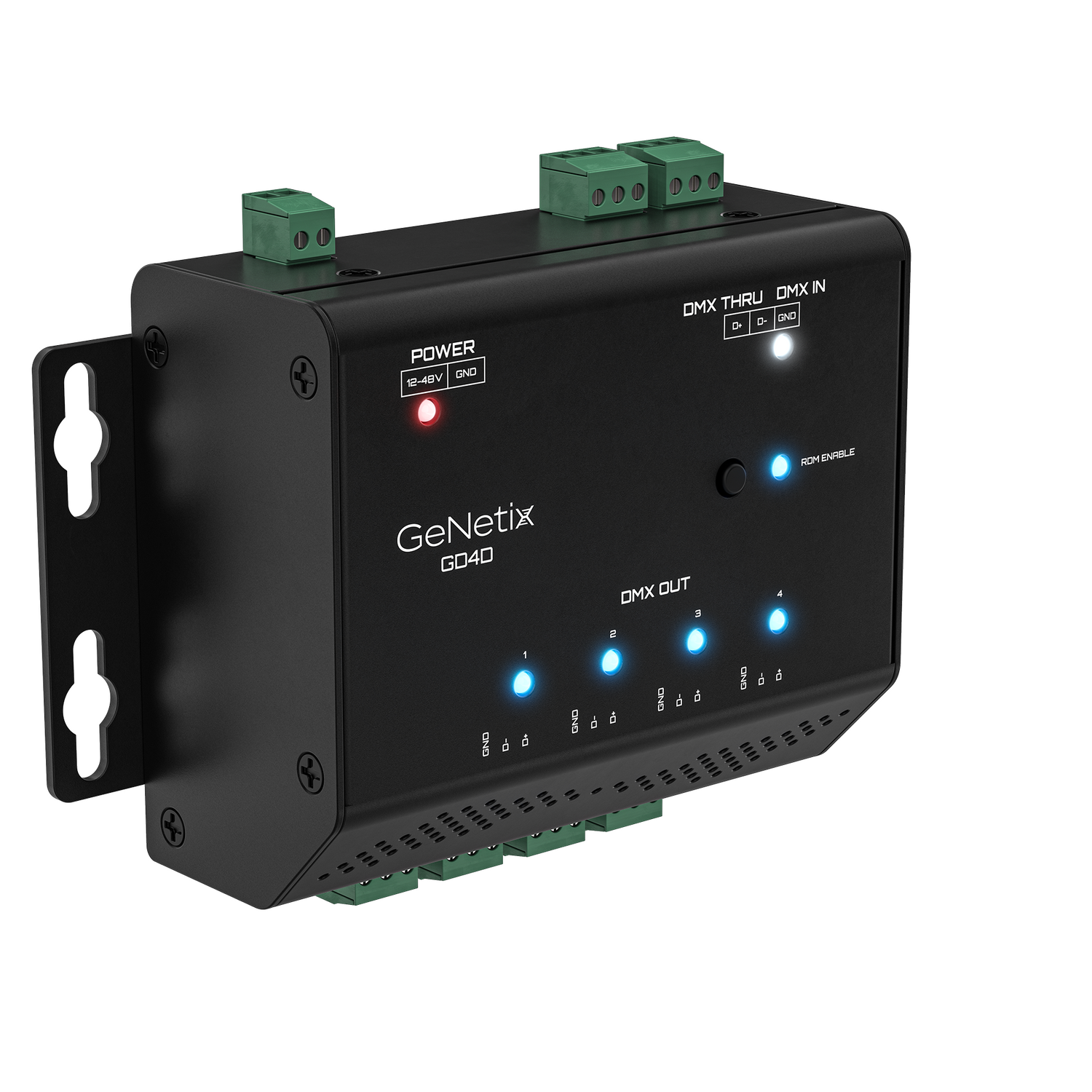

The ChamSys GeNetix GD4D is a DIN rail mountable RDM-capable 4-port DMX splitter built for permanent install environments. It uses Phoenix screw terminals for DMX IN, THRU, and OUT, making it well suited to hardwired control rooms and distribution panels. The unit is powered by an external 12-48V supply (sold separately) and includes an RDM Disable option that strips RDM data and retimes the DMX signal. Status LEDs report power, RDM state, and DMX input and output activity at a glance.

Product Description

The GeNetix GD4D is a 4-port DMX splitter that distributes a single DMX universe to four electrically isolated, opto-buffered outputs, protecting the signal path and downstream fixtures. Terminal block wiring on DMX IN, THRU, and OUT lets integrators land bare conductors directly, which is the preferred termination method in fixed installations and avoids the connector strain of XLR patching. The GD4D is RDM E1.20 compliant, passing bidirectional RDM through the splitter for remote device discovery and configuration. When RDM is not required, the RDM Disable option removes RDM traffic and retimes the outgoing DMX, which can resolve timing issues with older or RDM-sensitive fixtures. A DMX THRU port allows the input to be passed to additional devices in the chain. The GD4D is powered by an external 12-48V supply, and when fed from a 48V supply it provides PoE output. Front-panel LEDs indicate external power, RDM enable state, and DMX input and output status, simplifying commissioning and fault-finding. The DIN rail clip and compact 104 x 87 x 65 mm body fit standard control enclosures. Each unit ships with a DIN rail mount clip and Quick Start Guide. Browse the wider Creation Networks ChamSys GeNetix distribution range for matching nodes and switches.

Key Features

• 4 Isolated DMX Outputs — Splits one DMX universe to four opto-isolated outputs for reliable signal distribution and fixture protection.
• Phoenix Screw Terminals — DMX IN, THRU, and OUT land on terminal blocks for clean hardwired termination in permanent installs.
• RDM E1.20 Compliant — Passes bidirectional RDM for remote fixture discovery, addressing, and monitoring.
• RDM Disable and Re-time — Strips RDM data and retimes the DMX signal to resolve compatibility issues with sensitive fixtures.
• External 12-48V Power — Runs from an external 12-48V supply, with PoE output available when fed at 48V.
• Status LED Indication — LEDs report power, RDM state, and DMX input and output activity for fast diagnostics.

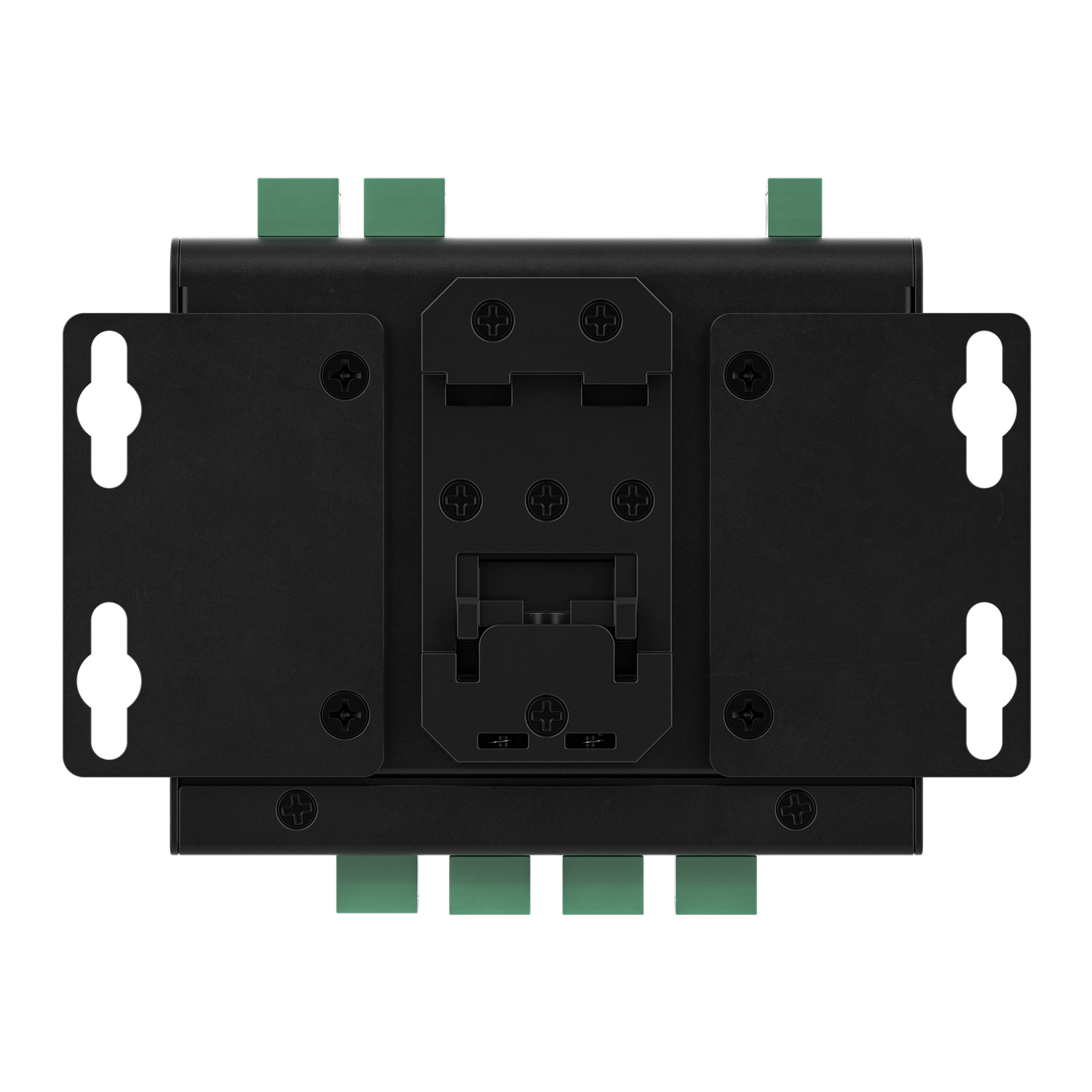

• DIN Rail Mounting — Clips into standard DIN rail for tidy integration in distribution panels and racks.
