ViewSonic CDE9831 – 98-Inch Commercial LED Signage Display

Product Overview

The ViewSonic CDE9831 is a 98-inch Android 14 AOSP smart commercial display built for large conference rooms and commercial meeting spaces where 4K visual quality, fast startup, and AV system integration are required. Running on Android 14 AOSP with an MT9681 quad-core processor and 8GB DDR4 memory, the CDE9831 adds native smart platform capabilities — including screen casting, OPS slot support, and ViewSonic AirSync — to the commercial display category. The 500 cd/m2 brightness, 24/7 operation rating, and Q-SYS/Crestron/Extron/AMX compatibility make it a capable and integrator-friendly solution for demanding commercial environments.

Product Description

The CDE9831 features a 3840x2160 VA panel at 500 cd/m2 with a 5,000:1 dynamic contrast ratio and 6.5ms response time, delivering crisp visuals for presentations, video content, and video conferencing on a 98-inch display. The 8-second warm boot time and Android 14 AOSP platform — with a built-in media player and OPS slot for a slot-in PC module — provide operational flexibility beyond a standard OS-free display.

Connectivity is comprehensive: three HDMI 2.1 inputs, HDMI 2.0 output, USB-C (65W, DisplayPort 1.2), USB 3.0, USB 2.0, dual Gigabit Ethernet (input and output), RS232, and a Wi-Fi module slot. The 32W integrated audio (16W x2) with 3.5mm and SPDIF I/O provides solid in-room sound. AV control system integration is certified for Q-SYS, Crestron Connected, Extron, and AMX. ViewSonic Manager and remote Web UI allow centralized control and remote display management across multiple installed units. Portrait and landscape orientation support, along with tiling support for multi-display video walls, extends the CDE9831’s deployment flexibility into lobby, atrium, and all-hands room installations.

Key Features

• Android 14 AOSP Smart Platform — Built-in media player, OPS slot, AirSync screen casting (AirPlay and Google Cast supported), and ViewSonic Manager for centralized management.
• 98-Inch 4K UHD VA Panel — 3840x2160 at 500 cd/m2 with 5,000:1 dynamic contrast and 6.5ms response time.
• 24/7 Commercial Operation Rating — Designed for continuous operation in conference rooms, lobbies, and command centers.
• 8-Second Warm Boot — Near-instant startup for meeting environments where delays are not acceptable.
• Q-SYS Certified + Crestron, Extron, AMX Compatible — Full AV control system compatibility for professional integrators.
• OPS Slot — Intel OPS slot for Windows slot-in PC modules, enabling Windows-native content without an external PC.

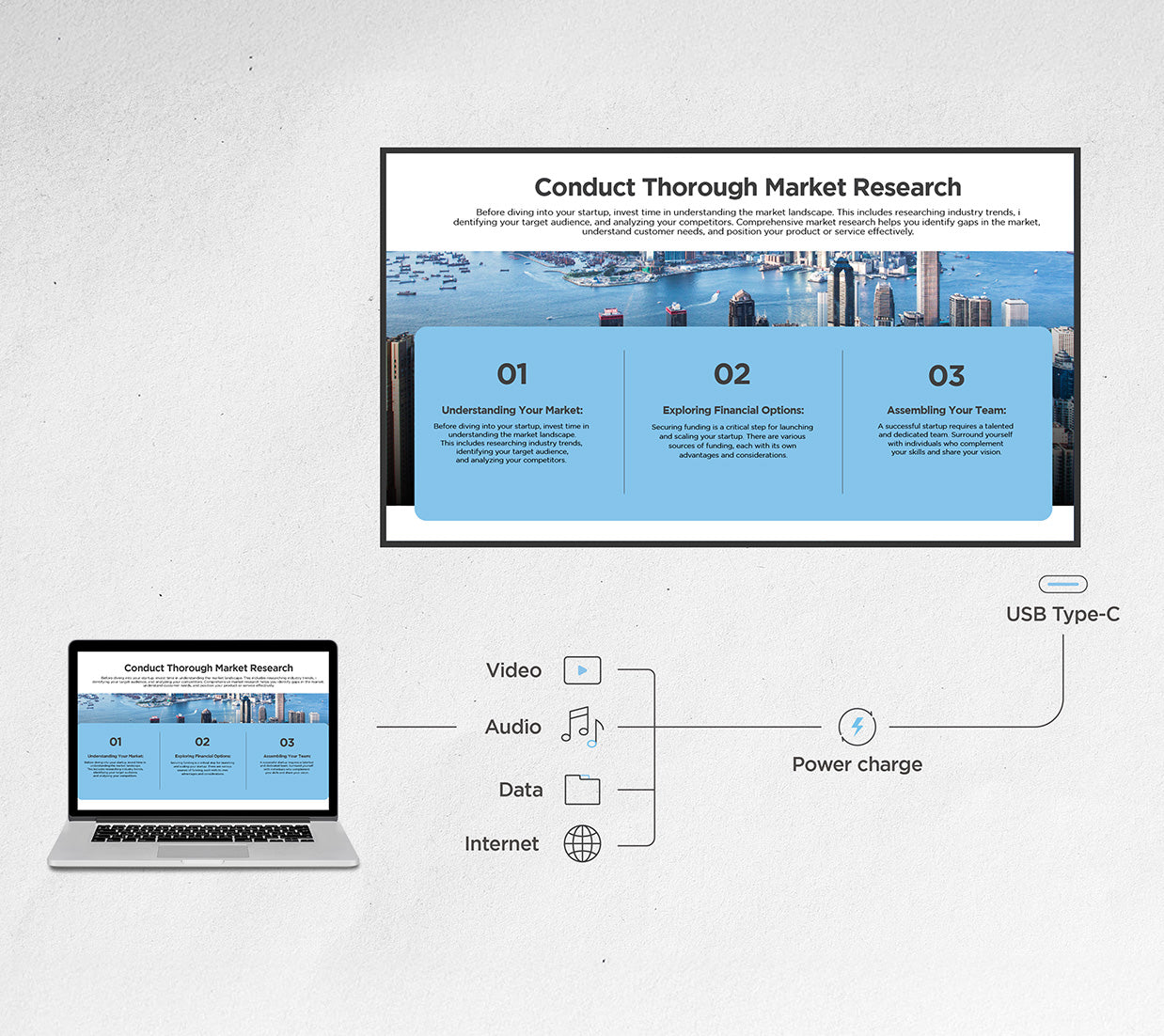

• USB-C with 65W Power Delivery — Single-cable laptop connection with DisplayPort 1.2 video, USB 2.0 data, and 65W charging.
• Dual Gigabit Ethernet — LAN input and LAN output ports for daisy-chain network topology in multi-display deployments.
• 32W Integrated Audio — Bottom-mounted 16W x2 speakers with SPDIF and 3.5mm I/O for in-room or external audio routing.
• Tiling Support — Built-in tiling matrix configuration for multi-display video wall deployments.
• Portrait and Landscape Orientation — Native 4K support in both mounting orientations.
• 3-Year Warranty — Parts, labor, and backlight coverage.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• All-hands room
• Lobby/atrium
• Command center
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

What is the difference between the CDE9831 (Android AOSP) and the CDE98G3 (OS-free)?

The CDE9831 runs Android 14 AOSP with an embedded media player, OPS slot, AirSync wireless casting, and ViewSonic Manager. It can run content natively without an external PC. The CDE98G3 is OS-free and renders only external input signals — simpler to manage from an IT security standpoint but requires an external source for all content.

Does the CDE9831 require Wi-Fi to be purchased separately?

Yes. The CDE9831 has a Wi-Fi module slot but does not include a Wi-Fi module in the box. The VB-WIFI-005 module (802.11ax, dual-band, Bluetooth 5.0) is available separately and slots into the display without external cables.

Can the CDE9831 be used in a video wall configuration?

Yes. The CDE9831 includes a built-in tiling configuration menu that supports H x V monitor matrix settings with frame compensation, enabling multi-display video wall deployments without an external video wall processor for basic configurations.

What OPS PC modules are compatible with the CDE9831?

The CDE9831 includes a standard OPS slot compatible with ViewSonic OPS modules (VPC2C-W33-O1, VPC35-W55-G1, VPCF5-W55-G1) and third-party OPS-compliant PC modules for Windows-based operation.

How does AV control integration work on the CDE9831?

The CDE9831 is certified for Q-SYS, Crestron Connected, Extron, and AMX. Integrators can control power, volume, input selection, and other functions via RS232 or Ethernet using the respective platform’s control drivers. Q-SYS provides a native certified plugin for the smoothest integration workflow.

Does the CDE9831 support AirPlay and Google Cast?

Yes. Via the ViewSonic AirSync software running on the Android 14 AOSP platform (with Wi-Fi module installed), the CDE9831 supports wireless casting from AirPlay-compatible Apple devices and Google Cast-compatible Android devices.

What is the warranty coverage?

ViewSonic provides a 3-year limited warranty covering parts, labor, and backlight for the CDE9831.
