ViewSonic CDE86G3-TAA – 86-Inch G3 TAA-Compliant Commercial Display

Product Overview

The ViewSonic CDE86G3-TAA is an 86-inch OS-free 4K UHD commercial display built for conference rooms, government spaces, and commercial meeting environments requiring TAA-compliant AV equipment. As a TAA-compliant 86-inch commercial display, this unit meets U.S. Trade Agreements Act standards for GSA Schedule and federal procurement. The OS-free architecture eliminates embedded software security exposure and maintenance overhead, while Q-SYS certification and Crestron, Extron, and AMX compatibility ensure integration into existing professional AV control systems without custom programming.

Product Description

The CDE86G3-TAA delivers 3840x2160 resolution at 500 cd/m2 on a VA panel with a 1,200:1 static contrast ratio and 24/7 commercial operation rating. The 8-second fast boot eliminates meeting startup delays. Three HDMI 2.1 inputs and a USB-C port provide connectivity for multiple sources and single-cable laptop connections. Integrated 20W stereo speakers (10W x2) with SPDIF and 3.5mm audio I/O cover in-room audio for standard conference room deployments.

RS232 and Ethernet LAN enable AV control integration with Q-SYS (certified), Crestron (Crestron Connected), Extron (certified), and AMX (certified). The display supports portrait and landscape mounting, offering installation flexibility for boardrooms, government briefing rooms, and lobby installations. EPEAT Gold and ENERGY STAR 8.0 certifications fulfill sustainability procurement requirements common in government and enterprise RFPs. At 86 inches, the CDE86G3-TAA provides a cost-effective large-format commercial display option for organizations standardizing on TAA-compliant AV infrastructure across multiple locations.

Key Features

• TAA Compliant — Meets Trade Agreements Act requirements for U.S. government, GSA Schedule, and federally funded institutional procurement.
• OS-Free Design — No embedded OS eliminates software security vulnerabilities, patch requirements, and IT management overhead.
• 86-Inch 4K UHD VA Panel — 3840x2160 at 500 cd/m2, well-suited for medium-to-large conference rooms.
• 24/7 Commercial Operation Rating — Continuous deployment capability for government operations rooms, command centers, and corporate lobbies.
• 8-Second Fast Boot — Displays are ready when meeting participants arrive.
• Q-SYS Certified — Native Q-SYS plugin for integration without custom RS232 scripting.
• Crestron, Extron, and AMX Compatible — Certified for the three leading AV control platforms.

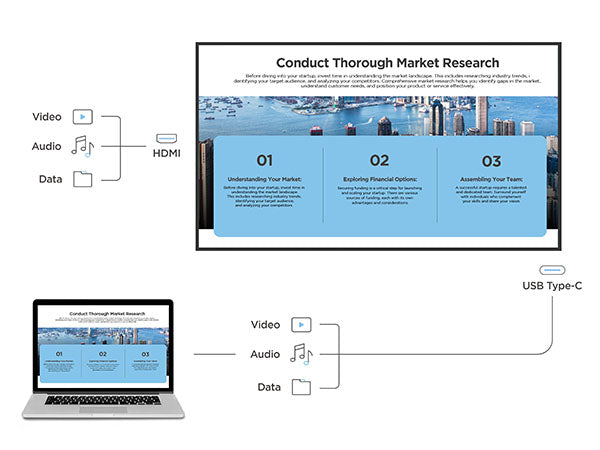

• Three HDMI 2.1 Inputs + USB-C — Supports multiple sources and single-cable laptop connectivity.
• Portrait and Landscape Installation — Flexible mounting for conference room, government briefing room, and lobby deployments.
• Integrated 20W Stereo Speakers — Built-in audio with SPDIF and 3.5mm I/O for in-room or externally routed sound.
• EPEAT Gold and ENERGY STAR 8.0 — High-level sustainability certifications for green procurement compliance.
• 3-Year Warranty — Parts, labor, and backlight coverage.

Typical Applications

• Government space
• Conference room
• Boardroom
• Commercial meeting space
• Command center
• Lobby/atrium
• Multi-purpose room

Technical Specifications

Note: Complete physical dimensions and weight data follows the same form factor as the CDE86G3 series. Consult ViewSonic for exact dimensional drawings.

Frequently Asked Questions

Why select the 86-inch CDE86G3-TAA over the 98-inch CDE98G3-TAA?

The 86-inch size is better suited for conference rooms where viewing distances are 10–18 feet and the display fits standard wall space constraints. The 98-inch is appropriate for larger boardrooms and all-hands spaces with greater seating distances. Both carry TAA compliance and identical core specifications.

Is the CDE86G3-TAA on the GSA Schedule?

TAA compliance qualifies the CDE86G3-TAA for GSA Schedule purchases. Buyers should confirm the specific GSA contract vehicle with their authorized ViewSonic reseller or ViewSonic’s government sales team.

Can the CDE86G3-TAA be controlled via a centralized AV system?

Yes. The RS232 and Ethernet ports support AV control via Q-SYS (certified), Crestron Connected, Extron (certified), and AMX (certified). Control functions include power on/off, volume, input selection, and display settings.

Does the OS-free design limit content flexibility?

Yes, by design. The OS-free CDE86G3-TAA requires all content to originate from an external connected source — a PC, UC bar, media player, or control system output. It does not run apps or display content independently. This tradeoff simplifies IT security management, which is often a higher priority in government environments.

What wall mount pattern is required?

The CDE86G3-TAA uses 800 x 400 mm VESA mounting. AV integrators should specify a mount rated for the display's weight in both landscape and portrait configurations.

Can this display be used in a digital signage network?

With an external media player (such as the ViewSonic NMP599-W-2) connected via HDMI, the CDE86G3-TAA can serve as a digital signage display in a networked signage system. The OS-free design means the media player handles all content management and scheduling.

What is the warranty?

ViewSonic provides a 3-year limited warranty covering parts, labor, and backlight for the CDE86G3-TAA.
