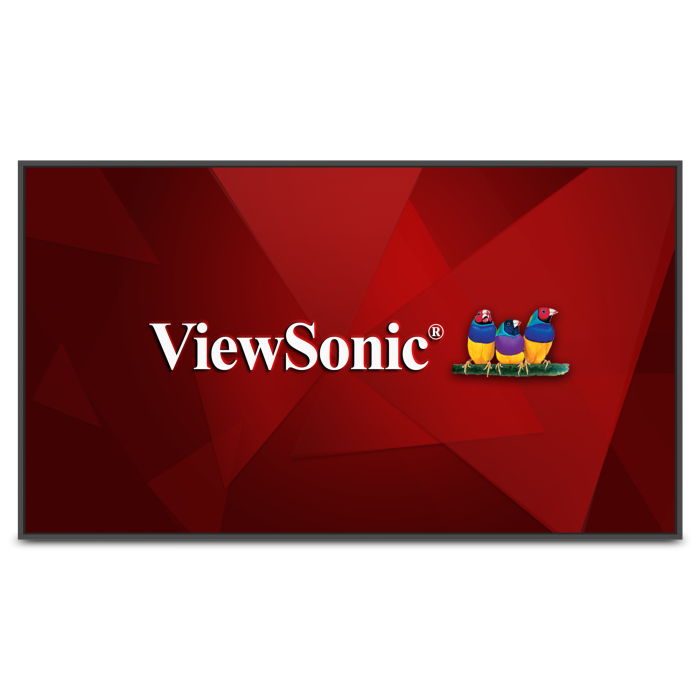

ViewSonic CDE86G3 – 86-Inch G3 Commercial Display

Product Overview

The ViewSonic CDE86G3 is an 86-inch OS-free commercial display built for conference rooms, executive briefing centers, and large-format presentation environments that demand 24/7 operational reliability. Delivering 4K UHD resolution at 500 cd/m² brightness on a VA panel with a 1,200:1 static contrast ratio, this display produces consistent, detailed visuals across the full 85.6-inch viewable area. Certified for Q-SYS and compatible with Crestron, Extron, and AMX control platforms, the CDE86G3 integrates directly into existing commercial AV ecosystems without requiring a third-party media player or operating system. Procurement teams evaluating a large-format 4K OS-free conference room display with native AV control system certification will find the CDE86G3 a direct-fit solution.

Product Description

The CDE86G3 ships without an embedded operating system, which eliminates software licensing overhead, reduces attack surface for IT security teams, and lowers long-term management complexity. The display accepts input via three HDMI 2.1 ports supporting 4K at 60Hz, one USB-C port (also 4K at 60Hz), and one VGA input for legacy sources. An HDMI 2.1 port 3 supports ARC for audio return, and a dedicated SPDIF optical output is available for integration with external audio systems. Two USB 2.0 ports and an RS-232 port support peripheral connections and serial control respectively, while a single RJ45 Ethernet port enables network-based management and control. The display boots in approximately 8 seconds from warm start, ensuring meetings begin without delays. Built-in 10W x 2 speakers with a 3.5mm audio input and output cover standard room audio needs, with SPDIF available for routing to a dedicated amplifier or DSP. The panel supports both landscape and portrait orientation with VESA 600x400mm mounting compatibility, and the 0.625-inch bezel width allows clean multi-display configurations when needed. Rated for 24/7 continuous operation with a 50,000-hour backlight life, the CDE86G3 carries EPEAT Gold and Energy Star 8.0 certifications. The unit weighs 39.5 kg net and measures 1933.8 x 1103.8 x 79.7 mm.

Key Features

• OS-Free Architecture — No operating system reduces IT security risk and eliminates software update dependencies.
• 4K UHD Resolution at 500 cd/m² — 3840x2160 on a VA panel with anti-glare hard coating delivers clear visuals in ambient-lit conference environments.
• 24/7 Commercial-Grade Operation — Rated for continuous operation with a 50,000-hour DLED backlight life.
• Q-SYS Certified, Crestron/Extron/AMX Compatible — Integrates with enterprise AV control infrastructure without custom drivers or workarounds.

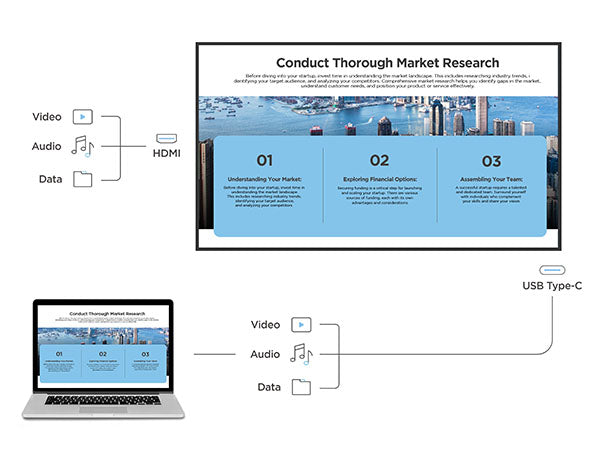

• Triple HDMI 2.1 with USB-C Input — Supports three 4K sources simultaneously with dedicated USB-C input for single-cable laptop connection.
• HDMI-ARC on Port 3 — Simplifies audio routing for rooms using HDMI-ARC-compatible audio systems.
• SPDIF Optical Audio Output — Routes digital audio to external amplifiers, DSPs, or room audio systems.
• Portrait and Landscape Mounting — Supports both orientations for flexible installation in lobbies, corridors, or conference rooms.
• RS-232 Serial Control — Enables direct display control from room automation systems via serial commands.
• Fast 8-Second Warm Boot — Display is ready when the first attendee arrives.
• EPEAT Gold and Energy Star 8.0 Certified — Meets institutional procurement sustainability requirements.
• 3-Year Limited Warranty — Covers parts, labor, and backlight for commercial deployment confidence.

Typical Applications

• Boardroom and executive conference room primary display
• Large conference room videoconferencing display
• Corporate lobby and atrium digital signage installation
• Government briefing and command center display
• House of worship projection-alternative front-of-room display
• Auditorium and large venue supplemental display

Technical Specifications

Frequently Asked Questions

The CDE86G3 is an OS-free display and requires an external source — such as a laptop via USB-C or HDMI, a media player, or an OPS slot-in PC — to display content. It does not have a built-in operating system or onboard content playback capability.

The CDE86G3 is certified for Q-SYS, Crestron Connected, and Extron, and is also compatible with AMX control systems. These certifications confirm validated integration for functions including power, volume, and input source management.

Yes. The display supports both landscape and portrait installation using the standard 600x400mm VESA mount pattern with M8 screws. Portrait mode is suitable for digital signage, corridor displays, and menu board applications.

TAA-compliant variants of the G3 series are manufactured in Mexico to meet Trade Agreements Act requirements for U.S. federal government procurement. The CDE86G3 itself does not carry TAA compliance; select 65-inch and 75-inch G3 models offer TAA-compliant versions.

The OS-free G3 series displays do not include built-in PIP functionality. PIP capability is available on the CDE31 series, which includes an Android 14 AOSP platform with expanded OSD controls.

The CDE86G3 provides a SPDIF optical audio output, a 3.5mm analog audio output, and HDMI-ARC on port 3. Any of these can be used to route audio to an external amplifier, DSP, or room audio system depending on your infrastructure.

Yes. The display is rated for 24/7 continuous operation with a 50,000-hour DLED backlight life, making it suitable for digital signage, lobby installations, and other applications requiring round-the-clock display uptime.
