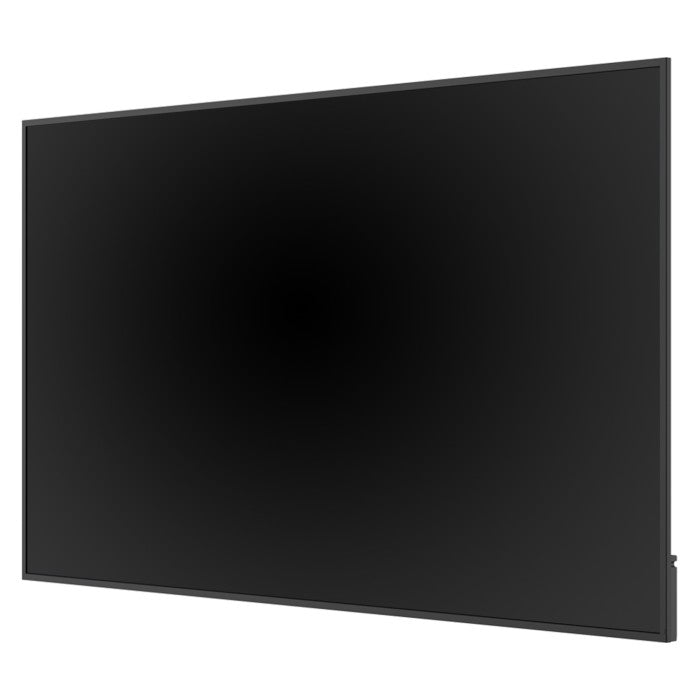

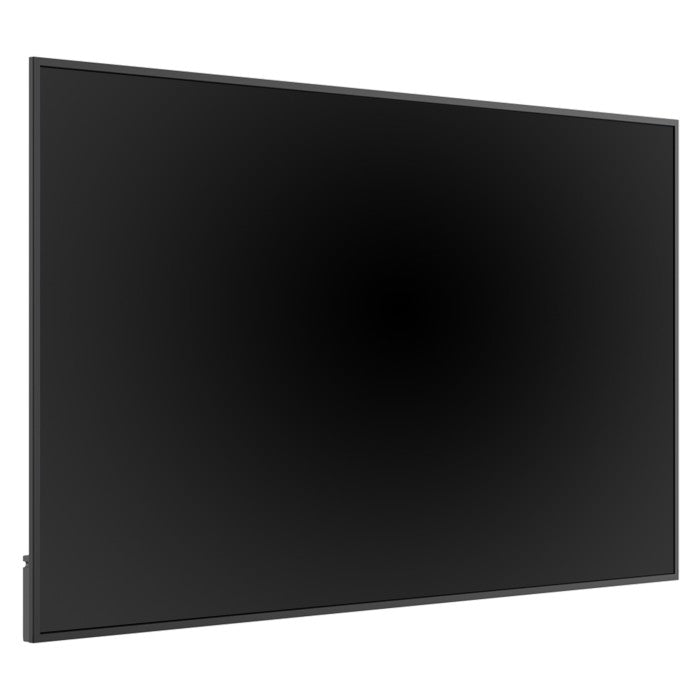

ViewSonic CDE8614 – 86-Inch Commercial Digital Signage Display

Product Overview

The ViewSonic CDE8614 is an 86-inch 4K commercial display engineered for high-traffic, professional environments requiring dependable, long-run visual communication. Running Android 14 AOSP on a 16/7 operational rating, this large-format commercial signage display suits corporate lobbies, conference rooms, and training facilities that demand consistent uptime without dedicated media players. With 3840 x 2160 UHD resolution at 350 cd/m² brightness, the CDE8614 delivers sharp, legible content whether deployed as a large-format meeting room display or as part of a multi-zone digital signage network. Certified by AMX, Extron, Crestron, and Q-SYS, it integrates directly into managed AV control infrastructures with no additional adapters or middleware.

Product Description

The ViewSonic CDE8614 is built around an ADS panel with 178° horizontal and vertical viewing angles, ensuring consistent image quality across wide conference room seating arrangements or open lobby installations. The 1,200:1 static contrast ratio and 1.07 billion color output (8-bit + FRC) produce accurate, uniform imagery suitable for data visualization, video conferencing feeds, and corporate presentations. An anti-glare hard-coating surface (Haze 25%, 3H) reduces reflections in mixed-lighting environments where window glare is a practical concern.

The onboard Android 14 AOSP platform, powered by an MT9681 ARM Cortex-A73 quad-core processor with 4GB DDR4 RAM and 32GB storage, supports sideloaded enterprise applications and digital signage CMS software without requiring an external media player. Three HDMI 2.1 inputs (HDCP 2.2 compliant) accommodate laptop, dedicated media player, or camera sources simultaneously, while the USB-C input (15W, 4K@60Hz) simplifies single-cable connections from compatible laptops in huddle room and small meeting room setups. A built-in HDMI output enables daisy-chaining to a secondary display for extended signage runs.

AV control professionals will find the CDE8614 immediately compatible with existing infrastructure: RS232 for serial control, RJ45 for network management, and verified Q-SYS Library and Crestron Connected support. The optional VB-WIFI-005 module adds 802.11ax Wi-Fi and Bluetooth 5.2 for wireless content delivery and peripheral connectivity. The 600 x 400mm VESA mount pattern (M8, 25mm) supports standard commercial wall mount hardware. A 3-year limited warranty covers parts, labor, and the backlight for institutional purchasing confidence.

Key Features

• 86-Inch 4K UHD Resolution (3840 x 2160) — Delivers pixel-dense imagery at scale, suitable for large conference room displays and high-traffic digital signage installations.
• Android 14 AOSP Built-In — Eliminates the need for an external media player; supports enterprise CMS apps and sideloaded signage software out of the box.
• 16/7 Operation Rating — Rated for up to 16 hours per day, 7 days a week, meeting the uptime demands of commercial lobbies, retail environments, and multi-purpose rooms.
• AMX, Extron, Crestron, and Q-SYS Certified — Verified compatibility with the four dominant AV control platforms allows direct integration into managed room control systems.
• Three HDMI 2.1 Inputs + HDMI Output — Accommodates multiple simultaneous sources and supports daisy-chaining to a second display for extended signage configurations.
• USB-C Input (15W, 4K@60Hz) — Single-cable laptop connectivity for power delivery and 4K signal in space-constrained huddle rooms or boardrooms.
• ADS Panel with 178°/178° Viewing Angles — Wide-angle uniformity ensures readability for off-axis viewers in open seating or angled installations.
• Anti-Glare Panel Surface (Haze 25%, 3H) — Reduces ambient light reflections in mixed-lighting commercial environments without significant loss of image clarity.
• 20W Internal Speaker System (10W x 2) — Provides usable audio output for presentations and announcements without requiring external speakers in smaller spaces.
• 30,000-Hour DLED Backlight Life — Supports long deployment cycles in commercial installations where panel replacement logistics are a practical cost concern.
• Optional 802.11ax Wi-Fi + Bluetooth 5.2 (VB-WIFI-005) — Adds wireless content delivery and peripheral support when wired network infrastructure is not available.
• Energy Star 8.0 and EPEAT Silver Certified — Meets institutional procurement sustainability requirements; standby power draw under 0.5W.

Typical Applications

• Boardroom
• Conference room
• All-hands room
• Training room
• Multi-purpose room
• Government space
• Commercial meeting space
• House of worship
• Auditorium

Technical Specifications

Frequently Asked Questions

Does the CDE8614 require an external media player for digital signage?

No. The built-in Android 14 AOSP platform with 4GB RAM and 32GB storage supports sideloaded CMS applications directly on the display. An external media player is optional and may be connected via HDMI 2.1 or USB-C.

What AV control systems is the CDE8614 certified for?

The CDE8614 carries AMX Certified, Extron Certified, Crestron Connected, and Q-SYS Library Verified certifications. It can be controlled via RS232 (serial) or RJ45 (network) without additional hardware gateways in most managed room control deployments.

What is the recommended wall mount configuration?

The display uses a 600 x 400mm VESA pattern with M8 hardware at 25mm depth. Four wall mount screws are included in the package. Any commercial-grade flat panel arm or fixed wall plate rated for the 92.59 lb (42.0 kg) net weight and conforming to 600 x 400mm VESA is compatible.

Does this display support 4K content from a laptop via USB-C?

Yes. The USB-C port supports 4K@60Hz video output and 15W power delivery. A single USB-C cable from a compatible laptop delivers both the display signal and charges the connected device, which suits huddle room and boardroom single-cable setups.

Is Wi-Fi built into the CDE8614?

Wi-Fi is not built in by default. The optional VB-WIFI-005 module adds 802.11ax (Wi-Fi 6) and Bluetooth 5.2. If wired network is available via RJ45, no additional module is required for network-based CMS management.

What is the warranty coverage?

The CDE8614 is covered by a 3-year limited warranty from ViewSonic covering parts, labor, and the backlight. This warranty term is standard for commercial display procurement and supports multi-year deployment planning.

Can this display be daisy-chained to a second screen?

Yes. The HDMI output (4K@60Hz) allows the CDE8614 to feed a second display in a daisy-chain configuration, which is practical for corridor signage runs or dual-screen conference room setups without additional signal distribution hardware.

What content protection standards are supported?

All three HDMI 2.1 inputs are HDCP 2.2 compliant, which is required for playback of protected 4K content from streaming devices, Blu-ray players, and compatible media servers.
