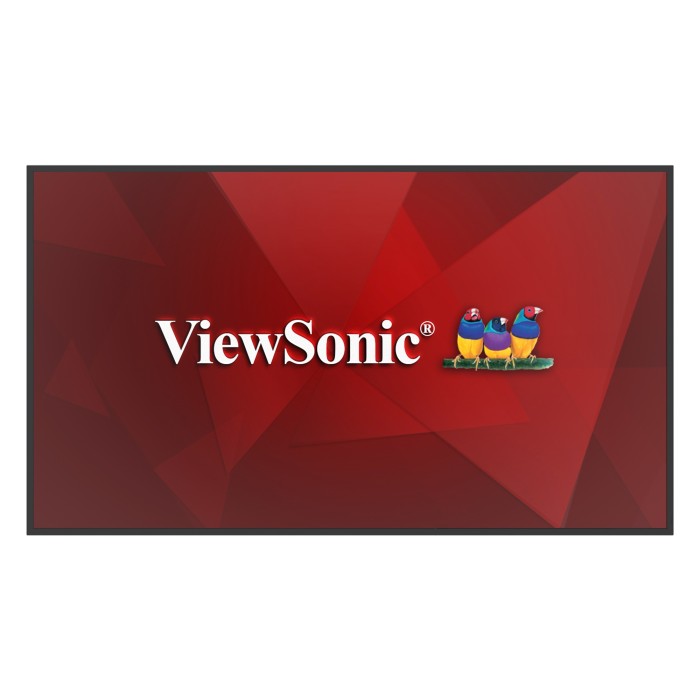

ViewSonic CDE7531 – 75-Inch Commercial LED Signage Display

Product Overview

The ViewSonic CDE7531 is a 75-inch smart commercial display running Android 14 AOSP with 8GB RAM and 32GB storage, designed for conference rooms and collaboration spaces that require an onboard computing platform, AV control system integration, and 24/7 operational reliability. At 500 cd/m² brightness and 3840x2160 resolution on a VA panel, the display delivers clear 4K UHD visuals with a 5,000:1 dynamic contrast ratio and anti-glare hard coating. Certified for Q-SYS and compatible with Crestron, Extron, and AMX, the CDE7531 includes an OPS expansion slot for installing a Windows or Android compute module when a dedicated computing environment is required. AV integrators and IT managers evaluating a 75-inch Android commercial display with OPS slot and enterprise AV control system certification will find the CDE7531 a direct-fit specification.

Product Description

The CDE7531 is built on Android 14 AOSP running on an ARM Cortex-A73 quad-core processor with 8GB DDR4 RAM and 32GB internal storage, providing a responsive onboard computing environment for digital signage content, meeting applications, and collaborative workflows without requiring an external media player. Four HDMI 2.1 inputs accommodate up to four simultaneous 4K sources at 60Hz, while a single USB-C port (DisplayPort 1.2, 65W power delivery, USB 2.0) provides single-cable laptop connectivity. One HDMI 2.0 output enables loop-through to secondary displays or recording equipment. USB 3.0 and USB 2.0 ports support peripheral connections, and RS-232 with dual RJ45 LAN ports (input and output) provide serial control and network daisy-chain capability. A Wi-Fi module slot accommodates an optional 802.11ax module (sold separately) for wireless network connectivity. Built-in 16W x 2 speakers with 3.5mm audio in/out and SPDIF optical output handle room audio with options for external audio system integration. The 8-second warm boot ensures rapid meeting startup, and ViewSonic Manager plus a remote Web UI provide centralized fleet management for multi-display deployments. The display supports landscape and portrait orientation via VESA 600x400mm mounting. Energy Star 8.0 certified, 24/7 operation rated with a 50,000-hour backlight life.

Key Features

• Android 14 AOSP Platform — 8GB DDR4 / 32GB storage onboard computing environment runs digital signage and meeting applications without an external media player.
• OPS Expansion Slot — Accepts compatible OPS slot-in PC modules for Windows or Android compute expansion when needed.
• 4K UHD at 500 cd/m² — 3840x2160 resolution with high brightness for clear conference room and training room visuals.
• Q-SYS Certified / Crestron / Extron / AMX Compatible — Integrates with enterprise AV control infrastructure using validated platforms.
• Four HDMI 2.1 Inputs Plus USB-C — Four simultaneous 4K source inputs with single-cable USB-C (65W PD) laptop connectivity.
• HDMI 2.0 Output — Loop-through output for daisy-chaining to secondary displays.
• Dual RJ45 LAN Ports — Input and output ports support network daisy-chain configurations.
• Wi-Fi Module Slot — Accepts optional 802.11ax + Bluetooth 5.0 module for wireless connectivity.
• 32W Integrated Audio (16W x 2) — Powerful room-filling audio with SPDIF and 3.5mm outputs for external audio systems.
• ViewSonic Manager Fleet Control — Centralized display management and remote Web UI for multi-unit deployments.
• 8-Second Warm Boot — Display is operational before the first attendee is seated.
• 24/7 Operation Rated — 50,000-hour backlight life for continuous commercial deployment.

Typical Applications

• Conference room and meeting space with onboard Android platform
• Boardroom primary display with OPS slot-in PC expansion
• Corporate training room presentation and collaboration display
• Digital signage installation requiring onboard content management
• Lobby and atrium corporate communications display
• Higher education classroom and lecture room display

Technical Specifications

Frequently Asked Questions

The CDE7531 includes a Wi-Fi module slot but does not ship with a Wi-Fi module. The ViewSonic VB-WIFI-005 (802.11ax, dual-band, Bluetooth 5.0) is sold separately and installs into the module slot to enable wireless connectivity.

The CDE7531 accepts standard OPS slot-in computing modules. Compatible ViewSonic OPS modules include Windows-based (VPC series) and Android EDLA-certified (VPC-A31-O1) options. Verify OPS compatibility with your specific module before ordering.

Yes. The built-in Android 14 AOSP platform with 8GB RAM and 32GB storage supports digital signage applications directly. ViewSonic AirSync is also available for wireless screen casting from external devices.

The HDMI 2.0 output supports loop-through to a second display at 4K@60Hz, which is useful in conference rooms or signage environments where a secondary screen needs to mirror the primary display.

Yes. The Android 14 AOSP OSD includes PIP controls with configurable PIP mode, size, position, and source selection.

ViewSonic Manager is included at no additional cost and provides centralized control of display power, content scheduling, and configuration settings across multiple units. A remote Web UI is also available for per-unit access without installing software.

Yes. The display is rated for 24/7 continuous operation with a 50,000-hour DLED backlight life, making it appropriate for continuous signage, lobby, and operations center deployments.
