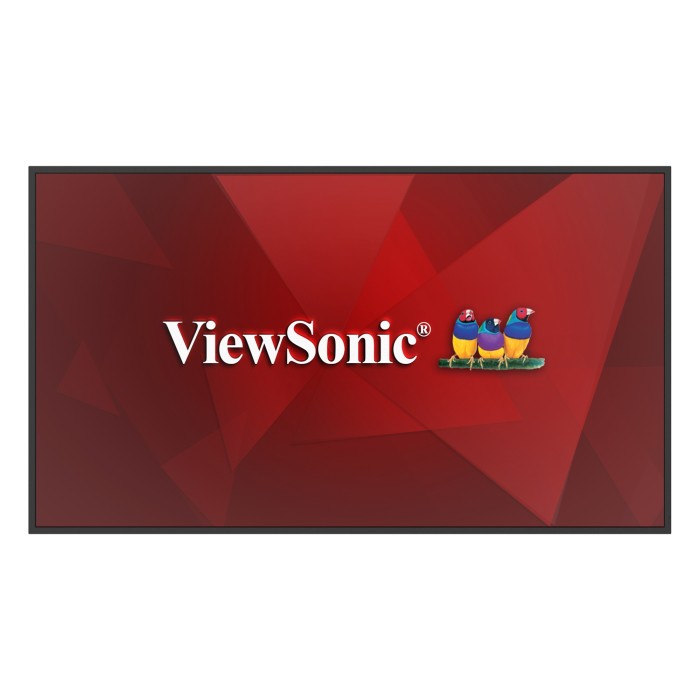

ViewSonic CDE7514 – 75-Inch Commercial Digital Signage Display

Product Overview

The ViewSonic CDE7514 is a 75-inch 4K commercial display running Android 14 AOSP, designed for corporate offices, higher education, and public sector environments that require a managed display platform with enterprise AV integration and a lower total cost of ownership than competing 16/7 commercial displays. Operating at 350 cd/m² with a 1,200:1 static contrast ratio on an ADS panel, the CDE7514 provides consistent 4K UHD visuals in indoor environments with managed ambient lighting. Q-SYS Library Verified, Crestron certified, and Extron certified, the display integrates into existing AV control infrastructure while including ViewSonic Manager Basic for free centralized fleet management. IT managers and AV integrators evaluating an Android 14 commercial display with certified pro-AV ecosystem integration and no per-display management licensing fees will find the CDE7514 an operationally efficient choice.

Product Description

The CDE7514 runs a secure Android 14 AOSP platform on an ARM Cortex-A73 quad-core processor with 4GB DDR4 RAM and 32GB internal storage, providing an onboard environment for digital signage, meeting applications, and content management without requiring an external media player. AirSync wireless casting supports AirPlay and Google Cast, enabling screen sharing from any device without additional hardware. Three HDMI 2.1 inputs accept 4K sources at 60Hz, and a single USB-C port (15W power delivery) provides simplified laptop connectivity. Two USB Type-A ports support peripheral connections, and RS-232 plus RJ45 Ethernet handle serial control and network management. Audio is provided by built-in 10W x 2 speakers with SPDIF output for external audio system integration. An intelligent signal failover feature automatically switches to a backup input or USB playlist if the primary source disconnects, preventing blank screen interruptions during presentations. ViewSonic Manager Basic is included at no cost, providing centralized fleet control, content scheduling, and remote monitoring without subscription fees. The Wi-Fi module slot accepts an optional 802.11ax + Bluetooth 5.2 module (VB-WIFI-005, sold separately). The display is rated for 16/7 operation with a 30,000-hour backlight life and carries EPEAT Silver and Energy Star 8.0 certifications.

Key Features

• Android 14 AOSP Platform — 4GB DDR4 / 32GB storage onboard environment for digital signage and meeting applications without an external player.
• Free ViewSonic Manager Basic — Centralized fleet control, scheduling, and remote monitoring included at no additional cost or subscription.
• Q-SYS Library Verified / Crestron / Extron / AMX Compatible — Certified integration with pro-AV control platforms.
• 4K UHD on ADS Panel — 3840x2160 resolution with 178°/178° wide viewing angles for large conference table visibility.
• AirSync Wireless Casting — Screen sharing via AirPlay and Google Cast without additional hardware.
• Intelligent Signal Failover — Automatically switches to backup input or USB playlist when primary source disconnects.

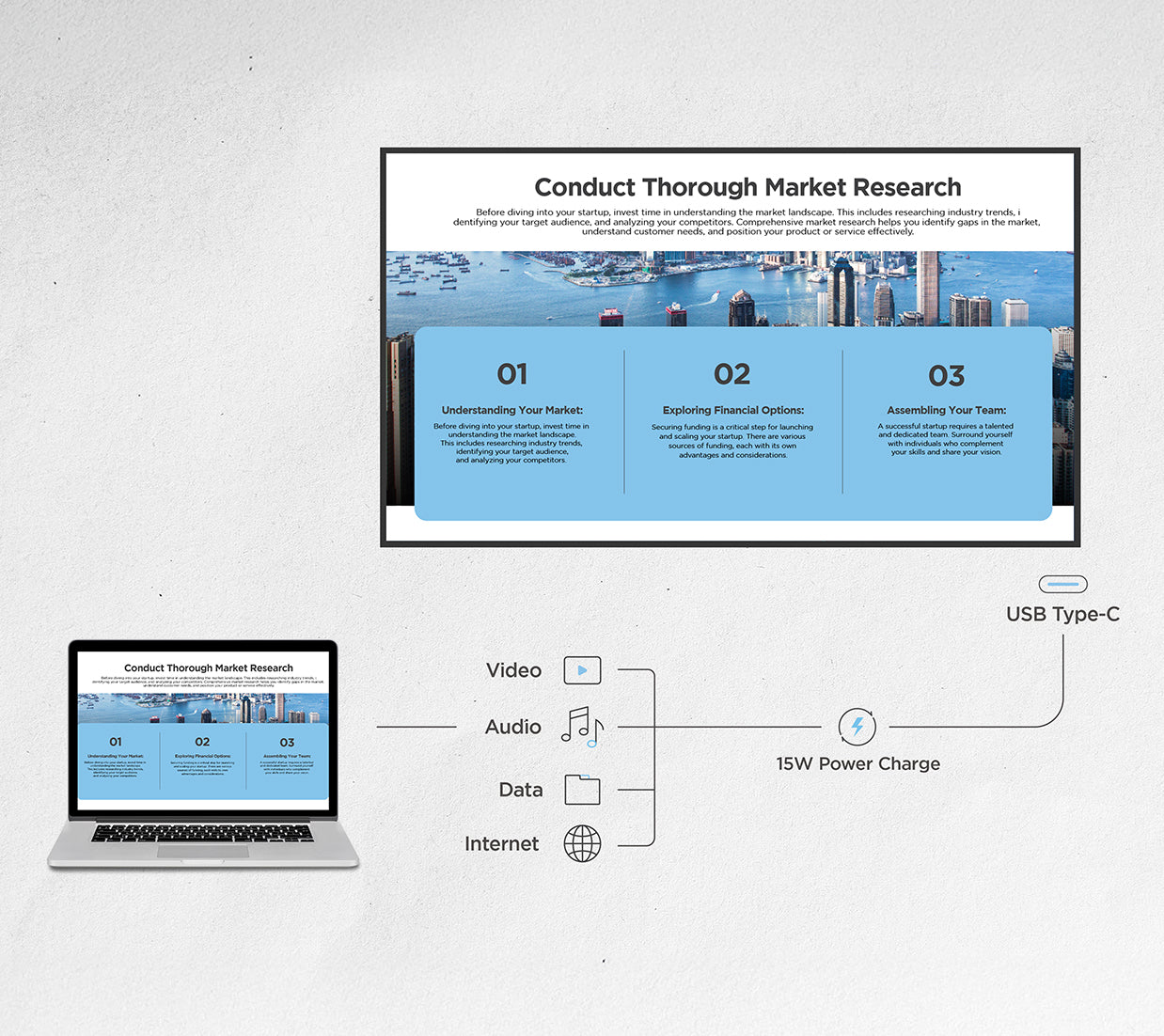

• Single USB-C Connectivity — One cable for 4K video, data, and 15W power delivery to connected laptops.
• Wi-Fi Module Slot — Accepts optional 802.11ax + Bluetooth 5.2 module for wireless network connectivity.
• SPDIF Optical Audio Output — Routes digital audio to external room audio systems.
• 16/7 Operation Rated — 30,000-hour backlight life for extended-hours commercial use.
• EPEAT Silver and Energy Star 8.0 — Meets institutional sustainability procurement requirements.
• 3-Year Limited Warranty — Parts, labor, and backlight coverage.

Typical Applications

• Corporate office conference room and meeting space
• Higher education classroom and faculty meeting room
• Public sector and institutional meeting room display
• Digital signage installation with onboard content management
• Retail and professional services presentation display
• Lobby and reception area communications display

Technical Specifications

Frequently Asked Questions

The CDE7531 has a brighter 500 cd/m² VA panel, 8GB RAM, a 24/7 operation rating, 50,000-hour backlight life, 16W x 2 speakers, an OPS slot, HDMI output, and dual RJ45 LAN ports. The CDE7514 has a 350 cd/m² ADS panel, 4GB RAM, a 16/7 rating, 30,000-hour backlight, and includes free ViewSonic Manager Basic. The CDE7514 is better suited to managed office and education environments; the CDE7531 is better for continuous-use and higher-brightness applications.

The CDE7514 includes a Wi-Fi module slot but does not ship with a Wi-Fi module. The ViewSonic VB-WIFI-005 (802.11ax, 2.4GHz/5GHz dual-band, Bluetooth 5.2) is sold separately and installs into the slot.

ViewSonic Manager Basic provides centralized fleet control for power management, content scheduling, configuration management, and remote monitoring across multiple displays at no additional cost or recurring license fee.

Yes. The intelligent signal failover feature detects loss of the primary video source and automatically switches to a configured backup input or plays a USB media playlist, preventing blank screens during presentations or signage playback.

Yes, via ViewSonic AirSync software, which supports AirPlay (Apple devices) and Google Cast (Android/Chrome) for wireless screen sharing from any compatible device without additional hardware.

The CDE7514 is rated for 16/7 operation (16 hours per day, 7 days per week). For 24/7 continuous operation requirements, the CDE7531 with its 24/7 rating and 50,000-hour backlight life is the appropriate choice.

The CDE7514 provides a SPDIF optical audio output and a 3.5mm analog audio output. The built-in 10W x 2 speakers handle standard meeting room audio without additional equipment.
