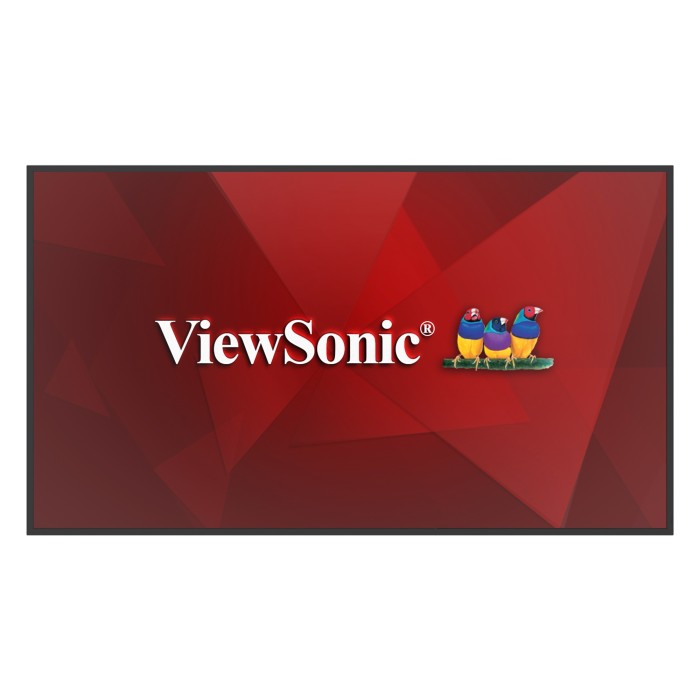

ViewSonic CDE6531 – 65-Inch Commercial LED Signage Display

Product Overview

The ViewSonic CDE6531 is a 65-inch smart commercial display running Android 14 AOSP with 8GB RAM and 32GB storage, designed for conference rooms and corporate collaboration spaces that require an onboard computing platform, enterprise AV control integration, and 24/7 operational reliability. Delivering 500 cd/m² brightness and 3840x2160 resolution on a VA panel with a 5,000:1 dynamic contrast ratio, the CDE6531 produces clear 4K UHD visuals for presentations, video calls, and collaborative applications. Certified for Q-SYS and compatible with Crestron, Extron, and AMX control platforms, the display also includes an OPS expansion slot for installing a dedicated computing module when required. AV integrators and IT managers specifying a 65-inch Android 14 commercial display with OPS slot and enterprise AV certification will find the CDE6531 purpose-built for the application.

Product Description

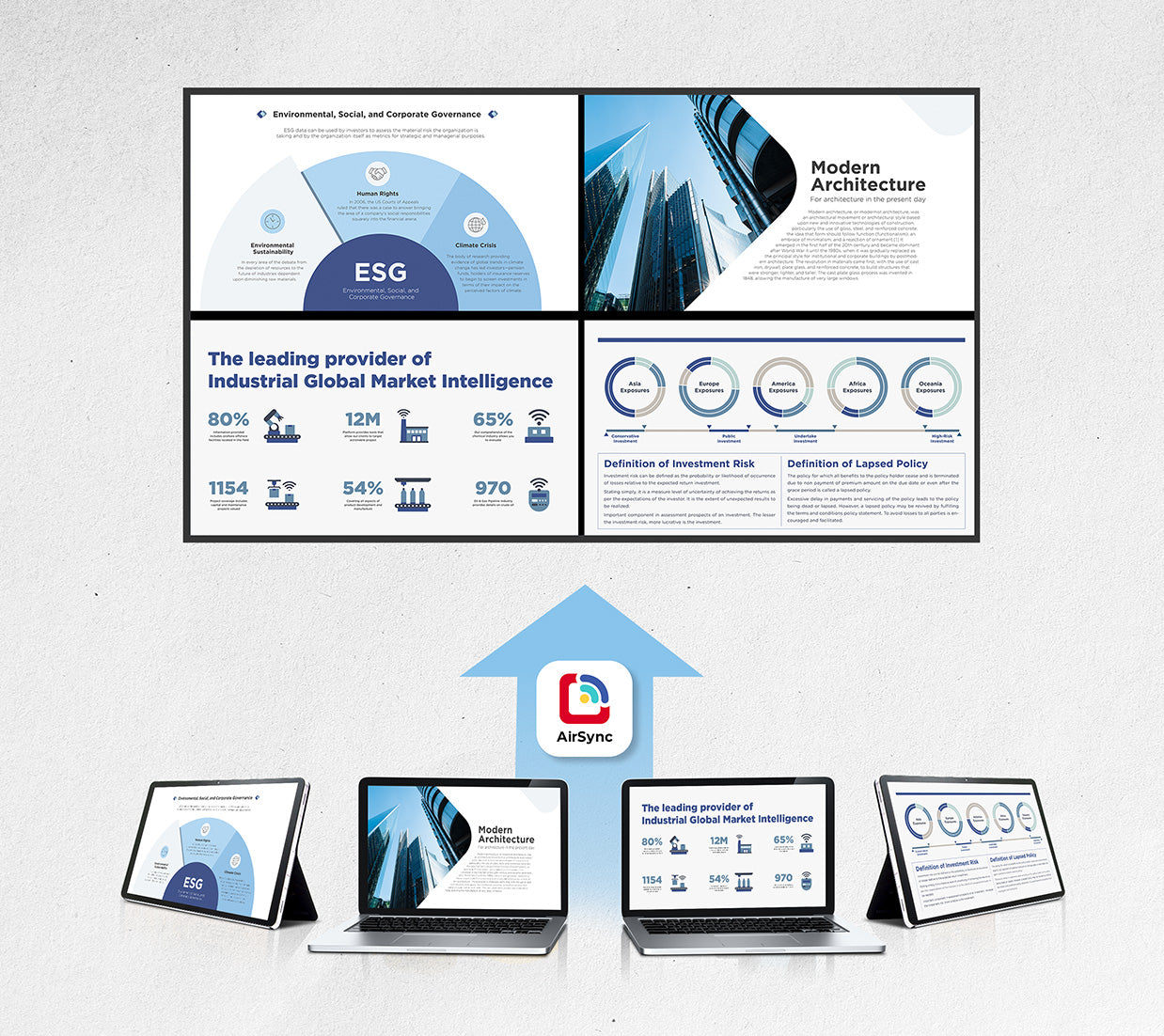

The CDE6531 runs Android 14 AOSP on an ARM Cortex-A73 quad-core processor with 8GB DDR4 RAM and 32GB storage, delivering a responsive onboard platform for digital signage, meeting room applications, and collaborative workflows. Four HDMI 2.1 inputs accommodate up to four simultaneous 4K sources at 60Hz, and a single USB-C port (DisplayPort 1.2, 65W power delivery) provides single-cable laptop connectivity for video, data, and power. One HDMI 2.0 output supports loop-through to a secondary display. USB 3.0 and USB 2.0 ports handle peripheral connections, and RS-232 with dual RJ45 LAN ports (input and output) support serial control and network daisy-chain configurations. A Wi-Fi module slot accommodates an optional 802.11ax module (sold separately) for wireless connectivity. Built-in 16W x 2 speakers deliver strong room-filling audio, with 3.5mm audio in/out and SPDIF optical output available for external audio system integration. ViewSonic AirSync enables wireless screen casting via AirPlay and Google Cast. ViewSonic Manager and a remote Web UI provide centralized fleet management for multi-display deployments without additional licensing fees. The 8-second warm boot ensures rapid meeting startup, and both landscape and portrait orientations are supported via VESA 600x400mm mounting. The display is rated for 24/7 continuous operation with a 50,000-hour backlight life and carries Energy Star 8.0 certification.

Key Features

• Android 14 AOSP Platform — 8GB DDR4 / 32GB storage onboard environment for digital signage and collaboration applications without an external media player.
• OPS Expansion Slot — Accepts compatible OPS slot-in PC modules for dedicated Windows or Android compute expansion.
• 4K UHD at 500 cd/m² — 3840x2160 resolution with 500-nit brightness for clear conference room and training space visuals.
• Q-SYS Certified / Crestron / Extron / AMX Compatible — Validated integration with enterprise AV control platforms.

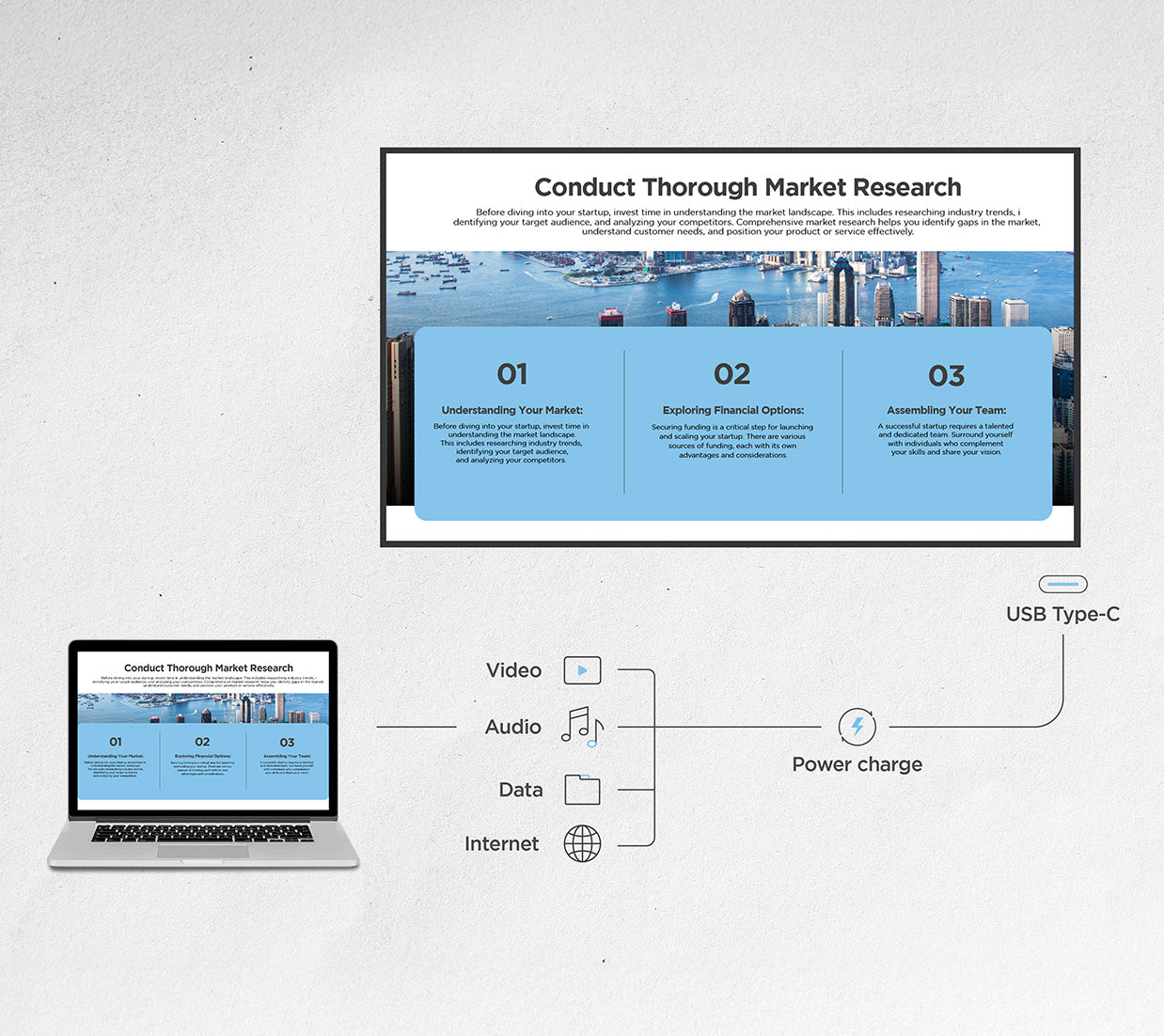

• Four HDMI 2.1 Inputs Plus USB-C — Four 4K source inputs with single-cable USB-C (65W PD) laptop connectivity.
• HDMI 2.0 Loop-Through Output — Route display content to a secondary screen at 4K@60Hz.
• Dual RJ45 LAN Ports — Input and output for network daisy-chain configurations.
• Wi-Fi Module Slot — Accepts optional 802.11ax + Bluetooth 5.0 module for wireless connectivity.
• 32W Integrated Audio (16W x 2) — High-output room audio with SPDIF and 3.5mm outputs for external integration.
• ViewSonic Manager Included — Centralized fleet management and remote Web UI at no additional cost.
• 24/7 Operation Rated — 50,000-hour backlight life for continuous commercial deployment.

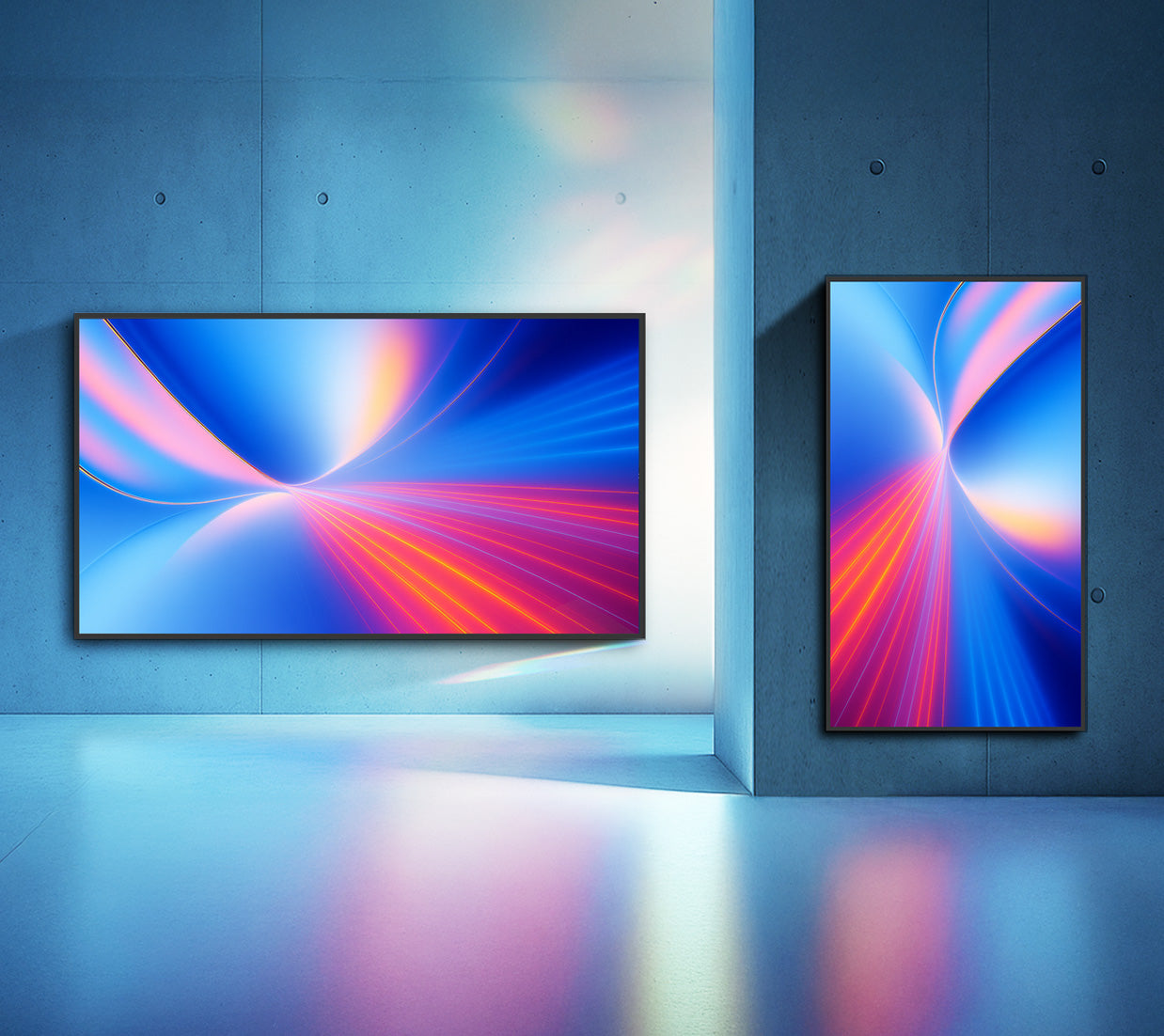

• Portrait and Landscape Support — Flexible VESA 600x400mm installation for any room configuration.

Typical Applications

• Conference room and meeting space with onboard Android platform
• Corporate training room and collaboration space
• Digital signage installation with onboard content management
• Boardroom primary display with OPS slot-in PC expansion
• Lobby and atrium corporate communications display
• Higher education classroom and lecture room display

Technical Specifications

Frequently Asked Questions

The CDE6531 has a Wi-Fi module slot but does not ship with a Wi-Fi module. The ViewSonic VB-WIFI-005 module (802.11ax, dual-band 2.4GHz/5GHz, Bluetooth 5.0) is sold separately and installs directly into the slot.

The CDE6531 accepts standard OPS slot-in computing modules. Compatible ViewSonic options include Windows-based VPC series modules and the Android EDLA-certified VPC-A31-O1 module. Confirm OPS module compatibility before ordering.

Yes. The built-in Android 14 AOSP platform with 8GB RAM and 32GB storage supports digital signage applications and USB media auto-play directly. ViewSonic AirSync also enables wireless casting from mobile or PC devices.

The HDMI 2.0 output enables loop-through of display content to a second screen at 4K@60Hz. This is useful in conference rooms or signage environments requiring a mirrored secondary display.

The CDE6531 has a brighter 500 cd/m² VA panel, 8GB RAM, a 24/7 operation rating, 50,000-hour backlight, 16W x 2 speakers, an OPS slot, HDMI output, and dual LAN ports. The CDE6514 has a 350 cd/m² ADS panel, 4GB RAM, 16/7 rating, 30,000-hour backlight, and includes ViewSonic Manager Basic at no cost. The CDE6531 is better for higher-brightness and continuous-use applications.

Yes. The Android 14 AOSP OSD includes tiling controls with H/V monitor configuration and frame compensation settings for video wall deployments.

Yes. The display is rated for 24/7 continuous operation with a 50,000-hour backlight life, making it appropriate for continuous digital signage, lobby, and operations displays.
