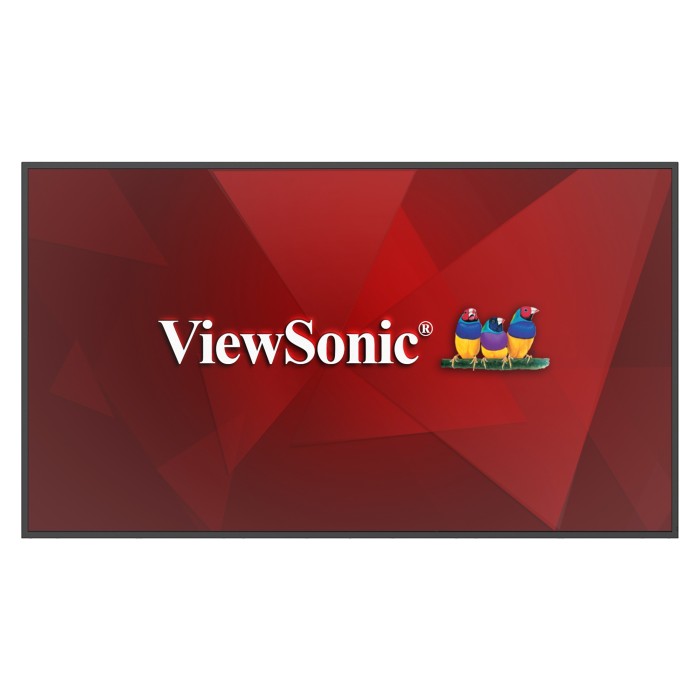

ViewSonic CDE6514 – 65-Inch Commercial Digital Signage Display

Product Overview

The ViewSonic CDE6514 is a 65-inch 4K commercial display running Android 14 AOSP, built for corporate offices, higher education, and public sector environments where managed display infrastructure, certified pro-AV integration, and cost-efficient fleet management are priorities. Operating at 350 cd/m² with a 1,200:1 static contrast ratio on an ADS panel, the display provides consistent 4K UHD visuals in office and classroom environments. Q-SYS Library Verified, Crestron certified, and Extron certified, the CDE6514 integrates into existing AV control systems while including ViewSonic Manager Basic for free centralized fleet control — eliminating recurring per-display management licensing costs. IT managers and facilities teams evaluating a 65-inch Android 14 commercial display with certified AV integration and no management license fees will find the CDE6514 a strong total cost of ownership choice.

Product Description

The CDE6514 runs Android 14 AOSP on an ARM Cortex-A73 quad-core processor with 4GB DDR4 RAM and 32GB storage, providing an onboard platform for digital signage, meeting applications, and collaborative workflows. AirSync wireless casting supports AirPlay and Google Cast for screen sharing from any device without additional hardware. Three HDMI 2.1 inputs handle 4K sources at 60Hz, and a single USB-C port (15W power delivery) supports simplified laptop connectivity. Two USB Type-A ports handle peripherals, and RS-232 plus RJ45 Ethernet enable serial control and network management. Audio is delivered by built-in 10W x 2 speakers with SPDIF output for external audio system integration. Intelligent signal failover automatically switches to a backup input or USB playlist when the primary source disconnects, preventing blank screen interruptions. ViewSonic Manager Basic is included at no additional cost, covering centralized fleet control, content scheduling, and remote display monitoring across any number of units without per-seat or per-display fees. A Wi-Fi module slot accepts the optional VB-WIFI-005 module (802.11ax + Bluetooth 5.2, sold separately). The CDE6514 is rated for 16/7 operation with a 30,000-hour backlight life and carries EPEAT Silver and Energy Star 8.0 certifications. Landscape-only orientation is supported via VESA 600x400mm mounting.

Key Features

• Android 14 AOSP Platform — 4GB DDR4 / 32GB storage onboard environment for digital signage and collaboration applications.

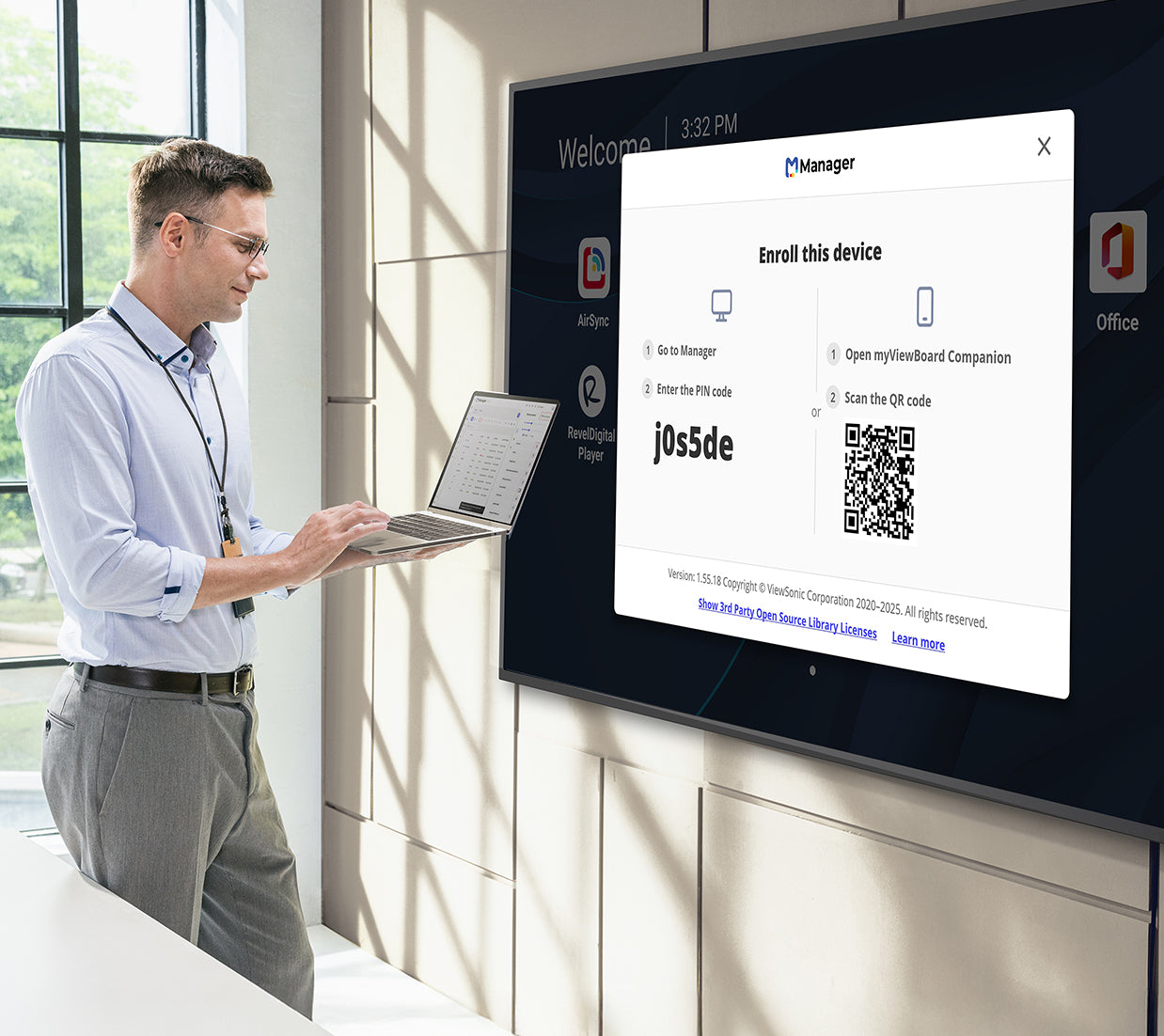

• Free ViewSonic Manager Basic — Centralized fleet control and remote monitoring included with no subscription or per-display licensing fees.

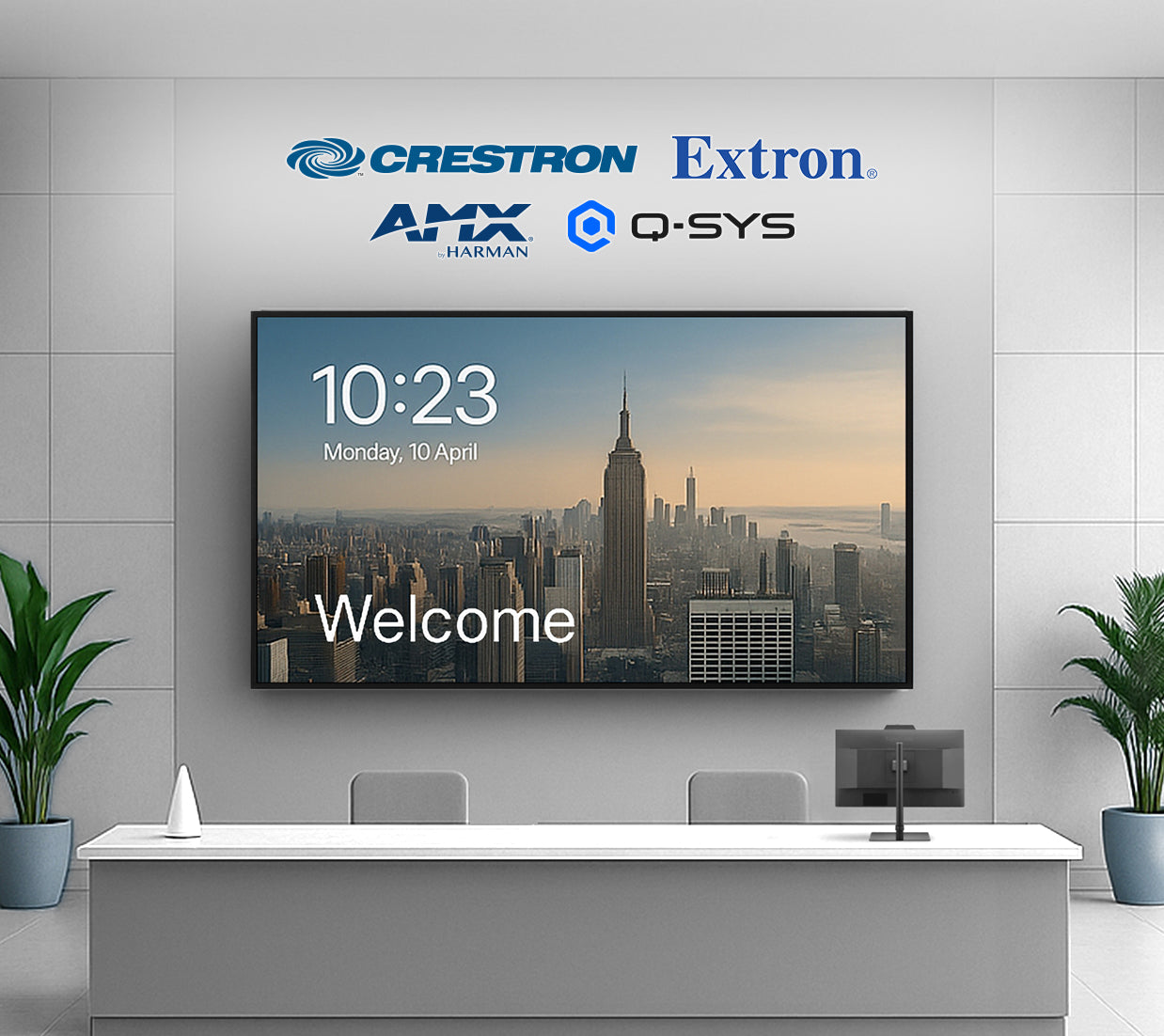

• Q-SYS Library Verified / Crestron / Extron / AMX Compatible — Certified integration with enterprise pro-AV control platforms.
• 4K UHD on ADS Panel — 3840x2160 with 178°/178° wide viewing angles for visibility across large conference tables.
• AirSync Wireless Casting — AirPlay and Google Cast screen sharing without additional hardware.
• Intelligent Signal Failover — Automatic failover to backup input or USB playlist when primary source disconnects.

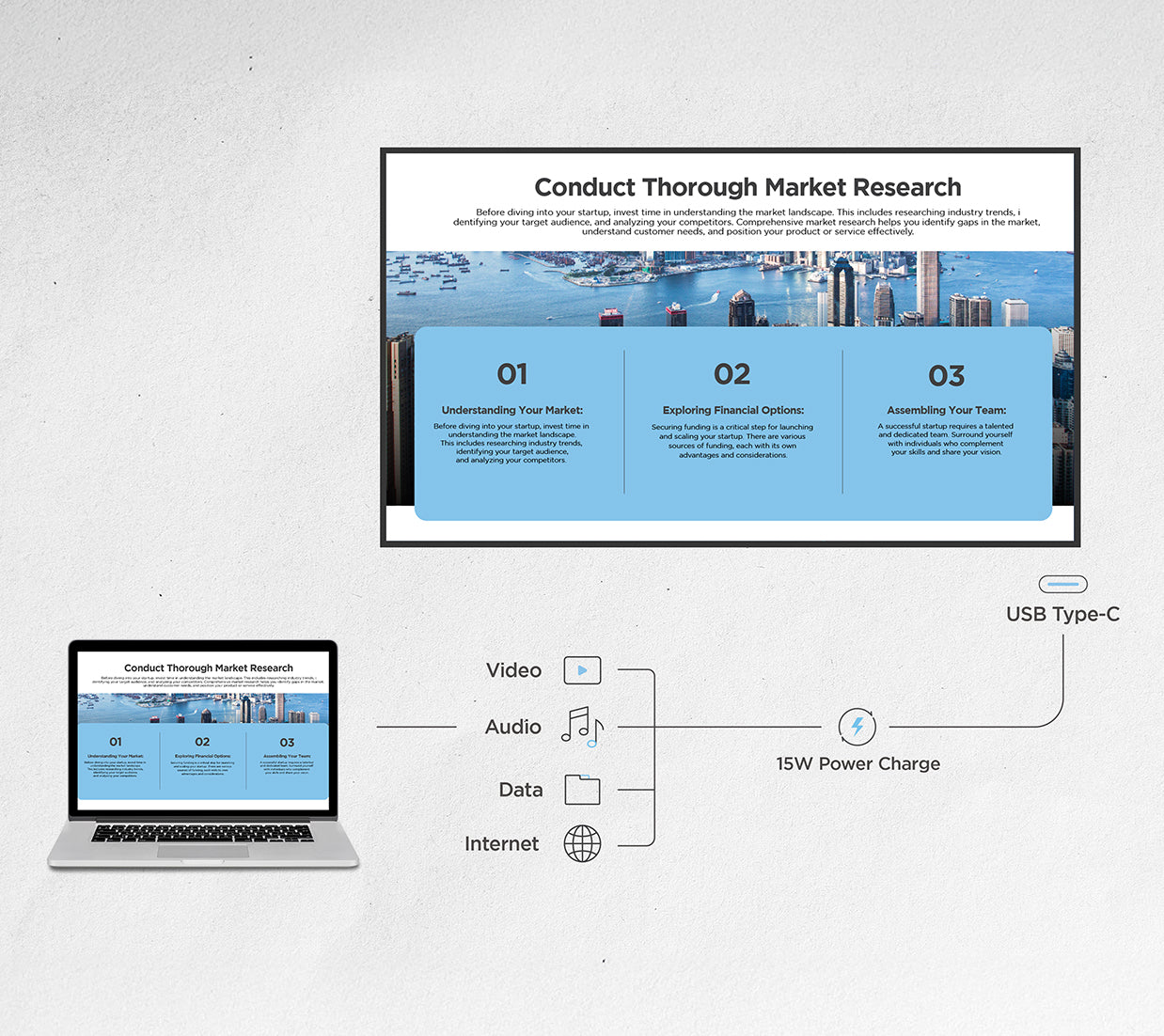

• USB-C Single-Cable Connectivity — One cable handles 4K video, data, and 15W power delivery.
• Wi-Fi Module Slot — Accepts optional 802.11ax + Bluetooth 5.2 module for wireless connectivity.
• SPDIF Optical Audio Output — Routes digital audio to external room audio systems or amplifiers.
• 16/7 Operation Rated — 30,000-hour backlight life for extended-hours commercial use.
• EPEAT Silver and Energy Star 8.0 — Satisfies institutional and government sustainability procurement requirements.
• 3-Year Limited Warranty — Parts, labor, and backlight coverage.

Typical Applications

• Corporate office conference room and meeting space
• Higher education classroom and faculty collaboration space
• Public sector and institutional meeting room display
• Digital signage with onboard Android content management
• Retail boutique and professional services presentation display
• Lobby and reception area communications display

Technical Specifications

Frequently Asked Questions

The CDE6531 offers a brighter 500 cd/m² VA panel, 8GB RAM, 24/7 operation rating, 50,000-hour backlight, 16W x 2 speakers, an OPS slot, HDMI output, and dual LAN ports. The CDE6514 has a 350 cd/m² ADS panel, 4GB RAM, 16/7 rating, and 30,000-hour backlight, but includes ViewSonic Manager Basic at no cost. Choose the CDE6514 for managed office and education environments with cost-conscious procurement; choose the CDE6531 for brighter, higher-use, or OPS-expansion applications.

No. ViewSonic Manager Basic is included at no additional cost with the CDE6514 and provides centralized fleet control, content scheduling, and remote monitoring without any per-display or subscription licensing fees.

The display includes a Wi-Fi module slot but does not ship with a module. The ViewSonic VB-WIFI-005 (802.11ax, dual-band, Bluetooth 5.2) is sold separately and installs into the slot.

The intelligent signal failover feature automatically detects the source loss and switches to a configured backup input or begins playing a USB media playlist, ensuring the screen remains active without manual intervention.

Yes. ViewSonic AirSync is built into the Android 14 AOSP platform and supports AirPlay (Apple) and Google Cast (Android/Chrome) for wireless screen sharing from any compatible device.

Yes. The 16/7 operation rating is specifically designed for extended-hours commercial use up to 16 hours per day, 7 days per week. For 24/7 continuous operation, the CDE6531 with its 24/7 rating is the appropriate model.

The CDE6514 specifications indicate landscape orientation only, unlike the CDE6531 which supports both landscape and portrait. Confirm portrait mode support with your reseller before specifying for a vertical signage installation.
