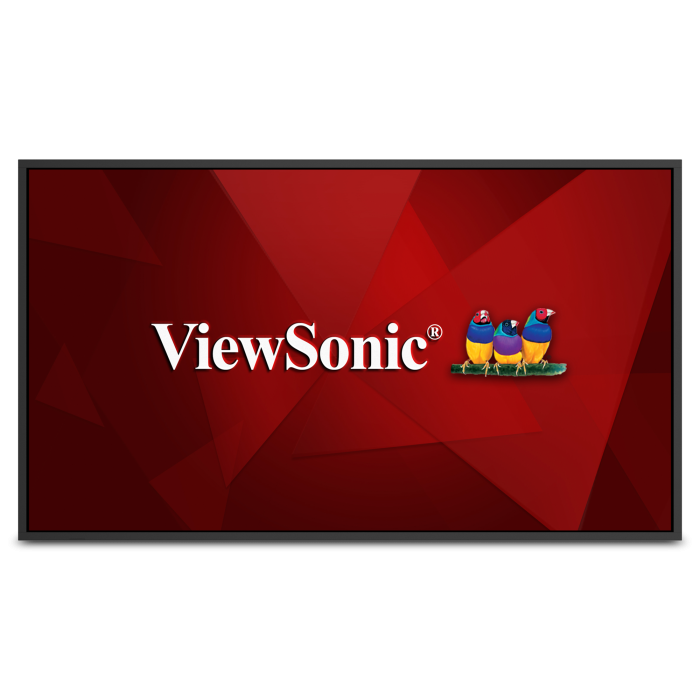

ViewSonic CDE55G3 – 55-Inch G3 Commercial Display

Product Overview

The ViewSonic CDE55G3 is a 55-inch 4K UHD OS-Free commercial display designed for professional AV installations where the display hardware is managed independently from content delivery. Running no embedded operating system, the CDE55G3 receives content entirely from external sources — media players, AV control systems, or connected computers — giving systems integrators and IT administrators direct control over the software environment. Certified with Crestron Connected, Extron, AMX, and Q-SYS, this display integrates natively into enterprise AV control architectures without requiring custom drivers. EPEAT Gold certification, ENERGY STAR 8.0, and a 24/7-rated duty cycle make it suitable for institutional procurement in education, corporate, hospitality, and government environments. At $1,079, it is positioned as a commercial-grade professional display for AV-driven deployments where an embedded Android OS is not required or desired.

Product Description

The CDE55G3 uses VA panel technology to deliver 500 nits brightness at 3840x2160 with a 5,000:1 static contrast ratio and 6.5ms GTG response time. The anti-glare 3H glass with 25% haze reduces reflections in high-ambient-light commercial spaces including lobbies, conference rooms, and retail environments. The 50,000-hour backlight life and 24/7-rated operation profile confirm this unit is built for continuous commercial use rather than consumer-grade intermittent operation. Three HDMI 2.1 inputs with HDCP 2.2 and CEC support multiple source devices simultaneously; HDMI ARC on Port 3 simplifies audio integration with connected amplifiers or AV receivers. A USB-C input handles video and data from modern laptops. Side-mounted 10W x2 speakers provide room-level audio, while S/PDIF output routes audio to external loudspeaker systems. RS232 and RJ45 provide control and network connectivity for Crestron, Extron, AMX, and Q-SYS integrations. The CDE55G3 holds EPEAT Gold — the highest tier in the EPEAT environmental rating program — which satisfies federal green procurement requirements and many institutional sustainability policies. Mexico NOM certification and the Mexico manufacturing origin make the standard CDE55G3 the foundation for the TAA-compliant CDE55G3-TAA variant used in federal procurement.

Key Features

• OS-Free Architecture — No embedded OS; content and control come from external AV sources, giving integrators full system control.
• 55-Inch 4K UHD VA Panel, 500 nits — 24/7-rated commercial operation; 50,000-hour backlight life.
• Crestron Connected / Extron / AMX / Q-SYS Certified — Factory-certified for four major AV control platforms; no custom driver development required.
• EPEAT Gold Certified — Highest tier EPEAT rating; meets federal and institutional green procurement policies.
• 3x HDMI 2.1 with HDCP 2.2 + CEC — HDMI ARC on Port 3 for simplified audio return channel integration.

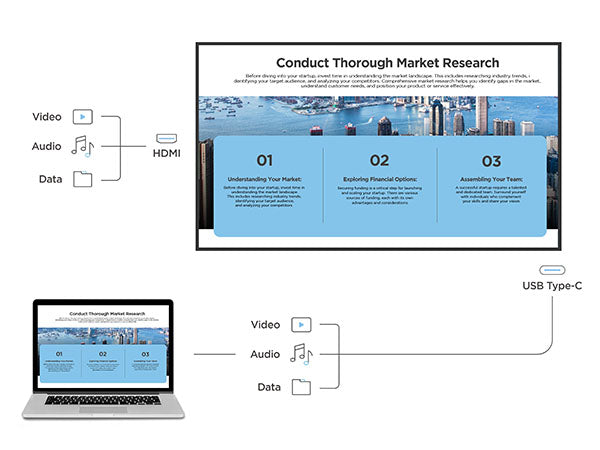

• USB-C Input — Video and data over a single cable from USB-C sources.
• Anti-Glare 3H Glass, 25% Haze — Reduces ambient light reflections in commercial installation environments.
• ENERGY STAR 8.0, 75.9W Typical — Auto-standby and low power consumption for energy compliance.
• RS232 + RJ45 Control — Wired control and network connectivity for room automation systems.
• VGA Input — Legacy source compatibility for existing AV infrastructure.

Typical Applications

• Corporate conference rooms managed by Crestron, Extron, AMX, or Q-SYS control systems
• University and K-12 AV installations with centralized control infrastructure
• Hotel conference and event space digital signage
• Government facilities using commercial AV displays on non-TAA procurement channels
• Retail digital signage with external media player or PC source
• Medical facility waiting area and wayfinding displays

Technical Specifications

Frequently Asked Questions

Q: Does the CDE55G3 have a built-in media player or Android OS?

No. The CDE55G3 is an OS-Free display. It has no embedded media player or operating system. Content is delivered from an external device connected via HDMI, USB-C, or VGA. For a similar display with a built-in Android media player, see the CDE5531.

Q: Which AV control systems is the CDE55G3 certified for?

The CDE55G3 holds factory certifications from Crestron (Crestron Connected), Extron, AMX, and Q-SYS. These certifications confirm the display has been tested with each vendor's control ecosystem.

Q: What is HDMI ARC and when is it used?

Audio Return Channel (ARC) on HDMI Port 3 allows audio from the display to travel back through the HDMI cable to a connected amplifier or AV receiver without requiring a separate audio cable. This simplifies AV rack wiring in conference and boardroom installations.

Q: Is the CDE55G3 rated for 24/7 continuous operation?

Yes. The CDE55G3 carries a 24/7 duty cycle rating and a 50,000-hour backlight life, making it suitable for continuous commercial operation in lobbies, digital signage, and always-on display applications.

Q: What is EPEAT Gold and why does it matter for procurement?

EPEAT (Electronic Product Environmental Assessment Tool) Gold is the highest tier environmental certification for electronic products. Many institutional procurement policies — including federal executive orders and state programs — require EPEAT Silver or Gold for technology purchases.

Q: How does the CDE55G3 compare to the CDE5531?

The CDE55G3 is OS-Free and AV-control certified (Crestron/Extron/AMX/Q-SYS), making it the choice for AV-driven installations. The CDE5531 runs Android 14 AOSP with a built-in media player and AirSync wireless casting, targeting IT-managed digital signage deployments that do not require dedicated AV control system integration.
