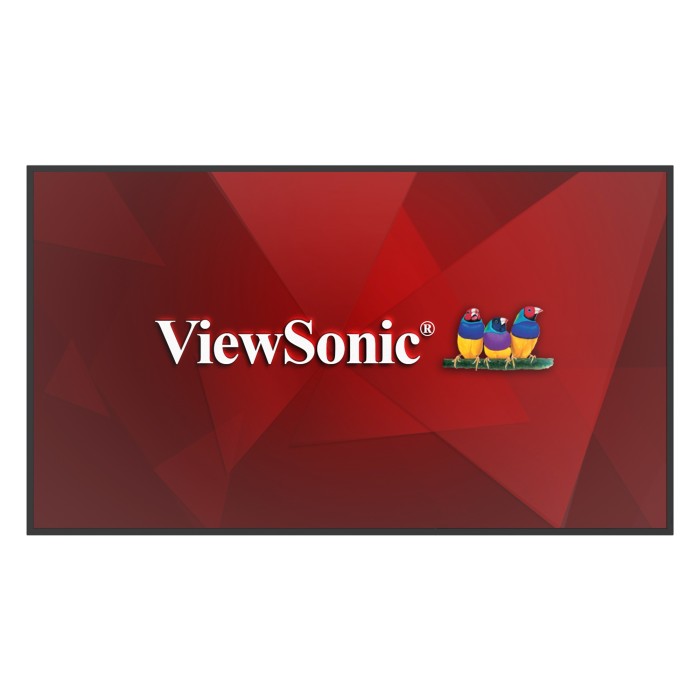

ViewSonic CDE5531 – 55-Inch Commercial LED Signage Display

Product Overview

The ViewSonic CDE5531 is a 55-inch 4K UHD commercial display with built-in Android 14 AOSP, designed for IT-managed digital signage and display deployments that require an embedded media player without the complexity of an external compute device. Running Android 14 on an ARM Cortex-A73 quad-core CPU with 8GB DDR4 RAM and 32GB storage, this display handles content playback, scheduling, and network-based management independently. AirSync wireless screen casting and ViewSonic Manager (free, cloud-based) enable IT administrators to push content, update firmware, and monitor display status across a fleet without on-site visits. The CDE5531 is certified for AMX, Extron, and Crestron AV control integration, and supports landscape or portrait orientation for flexible installation. At $1,029, it targets IT departments, facilities managers, and procurement teams deploying commercial displays in corporate lobbies, wayfinding, and meeting room environments.

Product Description

The CDE5531 combines a 500-nit VA panel with a 5,000:1 dynamic contrast ratio (1,200:1 static) at 3840x2160 resolution, providing bright, sharp imagery across a wide range of commercial deployment scenarios. The 24/7-rated duty cycle and 50,000-hour backlight life match the operational demands of always-on signage environments. Android 14 AOSP is a non-GMS Android build — it does not include the Google Play Store — but supports sideloaded APKs and native ViewSonic applications including AirSync and Manager. The USB-C port delivers DisplayPort 1.2 video, 65W power delivery, and USB 2.0 data over a single cable, simplifying presenter connections in meeting rooms. Three HDMI 2.1 inputs and one HDMI 2.0 output accommodate multiple source devices and daisy-chain configurations. Dual RJ45 ports provide separate network paths for the Android OS and downstream devices, supporting VLAN segmentation in enterprise network environments. An 8-second warm boot from standby minimizes perceptible delays in high-traffic shared display spaces. Two 16W side speakers and a 3.5mm audio input/output provide audio flexibility for content requiring in-room sound. A Wi-Fi slot accepts the optional VB-WIFI module for wireless deployment. AirSync enables wireless screen sharing from Windows, macOS, Android, and iOS devices without requiring a separate dongle or receiver. ViewSonic Manager (free) provides centralized OTA updates, content scheduling, device monitoring, and remote reboot for multi-display fleet management.

Key Features

• Android 14 AOSP Built-In — Embedded media player and app platform; no external compute device required for content playback and scheduling.
• 55-Inch 4K UHD VA Panel, 500 nits — 24/7-rated commercial operation; 50,000-hour backlight life; landscape and portrait orientations supported.
• 8GB DDR4 RAM / 32GB Storage — Sufficient headroom for concurrent application workloads and local media storage.
• USB-C (DisplayPort 1.2 + 65W PD) — Single-cable video, power, and data from connected laptops.
• AirSync Wireless Casting — Screen sharing from Windows, macOS, Android, and iOS without a separate receiver device.
• ViewSonic Manager (Free) — Cloud-based centralized fleet management: OTA updates, content scheduling, device monitoring, remote reboot.
• AMX / Extron / Crestron Certified — AV control system integration for conference room and automation applications.
• Dual RJ45 (In + Out) — Network daisy-chain capability; separate interfaces for OS and downstream devices.
• 8-Second Warm Boot — Fast return from standby for shared display environments.
• Landscape and Portrait Support — Flexible installation for standard and portrait-mode digital signage.

Typical Applications

• Corporate lobby and wayfinding digital signage managed by ViewSonic Manager
• Meeting room displays with wireless presenter casting via AirSync
• Retail digital signage with local media playback
• University campus information displays managed centrally by IT

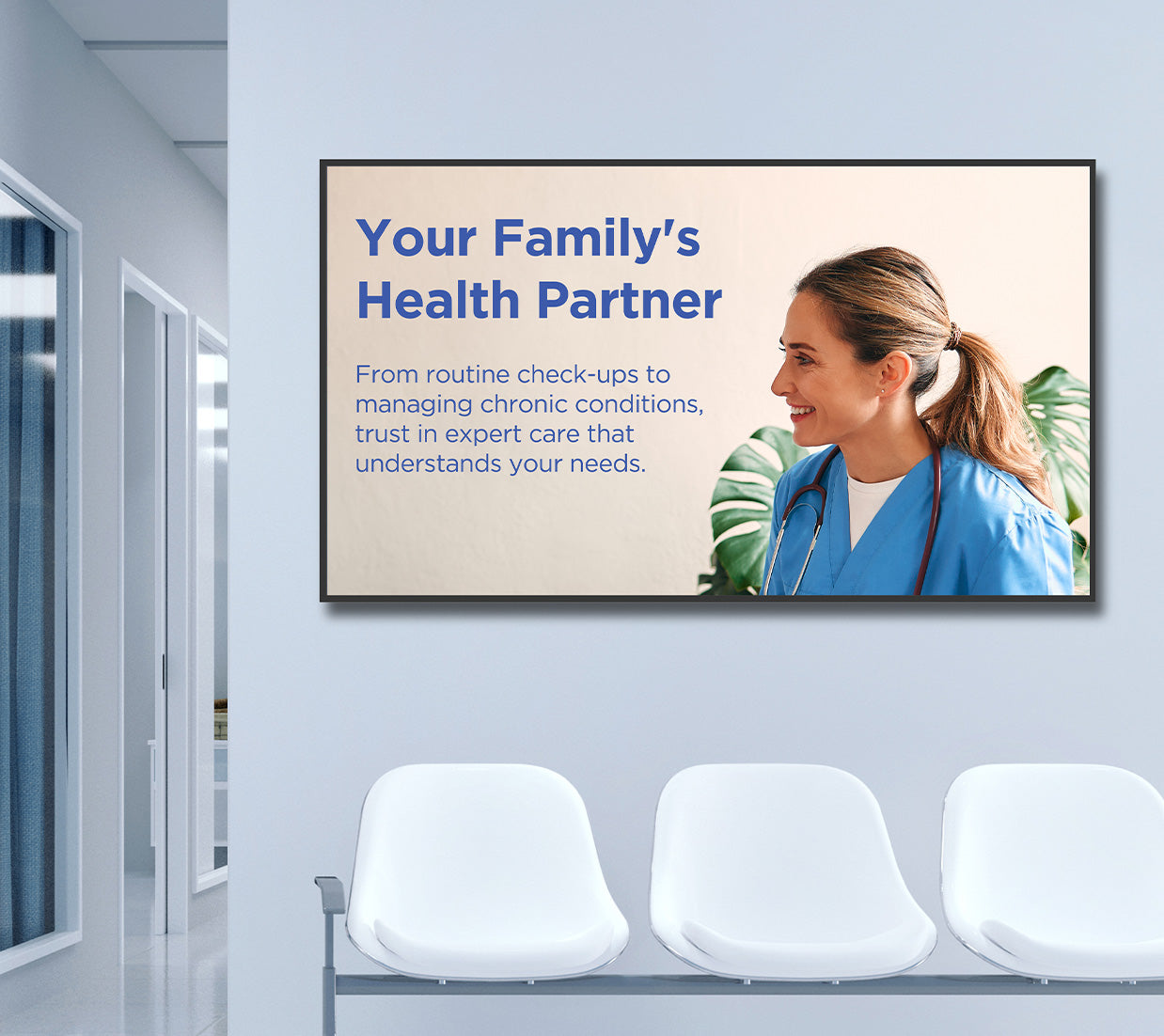

• Healthcare facility waiting room and departmental signage
• Conference room secondary display or content board

Technical Specifications

Frequently Asked Questions

Q: Does Android 14 AOSP on the CDE5531 support the Google Play Store?

No. Android 14 AOSP is a non-GMS (non-Google Mobile Services) build that does not include the Play Store. Apps can be sideloaded via APK, and the ViewSonic native software suite (AirSync, Manager) is pre-installed. For Google Play access, see the IFP series running Android EDLA.

Q: Is a Wi-Fi adapter included with the CDE5531?

The CDE5531 includes a Wi-Fi module slot, but the Wi-Fi module itself is sold separately. Wired Ethernet is recommended for stable enterprise deployments.

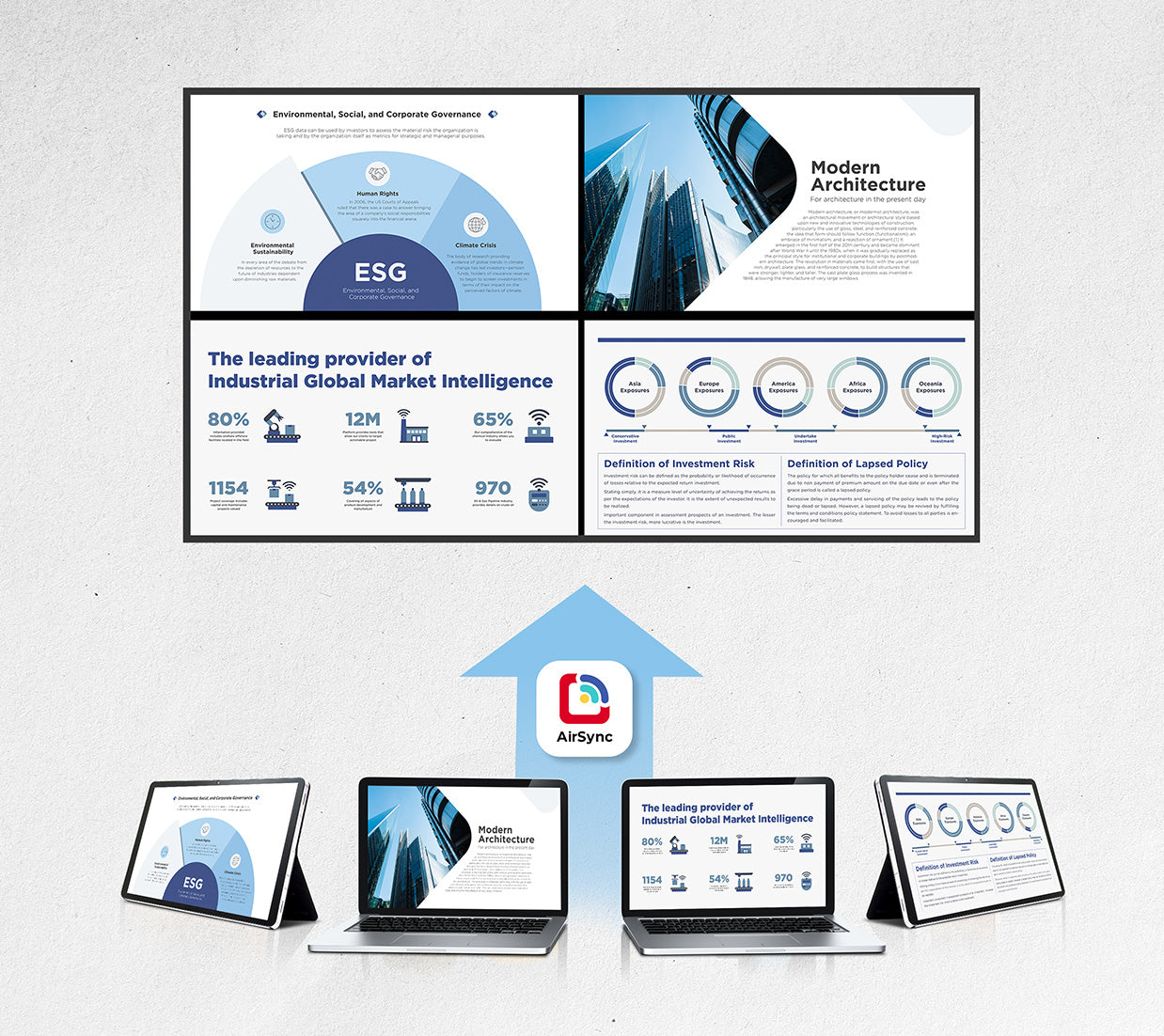

Q: How does AirSync wireless casting work?

AirSync enables wireless screen sharing from Windows, macOS, Android, and iOS devices to the display over the same network. No separate receiver dongle is required. The presenter connects through the AirSync app or built-in screen share features of their device.

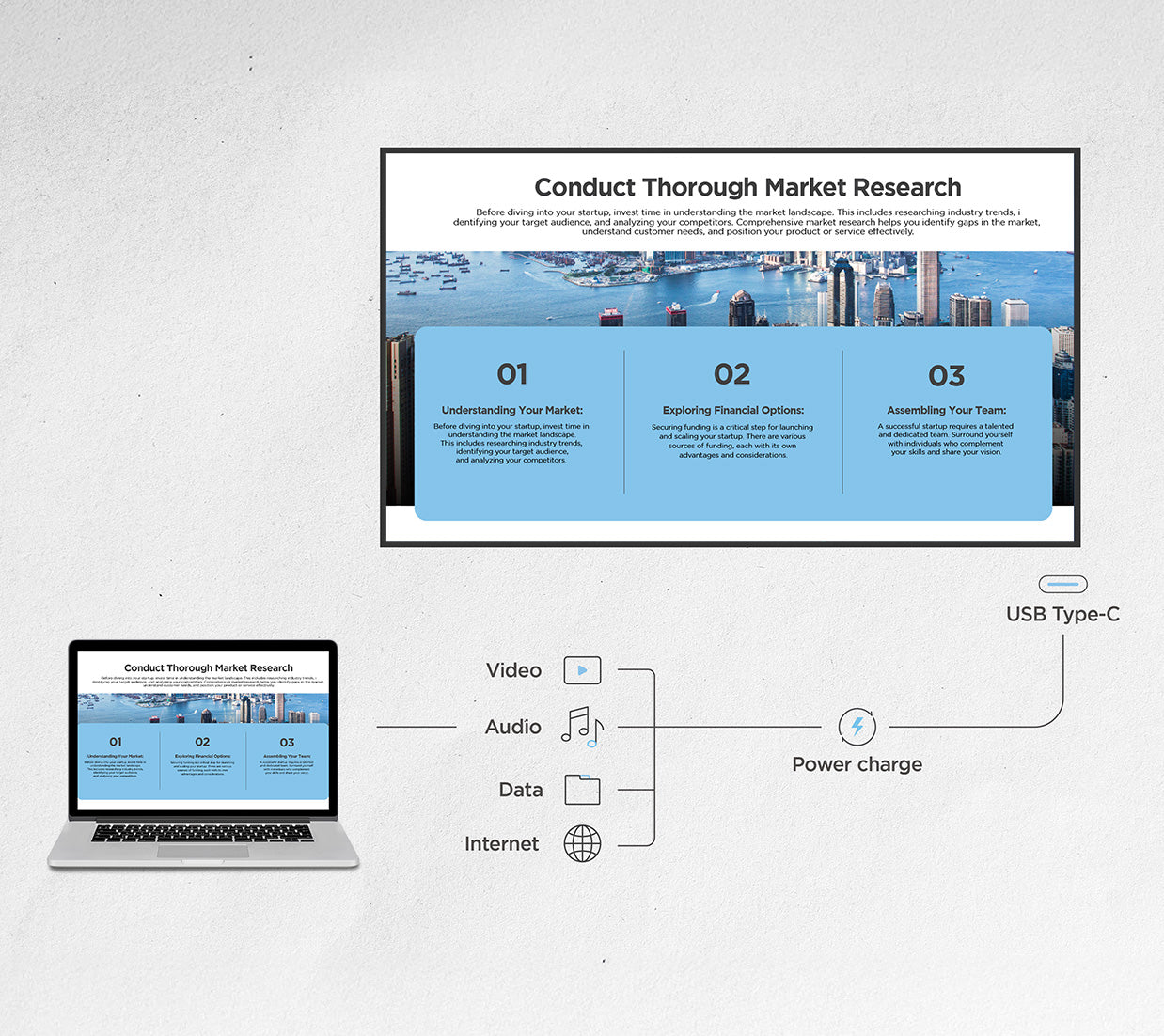

Q: Can I use the USB-C port to connect a laptop and charge it simultaneously?

Yes. The USB-C port supports DisplayPort 1.2 video input, USB 2.0 data, and up to 65W power delivery simultaneously, allowing a single USB-C cable to handle display, data, and charging for compatible laptops.

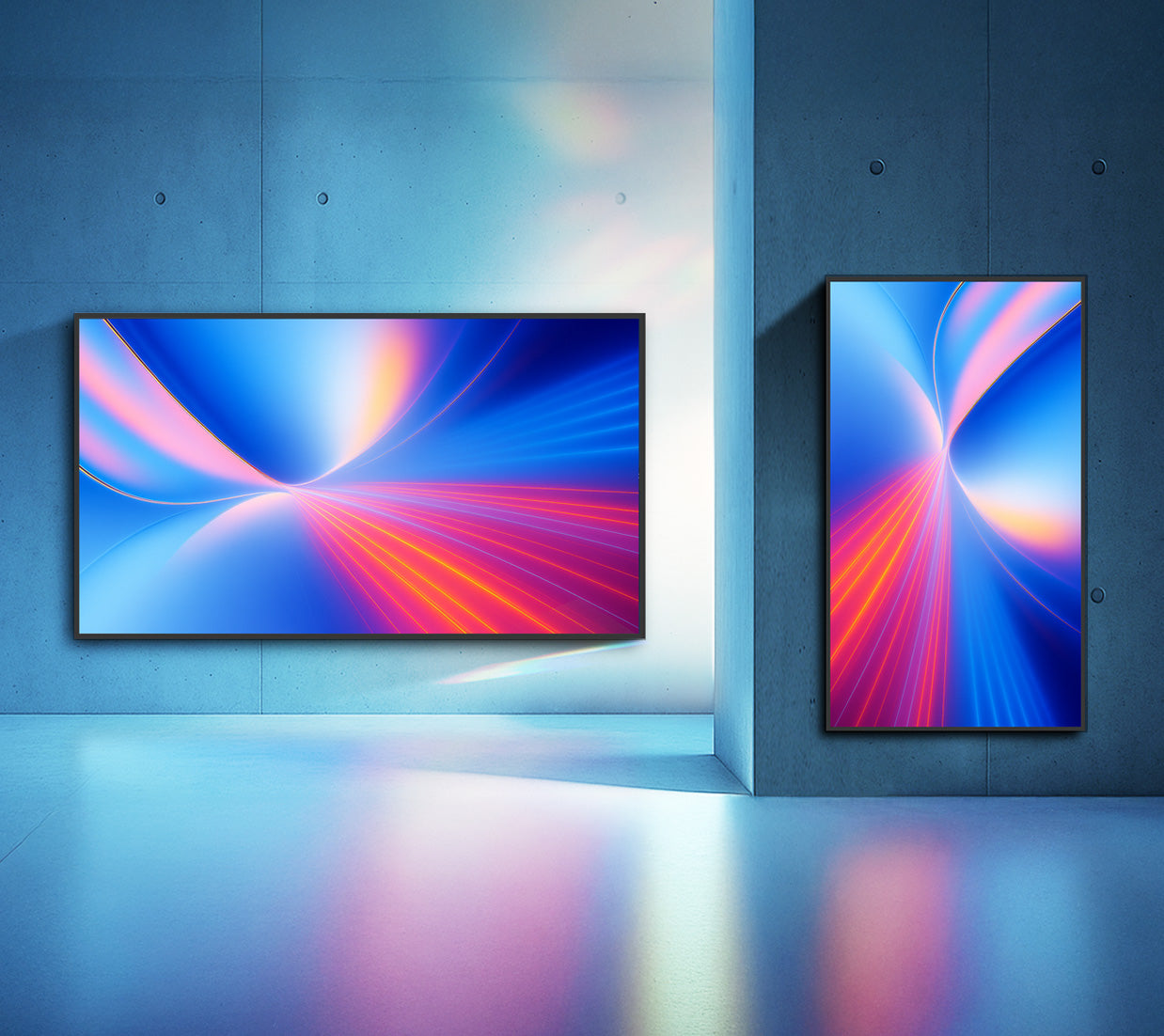

Q: Can the CDE5531 be installed vertically in portrait mode?

Yes. The CDE5531 supports both landscape and portrait orientations, making it suitable for digital signage kiosks, menu boards, and vertical information displays.

Q: What AV control systems are supported?

The CDE5531 is certified for AMX, Extron, and Crestron AV control systems via RS232 and RJ45. Note that Q-SYS certification, which is present on the OS-Free CDE55G3, is not listed for the CDE5531.
