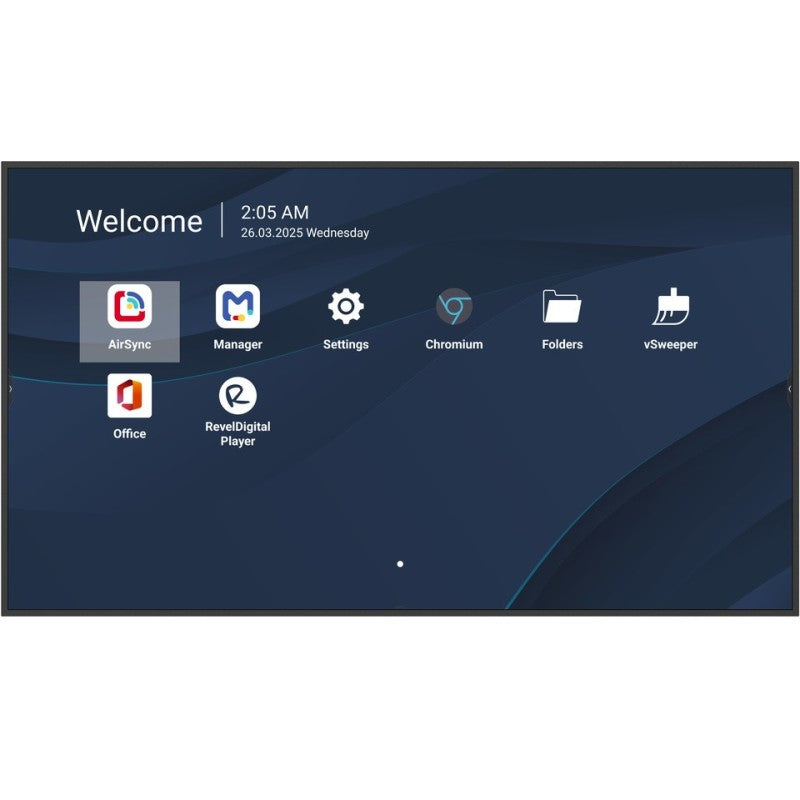

ViewSonic CDE4314 – 43-Inch Commercial Digital Signage Display

Product Overview

The ViewSonic CDE4314 is a 43-inch 4K UHD commercial display with built-in Android 14 AOSP, designed as an entry-level commercial signage display for budget-constrained deployments that still require an embedded media player, wireless casting, and AV control certification. Running Android 14 on an ARM Cortex-A73 quad-core CPU with 4GB DDR4 RAM and 32GB storage, the CDE4314 handles content playback, AirSync wireless screen sharing, and ViewSonic Manager remote management without an external compute device. Intelligent Signal Failover protects against blank screen events by automatically switching inputs when the primary source is lost. Q-SYS, AMX, Extron, and Crestron certifications confirm compatibility with enterprise AV control ecosystems. At $599, the CDE4314 targets IT departments and procurement teams who need a compact 43-inch commercial display with these capabilities at the lowest available price point in the ViewSonic commercial line.

Product Description

The CDE4314 uses ADS panel technology at 350 nits, 3840x2160, with a 1,200:1 static contrast ratio and 8ms GTG response time. The 16/7 duty cycle and 30,000-hour backlight are rated for commercial deployments operating during business hours rather than 24/7 continuous use. ADS panel technology offers wider off-axis color accuracy compared to VA panels, which can be an advantage in conference rooms where participants are seated at angles to the screen. The 4GB RAM configuration handles standard signage playback and AirSync casting workloads, though concurrent multi-application use will be more constrained than on the 8GB CDE4331. Three HDMI 2.1 inputs accommodate multiple source devices. The USB-C port provides 15W power delivery alongside video and data. Two USB 2.0 ports handle peripheral connections. A Wi-Fi module slot accepts the optional VB-WIFI-005 adapter (802.11AX + Bluetooth 5.2). Bottom-mounted 10W x2 speakers provide in-room audio; S/PDIF routes audio to external systems. Intelligent Signal Failover monitors connected inputs and switches automatically if a source is disconnected, maintaining continuous display output. EPEAT Silver certification and ENERGY STAR 8.0 confirm the CDE4314 meets entry-level institutional environmental procurement requirements. Landscape-only installation is supported; portrait orientation is not available on this model.

Key Features

• Android 14 AOSP / 4GB DDR4 / 32GB Storage — Built-in media player for signage and casting workloads without an external device.

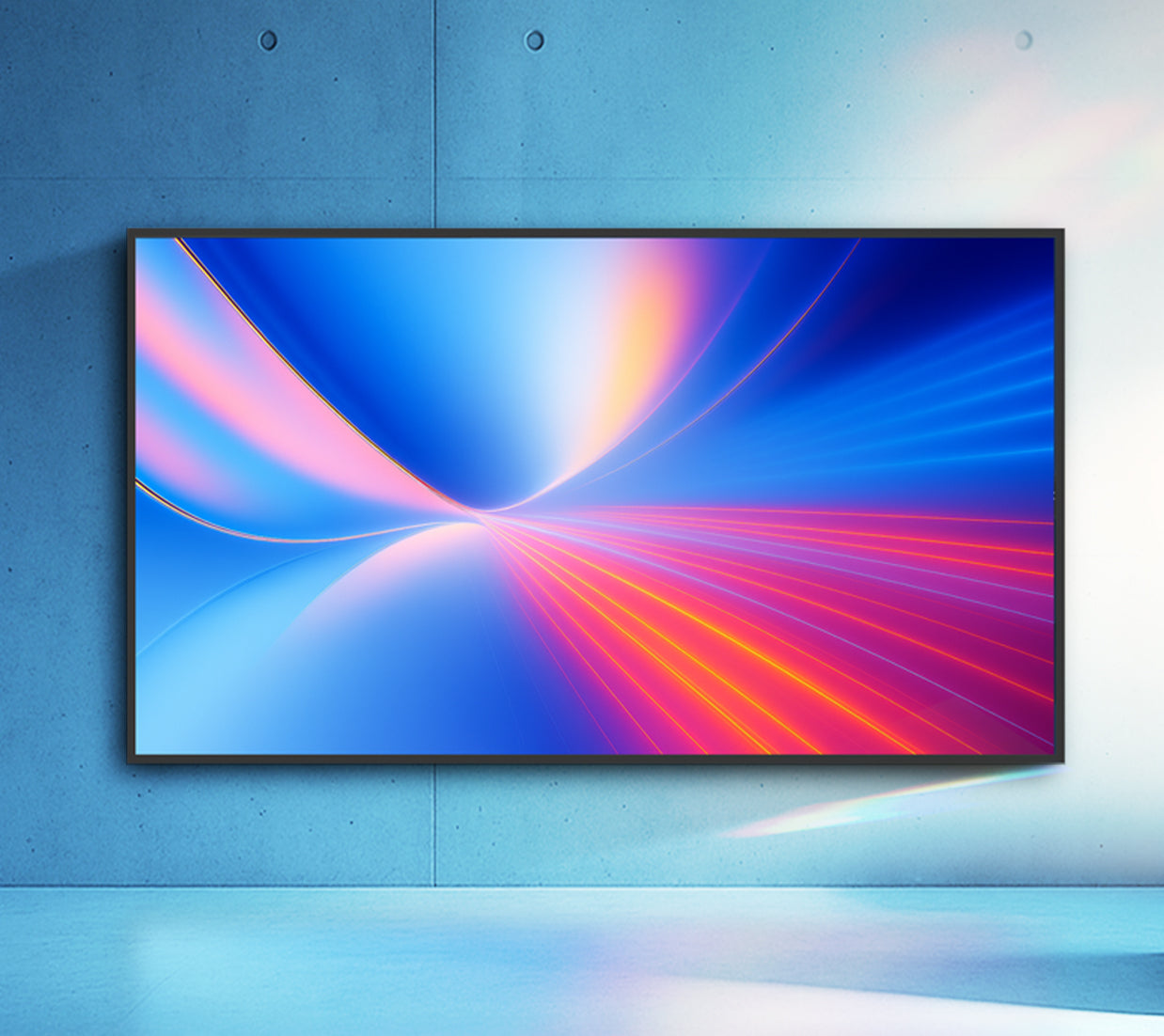

• 43-Inch 4K UHD ADS Panel, 350 nits — 16/7-rated commercial display; wider off-axis color accuracy versus VA panels; 9.9mm bezel.
• Intelligent Signal Failover — Automatic input switching on primary source loss to maintain continuous output.
• AirSync Wireless Casting — Screen sharing from Windows, macOS, Android, and iOS without a separate receiver.

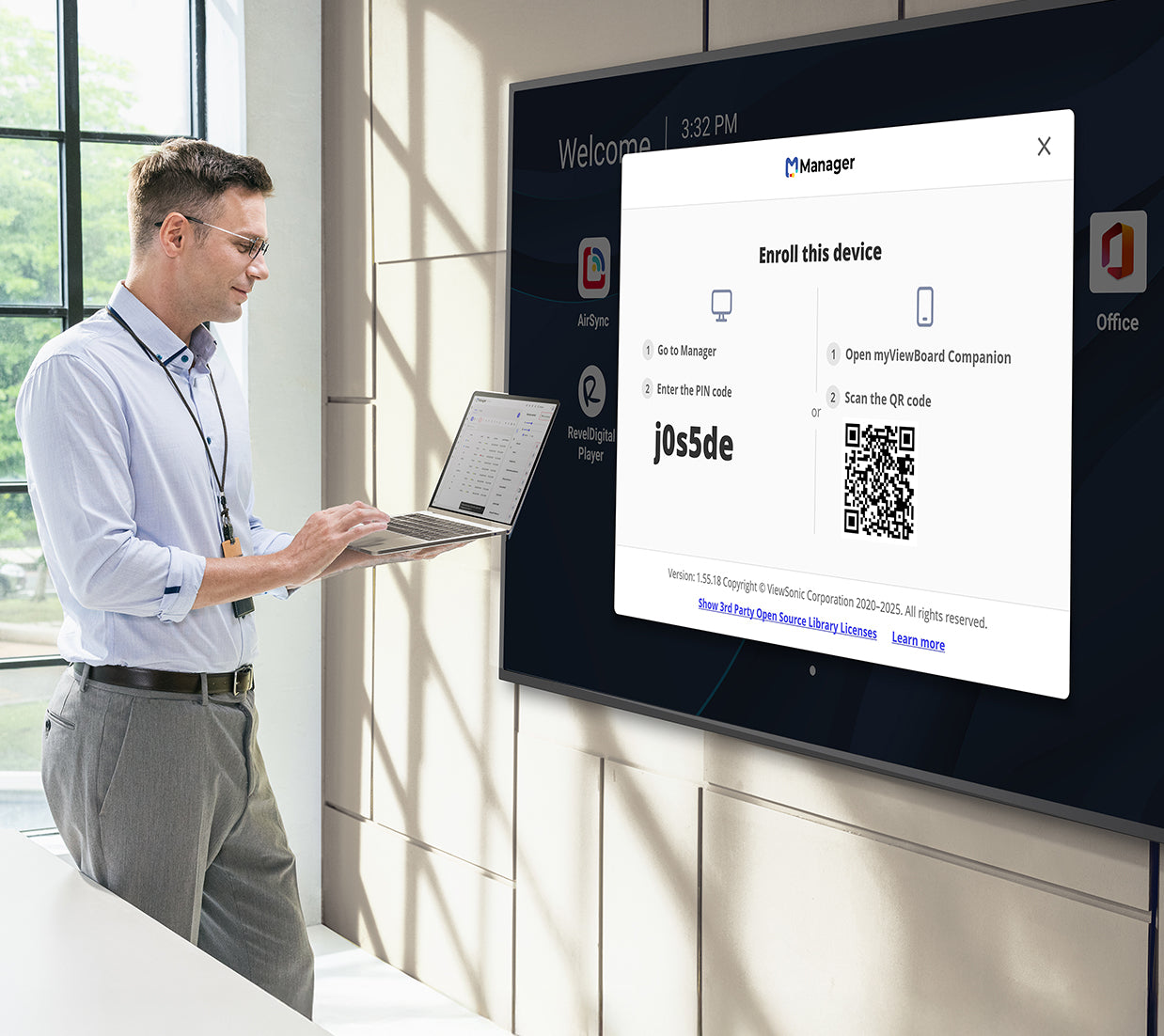

• ViewSonic Manager (Free) — Cloud-based fleet management: OTA updates, content scheduling, monitoring, remote reboot.

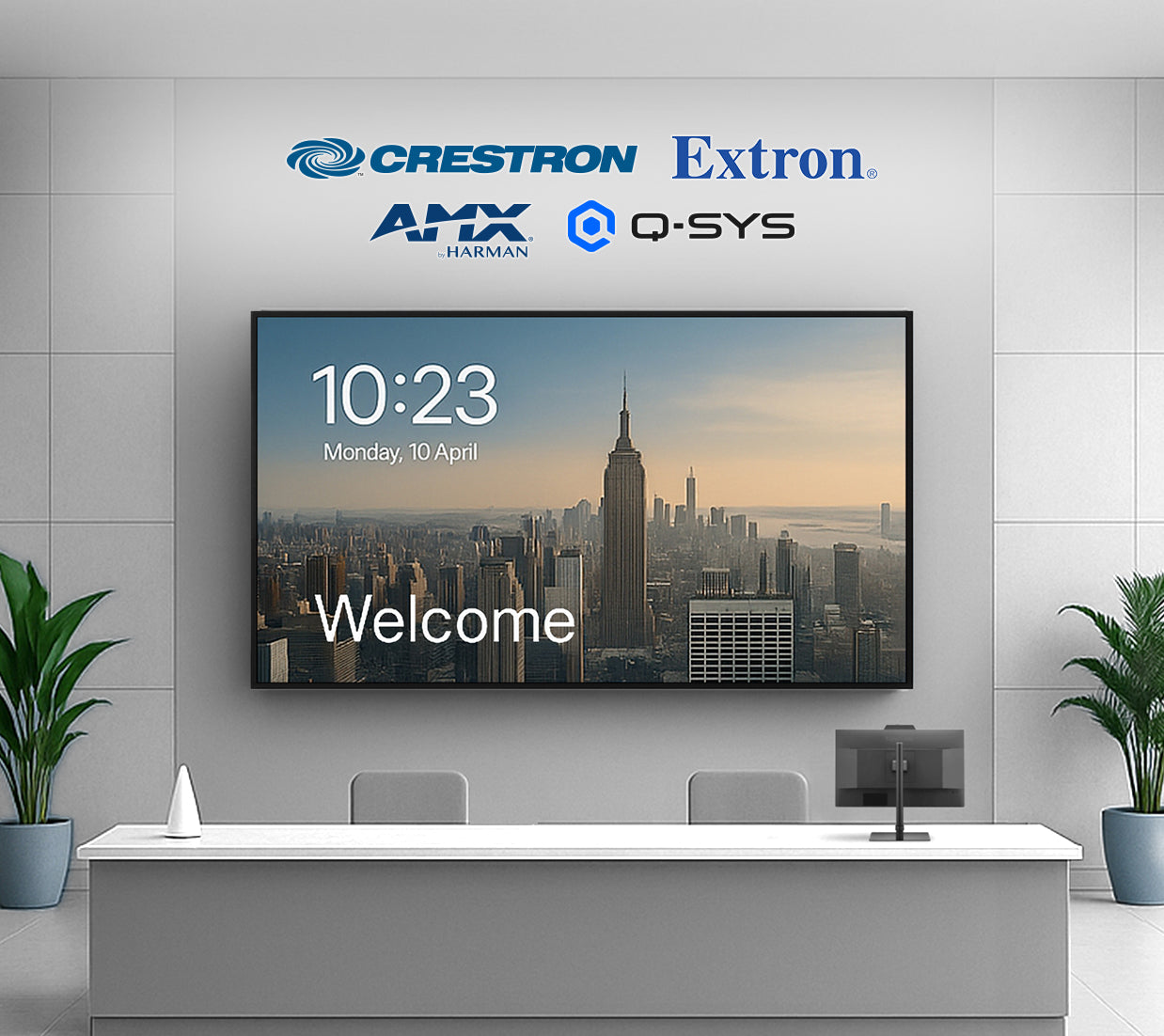

• Q-SYS / AMX / Extron / Crestron Certified — AV control system integration for conference room and automation applications.
• Optional 802.11AX Wi-Fi + Bluetooth 5.2 — VB-WIFI-005 adapter for wireless deployments.
• 3x HDMI 2.1 In — Multi-source input capability.

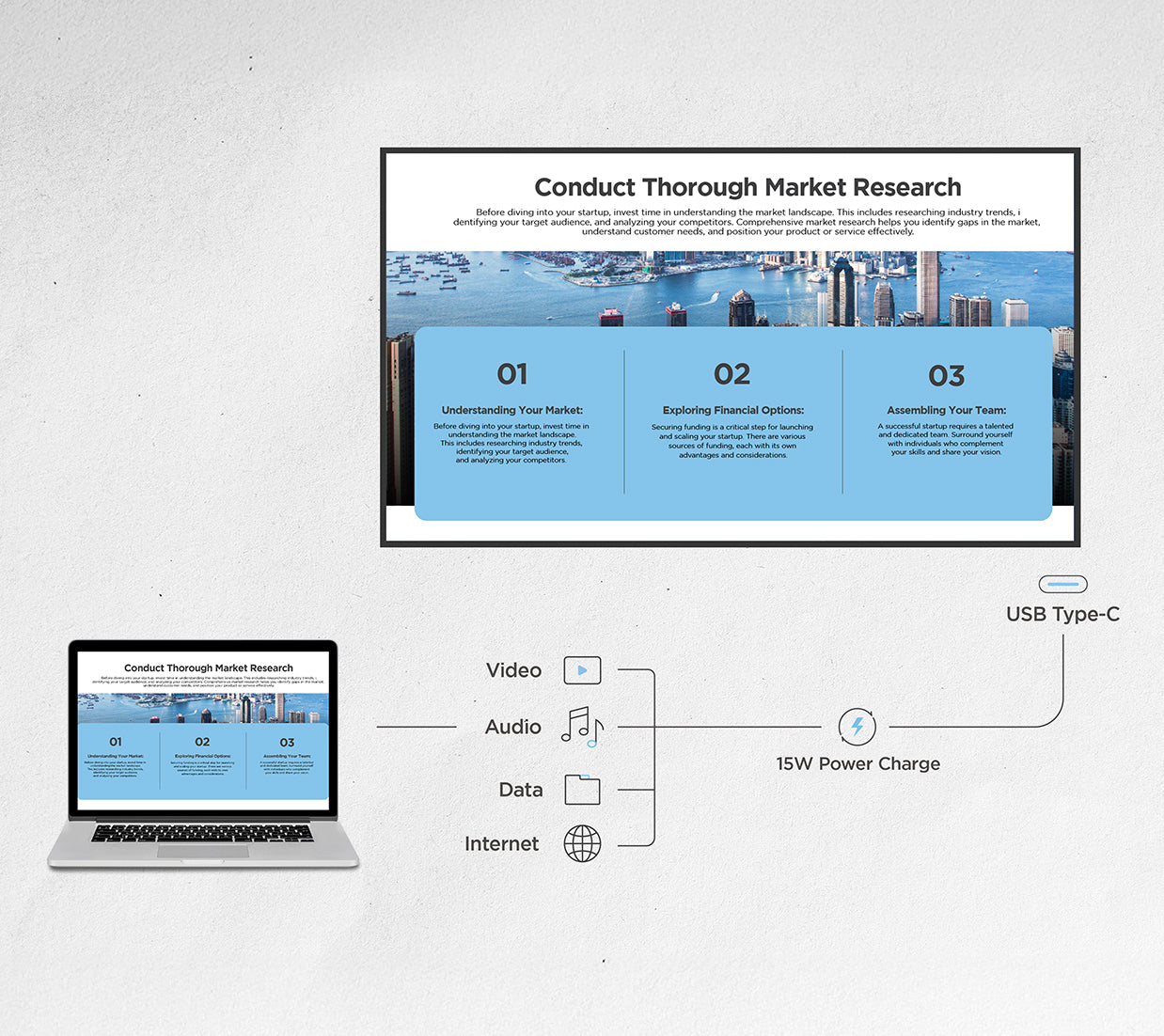

• USB-C Input (15W PD) — Single-cable laptop connectivity with basic power delivery.
• EPEAT Silver / ENERGY STAR 8.0 — Institutional green procurement compliance at entry-level pricing.

Typical Applications

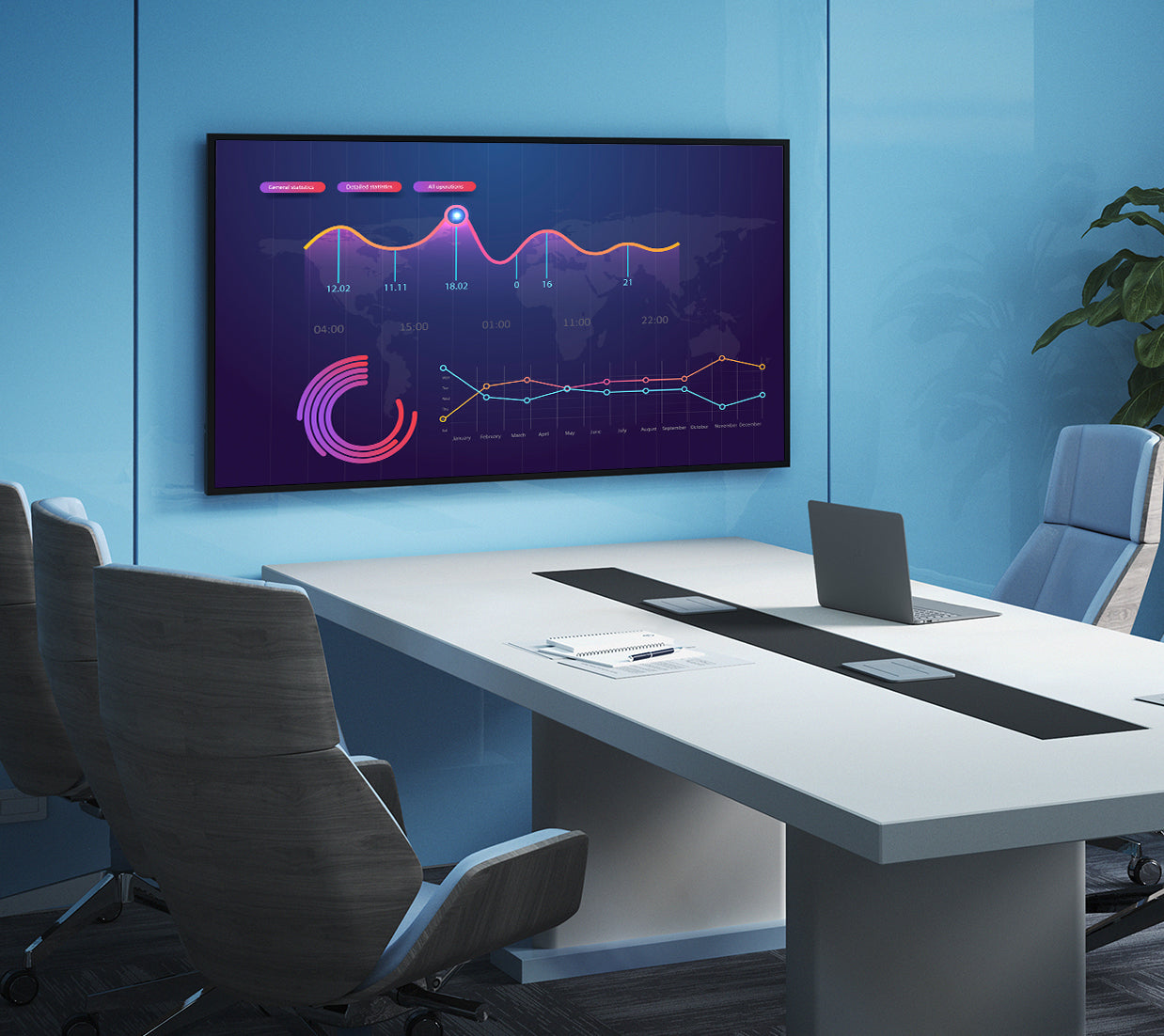

• Small conference room and huddle space display on a controlled budget
• Retail point-of-sale or product information display
• Corporate lobby and reception information board
• Healthcare waiting room and departmental information display
• University classroom supplement display
• Multi-site franchise signage deployment requiring AV control certification

Technical Specifications

Frequently Asked Questions

Q: How does the CDE4314 compare to the CDE4331?

Both are 43-inch Android 14 AOSP displays. The CDE4331 has 8GB RAM, 500 nits, VA panel, 24/7 duty cycle, 50,000-hour backlight, portrait/landscape support, USB-C 65W PD, dual RJ45, and HDMI Out. The CDE4314 has 4GB RAM, 350 nits, ADS panel, 16/7 duty cycle, 30,000-hour backlight, landscape only, USB-C 15W PD, and single RJ45. Choose the CDE4314 where budget is the primary constraint and 24/7 operation is not required; choose the CDE4331 for always-on, multi-orientation, or higher-demand deployments.

Q: What is the ADS panel type and how does it differ from VA?

ADS (Advanced Super Dimension Switch) is a wide-viewing-angle TFT LCD technology similar to IPS. It provides better off-axis color consistency than VA panels, which can show color shift at wider angles. VA panels have higher native contrast ratios. For conference rooms where viewers sit at varied angles, ADS is generally preferable; for direct-view signage where contrast matters more, VA is typically the better choice.

Q: Is the Wi-Fi adapter included?

No. The VB-WIFI-005 adapter is an optional accessory sold separately. The display includes a wired RJ45 Ethernet port for network connectivity.

Q: Does the CDE4314 support portrait installation?

No. The CDE4314 supports landscape orientation only. For portrait-mode signage in 43 inches, see the CDE4331.

Q: How does Intelligent Signal Failover work?

When the primary input source is disconnected or its signal is lost, the CDE4314 automatically switches to the next available input. This prevents blank screen conditions in presentations and unattended signage environments.

Q: What is the warranty?

A 3-year limited warranty is included.
