Cambridge Sound E-A-B-30-4 Standard Emitters, Black, 4 pack, with 4 x 30 ft black plenum rated cable- 911.0891.900

Product Overview

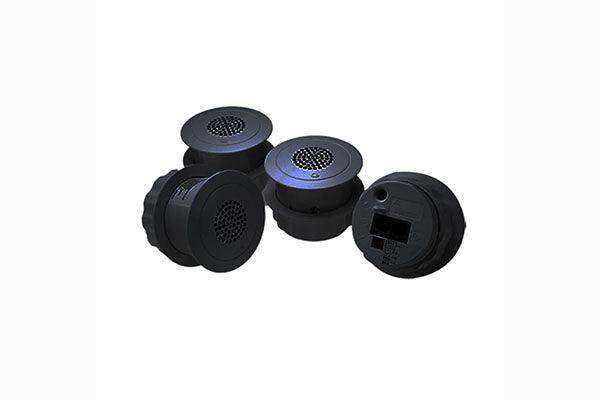

The Cambridge Sound E-A-B-30-4 (part number 911.0891.900) is a four-pack of Qt emitters in black, supplied with four 30-foot black plenum rated cables. Emitters are the ceiling loudspeakers of a Qt direct-field sound masking system, and this pack uses active electronics to handle sound masking and simultaneous reproduction of paging and music signals from a single source. A ported enclosure extends frequency response lower and output 17 dB higher than previous direct-field emitters. The units are UL-listed, comply with UL 2043 for plenum installation, and disappear visually in finished or open-structure ceilings.

Product Description

Unlike conventional masking systems that bounce sound off the ceiling deck from large in-plenum loudspeakers, the Qt emitter distributes masking directly into the workspace using Cambridge Sound's direct-field Quiet Technology. That direct path produces a more uniform masking field and clearer paging and music, since the driver faces the listener rather than playing through ceiling material. Masking response extends down to the 125 Hz octave band and paging/music response to 115 Hz, with a maximum paging/music output of 74 dBA at 1 meter. Four auto-sequencing uncorrelated audio channels reduce phasing and comb-filtering between adjacent emitters. Each emitter connects over RJ-45 category UTP cabling, draws a maximum of 2 watts at 36 VDC, and ships with an acoustic ceiling tile mounting ring and slip-ring mount. Rear DIP switches trim level in 1.5 dB steps down to -4.5 dB. The pack is compatible with Qt 300 and Qt 600 control modules and with the DynasoundPro network system (specify DS1320). Pair with control modules from the Cambridge Sound collection.

Key Features

• 30 ft Plenum Rated Cables Included — four black plenum rated cables ship with the four emitters.
• Masking, Paging, and Music — a single ceiling emitter covers all three functions.
• Direct-Field Quiet Technology — distributes masking evenly into the workspace without plenum reflections.
• Active Electronics — integral amplifier delivers 17 dB more output than previous direct-field emitters.
• Extended Low-Frequency Response — ported enclosure reaches the 125 Hz octave band for masking and 115 Hz for paging and music.
• Four Uncorrelated Channels — auto-sequencing channel assignment reduces phasing and comb-filtering.
• UL 2043 Plenum Rated — UL-listed for installation in air handling spaces.
• Adjustable Attenuation — rear DIP switches reduce volume in 1.5 dB increments to -4.5 dB.
• Tile Mounting Ring Included — slip-ring mount installs in acoustical ceiling tile.
• Qt and DynasoundPro Compatible — works with Qt 300 and Qt 600 control modules; DynasoundPro network systems specify DS1320.

Typical Applications

• Open offices — uniform direct-field masking with paging across open floor plates.
• Call centers — reduces speech distraction between adjacent agent positions.
• Healthcare facilities — supports speech privacy in exam rooms and waiting areas.
• Law and financial offices — protects confidential client conversations.
• Conference rooms — masks speech transfer to and from adjacent spaces.

Technical Specifications

Specifications sourced from Cambridge Sound vendor data. Unlisted values are omitted rather than estimated.

FAQ

What cables come with the E-A-B-30-4?
Four 30-foot black plenum rated cables, one per emitter, terminated for the RJ-45 connections used throughout Qt systems.

Which control modules drive these emitters?
The Cambridge Sound Qt 300 and Qt 600 control modules; for DynasoundPro network systems, specify the DS1320 version.

Can the emitters and cables go in a return-air plenum?
Yes. The emitters comply with UL 2043 for air handling spaces and the included cables are plenum rated.

How is per-emitter level adjusted?
Rear DIP switches attenuate each emitter in 1.5 dB increments down to -4.5 dB, in addition to zone-level control at the Qt module.
