Cambridge Sound DS1390B Dynasound Soundmasking / Paging Speaker w/ mounting bridge - 911.0876.900
Cambridge Sound DS1390B Dynasound Soundmasking / Paging Speaker w/ mounting bridge - 911.0876.900 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Cambridge Sound DS1390B Dynasound Soundmasking / Paging Speaker w/ ...
Product Overview

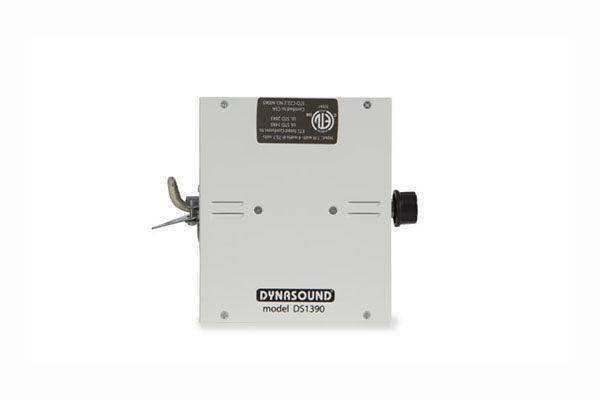

The Cambridge Sound DS1390B (part number 911.0876.900) is a Dynasound sound masking and paging speaker supplied with a mounting bridge for ceiling plenum installation. Its dual, horizontally opposed drivers produce uniform 360-degree dispersion suited to reverberant underfloor cavities and shallow plenums. An internal 70-volt transformer ties it directly into distributed masking and paging lines.
Product Description
The DS1390 design places two performance-engineered drivers back to back with tuned ports, generating even sound energy in every direction rather than a single forward lobe. That dispersion pattern is what makes it effective in underfloor cavities as shallow as 1-3/4 inches and in tight ceiling plenums where conventional downward-firing masking speakers do not fit. The B-suffix model includes the mounting bridge, which adapts the speaker for ceiling plenum placement above tile grids. The internal 70-volt transformer allows long daisy-chained runs typical of distributed sound masking zones. ETL listing to UL1480 and CSA C22.2 60065 supports code-compliant commercial installation. It handles masking, paging, and background audio duties from the same enclosure. Pair it with Dynasound generators and plenum cabling from the Cambridge Sound collection at Creation Networks.
Key Features
- Dual Opposed Drivers — performance-engineered drivers with tuned ports deliver uniform 360-degree dispersion.
- Shallow-Cavity Capable — operates in floor cavities as shallow as 1-3/4 inches.
- Included Mounting Bridge — adapts the speaker for ceiling plenums where standard masking speakers do not apply.

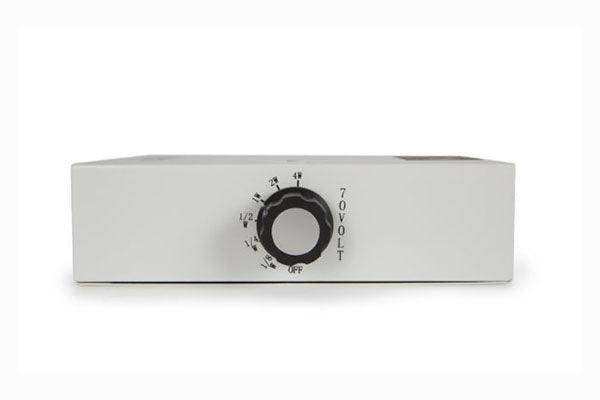

- Internal 70-Volt Transformer — supports long distributed runs for masking and paging zones.
- Safety Listed — ETL listed to UL1480 and CSA C22.2 60065 for commercial installation.
- Multi-Signal Use — handles sound masking and paging from a single enclosure.
Technical Specifications
| Specification | Value |
|---|---|
| Model | DS1390B (with mounting bridge) |
| Part Number | 911.0876.900 |
| Driver Configuration | Dual, horizontally opposed drivers with tuned ports |
| Dispersion | Uniform 360-degree |
| Transformer | Internal 70-volt |
| Minimum Cavity Depth | 1-3/4 in |
| Listings | ETL listed to UL1480 and CSA C22.2 60065 |
Specifications sourced from Cambridge Sound vendor data. Unlisted values are omitted rather than estimated.
