Cambridge Sound QT X300 3-zone sound masking, paging and background music bundle for up to 3,600SF

Cambridge Sound SKU: CN-QTX30036ACTIVE
No reviews
Price:
$9,855.00

Description

The Qt product lineup is the Qt X300 3-zone system can cover up to 3,600 Sqft - sound masking, paging and background music

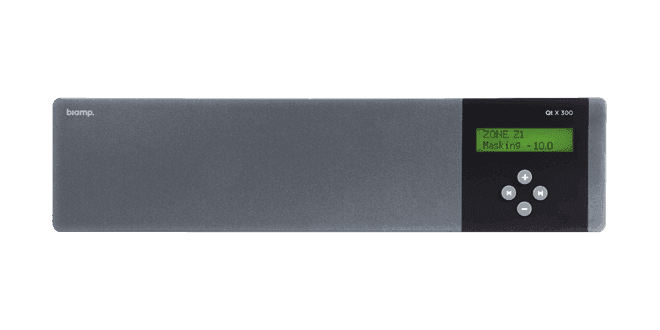

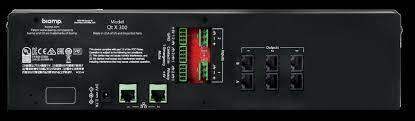

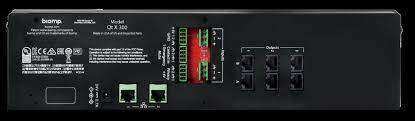

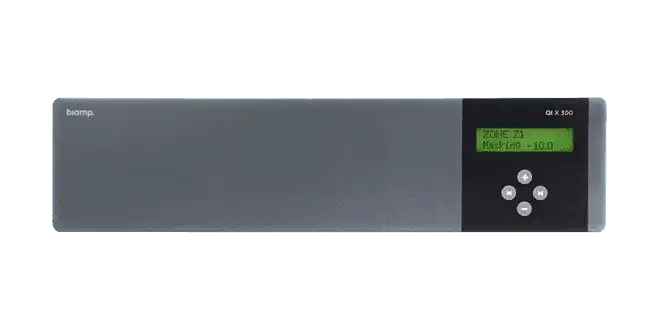

The Cambridge Qt® X 300/300D control module is an all-in-one device designed for sound masking generation, audio control, and amplification. It features two auxiliary audio inputs that can be used to distribute audio from paging controllers and background music players. The Qt X 300/300D can control up to three zones of Qt standard or active emitters independently, and it's ideal for small to medium-sized spaces up to 36,000 square feet (3,345 m2). You can adjust each zone's masking and aux audio levels and spectra separately. Both models are compatible with Biamp's SageVue™ system management software, and when multiple controllers are used, audio inputs can be shared across all controllers via AVB or Dante (300/D).

This innovative sound masking system effectively achieves speech privacy in medical exam rooms, clinics, and urgent care facilities, while also canceling out office noise by making human speech less intelligible. The control module, Qt X 300D, is a compact and networkable controller with three zones. With 36 speakers, it can cover approximately 3,600 square feet and can be expanded up to 36,000 square feet with additional Qt Emitters. Two Qt wall volume controllers make adjustments easy. The system is perfect for waiting rooms, reception areas, patient rooms, exam rooms, and doctor's offices.

  • Up to 3 zones with approximately 3,600 sq ft of coverage
  • 180 degree dispersion of direct field sound masking
  • Reduces acoustical interference by using four uncorrelated channels
  • Precise control over where masking sound is emitted
  • Small, powerful speakers are virtually invisible in open ceilings
  • Plug and play installation and easy configuration

Equipment list

  • (36) Cambridge Qt Active Emitter Loudspeakers
  • (1) Cambridge Qt X 300 Sound Masking Generator

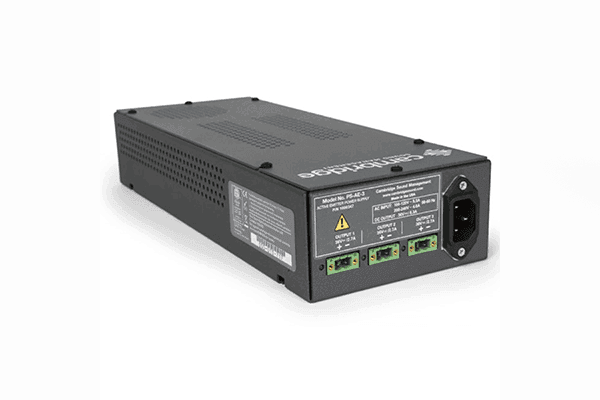

  • (1) Cambridge Active Emitter Power Supply

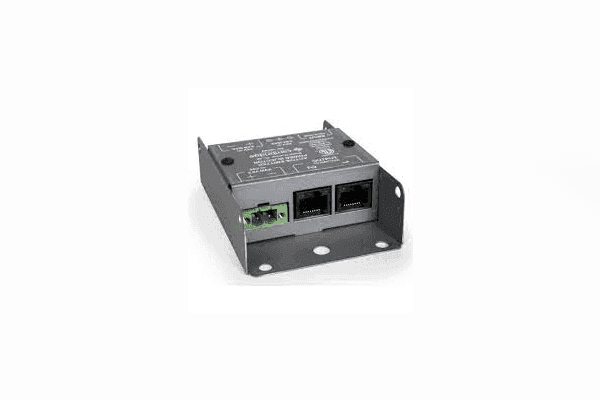

  • (3) Cambridge Active Emitter Power Injector
  • (1) Signal Cable – Cat 3, 5, 5e, 6 UTP Category - Plenum Rated Cable
  • (1) Power Cable – 14/2 Plenum Rated Cable for Qt Active Emitter Power Supply
  • (36) 16' Powered Signal Cables – Cat 3, 5, 5e, 6 UTP Category – Plenum Rated Cables
  • 1) PreZone 1 - Mic & Aux

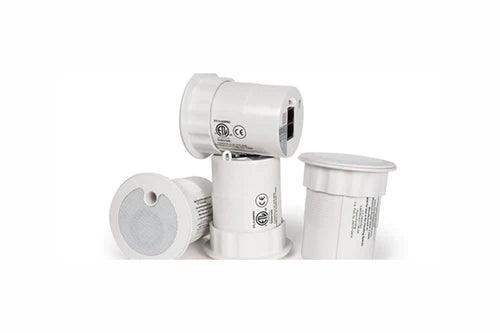

QT EMITTERS™ The backbone of the Qt® sound masking system. These emitters deliver 4 incoherent audio channels making the Qt system the best sound masking system on the market. The standard mounting is for acoustical tile ceilings.

  1. UNIVERSAL BRACKET This enclosure is used for mounting the Qt emitter to the wall or ceiling.
  2. BEAM BRACKET This enclosure is used for mounting the Qt emitter to exposed I-beams.
  3. DRYWALL MOUNT This enclosure is used for mounting the Qt emitter into drywall ceilings.
  4. CONDUIT MOUNT This enclosure is used for mounting the Qt emitter into ceilings in regions requiring conduit mounting.
  5. CEILING CONDUIT MOUNT This enclosure is used for mounting the Qt emitter into acoustic ceiling tile or drywall in regions with special fire and/or conduit requirements.
  6. QT ROOM CONTROL The Qt Room Control can be used to adjust the sound masking level with 6 discrete level selections (including off) for an individual room or space with 2-8 emitters
