Cambridge Sound Qt X 600 6-zone sound masking control module - 911.0069.900

Product Overview

The Cambridge Sound Qt X 600 (part number 911.0069.900) is a six-zone sound masking control module that generates, controls, equalizes, and amplifies the masking signal for Qt standard or active emitters. Sound masking raises the ambient background level with engineered sound so nearby speech becomes unintelligible, improving privacy and reducing distraction. The compact, networkable module covers installations up to 72,000 square feet (6,690 m2). Two auxiliary audio inputs distribute paging and background music through the same emitter network.

Product Description

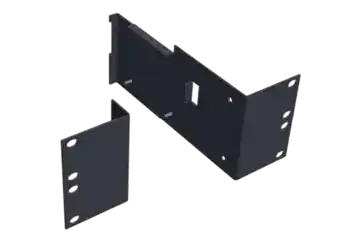

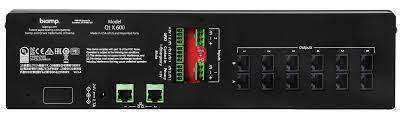

Each of the Qt X 600's six zones is independently adjustable for masking level, auxiliary audio level, and spectrum, so open areas, corridors, and private offices can be tuned separately from one device. Every zone receives four non-correlated sound masking sources, producing uniform coverage without phasing artifacts. The module includes an adjustable equalizer for masking and audio inputs, auto ramping, event scheduling, and a built-in clock with NTP support for time-based masking levels. Two cable runs serve each zone, supporting up to 50 Qt Active Emitters per run at 800 feet or 60 standard Qt emitters per run at 1,000 feet. Dual network ports separate media and control traffic, and the unit is managed from its front-panel LCD, a web interface on any web-enabled device, or a third-party control API over Ethernet. The Qt X 600 is fully compatible with Biamp SageVue system management software, and in multi-controller systems audio inputs are shared across controllers via the AVB media network (the 600D variant adds Dante). A contact closure integrates with fire alarm systems, and a wall mount bracket is included with an optional rack mount available. Pair it with emitters from the Cambridge Sound range.

Key Features

• Six independent zones — separate masking and aux audio levels and spectra per zone across up to 72,000 sq ft.
• All-in-one module — masking generator, controller, equalizer, and amplifier in a compact wall-mount chassis.
• Two audio inputs — distribute paging and background music through the masking emitter network.
• Four non-correlated sources per zone — uniform, comfortable masking without hot spots.
• AVB media network — share audio inputs across multiple Qt X controllers in larger systems.
• Scheduling and auto ramping — event scheduling and gradual level changes with a built-in NTP-synced clock.
• Flexible control — front-panel LCD with software lock, web interface, and third-party API over Ethernet.
• Fire alarm integration — contact closure mutes masking during alarm events.
• Compliance and warranty — CE marked, ETL listed, RoHS and TAA compliant, GSA eligible, made in the U.S.A., five-year warranty.

Typical Applications

• Multi-department open-plan offices needing per-zone tuning
• Healthcare facilities protecting patient conversations across wards and clinics (HIPAA speech privacy)
• Call centers combining masking with zone paging and music
• Law and financial offices safeguarding confidential discussions
• Government facilities requiring TAA-compliant, GSA-eligible equipment

Technical Specifications

Specifications sourced from Cambridge Sound vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

How large an area can one Qt X 600 cover?
Up to 72,000 square feet across six zones, with two cable runs per zone supporting up to 50 active or 60 standard emitters each.

Does it handle paging and background music?
Yes. Two auxiliary inputs distribute audio from paging controllers and music players, with independent aux level control per zone.

Can multiple controllers work together?
Yes. In multi-controller systems, audio inputs are shared across all Qt X controllers via the AVB media network; the 600D variant adds Dante. SageVue provides fleet management.

Are emitters included?
No. The Qt X 600 is the control module only; Qt standard or active emitters and cabling are ordered separately. Creation Networks can design a complete bill of materials.

What warranty applies?
The module carries the manufacturer's five-year warranty. Request a quote from Creation Networks for project pricing.
