Cambridge Sound QT 100 White Noise Sound Masking System with Pendant Emitters for up to 1,600SF, (White) - CN-QT10020W

Data Sheet

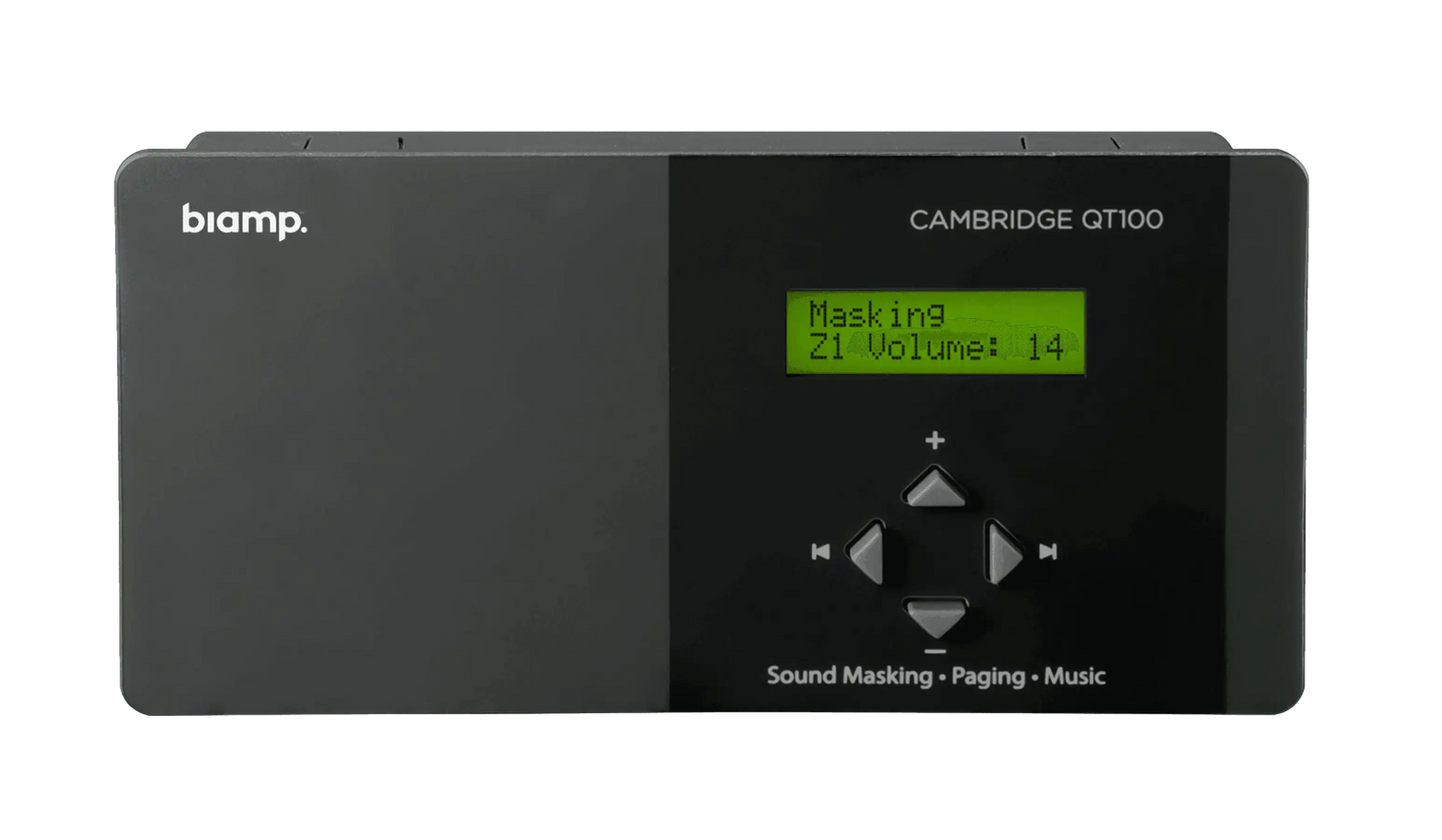

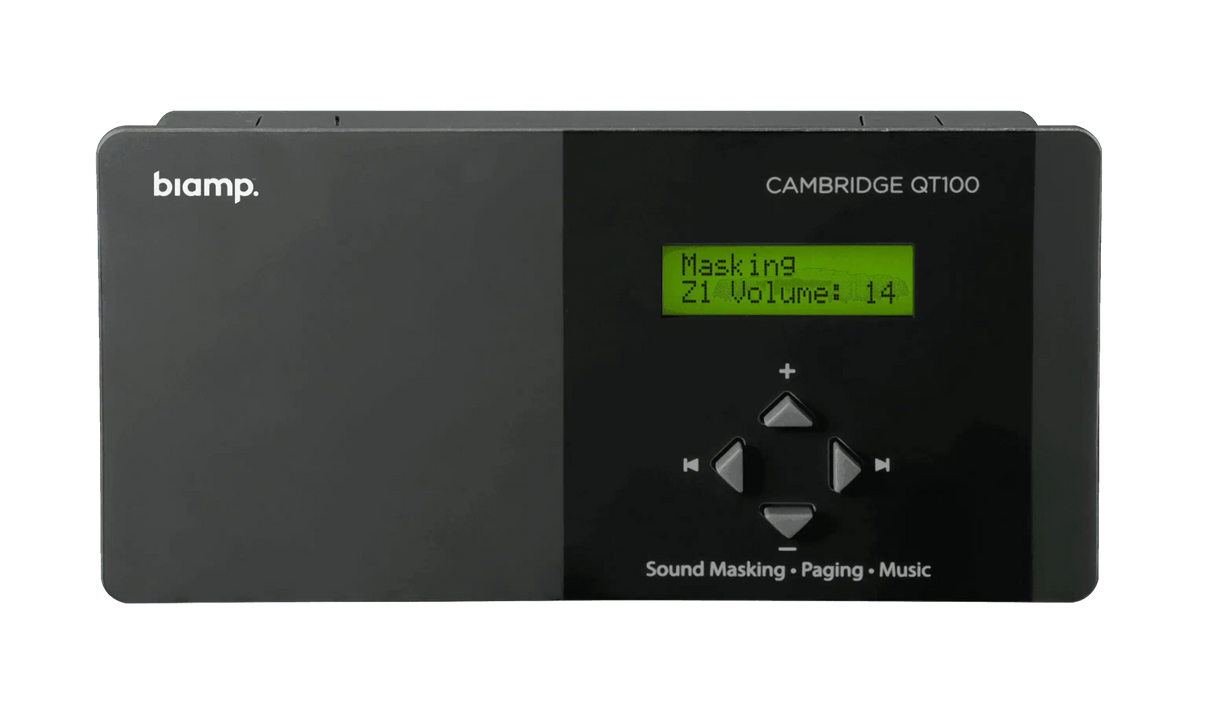

The QT 100 CN-QT10020W speaker by Cambridge Sound is ideal for single zone areas of up to 12,000 square feet (1,115 square meters). Its front panel is user-friendly, allowing for effortless volume adjustments.

The Qt emitters are set up in a grid pattern based on the height of the ceiling. They can be installed in 0.5" thick ceiling tiles, which range in thickness from 1.3 cm to 3.8 cm. With various mounting options, Qt emitters can be installed in any ceiling type to provide effective lighting. To connect the emitters, CAT-3 and higher, plenum-rated cables are used, which are easy to plug-and-play and daisy-chained together. We provide pre-terminated CAT3 cables with industry standard RJ-45 connectors with every emitter we supply.

There is a wall mount included with the QT 100 as a standard feature. There is an easy and quick way to install the wall mount because it provides level mounting.

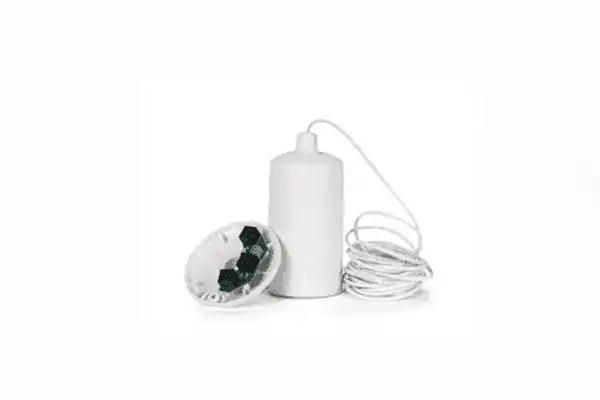

Cambridge 16 QT Pendant Sound Masking Emitters

Qt emitters are the backbone of the Qt Quiet Technology Sound Masking System. Qt emitters are wide dispersion direct field speakers with 1.25” (3.17 cm) drivers and are smaller than a coffee mug. All Qt emitters come in the adjustable format. These emitters deliver four uncorrelated audio channels, which provide uniform, unobtrusive sound masking. This feature, along with plug and play installation and easy configuration capability, make Qt™ systems the most intelligently engineered and most effective sound masking systems on the market today.

Qt™ Adjustable Emitters offer users greater flexibility in laying out their Qt system. Adjustable emitters allow users to reduce the volume level of an individual emitter by up to 9 dB in 3 dB decrements. The adjustable emitter is appropriate for individual spot adjustments, or creating micro zones down to 100 square feet (9.3 m2) of space.

Qt emitters are installed along a simple grid pattern based on ceiling height. For a standard 9’ (2.75 m) ceiling, emitters are laid out on a 10’ x 10’ (3 m x 3m) grid. Emitters can be installed into standard ceiling tiles ranging from 0.5” to 1.5” (1.3 cm – 3.8 cm) thick. Emitters are plug-and-play, daisy-chained together with CAT-3, plenum-rated cables. We supply with every emitter, pre-terminated CAT3 cables with industry standard RJ-45 connectors.

• 1 zone, up to 120 emitters
• 1 audio input for paging or music
• Contact closure integrates with fire alarm systems
• Front panel control with LCD
• Surface mount only
• CE marked, ETL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty
• Manufactured in the U.S.A.
• TAA compliant
• GSA eligible

Equipment list

• 1 x QT 100 Sound Masking Control Processor
• (4) 4-packs of Pendant Qt Emitters Sound Masking Emitters, 16 total emitters
• Initial-run 50ft Plenum-rated Cat5 Cable
• (16) 16ft RJ45 UTP Cables
• Mounts, hardware, and hole saw used for installation

1. UNIVERSAL BRACKET This enclosure is used for mounting the Qt emitter to the wall or ceiling.
2. BEAM BRACKET This enclosure is used for mounting the Qt emitter to exposed I-beams.
3. DRYWALL MOUNT This enclosure is used for mounting the Qt emitter into drywall ceilings.
4. CONDUIT MOUNT This enclosure is used for mounting the Qt emitter into ceilings in regions requiring conduit mounting.
5. CEILING CONDUIT MOUNT This enclosure is used for mounting the Qt emitter into acoustic ceiling tile or drywall in regions with special fire and/or conduit requirements.
6. QT ROOM CONTROL The Qt Room Control can be used to adjust the sound masking level with 6 discrete level selections (including off) for an individual room or space with 2-8 emitters
