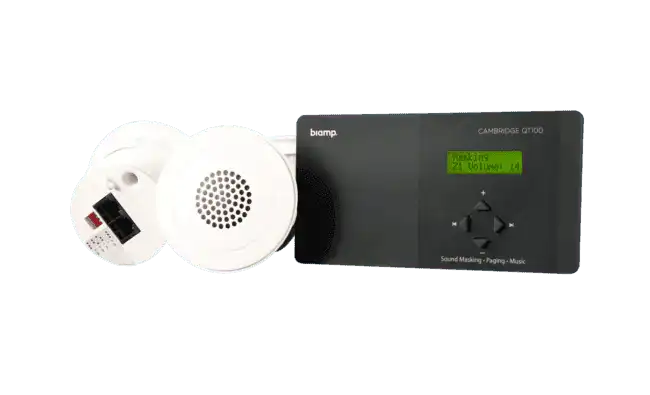

Cambridge Sound QT 100 White Noise Sound Masking System for up to 1,600SF

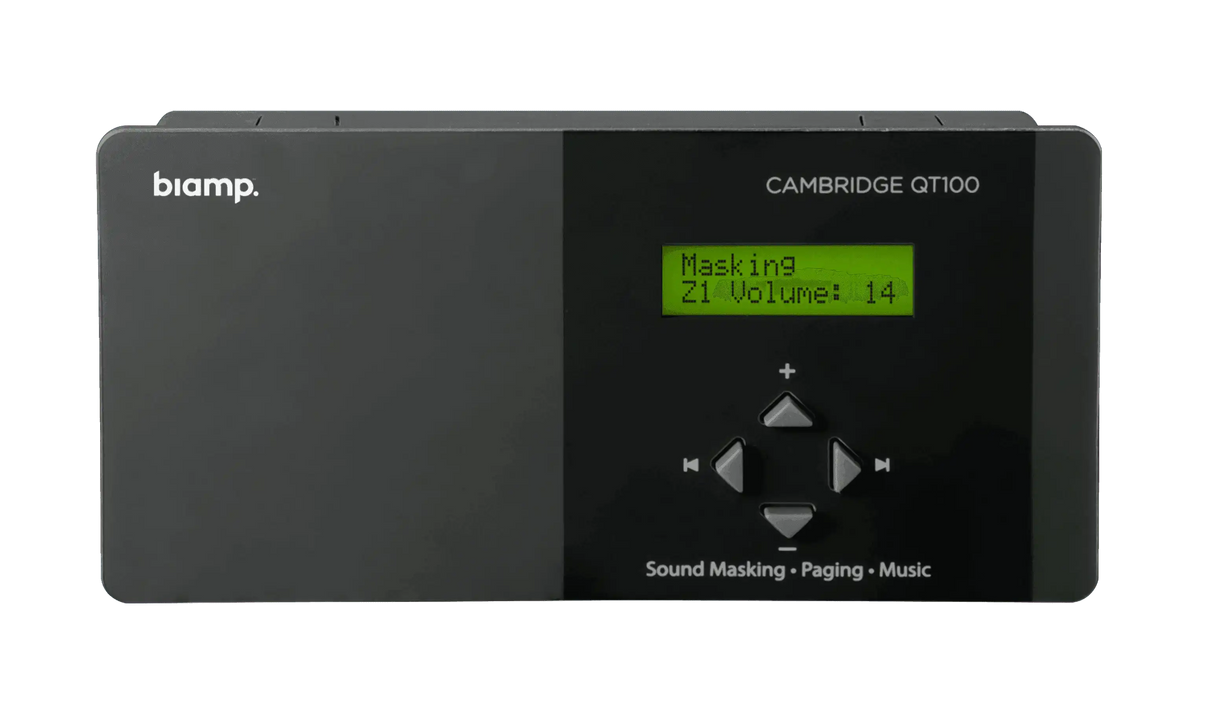

Cambridge Qt 100 Sound Masking Control Module

The Cambridge Qt 100 White Noise Sound Masking System is perfect for single-zone areas up to 1,600 square feet. You can easily control the volume from the front panel of the module, making it quick and effortless to adjust.

The Qt emitters are set up in a basic grid formation, taking into account the height of the ceiling. They can be installed into standard ceiling tiles ranging from 0.5" to 1.5" (1.3 cm - 3.8 cm) thick, as well as any other type of ceiling using a variety of mounting options. These emitters are easy to use, and can be linked together with CAT-3 and higher, plenum-rated cables. We provide pre-terminated CAT3 cables with industry standard RJ-45 connectors for every emitter.

The Qt 100 model includes a wall mount as a standard feature, which allows for easy and quick installation while ensuring level mounting.

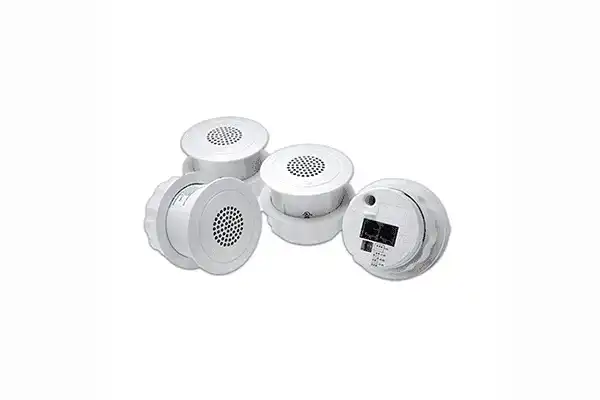

Cambridge 16 QT Sound Masking Emitters

E-A-W-16-4

Qt emitters are the backbone of the Qt Quiet Technology Sound Masking System. Qt emitters are wide dispersion direct field speakers with 1.25” (3.17 cm) drivers and are smaller than a coffee mug. All Qt emitters come in the adjustable format. These emitters deliver four uncorrelated audio channels, which provide uniform, unobtrusive sound masking. This feature, along with plug and play installation and easy configuration capability, make Qt™ systems the most intelligently engineered and most effective sound masking systems on the market today.

Qt™ Adjustable Emitters offer users greater flexibility in laying out their Qt system. Adjustable emitters allow users to reduce the volume level of an individual emitter by up to 9 dB in 3 dB decrements. The adjustable emitter is appropriate for individual spot adjustments, or creating micro zones down to 100 square feet (9.3 m2) of space.

Qt emitters are installed along a simple grid pattern based on ceiling height. For a standard 9’ (2.75 m) ceiling, emitters are laid out on a 10’ x 10’ (3 m x 3m) grid. Emitters can be installed into standard ceiling tiles ranging from 0.5” to 1.5” (1.3 cm – 3.8 cm) thick. Emitters are plug-and-play, daisy-chained together with CAT-3, plenum-rated cables. We supply with every emitter, pre-terminated CAT3 cables with industry standard RJ-45 connectors.

1. UNIVERSAL BRACKET This enclosure is used for mounting the Qt emitter to the wall or ceiling.
2. BEAM BRACKET This enclosure is used for mounting the Qt emitter to exposed I-beams.
3. DRYWALL MOUNT This enclosure is used for mounting the Qt emitter into drywall ceilings.
4. CONDUIT MOUNT This enclosure is used for mounting the Qt emitter into ceilings in regions requiring conduit mounting.
5. CEILING CONDUIT MOUNT This enclosure is used for mounting the Qt emitter into acoustic ceiling tile or drywall in regions with special fire and/or conduit requirements.
6. QT ROOM CONTROL The Qt Room Control can be used to adjust the sound masking level with 6 discrete level selections (including off) for an individual room or space with 2-8 emitters
