Cambridge Sound NPX H1100 10-button convenience paging station - 911.1841.900

Product Overview

The Cambridge Sound NPX H1100 (part number 911.1841.900) is a 10-button convenience paging station with a handheld microphone for Qt X and Tesira systems. Embedded DSP and on-board memory support standard and advanced public address functions, with digital audio and control data carried over AVB or Dante. It stores up to 999 user-configurable page codes and up to 10 prerecorded messages. The H1100 meets convenience paging requirements for facilities of all sizes.

Product Description

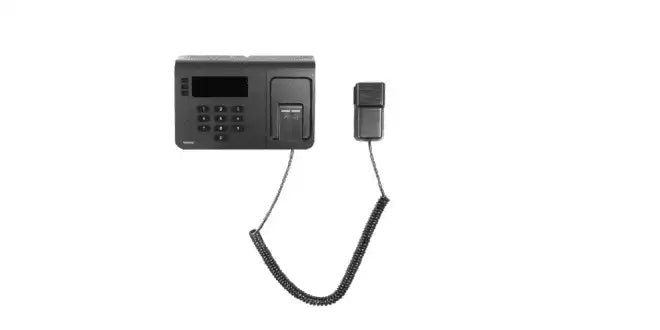

The H1100 pairs a push-to-talk handheld microphone — noise-canceling, with a magnetic latch — with a 10-button keypad and backlit LCD for selecting page codes and stored messages. Up to 16 software-configurable priority levels arbitrate between simultaneous pages, and local digital signal processing conditions the microphone audio before it hits the network. A 50-minute recording pool covers all 10 stored messages, and default or custom preambles are stored locally so chimes play without network round trips. The station is powered by PoE+ (IEEE 802.3at Class 3, 15.4 W) over a single Gigabit Ethernet connection, which carries both audio and control via AVB or Dante. It mounts on a tabletop or, with the removable foot detached, flat against a wall; a K-slot accepts an optional Kensington lock and an optional PIN restricts unauthorized use. Within a Tesira system, up to 16 paging stations and 32 paging zones are supported per configuration, and messages can be triggered from the event scheduler or logic functions. The H1100 is NRTL listed to UL 62638-1 and CSA C22.2 #62368-1, CE marked, and RoHS compliant. Combine it with masking controllers and the AVB switch from the Cambridge Sound range.

Key Features

• 999 page codes — 10-button keypad with backlit LCD selects from up to 999 user-configurable page destinations.
• Handheld noise-canceling mic — push-to-talk with status indication and a magnetic latch for clean storage.
• AVB or Dante transport — audio and control over a single Gigabit Ethernet connection.
• Stored message playback — up to 10 prerecorded messages from a 50-minute shared recording pool, plus local preambles.
• 16 priority levels — software-configurable priorities arbitrate competing pages.
• PoE+ powered — IEEE 802.3at Class 3 (15.4 W); no local power supply required.
• Flexible mounting — tabletop or flat wall mounting via removable foot; K-slot for an optional Kensington lock.
• PIN security — optional PIN restricts the station from unauthorized use.
• Listed and warranted — NRTL listed to UL 62638-1 / CSA C22.2 #62368-1, CE, RoHS; five-year manufacturer warranty.

Typical Applications

• Open offices and corporate campuses paging through Qt X masking systems
• Healthcare facilities issuing department and overhead pages
• Call centers and operations floors with zone announcements
• Conference and meeting facilities paging across multiple rooms
• Government facilities standardizing on TAA-channel Biamp paging hardware

Technical Specifications

Specifications sourced from Cambridge Sound vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

What systems does the NPX H1100 work with?
It integrates with Cambridge Qt X sound masking systems and all Biamp Tesira server-class devices, paging through the same loudspeaker or emitter network.

AVB or Dante — which should I use?
The station supports both; all paging stations in a system must use the same protocol, selected during configuration. AVB requires AVB-capable switches, while Dante needs a compatible network per Audinate guidelines.

How many stations and zones can a system support?
A Tesira system supports up to 16 paging stations and 32 paging zones per configuration.

Can it play scheduled announcements?
Yes. A page code with a stored message can be recalled by the event scheduler or a logic function, playing the message automatically.

Is it suitable for emergency notification?
No. Tesira is not a life-safety system; for fire panel integration and redundancy, a dedicated life-safety paging platform is required. Request a quote from Creation Networks to scope the right solution.
