Cambridge Sound NPX G1100 10-button convenience paging station - 911.1839.900

Product Overview

The Cambridge Sound NPX G1100 (part number 911.1839.900) is a 10-button convenience paging station with a gooseneck microphone for Qt X and Tesira systems. Embedded DSP and on-board memory support standard and advanced public address functions, with digital audio and control data carried over AVB or Dante. It stores up to 999 user-configurable page codes and 10 prerecorded messages. The G1100 meets convenience paging requirements for facilities of all sizes.

Product Description

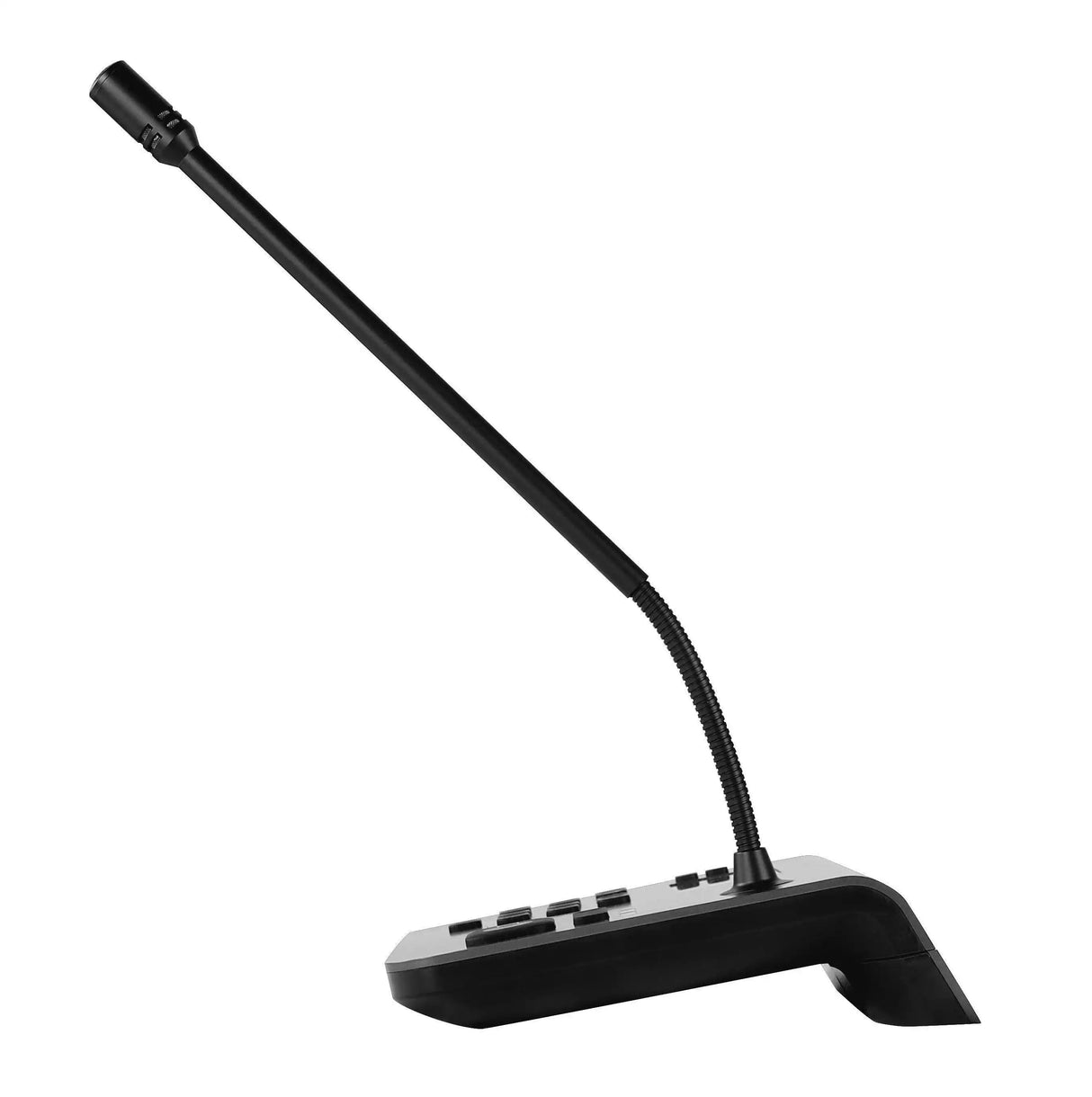

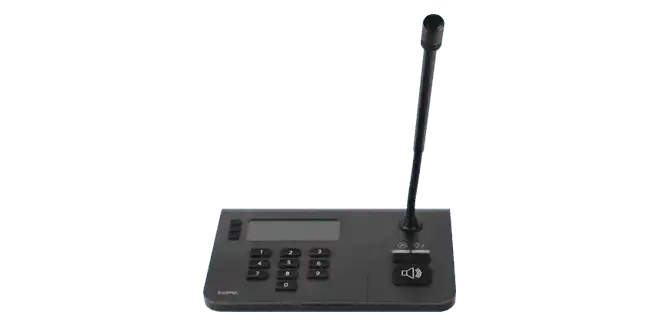

The G1100 pairs a high-quality gooseneck cardioid microphone with a 10-button keypad and backlit LCD for selecting page codes and stored messages. A push-to-talk button with status indication and a page latch button for hands-free announcements make it practical at busy reception desks and dispatch positions. Up to 16 software-configurable priority levels arbitrate between simultaneous pages, and local digital signal processing conditions microphone audio before it reaches the network. A 50-minute recording pool covers all 10 stored messages, and default or custom preambles are stored locally so chimes play instantly. The station is powered by PoE+ (IEEE 802.3at Class 3, 15.4 W) over a single Gigabit Ethernet connection carrying both audio and control via AVB or Dante. It mounts on a tabletop or, with the removable foot detached, flat against a wall; a K-slot accepts an optional Kensington lock and an optional PIN restricts unauthorized use. Within a Tesira system, up to 16 paging stations and 32 paging zones are supported per configuration, and stored messages can be triggered from the event scheduler or logic functions. The G1100 is NRTL listed to UL 62638-1 and CSA C22.2 #62368-1, CE marked, and RoHS compliant. Combine it with masking controllers and the AVB switch from the Cambridge Sound range.

Key Features

• 999 page codes — 10-button keypad with backlit LCD selects from up to 999 user-configurable page destinations.
• Gooseneck cardioid microphone — high-quality fixed mic suited to desks and dispatch consoles.
• Hands-free page latch — latch button holds the page open without keeping a button pressed.
• AVB or Dante transport — audio and control over a single Gigabit Ethernet connection.
• Stored message playback — up to 10 prerecorded messages from a 50-minute shared recording pool, plus local preambles.
• 16 priority levels — software-configurable priorities arbitrate competing pages.
• PoE+ powered — IEEE 802.3at Class 3 (15.4 W); no local power supply required.
• Flexible mounting and security — tabletop or flat wall mounting, K-slot for Kensington lock, optional PIN protection.
• Listed and warranted — NRTL listed to UL 62638-1 / CSA C22.2 #62368-1, CE, RoHS; five-year manufacturer warranty.

Typical Applications

• Reception desks and dispatch positions in open offices
• Healthcare facilities issuing department and overhead pages
• Call centers and operations floors with zone announcements
• Conference facilities paging across multiple rooms
• Government facilities standardizing on Biamp paging hardware

Technical Specifications

Specifications sourced from Cambridge Sound vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

What systems does the NPX G1100 work with?
It integrates with Cambridge Qt X sound masking systems and all Biamp Tesira server-class devices, including TesiraFORTE X, paging through the same loudspeaker or emitter network.

AVB or Dante — which should I use?
The station supports both; all paging stations in a system must use the same protocol, selected during configuration. AVB requires AVB-capable switches, while Dante needs a compatible network per Audinate guidelines.

How many stations and zones can a system support?
A Tesira system supports up to 16 paging stations and 32 paging zones per configuration.

What file formats can be loaded as messages?
WAV, MP3, and M4A files can be uploaded for messages and preambles; recorded messages can also be extracted as WAV files through Device Maintenance.

Is it suitable for emergency notification?
No. Tesira is not a life-safety system; fire panel integration and redundancy require a dedicated life-safety paging platform. Request a quote from Creation Networks to scope the right solution.
