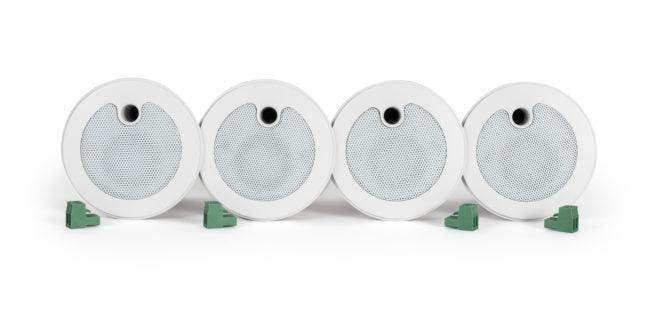

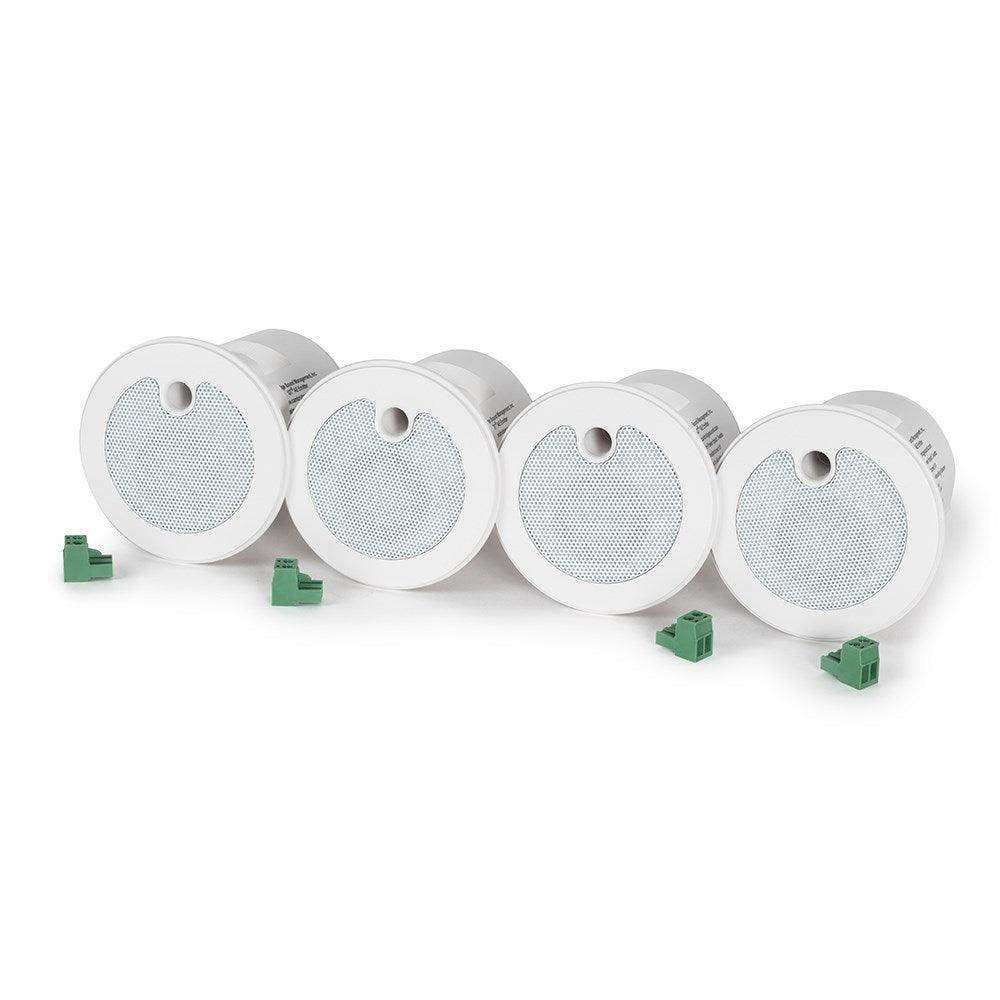

Cambridge Sound DS1320-W-4 Dynasound Active Emitter, 4 Pack, Cables not included (White) - 911.0807.900

Product Overview

The Cambridge Sound DS1320-W-4 (part number 911.0807.900) is a four-pack of Dynasound Active Emitters in white, specified for DynasoundPro networked sound masking systems; cables are not included. Each emitter is a compact ceiling loudspeaker that masks sound while simultaneously delivering clear paging and music signals from a single source. The active design offers a wider frequency range and higher SPL than previous direct-field emitters — 17 dB louder — and is virtually invisible once installed in finished or open-structure ceilings. The emitters are plenum-rated, UL-listed, and comply with UL 2043.

Product Description

Emitters are the ceiling loudspeakers of a sound masking system, and the DS1320 is the DynasoundPro-network version of the Qt Active Emitter. Active electronics power the speaker, and a ported enclosure extends sound masking response down to the 125 Hz octave band and paging/music response to 115 Hz, with output of 74 dB SPL at 1 meter. Four uncorrelated audio channels reduce phasing and comb-filtering between adjacent emitters, producing the uniform masking field that makes the system comfortable to occupy. The emitters use the same control modules, cabling infrastructure, and driver size as other Cambridge Sound systems, are compatible with the Qt 300 and Qt 600 control modules, and can run alongside original Qt Emitters on the same processor when assigned to separate zones. Powering the active emitters requires the 600-watt 3-zone power supply and power injector accessories. A slip-ring mount for acoustical tile installation comes standard, rear DIP switches trim level in 1.5 dB increments down to -4.5 dB, and the system is managed through web-based control from any device. The DS1320 carries a five-year warranty. Cables are purchased separately; find cabling, power accessories, and control modules in the Cambridge Sound collection.

Key Features

• DynasoundPro Network Version — the DS1320 is the active emitter specified for DynasoundPro networked sound masking systems.
• Masking, Paging, and Music — one compact ceiling emitter delivers all three functions from a single source.
• Active Electronics — integral amplification provides 17 dB more output than previous direct-field emitters.
• Extended Low-Frequency Response — ported enclosure reaches the 125 Hz octave band for masking and 115 Hz for paging and music.
• 74 dB SPL at 1 Meter — output headroom for paging and music in open environments.
• Four Uncorrelated Channels — reduces phasing and comb-filtering for a uniform masking field.
• UL 2043 Plenum Rated — UL-listed for installation in air handling spaces.

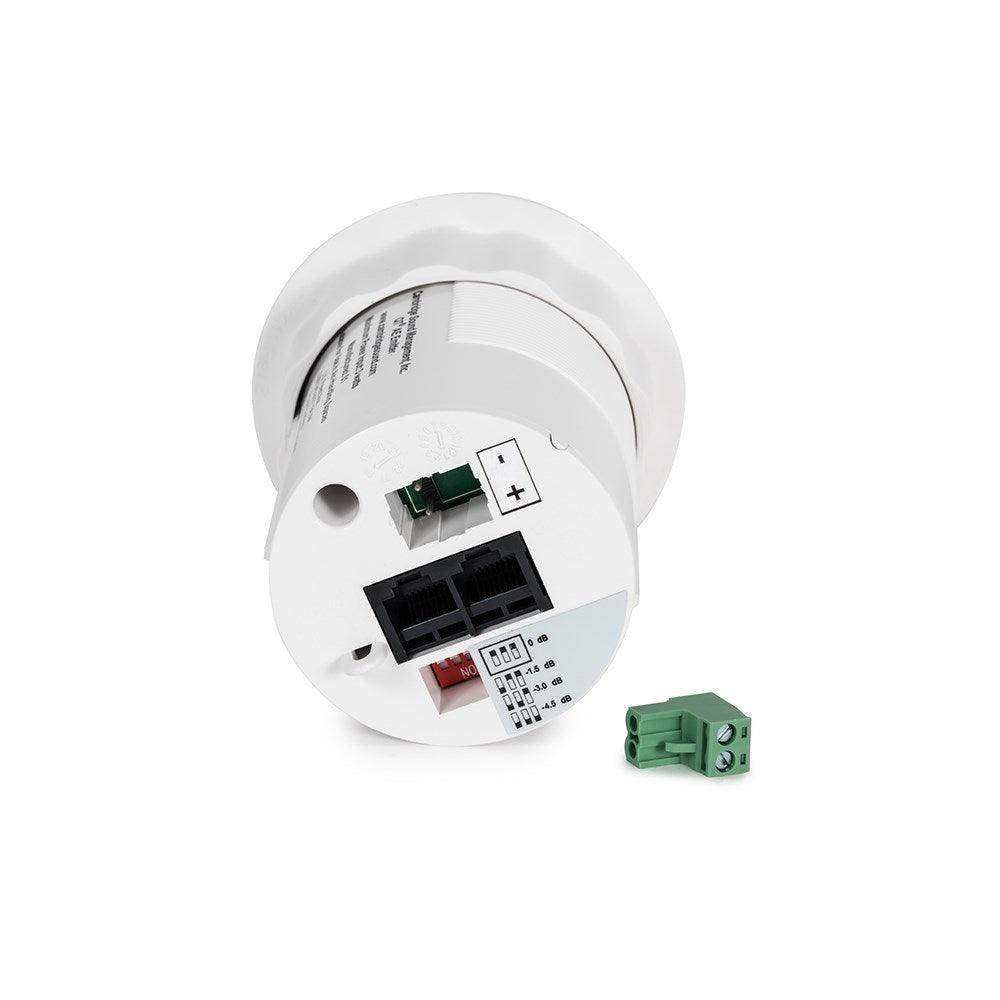

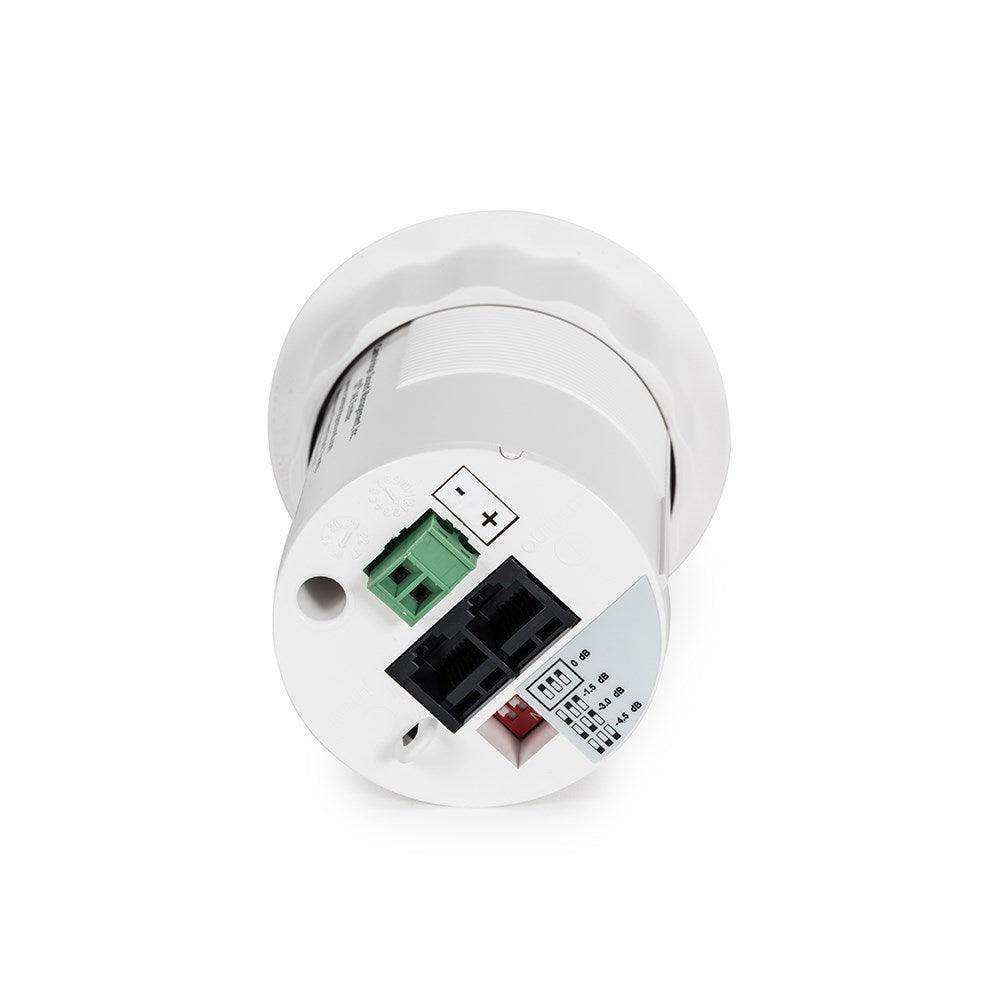

• Adjustable Attenuation — rear DIP switches reduce volume in 1.5 dB increments to -4.5 dB.
• Slip-Ring Tile Mount Standard — installs in acoustical ceiling tile.
• Mixed-Emitter Systems Supported — runs alongside original Qt Emitters on the same control processor in separate zones.
• Web-Based Management — control from any device on the network.
• Five-Year Warranty — covered by the manufacturer's five-year warranty.

Typical Applications

• Open offices — uniform direct-field masking with integrated paging and music.
• Call centers — reduces speech distraction between adjacent agent positions.
• Healthcare facilities — supports speech privacy in exam rooms and waiting areas.
• Law and financial offices — protects confidential client conversations.
• Conference rooms — masks speech transfer to and from adjacent spaces.

Technical Specifications

Specifications sourced from Cambridge Sound vendor data. Unlisted values are omitted rather than estimated.

FAQ

How is the DS1320 different from the Qt Active Emitter packs?
The DS1320 is the version specified for DynasoundPro networked sound masking systems. It shares the same active emitter design, control modules, cabling infrastructure, and driver size as other Cambridge Sound systems.

What do I need to power these emitters?
Active emitters require the 600-watt 3-zone power supply and power injector accessories, in addition to the control module.

Are cables included?
No. The DS1320-W-4 ships without cables; plenum rated emitter cabling is purchased separately.

Can I mix DS1320 active emitters with original Qt Emitters?
Yes. Both emitter types can run on the same control processor simultaneously when assigned to separate zones.

Are they plenum rated?
Yes. The emitters are UL-listed and comply with UL 2043 for installation in air handling spaces.
