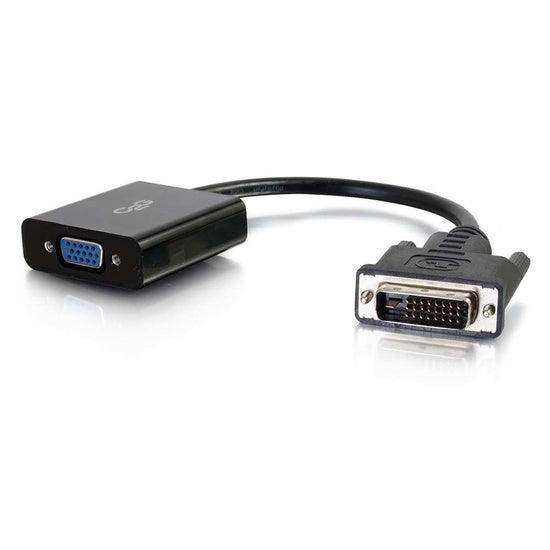

C2G DVI to VGA Adapter Converter - CG41380

Send video signal from an existing desktop computer or another source device with a DVI-D video output port to a projector or monitor with a VGA input. This converter is an ideal solution schools, conference rooms, or other work spaces when connecting to a monitor or projector.
Straightforward install
There is no need for an external graphics adapter or extra converters. This simple plug and play converter changes the DVI-D output signal to VGA, no drivers are required for install nor additional power adapters.
Port protection technology
The dongle style adapter reduces strain on the video port. The cable between the DVI-D connection and the converter provide strain relief that protects the port from stress damage as cords are moved.
Simple power
No need to utilize a power adapter. The DVI to VGA converter pulls power from the DVI-D port bus power. If the source DVI port does not supply enough power there is a USB Micro-B port on the converter which offers an alternative source of power.

Additional Technical Specs

Electrical Specifications
• Maximum Resolution: 1920x1080
• Voltage Rating: 30V
• Impedance Ω TDR: 100±5
• Intra-Pair Skew: 15PS/M Max
• Insulation Resistance: Foam-PE/HD-PE DC-500V 100MΩ.Km Min At 20°C

Physical Specifications
• Housing: ABS
• Jacket Material and Thickness: PVC (0.7mm)
• Minimum Bend Radius: 12mm
• Mean Time Between Failure: 4000 hr
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -10°C to 40°C

DVI Cable Physical Specifications
• Cable Outer Diameter: 5.5mm ± 0.2
• Conductor: 32 AWG (7/0.06 TCS) x15
• Shield 1: Al Mylar Wrap
• Shield 2: Braid, 16/6/0.12 AMA (75% Coverage)
• Drain: 32 AWG (7/0.8 TC) x5
• Insulation: Foam-PE+Skin 0.5±0.05
