RapidRun is designed to be the standard for in-wall audio/video installations. Using pre-terminated Break-away flying leads and wall plates with an in-wall runner ensures flexible, efficient, high quality connections for all types of equipment, with no field terminations.

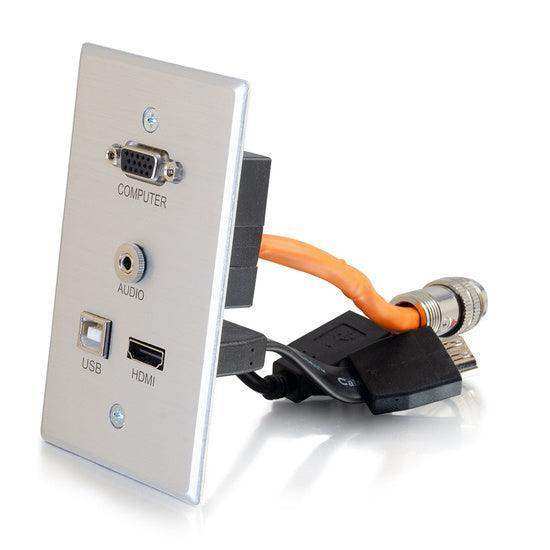

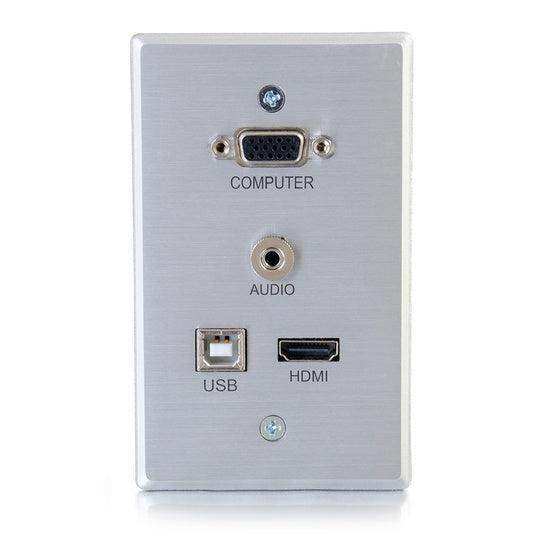

Constructed from aluminum for durability, this wall plate has a locking connector that enables the integrator to save valuable space inside the surface mount or electrical box that typically is already packed with cables.
Ideal for educational and institutional installations, this wall plate sends VGA and Stereo Audio over a single Multi-Format runner cable. It is commonly used on the teacher’s station (computer) end of classroom setups with the corresponding flying lead used at the projector.
Please note: Each complete RapidRun Multi-Format solution requires a break-away flying lead or wall plate to terminate each end of the runner cable. Each runner requires (2) break-away flying leads, (2) wall plates, OR (1) break-away flying lead and (1) wall plate.
<
Features and Benefits
Supports VGA video and Stereo Audio signals over a RapidRun Multi-format runner

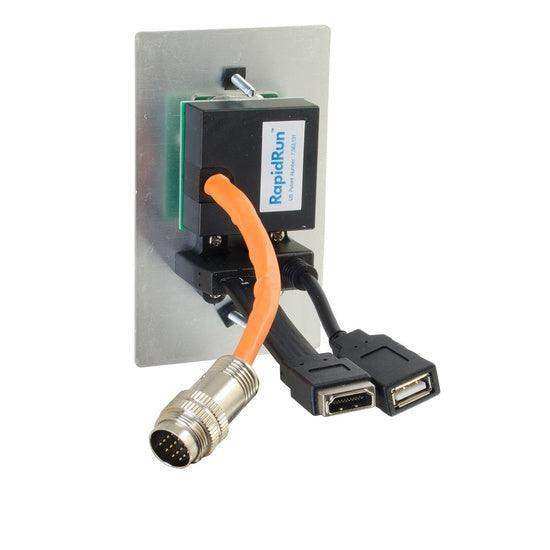

Flexible HDMI and USB pigtail for easy installation in a wall box
Compatible with standard single gang wall boxes
Aluminum construction for durability and long life
Electrical Specifications
Resolutions Supported: 4k x 2k 60Hz, 4k x 2k 30Hz, 1080p, 720p, 480p
HDMI Features Supported: Ethernet Return Channel, HDMI High Speed, HDCP, EDID, CEC, Audio Return Channel
Power Consumption: Max 5V @ 135mA
Idle: 5V @ 125mA
Normal Operation: 5V @ 128mA
Physical Specifications
Color Designation: Platinum
Temperature Rating: 0°C ~ 70°C
Humidity: 0% ~ 90% RH
Bend Radius: 5mm
Compliance: CE, FCC, RoHS2
Multiformat Pigtail
Pigtail Length: 5.12 inches
Color Designation: Orange
Connectors: VGA + 3.5mm female, 15pin DIN male
Conductor (Coax)
Wire gauge: 28AWG (7/0.127)TC
Insulation: FM-PE ID:1.6±0.07
Shield: Spiral, 90% Min Coverage
Jacket Color Red, Green, Blue
Conductor (1 Pair)
Wire gauge: 24 AWG(7/0.20)TC
Insulation: SR-PVC. ID: 1.1±0.05
Shield 1: AL Face Inside
Shield 2: Hot-Melt Al Foil Wrap
Drain: 24 AWG (7/0.20)TC
Jacket color: Brown, Brown/White
Conductor (x7)
Wire gauge: 24 AWG (11/0.16)TC
Jacket Color: Black, Red, Blue, Orange, Gray, Yellow, Green
USB Pigtail
Pigtail Length: 4.33 inches
Jacket: Black PVC
Shield 1: AL Foil Wrap
Shield 2: Braid (16*5/0.10)TC
Drain: 28 AWG (7/0.127)TC
Connectors: USB B Female, USB A Female
Conductor (1 Pair)
Wire gauge: 28AWG (7/0.127)TC, x2
Insulation: HD-PE, ID: 0.90±0.05mm (Green White)
Conductor (x2)
Wire gauge: 24 AWG (7/0.2)TC
Insulation: SR-PVC, ID 1.1±0.05mm (Red, Black)
HDMI Pigtail
Pigtail Length: 4.33 inches
Jacket: Black PVC
Connectors: HDMI Female x2
Conductor (5 Pair)
Wire gauge: 30 AWG (7/0.10)TC
Drain: 30 AWG ((7/0.10)TC, x5
Shield 1: AL Foil Wrap x5
Shield 2: Braid (16/5/0.08 TC) x5
Insulation: FM-PE, ID: 0.75±0.05mm (Brown, White) (Red, White) (Orange, White) (Green, White) ( Blue, White)
Conductor (x4)
Wire gauge: 30 AWG (7/0.10)TC
Shield: Al Foil Wrap
Drain: 30 AWG (7/0.10TC)
Jacket Black PVC
