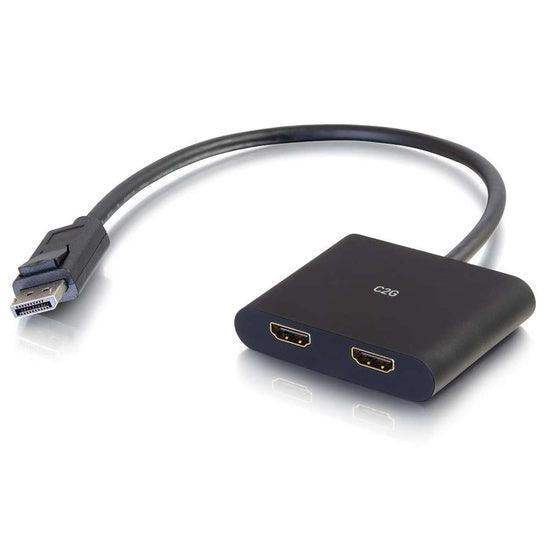

This DisplayPort 1.2 to Dual HDMI MST Hub allows a DisplayPort enabled device to connect to two HDMI enabled displays for video mirroring, video extension, or viewing a single video image across two displays. The hub is perfect for graphic design, spreadsheet analysis, and digital signage applications.
Improve multitasking and increase productivity by configuring the hub to work as a splitter with the same video image on each display, extending a video image to multiple displays, or expanding a video image by joining multiple monitors together as one display. The hub is ideal for a multiple display desk setup and the light-weight, small form factor, also makes it easy to carry while traveling or just on the go
The hub supports resolutions up to 4K (3840 x 2160) at 60Hz when connected to a single display or 4K (3840 x 2160) at 30Hz when connected to dual displays and has a max bandwidth of 5.4Gbps.

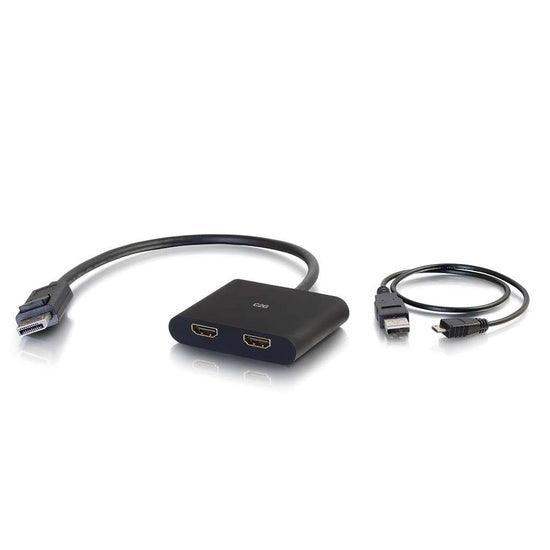

Note: This hub requires 5V/2A of power. In some instances, depending on the connected source device, additional external power may be required through the USB Micro-B port on the hub. Optional Micro-B power cable available (Part No. 27053).
This MST hub is DisplayPort 1.2 compliant. The source device video card and display must support DisplayPort 1.2 and MST.
Electrical Specifications
Resolution: 3840 x 2160 at 30Hz (Dual Display)
Resolution: 3840 x 2160 at 60Hz (Single Display)
Output: Requires 5V, 2A external power over Micro-B USB port
DisplayPort 1.2a compliant
Link Rate: HBR2/HBR/RBR
Bandwidth: 5.4Gbps max.
Support SST and MST (when both host and monitor support)
Support 7.1 sound channel; max. sampling size 192KHz
Rating: Temp 80°C, Voltage 30V
Conductor Resistance: At 20°C max 30AWG: 376.95
/KM
Insulation Resistance: 10M -KM min at 20°C DC 500V (EIA-364-21)
Dielectric Strength: AC 500V/1 minute no breakdown (EIA-364-20)
Impedance: Pairs (differential mode) 100±50HMS
Attenuation (max.): 5.02dB@100~450MHz; 7.695dB@1GHz; 12.595dB@2GHz; 17.495dB@3GHz; 22.395dB@4GHz; 27.295dB@5GHz; 32.195dB@6GHz; 37.095dB@7GHz
Return Loss (min.): 15.00@100~675MHz; 12.90@7GHz; 9.20@2GHz; 7.04@3GHz; 5.5@4GHz; 4.31@5GHz; 3.33@6GHz; 2.51@7GHz
NEXT (max.): -36dB@0.1~1.35GHz; -23.44dB@2GHz; -20.80dB@3GHz; -18.93dB@4GHz; -17.48dB@5GHz; -16.29dB@6GHz; -15.28dB@7GHz
FEXT: -26dB/cable@100~7000MHz (max.)
Physical Specifications
Hub Connector 1: DisplayPort 20P Male: Solder Type, Gold Flash Contacts, Nickel Plated
Hub Connector 2 & 3: HDMI Female: SMT Type, Gold Flash Contact, Gold Plated Shell, Black Insulation, with PCB, Chipset: STDP4320 & PS8407A
Hub Connector 4: Micro USB 2.0 Female: SMT Type, Gold Flash Contact, Nickel Plated Shell, Black Insulation
Hub Shielding: Connector 1: Metal Can Shield
Hub Cable: UL20276, (30AWG*2C+30AWG*1C+AL/MY)*5+30AWG*5C+AL+BRAID(85% AL-Mg), OD: 6.5±0.2mm Black
USB Cable Connector 1: USB Type A 2.0 Male: Solder Type, Gold Flash Contacts, Nickel Plated Shell, White Insulation
USB Cable Connector 2: Micro USB 2.0 Male: Solder Type, Gold Flash Contacts, Nickel Plated Shell, Black Insulation
USB Cable: USB 2.0 UL2725, 30#*1P+30#*2C+AB(16*5/0.1TC), Jacket: PVC Black, OD: 3.0±0.15mm
Operating Temperature: 0°C to 50°C
Storage Temperature: -25°C to 70°C
Approvals: CE marked and conforms to 2011/65/EU ROHS 2
