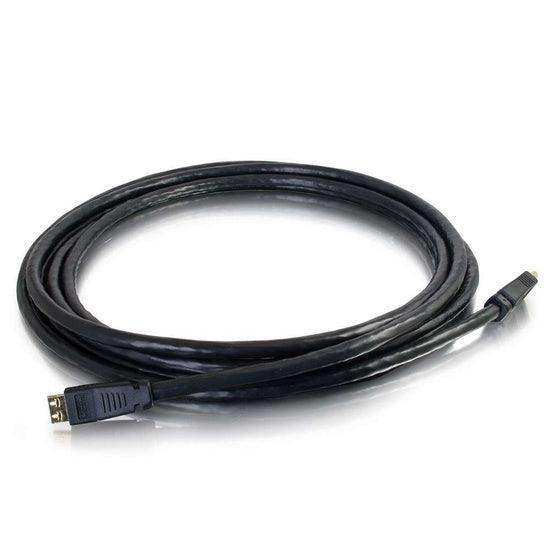

C2G CG42529 25 ft High Speed HDMI® Cable With Gripping Connectors - CL2P - Plenum Rated

This High Speed HDMI CL2P Plenum Rated Cable with Gripping Connectors supports all HDMI 2.0 features and is designed for connecting multimedia devices in an office, meeting room, or in other commercial environments. This cable can be installed in Audio/Video applications requiring high speed HDMI features while meeting building codes that require CL2P plenum rated cables to be installed. Ensure that your most critical equipment maintains signal with the gripping connectors which provide greater port retention than a standard HDMI connector.

Follow the code
Strict building code requirements for cabling in plenum spaces have created installation challenges in settings such as schools, hospitals and other commercial buildings. This CL2P rated cable meets all requirements for commercial, industrial, hospital, and school spaces that require CL2P plenum cable to be installed.

Powerful visuals
Deliver full HDMI 2.0 specification to a equally capable HDMI device. Whether streaming video or displaying a presentation this cable is an ideal solution to deliver audio/video content. This high speed cable ensures that the latest HDMI features are met including:

• 4K@50/60, (2160p), which is 4 times the clarity of 1080p/60 video resolution
• 3D video, Deep Color and x.v. Color™
• Dolby® True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience
• Up to 1536kHz audio sample frequency for the highest audio fidelity
• Simultaneous delivery of dual video streams to multiple users on the same screen
• Simultaneous delivery of multi-stream audio to multiple users (up to 4)
• Support for the wide angle theatrical 21:9 video aspect ratio
• Dynamic synchronization of video and audio streams
• CEC extensions for control of consumer electronics devices through a single control point

Note: Both the source device and display must support an HDMI feature in order to pass that feature through this cable

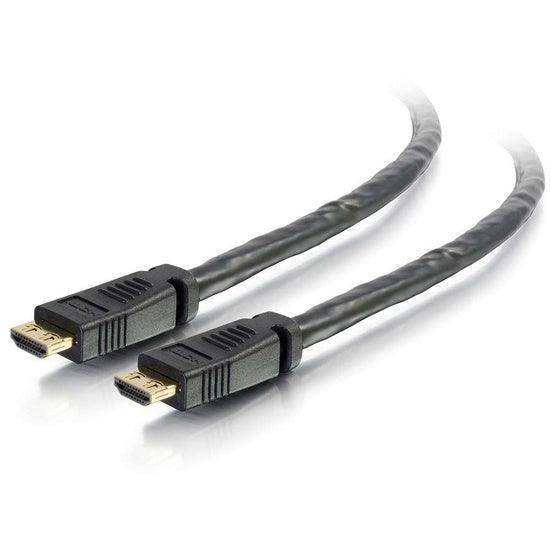

Get a grip
Ensure that your most critical equipment maintains signal with the gripping connectors which limit the chance that the cable could be accidently disconnected causing detrimental downtime. There is no need for special locking sockets tie downs or screws that take up extra space and have a higher cost.

Features and Benefits



Supports all HDMI 2.0 features including resolutions up to 4K

CL2P plenum rated jacket

Designed to support High Speed HDMI features including Ethernet

Gripping, gold plated connectors

TAA compliant



Additional Technical Specifications

HDMI Specification: 2.0

Specs

Electrical Specifications

Conductor Resistance: 24AWG 94.2

/Km Mat at 20°C

FEXT: -26dB at 0.3 to 5.10Ghz

Impedance: 100±10

Attenuation (Max): 0.3~825MHz <(><<)>5dB/Cable, 0.825~2.475GHz <(><<)>5~12dB/6m, 2.475~4.125GHz <(><<)>12~20dB/6M, 4.125~5.1 GHz <(><<)>20~25dB/6M

Time Delay Skew: Within a pair <(><<)>/=112ps/6M, Between Pairs <(><<)>/=1.78ns/6M

Physical Specifications

Operating Temperature: 0° to 50° C

Storage Temperature: -25° to 70° C

Cable Outer Diameter: 6mm

Shield: Aluminum Foil - 100% Coverage / Braid - Tinned Copper (24/7/0.12mm)

Conductor 1 (Twisted Pair)

Material: Tinned Copper

Size: 24AWG (7/0.2mm)

Insulation: FM-FEP (ID 1.55±0.10)

Drain: 24AWG Tinned Copper (7/0.2mm)

Conductor 2 (5 Conductors)

Material: Tinned Copper

Size: 24AWG (7/0.2mm)

Insulation: FEP (ID 0.95±0.08)

HDMI Connector

Gender: Male x2

Port Retention: 6.6lbs Minimum Withdraw Force

Insulation: Black

Contact Material: Gold Flashing
