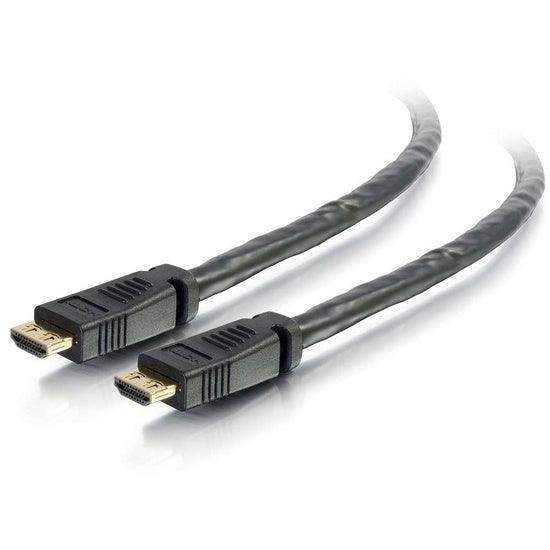

C2G CG42528 15 ft High Speed HDMI® Cable With Gripping Connectors - CL2P - Plenum Rated

C2G SKU: CG42528
No reviews

Sale price$126.99


Additional Technical Specifications
  • HDMI Specification: 2.0

    Electrical Specifications

  • Conductor Resistance: 24AWG 94.2
  • /Km Mat at 20°C
  • FEXT: -26dB at 0.3 to 5.10Ghz
  • Impedance: 100±10
  • Attenuation (Max): 0.3~825MHz <(><<)>5dB/Cable, 0.825~2.475GHz <(><<)>5~12dB/6m, 2.475~4.125GHz <(><<)>12~20dB/6M, 4.125~5.1 GHz <(><<)>20~25dB/6M
  • Time Delay Skew: Within a pair <(><<)>/=112ps/6M, Between Pairs <(><<)>/=1.78ns/6M

    Physical Specifications

  • Operating Temperature: 0° to 50° C
  • Storage Temperature: -25° to 70° C
  • Cable Outer Diameter: 6mm
  • Shield: Aluminum Foil - 100% Coverage / Braid - Tinned Copper (24/7/0.12mm)

    Conductor 1 (Twisted Pair)

  • Material: Tinned Copper
  • Size: 24AWG (7/0.2mm)
  • Insulation: FM-FEP (ID 1.55±0.10)
  • Drain: 24AWG Tinned Copper (7/0.2mm)

    Conductor 2 (5 Conductors)

  • Material: Tinned Copper
  • Size: 24AWG (7/0.2mm)
  • Insulation: FEP (ID 0.95±0.08)

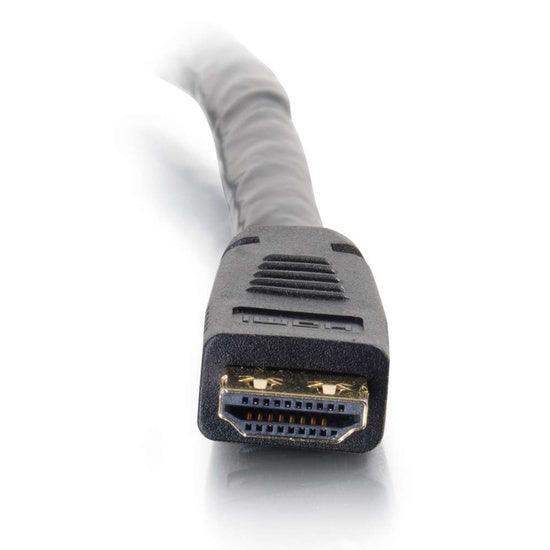

    HDMI Connector

  • Gender: Male x2
  • Port Retention: 6.6lbs Minimum Withdraw Force
  • Insulation: Black
  • Contact Material: Gold Flashing
