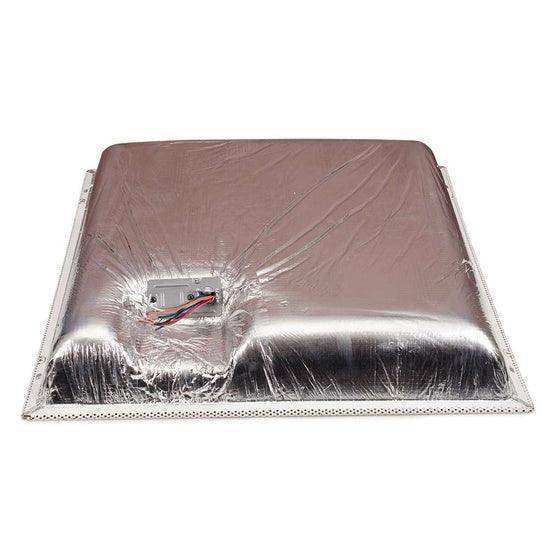

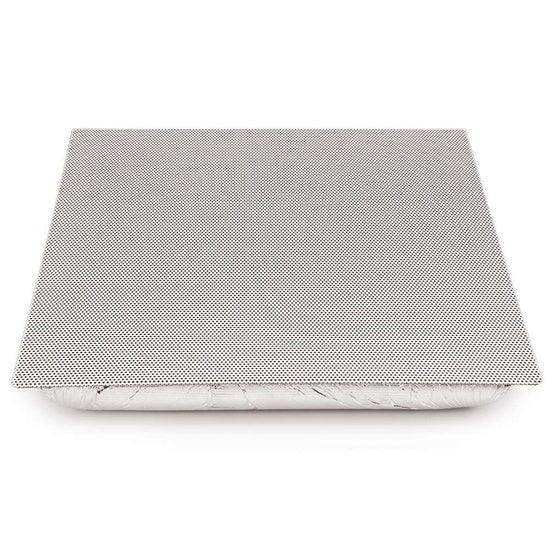

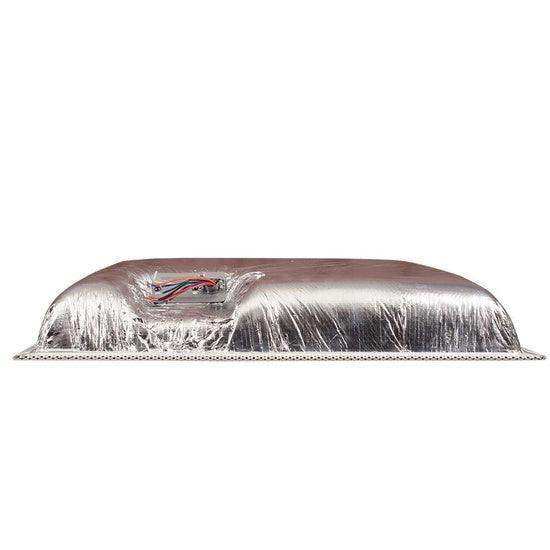

C2G CG41509 2x2 Drop in Ceiling Speaker - 70V - Plenum Rated

C2G SKU: CG41509
No reviews

Sale price$285.99


The Plenum-Rated 2x2 Drop In Ceiling Speaker is specifically designed for use in K-12 classrooms to deliver high quality audio from multimedia presentations, video clips, movies and other curriculum throughout the classroom. This speaker is designed to mount in the drop-ceiling frame that is often present in classrooms. Available in an industry standard 70 volt version with a 25 volt tap, this speaker ensures long life and quality sound. The Plenum-Rated 2x2 Drop In Ceiling Speaker has 0.5, 1.0, 2.0 and 4.0 watt taps to integrate seamlessly with a 70 or 25 volt amplifier to provide a complete classroom sound system. Additionally, the speakers can be combined with the A/V controller and RapidRun® for a complete connected classroom. This ceiling mount speaker provides a clean, unobtrusive look while dispersing sound down to students at 100 degrees for full classroom coverage.

  • 8 inch outer diameter dual cone speaker with 100° coverage angle
  • 5 oz. magnet with a 5W-25/70V transformer
  • Plenum rated enclosure
  • Seismic tie-off points

    Additional Technical Specifications

    Electrical Specifications

  • Average Sensitivity: 92 dB SPL, 1W/1M
  • Loudspeaker Power Rating: 12W RMS EIA 426A Standard
  • Maximum Output: 15W @ 8 Ohms
  • Calculated Output: 99 dB-SPL 5W/1M
  • Frequency Response: 65 Hz - 17 kHz EIA 426A Standard
  • Nominal Coverage Angle: 100° Included Angle -6 dB / 2 kHz, Half space

    Physical Specifications

  • Audio Connection: 6” Leads
  • Magnet Type & Weight: BeFe Ceramic, 5 oz. Nominal
  • Transformer: 5W-25/70V 5 tap, color coded leads (5W, 2.5W, 1.25W, 0.63W, 0.31W)
  • Weight: 6.15 Lbs
  • Dimensions (HxWxD): 87.31 x 508.96 x 508.96mm
