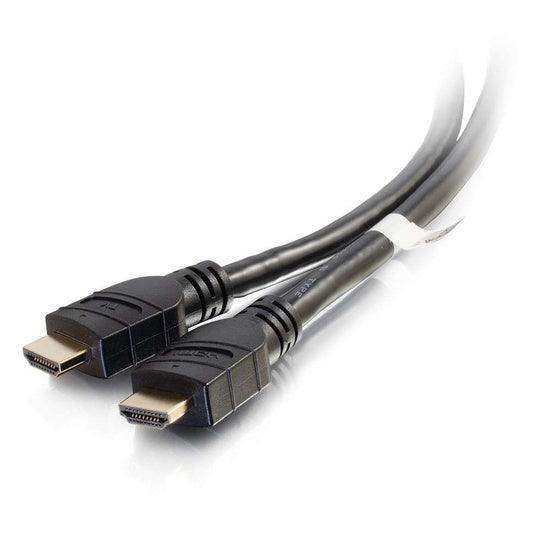

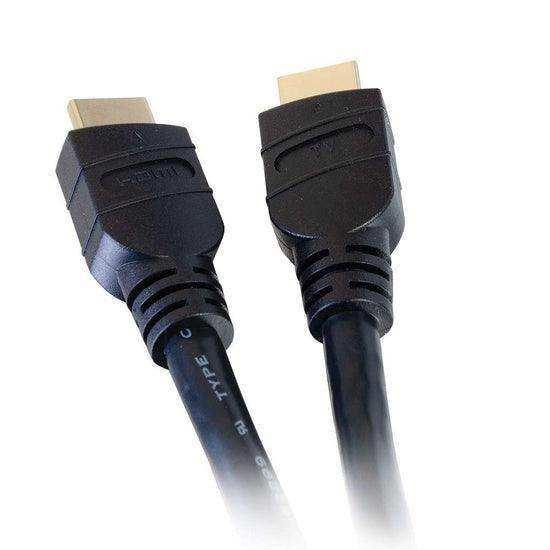

C2G CG41414 35 ft Active High Speed HDMI® Cable 4K 60Hz - In-Wall CL3-Rated
C2G CG41414 35 ft Active High Speed HDMI® Cable 4K 60Hz - In-Wall CL3-Rated
Roll over image to zoom in Click on image to zoom
C2G CG41414 35 ft Active High Speed HDMI® Cable 4K 60Hz - In-Wall CL3-Rated
C2G CG41414 35 ft Active High Speed HDMI® Cable 4K 60Hz - In-Wall CL3-Rated
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

C2G CG41414 35 ft Active High Speed HDMI® Cable 4K 60Hz - In-Wall CL3-Rated

C2G SKU: CG41414
No reviews
Price:
$137.99

Description

Electrical Specifications

  • Voltage Rating: 30V
  • Signal Bandwidth: 600MHz
  • Nominal Velocity of Propagation: 18Gbps
  • DC Resistance: 300V
  • Dielectric Strength: AC-500V/MIN
  • Insulation Resistance: 100M(OHMS*KM Min at 20°C)
  • Nominal Attenuation (dB/cable): 300kHz~825MHz<(><<)>(><(><<)><(><<)>)>5; 825~2.475GHz<(><<)>(><(><<)><(><<)>)>5...<(><<)>(><(><<)><(><<)>)>12; 2.475GHz~4.125GHz<(><<)>(><(><<)><(><<)>)>12...<(><<)>(><(><<)><(><<)>)>20; 4.125GHz~5.1Ghz<(><<)>(><(><<)><(><<)>)>20...<(><<)>(><(><<)><(><<)>)>25
  • HDMI 2.0, full HD Blu-ray Disc & HD DVD video, auto lip-sync, Audio Return Channel(ARC), Dual Video Streams( Dual View), Perceptual Quantizer (PQ) HDR OETF (SMPTE ST 2084), Hybrid Log-Gamma (HLG) HDR OETF, Static HDR metadata (SMPTE ST 2086)
  • UHD 4Kx2K@60Hz 4:4:4, resolutions up to 4096 x 2160p (4K x 2K)
  • Color Format: Y CbCr 4:4:4, Y CbCr 4:2:2, Y CbCr 4:2:0
  • Color Depth: 8, 10, 12, & 16bit per channel deep color
  • Color Space: SMPTE 170M, ITU-R BT.601, ITU-R BT.709, sRGB, xvYCC, sYCC, Adobe ycc601, Adobe RGB, ITU-R BT.2020
  • DVD Audio, Super Audio CD (DSD), Dolby® True HD, DTS-HD Master Audio, Dolby Digital/Digital Plus, MPCM, DSD, DST, Dolby Atnos, DTS:X
  • Maximum Audio Channels: 32
  • Up to 1536kHz audio sample frequency for the highest audio fidelity
  • HDMI-CEC system control compatibility
  • HDMI Ethernet Channel: 100Mbits/s (when used with HDMI Ethernet channel supported source and sync equipment)

    Physical Specifications

  • Operating Temperature: 0°C to +50°C; 15-85% RH (Non-Condensing)
  • Storage Temperature: -25°C to +85°C; 15-85% RH (Non-Condensing)
  • 100% Test for Short/Open: 10 OHM Insulation Resistance (300V DC)

    Physical Characteristics

  • HDMI A Male: Soldering Type; Gold Plated Contacts; Gold Flash Shell; Hood: Black
  • Shield Type/Braid Coverage: 65%
  • Shield Braid: 16/8/0.12(Aluminum Magnesium Alloy Wire)
  • Jacket Material & Thickness: PVC & 0.51mm
  • Drain Wire AWG & Construction: 28AWG & 7/0.127TC
  • Minimum Bend Radius: 200mm
  • Cable Marking: High Speed HDMI™ Cable with Ethernet E352299 Type CL3 75°C 24AWG
  • Product is CE marked and conforms to 2011/65/EU RoHS2
