Strict building code requirements for cabling in plenum spaces have created installation challenges in settings such as schools, hospitals and other commercial buildings. Previous solutions were limited to "over Cat5/6" products, which added to both the complexity and the reliability of the installation due to the need for power and signal conversion. C2G, formerly Cables To Go, has expanded its connectivity portfolio to include a line of commercial grade plenum cables that are ideal for routing audio/video cables through plenum space above dropped ceilings or under raised floors.
The new Pro Series commercial grade plenum cables offer true digital performance while meeting the highest standards in fire resistance. Available for HDMI®, DVI and DVI+3.5mm audio signals, these cables can meet the demands of virtually any commercial installation.
By supporting resolutions of 1080p for displays and up to 1920 x 1200 pixels for computers, and with lengths ranging from 6 to 50 feet, the Pro Series is the ideal connectivity solution for A/V equipment used in classrooms or conference rooms. 24k gold-plated connectors prevent metal corrosion, resulting in the optimal signal transfer for the highest picture and sound quality. Shielded 24AWG copper conductors protect against EMI and RFI to ensure uninterrupted performance. high quality materials and construction, along with rigorous factory testing and a full lifetime warranty, guarantee long-term, dependable performance.
*CL2 is equivalent to FT4 rating in Canada, while CMP is equivalent to FT6.
Please Note: HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Electrical Characteristics
Impedance - 100 ± 5
DC Resistance - 0.084
/m at 20° C
Dielectric Strength - 750VAC/minute
Insulation Resistance (50 0V) - 100M
/KM at 20°C
IPS (with-in pair skew) - 15ps/m max
PtPS (pair-to-pair skew) - 50ps/m max
Attenuation (nominal) - Frequency dB/100 ft 100 MHz 0.26 340 MHz 0.48 500 MHz 0.62 800 MHz 0.84 1000 MHz 0.97
Physical Characteristics
Voltage Rating - 300V
Temperature Rating - 125°C
Approvals - RoHS Compliant
Package Type - Polybag
Conductor 1 (4 pair)
Conductor Type - 24AWG (7/32), Tinned Copper
Insulation - Minimum Avg. Thickness: 0.4mm Cellular-PE, 1.5 mm O.D., (1) white & brown, (1) white & red, (1) white & green, (1) white & blue
Shield - Aluminum/Polyester Tape 100% 25% overlap (min.),
Drain Wire - 24AWG (7/32), Tinned Copper
Conductor 2 (1 pair & 5 conductors)
Conductor Type - 24AWG (7/32) Tinned Copper
Insulation - Minimum Avg. Thickness: 0.17mm FEP, 0.96mm O.D., (1 pair) orange & yellow, (1) red, (1) violet, (1) white, (1) gray, (1) pink

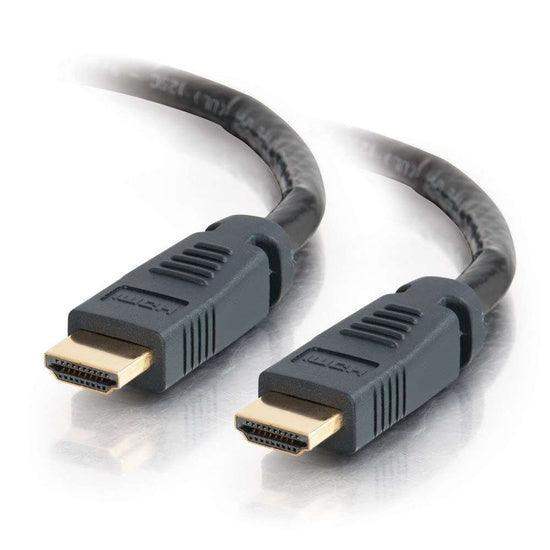

HDMI Connector
Connector Type - HDMI Type A
Gender - Male
Contact Material - Brass, 15#m Gold Plating
Insulation - PET
Dimensions (LxWxH) - 42.75 x 18.00 x 10.50mm

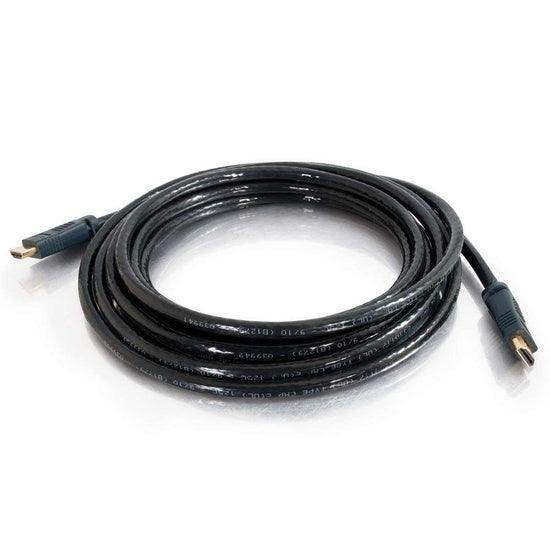

Overall Cable
AL/Polyester Tape - 100% Coverage, 25% overlap (min.)
Braided Shield - 85% Coverage (9/36AWG), Tinned Copper
Jacket - Kynar (PVDF Copolymer) Black CMP Rated, Minimum Avg. Thickness: 0.4mm (min.), O.D.: 8.35 ± 0.15 m
