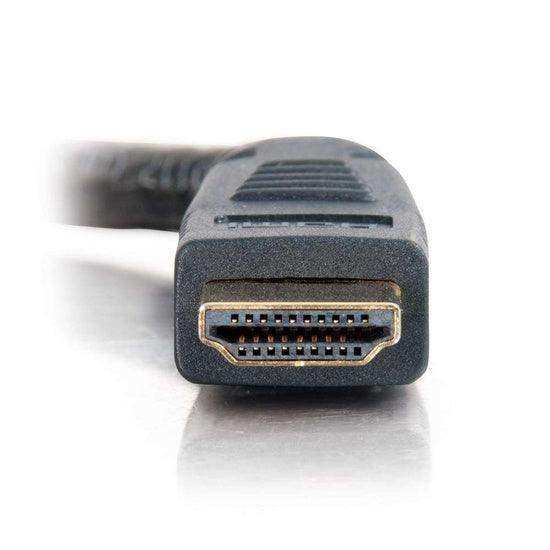

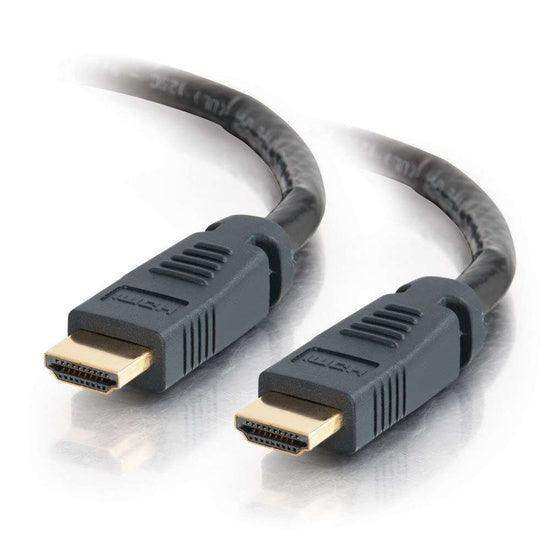

C2G CG41190 15 ft Pro Series HDMI® Cable
C2G CG41190 15 ft Pro Series HDMI® Cable
Roll over image to zoom in Click on image to zoom
C2G CG41190 15 ft Pro Series HDMI® Cable
C2G CG41190 15 ft Pro Series HDMI® Cable
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

C2G CG41190 15 ft Pro Series HDMI® Cable

C2G SKU: CG41190
No reviews
Price:
$150.99

Description

Electrical Characteristics

  • Impedance - 100 ± 5
  • DC Resistance - 0.084
  • /m at 20° C
  • Dielectric Strength - 750VAC/minute
  • Insulation Resistance (50 0V) - 100M
  • /KM at 20°C
  • IPS (with-in pair skew) - 15ps/m max
  • PtPS (pair-to-pair skew) - 50ps/m max
  • Attenuation (nominal) - Frequency dB/100 ft 100 MHz 0.26 340 MHz 0.48 500 MHz 0.62 800 MHz 0.84 1000 MHz 0.97

    Physical Characteristics

  • Voltage Rating - 300V
  • Temperature Rating - 125°C
  • Approvals - RoHS Compliant
  • Package Type - Polybag

    Conductor 1 (4 pair)

  • Conductor Type - 24AWG (7/32), Tinned Copper
  • Insulation - Minimum Avg. Thickness: 0.4mm Cellular-PE, 1.5 mm O.D., (1) white & brown, (1) white & red, (1) white & green, (1) white & blue
  • Shield - Aluminum/Polyester Tape 100% 25% overlap (min.),
  • Drain Wire - 24AWG (7/32), Tinned Copper

    Conductor 2 (1 pair & 5 conductors)

  • Conductor Type - 24AWG (7/32) Tinned Copper
  • Insulation - Minimum Avg. Thickness: 0.17mm FEP, 0.96mm O.D., (1 pair) orange & yellow, (1) red, (1) violet, (1) white, (1) gray, (1) pink

    HDMI Connector

  • Connector Type - HDMI Type A
  • Gender - Male
  • Contact Material - Brass, 15#m Gold Plating
  • Insulation - PET
  • Dimensions (LxWxH) - 42.75 x 18.00 x 10.50mm

    Overall Cable

  • AL/Polyester Tape - 100% Coverage, 25% overlap (min.)
  • Braided Shield - 85% Coverage (9/36AWG), Tinned Copper
  • Jacket - Kynar (PVDF Copolymer) Black CMP Rated, Minimum Avg. Thickness: 0.4mm (min.), O.D.: 8.35 ± 0.15 m
