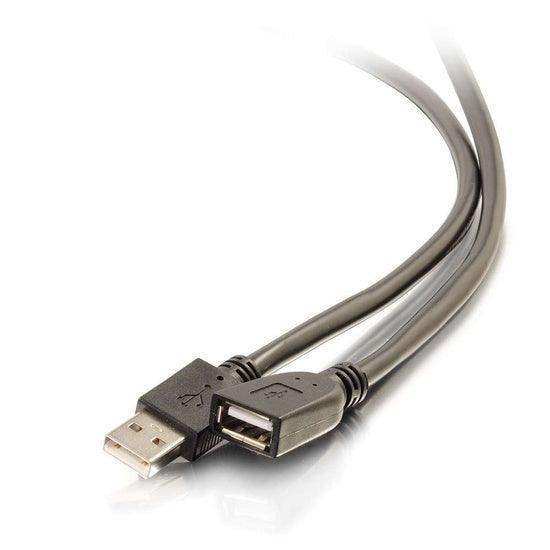

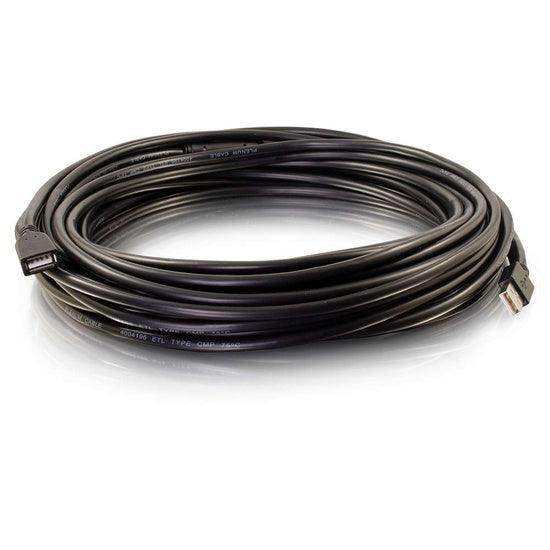

C2G CG39936 75 ft USB-A Male to Female Active Extension Cable - Plenum, CMP-Rated

C2G SKU: CG39936
No reviews

Sale price$250.99


This USB Active Extension Cable is an ideal solution for USB applications which require more cable length than the 5 meter (16.5ft) length limitation of USB. This extension cable actively buffers the incoming and outgoing signals to ensure compliance with the USB 2.0 specification for electrical and timing minimums. The plenum rated jacket meets the requirements for an installation in a commercial space, and both low and high speed USB devices will function equally well with this extension.

Features and Benefits

  • Plenum, CMP-rated jacket
  • Supports USB 2.0 bandwidth
  • Draws power required for operation through the USB port

    Additional Technical Specifications
    Electrical Specifications

  • Voltage Rating: 300V
  • Signal Bandwidth: 480Mbps
  • Nominal Impedance with Tolerance: 90±13.5 OHM
  • Delay: 5.2ns/m MAX
  • DC Resistance: 24AWG 87.6OHM/KM MAT at 20°C /22AWG 55.4OHM/KM MAX at 20°C
  • Insulation Resistance: 10M OHM

    Physical Specifications

  • ETL 24AWG/1P+22AWG/2C; 75°C, 300V; 6ETL—4004196
  • Operating Temperature: -10 ~ 75°C
  • Storage Temperature: -10 ~ 75°C
  • P1: USB-A Type Male; Material (Nickel-Plated on Shell), Terminal Gold 3#m, Insulation Color: White
  • P2: USB-A Type Female; Material (Nickel-Plated on Shell), Terminal Gold 3#m, Insulation Color: White
  • Shield Type/Braid Coverage: 80% MIN
  • Shield Type/Braid Construction: 16/7/0.12TC
  • Jacket Material & Thickness: PVC Alloy 0.58mm AVG
  • Drain Wire AWG & Construction: 7/0.203TC
  • Minimum Bend Radius: 60mm
  • Cable Marking: Plenum Cable 4004196 ETL TYPE CMP 75°C
