The HDMI over IP Encoder allows HDMI audio/video signals to be extended at up to a 4K resolution via Cat6 or Cat6a cable. The encoder is compatible with the HDMI over IP Decoder (29976) to support multiple configurations and offers the flexibility to support a digital signage system, video wall, point-to-point extension, including multi-view capabilities, and the ability to create scalable audio/video matrix switching to over 600 devices. HDMI over IP solutions are perfect for retail, corporate, security, and education environments.
The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network and over the Internet for distributed installations. The encoder accepts a 4K video @ 30Hz and streams the content to an H.264/H.265 decoder to be displayed on a 4K monitor. The encoder may also send H.264/H.265 video streams to other H.264/H.265 compatible decoder devices.
The device supports PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch.
Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.
Signal Specifications
Environment: HDMI 1.4
Devices: Blu-Ray, Set Top Boxes, Media Players/Streamers, projectors, monitors, TVs, PCs, supporting HDMI
Signal Protocol/Standard: HDMI 1.4 and HDCP 1.4
Electrical Specifications
Video Bandwidth: 300MHz
Network Bandwidth: 40Mbps (max)
Latency: 200ms (in low latency mode with H.265)
Protocols: Supports Multicast, RTSP, RTMP (H.264), HLS, FLV (H.264) & TS
Maximum Distance: Cat5e/6: 330ft (100m) from Ethernet Switch. Unlimited over the Internet
Power Source: This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch.
PoE: IEEE 802.3af
Power Consumption: 4.5W
Physical Specifications
Operating Temperature: 0°C to 40°C
Operating Humidity: up to 95% (non-condensing)
Storage Temperature: -20°C to 85°C
Storage Humidity: up to 95% (non-condensing)
Physical Characteristics

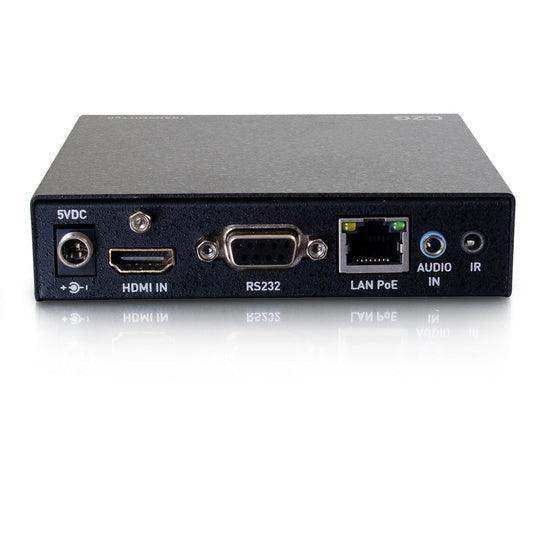

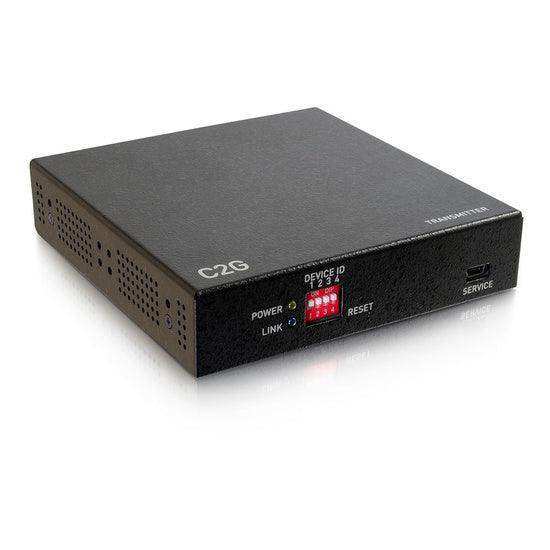

Connectors: One (1) HDMI connector for AV input One (1) RJ45S for Ethernet connection One (1) 3.5mm connector for audio embedding One (1) 3.5mm connector for directional IR (direction controllable via software) One (1) RS232 DB9 connector for controlling end devices One (1) Mini USB connector for firmware updates One (1) 2.1mm locking power connector
Dimensions: 4.4 x 4.4 x 1.0 inch (111 x 111 x 25 mm)
Weight: 0.9lbs (0.4kg)
Compliance: FCC, CE, RoHS
Flammability: 94V0
