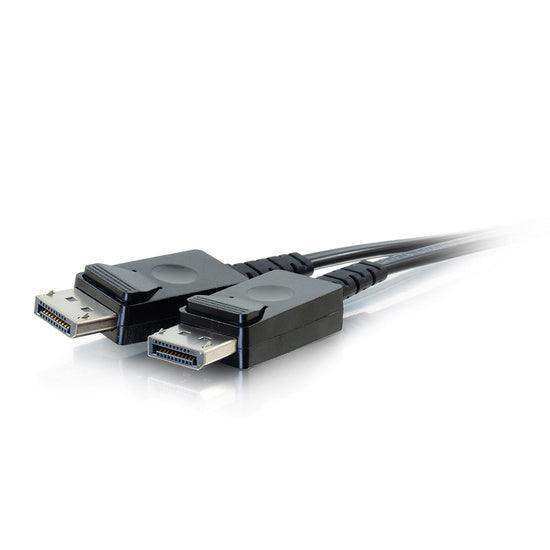

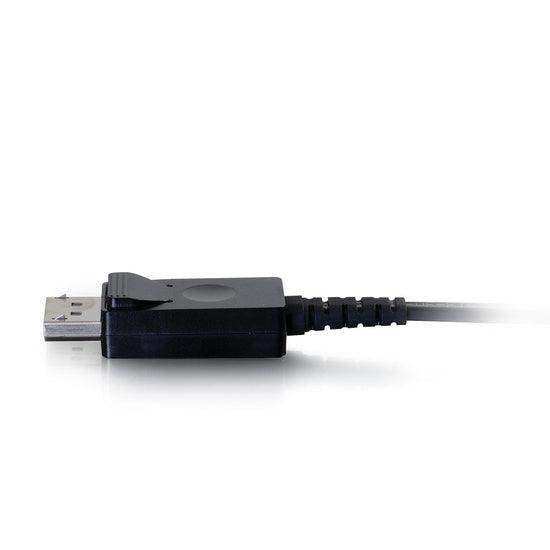

C2G CG29536 50ft DisplayPort Active Optical Cable (AOC) 4K 60Hz (LIMITED AVAILABILITY)
C2G CG29536 50ft DisplayPort Active Optical Cable (AOC) 4K 60Hz (LIMITED AVAILABILITY)
Roll over image to zoom in Click on image to zoom
C2G CG29536 50ft DisplayPort Active Optical Cable (AOC) 4K 60Hz (LIMITED AVAILABILITY)
C2G CG29536 50ft DisplayPort Active Optical Cable (AOC) 4K 60Hz (LIMITED AVAILABILITY)
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

C2G CG29536 50ft DisplayPort Active Optical Cable (AOC) 4K 60Hz (LIMITED AVAILABILITY)

C2G SKU: CG29536
No reviews
Price:
$874.99

Description

The DisplayPort AOC is the perfect solution for extending DisplayPort signals in classrooms, conference rooms, healthcare facilities, digital signage and other commercial environments.

Convenience
Utilizing AOC technology that performs similar to traditional copper cabling, the optical fiber construction between the connectors provides optimum performance and easy installation. The AOC technology delivers several advantages which make it a smart choice in select installations. The cable diameter is smaller than copper and more flexible, making it easier to install in tight spaces. Constructed from fiber strands, this cable reduces the risk of EMI/RFI so performance is stable when used in typically high interference environments such as data centers, surgical theaters, or manufacturing facilities where high resolution and consistent display are critical.

Performance
The AOC draws power from the DisplayPort source device, so no external power source is required. In addition to low power consumption, these cables are also plug and play and hot swappable. Additionally, the DisplayPort Active Optical Cable supports the latest 4K (4096 x 2160 at 60Hz) content delivery over longer distances.

  • Supports resolutions up to 4K (4096 x 2160 at 60Hz)
  • Supports 3D Video, Deep Color and x.v.Color
  • CEC, EDID, and HDCP compatible
  • No external power required
  • Plenum rated jacket

    •


    Additional Technical Specifications
    Physical Specifications:

  • Operating Temperature: 0°C to 50°C, less than 60% RH (non-condensing)
  • Storage Temperature: 0°C to 60°C, less than 60% RH (non-condensing)
  • Jacket: PVC Plenum, CMP Rated (30 AWG)
  • Power Consumption: 500 mW maximum
  • Connector: 20-Pin Male DisplayPort
  • Maximum Tensile Load: 45 kg (100 lbs)
  • Minimum Bend Radius: 5 mm
  • Cable Type: Hybrid with copper wires and optical fibers
  • DisplayPort Compliance: 1.2
  • HDCP Compliance: 1.3
  • Cable Dimensions: 5.1 mm x 3.1 mm
  • Conformity: 2011/65/EU ROHS directives, UL CMP-OF, and CMP-OF-FT6

    Electrical Specifications

  • Impedance: Max. 0.5 ohms/m
  • Capacitance: Max. 100 pF/m
  • Attenuation: Max. 180 dB/km

    Video Specifications

  • Supported Resolution: 4K/60Hz/4:4:4
  • Data Rate: 4 channels x 5.4 Gbps - up to 21.6 Gbps
  • HDMI Features Supported: 3D video, Deep Color, X.V. Color, HDCP, CEC, EDID
  • EDID: Plug and play
