C2G CG29523 – 4-Port USB 3.1 Over Cat6a Extender Kit

Product Overview

The C2G CG29523 4-Port USB 3.1 Over Cat6a Extender is a commercial-grade USB extension solution designed for AV integrators and IT teams that need to place USB 3.1 devices — conferencing cameras, interactive whiteboards, or remote storage — up to 328 feet from the host computer. Using a single Cat6a cable, this USB 3.1 extender over Cat6a eliminates the need for additional infrastructure while supporting simultaneous operation of up to four USB devices. Plug-and-play installation requires no software drivers, making deployment straightforward in conference rooms, training rooms, and enterprise AV environments.

Product Description

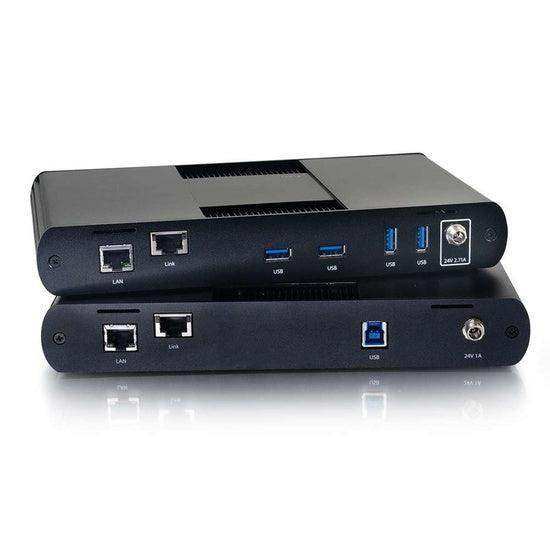

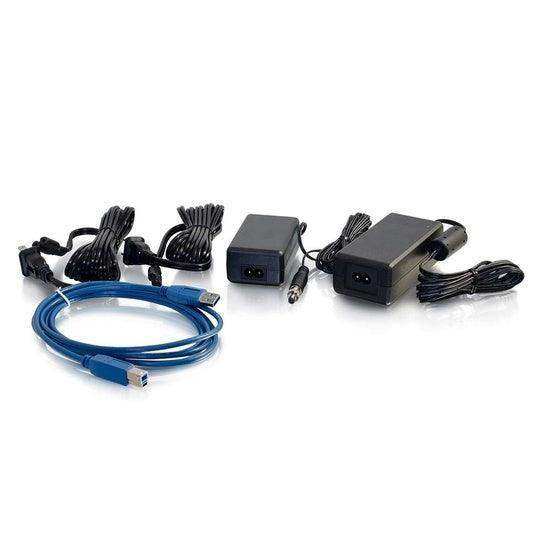

The CG29523 consists of a Local Extender (LEX) unit that connects to the source computer via USB Type-B, and a Remote Extender (REX) unit that hosts four USB 3.1 Gen 1 Type-A ports for peripheral connections. A single Cat6a cable runs between the two units, carrying both data and power — up to 24V supplied by included locking DC power adapters. The REX unit delivers up to 1.2A (6W) per USB port, sufficient for powering cameras and USB hubs.

Both units feature a 100/1000 Mbps Ethernet pass-through port and an RJ45 link port, preserving existing LAN connectivity at the remote end — critical in boardrooms and government spaces where network drops are fixed. The silver anodized aluminum enclosures support surface mounting via four mounting holes or an optional mounting kit, and the units conform to RoHS2 and carry FCC Class B and CE Class B certifications. This USB extender for conference rooms handles USB 3.1 Gen 1 at up to 5 Gbps and is fully backward compatible with USB 2.0 (480 Mbps) and USB 1.1 (12 Mbps) devices on the same extension run.

Key Features

• 328ft Extension Over Single Cat6a Cable — Extends USB 3.1, 2.0, and 1.1 devices simultaneously up to 328 feet without signal degradation or additional cabling infrastructure.
• 4-Port USB 3.1 Gen 1 Hub at Remote End — The REX unit provides four Type-A USB 3.1 ports, each capable of supporting independent USB devices at full bandwidth simultaneously.
• USB 3.1 Gen 1 at 5 Gbps — Delivers SuperSpeed USB data transfer rates for high-bandwidth peripherals including 4K conferencing cameras and external storage.
• Ethernet Pass-Through on Both Units — 100/1000 Mbps Ethernet pass-through on LEX and REX preserves network access at both ends without requiring additional cable runs.
• 1.2A Per Port Power Delivery — The REX supplies up to 1.2A (6W) per USB port, powering cameras, USB hubs, and other bus-powered peripherals at the remote end.
• No Drivers Required — True plug-and-play operation; no software installation needed, reducing deployment time in commercial AV installations.
• Surface Mount or Optional Rack Mount — Both units include four mounting holes for surface installation; an optional mounting kit is available for rack or wall deployment.
• Silver Anodized Aluminum Enclosures — Durable commercial-grade housing suitable for permanent installation in AV racks, under-table mounts, or wall surfaces.
• RoHS2 Compliant, FCC & CE Certified — Meets environmental and electromagnetic compliance standards required for commercial and government deployments.

Typical Applications

• Conference room USB camera and speakerphone extension
• Interactive whiteboard connectivity in training rooms
• Security and surveillance camera USB extension
• Remote storage access in AV control rooms
• Government and enterprise AV system integration
• Boardroom video conferencing peripheral management

Technical Specifications

Frequently Asked Questions

What USB device types are compatible with the CG29523?

The CG29523 is compatible with all USB 3.1 Gen 1, USB 2.0, and USB 1.1 devices simultaneously, including conferencing cameras, interactive whiteboards, external storage, USB hubs, and security cameras. All four REX ports operate at full bandwidth concurrently.

Does this extender require any software drivers?

No. The CG29523 is fully plug-and-play. No drivers or software installation are required on any operating system, making it suitable for quick deployment in managed commercial environments.

Can I use existing Cat6 cable, or does it require Cat6a specifically?

The CG29523 is designed for Cat6a for maximum 328ft extension. Using Cat5e or Cat6 may reduce the effective extension distance. For permanent installations, Cat6a solid-conductor shielded cable is recommended.

Is the Ethernet pass-through active when the USB extension is in use?

Yes. Both the LEX and REX units include independent 100/1000 Mbps Ethernet pass-through ports that remain active regardless of USB activity, allowing network-connected devices at both ends simultaneously.

What mounting options are available for permanent installation?

Both units include four surface-mounting holes. An optional mounting kit is available separately for rack or structured wall mounting in AV equipment rooms and boardrooms.

What is the warranty on the C2G CG29523?

C2G backs this product with their standard commercial warranty. Contact Creation Networks at creationnetworks.net for warranty support and RMA assistance.

Can the CG29523 power USB devices at the remote end without a separate power supply?

The REX unit requires its own 24V 2.71A DC power adapter (included) to deliver up to 1.2A per port to connected USB devices. Bus power from the host computer is not passed through over the Cat6a cable.
