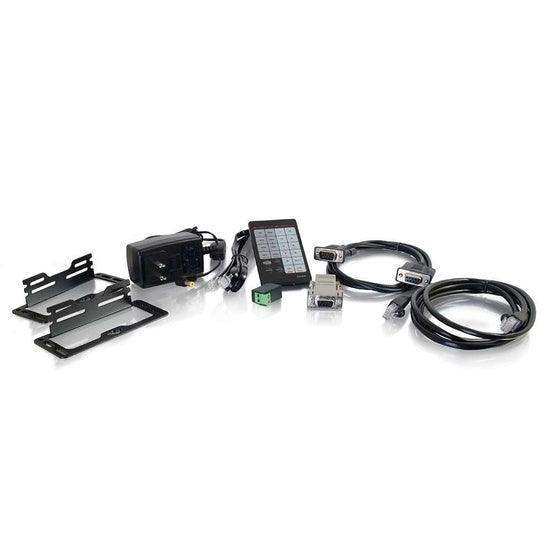

C2G CG29319 – HDMI & VGA HDBaseT Over Cat Extender with Scaler/De-Embedder

Product Overview

The C2G CG29319 HDBaseT Extender Kit extends HDMI and VGA signals with stereo audio over a single Cat5e, Cat6, or Cat6a cable — up to 230 feet at 1080p or 115 feet at 4K for HDMI. Designed for conference rooms, training rooms, and boardrooms where multiple source types must connect to a single display, this kit includes a transmitter with built-in VGA scaler, audio de-embedder, and three input switching modes. The HDBaseT over Cat extender transmitter accepts HDMI and VGA plus stereo audio, converts and scales the signal, and passes it to any compatible C2G HDBaseT receiver. A local HDMI loop-out supports a second display directly at the transmitter end.

Product Description

The CG29319 transmitter handles both HDMI and VGA sources, making it compatible with legacy laptop VGA outputs alongside modern HDMI sources without requiring a separate converter. The built-in scaler up-converts VGA input to 1080p before transmission, ensuring consistent output resolution at the display end regardless of source type. Audio de-embedding strips the audio track from the HDMI signal and routes it to a dedicated 3.5mm stereo output — useful in rooms where audio is managed by a separate DSP or amplifier.

Input switching supports three modes: automatic (last-connected source), manual via front-panel buttons, and serial RS232 control — compatible with C2G TruLink A/V controllers and third-party control systems. HDBaseT technology passes EDID and HDCP signals through the extension run, ensuring the source device always negotiates the correct output resolution. TruChoice power allows a single AC adapter at either the transmitter or receiver end to power both units over the Cat cable. Note: For installations requiring cable coiling, proximity to high-frequency cables, or high EMI/RFI environments, shielded solid-conductor Cat6 or HDBaseT-certified Cat6a is strongly recommended. Note: Limited availability — check stock at creationnetworks.net/collections/c2g.

Key Features

• Dual Input: HDMI and VGA + Stereo Audio — Accepts both HDMI and VGA sources with 3.5mm stereo audio, eliminating the need for a separate input switcher in mixed-source rooms.
• HDBaseT Extension up to 230ft at 1080p — Transmits HDMI or VGA signals over a single Cat5e/6/6a cable up to 230ft at 1080p; HDMI extends to 115ft at 4K.
• Built-In VGA to 1080p Scaler — Up-converts VGA input to 1080p resolution at the transmitter, delivering a consistent output to the display regardless of source resolution.
• HDMI Audio De-Embedder — Separates audio from the HDMI signal and outputs it via 3.5mm stereo jack for connection to independent audio systems.
• Three Switching Modes — Supports automatic (last connected), manual front-panel, and RS232 serial switching for integration with control systems.
• HDBaseT EDID Pass-Through — Passes EDID data through the extension run so source devices always output at the optimal resolution for the connected display.
• Local HDMI Loop-Out — Secondary HDMI output at the transmitter allows a local display to be connected simultaneously with the extended remote display.
• TruChoice Power — Single power adapter at either end powers both transmitter and receiver over the Cat cable, reducing cable management complexity.
• Compatible with All C2G HDBaseT HDMI Receivers — Works with any C2G HDBaseT receiver, providing flexibility for phased installations or upgrades.
• NDAA 889 Compliant — Meets federal procurement compliance requirements for government and education deployments.

Typical Applications

• Conference room HDMI/VGA signal extension to wall-mounted displays
• Training room presentation systems with mixed laptop sources
• Boardroom AV installations with audio de-embedding to DSP
• Government meeting spaces requiring NDAA-compliant AV components
• Multi-purpose rooms with centralized source equipment

Technical Specifications

Frequently Asked Questions

Does this kit include both the transmitter and receiver?

The CG29319 is a transmitter kit that is compatible with any C2G HDBaseT HDMI receiver. Confirm receiver compatibility with your specific receiver model before ordering. Contact Creation Networks for pairing recommendations.

Can I use stranded Cat5e or Cat6 patch cable?

Stranded Cat5e/6/6a patch cables may be used for HDMI extension up to 230ft. However, for installations where cable is coiled, run near high-frequency signaling cables, or in high EMI/RFI environments, shielded solid-conductor Cat6 or HDBaseT-certified Cat6a is strongly recommended.

How does the RS232 switching work?

The RS232 port accepts serial commands from a control device such as the C2G TruLink A/V Controller, allowing programmatic input switching as part of a larger room control system. The transmitter is also compatible with C2G DB9 to RJ25 serial cables.

Is this product compatible with 4K sources?

Yes. HDMI sources at 4K resolution are supported up to 115ft (35m). For 1080p content, both HDMI and VGA sources extend up to 230ft. VGA is scaled to 1080p at the transmitter before transmission.

What does audio de-embedding mean in this context?

Audio de-embedding separates the audio track from the incoming HDMI signal and routes it to a dedicated 3.5mm stereo output on the transmitter. This allows the audio to feed a separate amplifier, DSP, or ceiling speaker system independently of the video signal going to the display.

What is the warranty period on the CG29319?

C2G provides a 5-year warranty on the CG29319. Contact Creation Networks at creationnetworks.net for warranty support and replacement assistance.

What does “Limited Availability” mean for this product?

C2G has indicated limited remaining stock for the CG29319. It is recommended to confirm current availability with Creation Networks before specifying this unit in a new installation.
