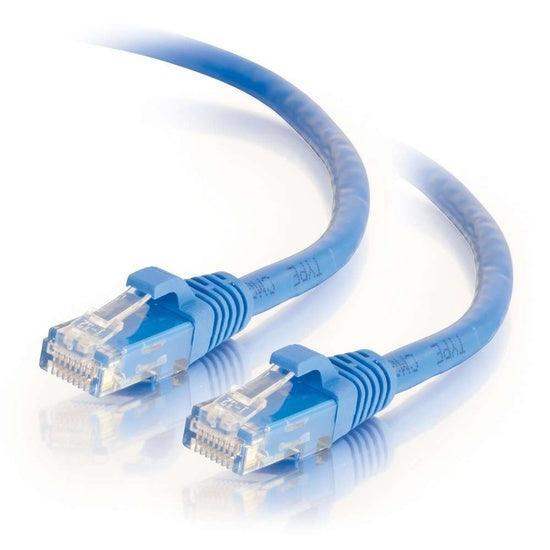

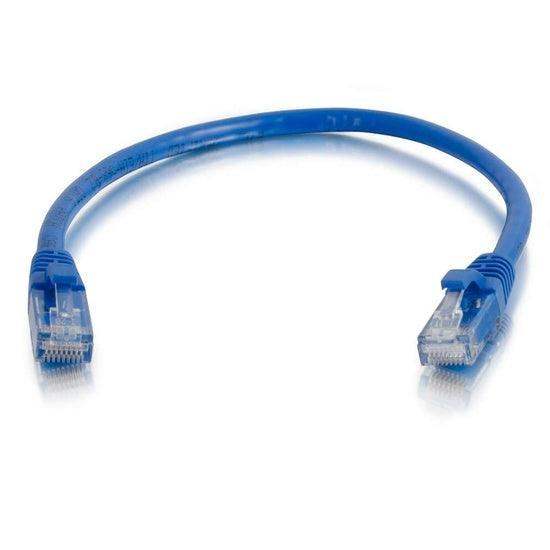

C2G CG29023 25 ft Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable Multipack (50 Pack, Blue)
C2G CG29023 25 ft Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable Multipack (50 Pack, Blue)
Roll over image to zoom in Click on image to zoom
C2G CG29023 25 ft Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable Multipack (50 Pack, Blue)
C2G CG29023 25 ft Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable Multipack (50 Pack, Blue)
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

C2G CG29023 25 ft Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable Multipack (50 Pack, Blue)

C2G SKU: CG29023
No reviews
Price:
$735.99

Description

For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.


Additional Technical Specifications
Electrical Characteristics

  • Conductor DC Resistance - 9.38
  • 100m (maximum)
  • Impedance - 100
  • Capacitance - 5600pf/100m
  • Propagation Delay - 545ns/100m (maximum)
  • Delay Skew - 45ns/100m (maximum)

    Physical Characteristics

  • Wiring Scheme - T568B
  • Standard: Category 6 TIA/EIA-568-B-2.1, draft 9
  • Connector: 50 micron gold-plated RJ45
  • Temperature Rating - 60°C
  • Voltage Rating - 30V
  • Approvals - RoHS Compliant
  • Warranty - Lifetime
  • Package Type - Polybag

    Conductor (Qty. 4 twisted pair)

  • Conductor Type - 24AWG (7/0.20), Stranded Bare Copper
  • Insulation - H-D PE
  • Diameter - 0.98 ± 0.05mm
  • Colors - Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White

    Connector Type (Qty. 2)

  • Connector Type - 8P8C (RJ45)
  • Gender - Male
  • Connector Material - Polycarbonate
  • Contact Material - Copper Alloy, Gold Plating - 50µm
  • Hood Material - Molded PVC

    Overall Cable

  • Jacket - PVC
  • Minimum Average Thickness - 0.60mm
  • Outer Diameter - 6.20 ± 0.30mm
