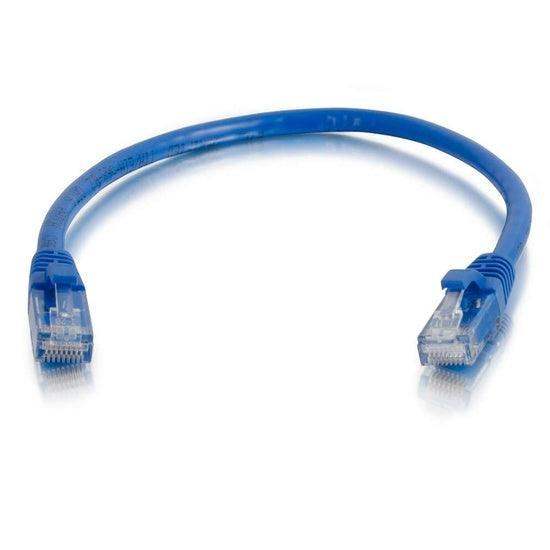

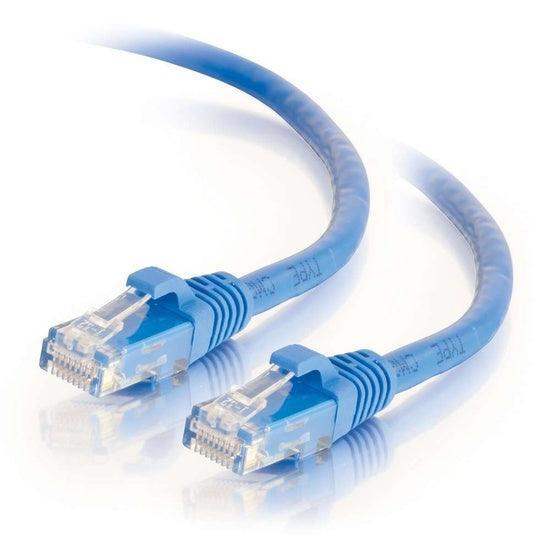

C2G CG29012 10 ft Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable Multipack (25 Pack, Blue)

C2G SKU: CG29012
No reviews

Sale price$204.99


For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.

Additional Technical Specifications

Electrical Characteristics

  • Conductor DC Resistance - 9.38
  • 100m (maximum)
  • Impedance - 100
  • Capacitance - 5600pf/100m
  • Propagation Delay - 545ns/100m (maximum)
  • Delay Skew - 45ns/100m (maximum)

    Physical Characteristics

  • Wiring Scheme - T568B
  • Standard: Category 6 TIA/EIA-568-B-2.1, draft 9
  • Connector: 50 micron gold-plated RJ45
  • Temperature Rating - 60°C
  • Voltage Rating - 30V
  • Approvals - RoHS Compliant
  • Warranty - Lifetime
  • Package Type - Polybag

    Conductor (Qty. 4 twisted pair)

  • Conductor Type - 24AWG (7/0.20), Stranded Bare Copper
  • Insulation - H-D PE
  • Diameter - 0.98 ± 0.05mm
  • Colors - Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White

    Connector Type (Qty. 2)

  • Connector Type - 8P8C (RJ45)
  • Gender - Male
  • Connector Material - Polycarbonate
  • Contact Material - Copper Alloy, Gold Plating - 50µm
  • Hood Material - Molded PVC

    Overall Cable

  • Jacket - PVC
  • Minimum Average Thickness - 0.60mm
  • Outer Diameter - 6.20 ± 0.30mm
