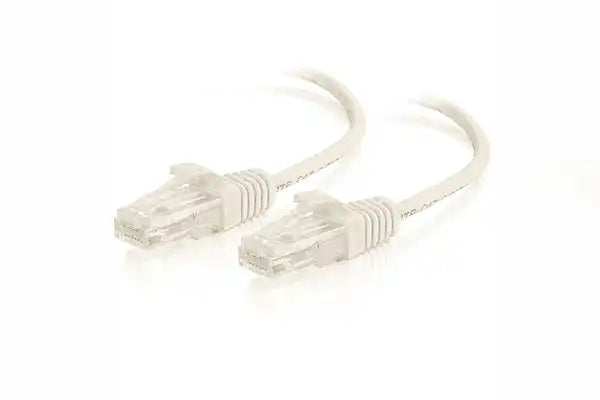

C2G RJ45 Male to RJ45 Male Slim Cat 6 Patch Cable (7', White) - CG01188
C2G RJ45 Male to RJ45 Male Slim Cat 6 Patch Cable (7', White) - CG01188 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
C2G RJ45 Male to RJ45 Male Slim Cat 6 Patch Cable (7', White) -...
The C2G 01188 7FT White Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable is a perfect solution for high-density datacenter applications that require a slim network patch cable with a high level of performance. By using 28 AWG conductors, it is possible to reduce the diameter of the patch cable by 36% over a standard Cat6 patch cable. Due to this reduced diameter, a smaller surface area is exposed on the cable, allowing for a greater airflow as compared to standard Cat6 cables with a larger diameter. The 28 AWG conductors also allow this cable to have a smaller bend radius than standard Cat6 cables. The small size and small bend radius of this cable allow it to be easily routed through cable management panels.
Features
- 7' in Length
- Slim Size for High-Density Cable Runs
- 28 AWG Gauge with Snagless Connectors
- Up to 10 Gb/s Transfer Speeds
- Meets ANSI/TIA-568-C.2 Standard
- Copper Material to Minimize NEXT Levels
Specs
| Cable Length | 7' / 213.36 cm |
| Ethernet Standards | Cat 6 |
| Connector 1 | RJ45 Male |
| Connector 2 | RJ45 Male |
| Compatibility | 10GbE |
| Bandwidth Rating | 500 MHz |
| Conductor DC Resistance | 9.38 Ohms/ft (Up to 328.08' / 100 m) |
| Capacitance | 5600 pF/ft |
| Impedance | 100 Ohms |
| Pin Assignment | T568B |
| Boot Type | Snagless |
| Wire Gauge | 28 AWG |
| Jacket Type | Polyvinyl Chloride (PVC) |
| Conductor | Copper |
| Contact Plating | Gold |
| Insulation | HDPE |
| Certifications | CE *as per Manufacturer |
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 5.4 x 4.45 x 0.95" |
