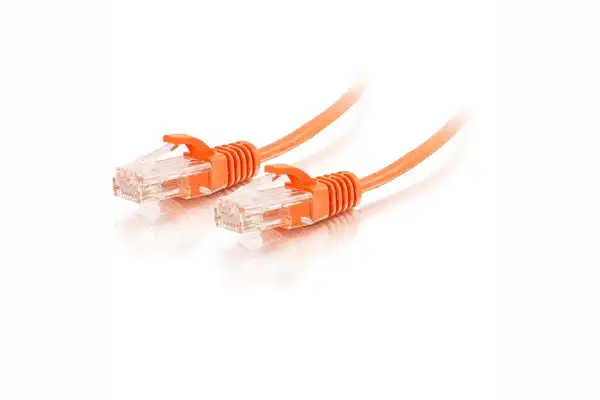

C2G RJ45 Male to RJ45 Male Slim Cat 6 Patch Cable (7', Orange) - CG01178
C2G RJ45 Male to RJ45 Male Slim Cat 6 Patch Cable (7', Orange) - CG01178 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
C2G RJ45 Male to RJ45 Male Slim Cat 6 Patch Cable (7', Orange) ...
A 7FT orange 01178 Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable from C2G is the perfect solution for high-density datacenter applications that require high speeds and reliability. The use of 28 AWG conductors allows for a 36% reduction in the diameter of the cable over a Cat6 network patch cable that uses 20 AWG conductors. Due to the reduced diameter of the cable, there is a smaller surface area for the cable, therefore the airflow can be increased when compared to a regular Cat6 cable. As a result of having 28 AWG conductors, this cable is also able to bend more easily than standard Cat6 cables due to its smaller bend radius. The small size and small bend radius of this cable allows it to be easily routed through cable management panels.
Features
- 7' in Length
- Slim Size for High-Density Cable Runs
- 28 AWG Gauge with Snagless Connectors
- Up to 10 Gb/s Transfer Speeds
- Meets ANSI/TIA-568-C.2 Standard
- Copper Material to Minimize NEXT Levels
Specs
| Cable Length | 7' / 213.36 cm |
| Ethernet Standards | Cat 6 |
| Connector 1 | RJ45 Male |
| Connector 2 | RJ45 Male |
| Compatibility | 10GbE |
| Bandwidth Rating | 500 MHz |
| Conductor DC Resistance | 9.38 Ohms/ft (Up to 328.08' / 100 m) |
| Capacitance | 5600 pF/ft |
| Impedance | 100 Ohms |
| Pin Assignment | T568B |
| Boot Type | Snagless |
| Wire Gauge | 28 AWG |
| Jacket Type | Polyvinyl Chloride (PVC) |
| Conductor | Copper |
| Contact Plating | Gold |
| Insulation | HDPE |
| Certifications | CE *as per Manufacturer |
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 5 x 4 x 0.04" |
