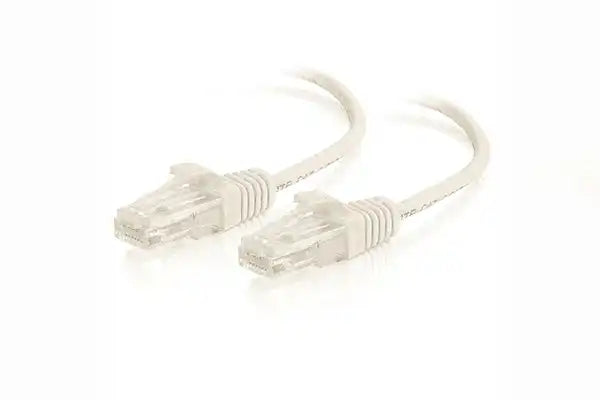

C2G Cat6 Snagless Unshielded (UTP) Slim Ethernet Network Patch Cable 5 Ft- White - 01187 - Creation Networks
Roll over image to zoom in Click on image to zoom
C2G Cat6 Snagless Unshielded (UTP) Slim Ethernet Network Patch Cable 5 Ft- White - 01187 - Creation Networks
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

C2G RJ45 Male to RJ45 Male Slim Cat 6 Patch Cable (5', White) - CG01187

C2G SKU: CG01187
No reviews
Price:
$7.99

Description

In terms of high density datacenter applications, this C2G 01187 5 Ft White Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable is the perfect option. The use of 28 AWG conductors allows for a 36% reduction in diameter in comparison to a standard Cat6 network patch cable by using 28 AWG conductors. As a result of this reduced diameter, the cable surface area is smaller, which allows for increased air flow through the cable when compared to a Cat6 cable of similar diameter. A 28 AWG conductor allows this cable to have a smaller bend radius than a standard Cat6 cable, as a result of the smaller diameter conductors. Because of its small size and small bend radius, this cable is able to be routed through cable management panels with ease, due to its small size and small bend radius.
The cable is designed specifically for fast Ethernet networks that require bandwidth-intensive applications such as voice, data, or video distribution with high bandwidth requirements. The Near-End Crosstalk (NEXT) levels of this design can be minimized because it is constructed using high quality copper cable. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.

  • 5' in Length
  • Slim Size for High-Density Cable Runs
  • 28 AWG Gauge with Snagless Connectors
  • Up to 10 Gb/s Transfer Speeds
  • Meets ANSI/TIA-568-C.2 Standard
  • Copper Material to Minimize NEXT Levels
General
Cable Length 5' / 152.4 cm
Ethernet Standards Cat 6
Connector 1 RJ45 Male
Connector 2 RJ45 Male
Compatibility 10GbE
Electrical
Bandwidth Rating 500 MHz
Conductor DC Resistance 9.38 Ohms/ft (Up to 328.08' / 100 m)
Capacitance 5600 pF/ft
Impedance 100 Ohms
Physical
Pin Assignment T568B
Boot Type Snagless
Wire Gauge 28 AWG
Jacket Type Polyvinyl Chloride (PVC)
Conductor Copper
Contact Plating Gold
Insulation HDPE
Certifications CE
*as per Manufacturer
Packaging Info
Package Weight 0.085 lb
Box Dimensions (LxWxH) 8.25 x 5.1 x 0.95"
