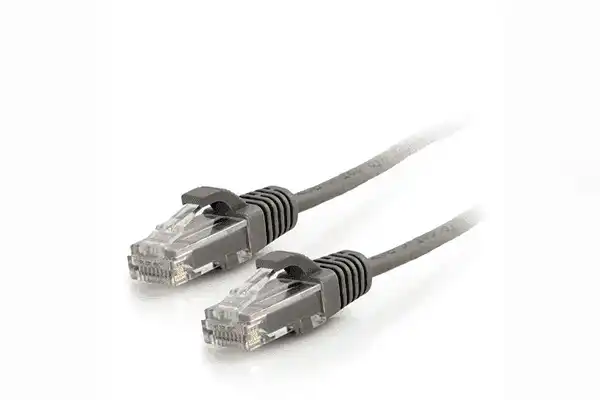

C2G RJ45 Male to RJ45 Male Slim Cat 6 Patch Cable (4', Gray) - CG01090
C2G RJ45 Male to RJ45 Male Slim Cat 6 Patch Cable (4', Gray) - CG01090 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
C2G RJ45 Male to RJ45 Male Slim Cat 6 Patch Cable (4', Gray) - ...
A C2G 01090 Gray 4 FT Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable, especially designed for high density applications in data centers, is an ideal choice for datacenter networks. The use of 28 AWG conductors allows for a 36% reduction in diameter when compared to a standard Cat6 network patch cable. It is because of this smaller diameter that the cable surface area is smaller when compared to standard Cat6 allows for more airflow when the cable is compared to standard Cat6 cables. A smaller bend radius is also possible thanks to the conductors of 28 AWG, which make this cable smaller in diameter than a conventional Cat6 cable. Due to its small size and small radius of bend, this cable is easy to route through cable management panels due to its small size and small bend radius.
In order to benefit from bandwidth-intensive applications such as voice, data, or video distribution, this cable is designed for fast Ethernet networks. This design is made from high grade copper cable that minimizes the level of Near-End Crosstalk (NEXT) at the ends of the cable. This molded, snagless boot provides extra strain relief by preventing unwanted cable snags during installation and preventing unwanted cable snags during use. Color-code your network installation with ease using a variety of colors that are available for your convenience.
Features
- 4' in Length
- Slim Size for High-Density Cable Runs
- 28 AWG Gauge with Snagless Connectors
- Up to 10 Gb/s Transfer Speeds
- Meets ANSI/TIA-568-C.2 Standard
- Copper Material to Minimize NEXT Levels
Specs
| Cable Length | 4' / 121.92 cm |
| Ethernet Standards | Cat 6 |
| Connector 1 | RJ45 Male |
| Connector 2 | RJ45 Male |
| Compatibility | 10GbE |
| Bandwidth Rating | 500 MHz |
| Conductor DC Resistance | 9.38 Ohms/ft (Up to 328.08' / 100 m) |
| Capacitance | 5600 pF/ft |
| Impedance | 100 Ohms |
| Pin Assignment | T568B |
| Boot Type | Snagless |
| Wire Gauge | 28 AWG |
| Jacket Type | Polyvinyl Chloride (PVC) |
| Conductor | Copper |
| Contact Plating | Gold |
| Insulation | HDPE |
| Certifications | CE *as per Manufacturer |
| Package Weight | 0.075 lb |
| Box Dimensions (LxWxH) | 5 x 4.95 x 1.05" |
