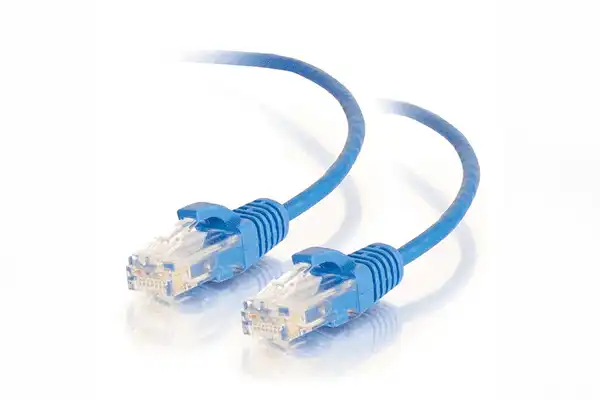

C2G RJ45 Male to RJ45 Male Slim Cat 6 Patch Cable (4', Blue) - CG01077

C2G SKU: CG01077
No reviews
Price:
$7.99

Description

Designed for use in high-density data center applications, the C2G 01077 4FT Blue Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable is the ideal solution. A 28 AWG conductor allows for a 36% reduction in diameter over a standard Cat6 network patch cable as a result of using 28 AWG conductors. As a result of the reduced diameter, the cable surface area is reduced, which allows for a greater amount of airflow in comparison with Cat6 cables that have a larger diameter. It has also been noted that the 28 AWG conductors also allow this cable to have a smaller bend radius than a standard Cat6 cable. The small size and small bend radius of this cable allow it to be easily routed through cable management panels.

  • 4' in Length
  • Slim Size for High-Density Cable Runs
  • 28 AWG Gauge with Snagless Connectors
  • Up to 10 Gb/s Transfer Speeds
  • Meets ANSI/TIA-568-C.2 Standard
  • Copper Material to Minimize NEXT Levels
General
Cable Length 4' / 121.92 cm
Ethernet Standards Cat 6
Connector 1 RJ45 Male
Connector 2 RJ45 Male
Compatibility 10GbE
Electrical
Bandwidth Rating 500 MHz
Conductor DC Resistance 9.38 Ohms/ft (Up to 328.08' / 100 m)
Capacitance 5600 pF/ft
Impedance 100 Ohms
Physical
Pin Assignment T568B
Boot Type Snagless
Wire Gauge 28 AWG
Jacket Type Polyvinyl Chloride (PVC)
Conductor Copper
Contact Plating Gold
Insulation HDPE
Certifications CE
*as per Manufacturer
Packaging Info
Package Weight 0.08 lb
Box Dimensions (LxWxH) 5 x 4 x 0.01"
