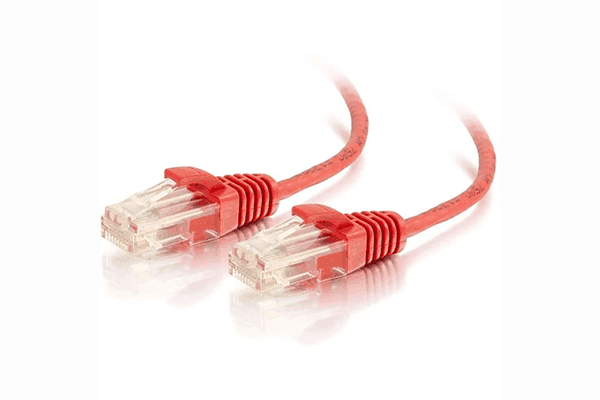

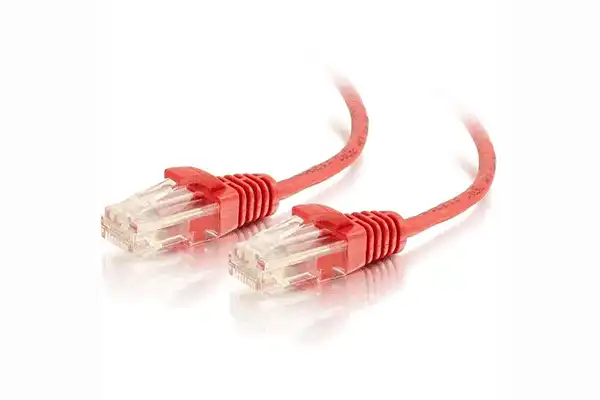

This C2G 01166 Cat6 Unshielded (UTP) Slim Network Patch Cable is the perfect solution for high-density datacenter applications that require high-density cabling. The use of 28 AWG conductors allows for a 36% reduction in diameter over a standard Cat6 network patch cable. This reduced diameter provides a smaller cable surface area which allows for increased airflow when compared to standard Cat6 cables. This cable has a smaller bend radius because of its 28 AWG conductors. With its compact size and small bend radius, this cable is easy to route through cable management panels. This is because it is compact in size and has a small bend radius. This cable is designed for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. NEXT levels are minimized by using a high-quality copper cable. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.
Features
- 3' in Length
- Slim Size for High-Density Cable Runs
- 28 AWG Gauge with Snagless Connectors
- Up to 10 Gb/s Transfer Speeds
- Meets ANSI/TIA-568-C.2 Standard
- Copper Material to Minimize NEXT Levels
Specs
Cable Length | 3' / 91.44 cm |
Ethernet Standards | Cat 6 |
Connector 1 | RJ45 Male |
Connector 2 | RJ45 Male |
Compatibility | 10GbE |
Bandwidth Rating | 500 MHz |
Conductor DC Resistance | 9.38 Ohms/ft (Up to 328.08' / 100 m) |
Capacitance | 5600 pF/ft |
Impedance | 100 Ohms |
Pin Assignment | T568B |
Boot Type | Snagless |
Wire Gauge | 28 AWG |
Jacket Type | Polyvinyl Chloride (PVC) |
Conductor | Copper |
Contact Plating | Gold |
Insulation | HDPE |
Certifications | CE *as per Manufacturer |
