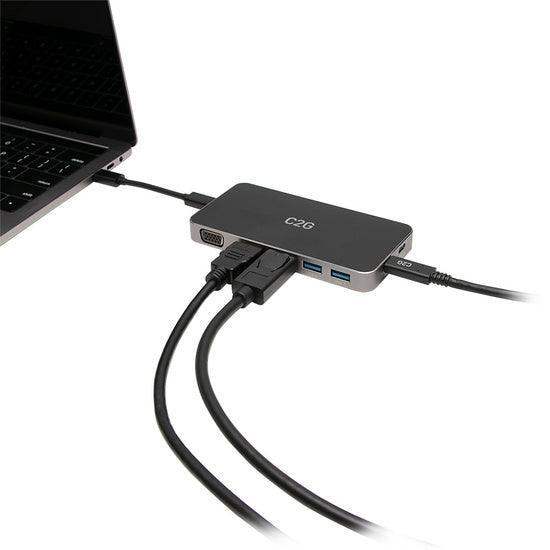

The USB-C 7-in-1 Dual Display Dock Kit connects to USB-C or Thunderbolt™ 3 enabled laptops and includes the cable connectivity solution needed for up to two HDMI® displays # making it perfect for transforming your laptop into a full desktop solution through a single connection point. Perfect for setting up a workspace at the office or in the home.

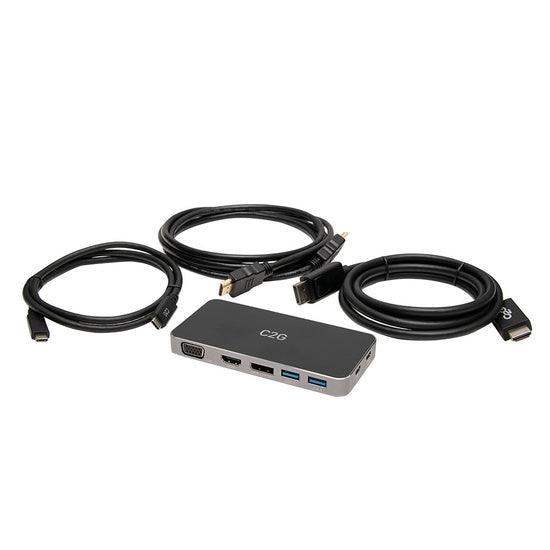

The included HDMI and DisplayPort to HDMI cables allow this dual display dock kit to connect to one or two HDMI displays. The MST feature allows for three different display configurations on multiple monitors connected to a single source with a USB-C output. MST is great for multiple display desk setup — improving multitasking and productivity. The MST dual display feature supports resolutions up to 1920 x 1080 at 60Hz. The docking station will support 4K (3840 x 2160) at 30Hz resolution when using the DisplayPort or HDMI port independently. The USB-A ports are perfect for adding a keyboard/mouse combo, charging a phone, or connecting a storage device supporting SuperSpeed USB 5Gbps data transfers. The USB-C port supports SuperSpeed USB 10Gbps # allowing for twice the amount of data in the same amount of time as the USB-A ports.
This USB-C Dual Display Dock supports connected devices, such as keyboards, mice, portable hard drives, and other peripherals, all while supporting up to 100W of power delivery to charge and power a laptop. The maximum power capacity depends on how much power the connected adapter can supply. This docking station includes a 60W USB-C power supply.
This docking station has been tested with Windows, Mac, and Linux operating systems. It is compatible with all three operating systems – please note that the MST feature is only compatible with Windows.

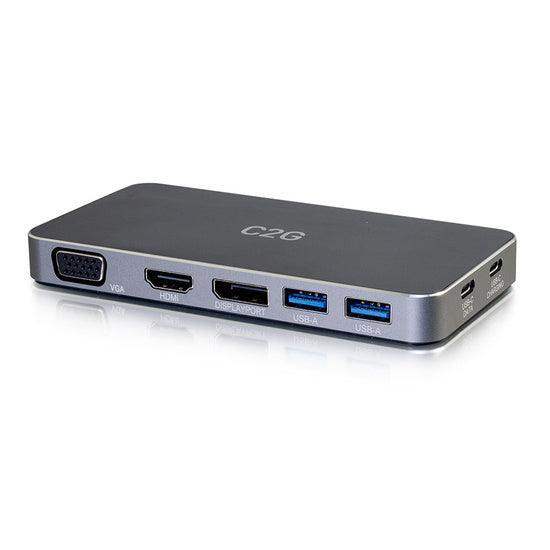

PORTS
4K HDMI: Connect to a 4K display using the included HDMI cable.
4K DisplayPort: Connect to a 4K display using the included DisplayPort to HDMI cable.
VGA: Connect to a VGA display via the VGA port.
1x USB-C: Connect storage devices and transfer data up to 10Gbps through the USB-C port.
1x USB-C Power Delivery: Power a laptop or tablet with up to 100W power delivery.
2x USB-A: Connect a keyboard/mouse combo, charge a phone, or connect to a storage device and transfer data up to 5Gbps.
Signal Specifications
HDMI Resolution: 3840 x 2160 @ 30Hz
DisplayPort Resolution: 3840 x 2160 @ 30Hz
VGA Resolution: 1920 x 1080 @ 60Hz
Support: USB-C Male Input and HDMI, DisplayPort, VGA, 2 x USB-A, and 3 x USB-C Female Outputs
USB-C Female: Connecting PD Adapter: Up to 60W (20/3A)
HDMI Male to Male Cable: HDMI Specification: 2.0; Nominal Velocity of Propagation - 18Gbps; Up to 4K @ 60Hz
DisplayPort Male to HDMI Male Cable: Supports Resolutions up to 1080p
Electrical Specifications
Power Delivery Charging: 20V / 3A
USB-C Power Supply: 3A max. charge current
USB-C Power Supply input: 100-240v
HDMI Male to Male Cable: DC Resistance - 300V; Dielectric Strength - AC 500V/minute; Nominal Attenuation - 300kHz-825MHz - >5dB, 825MHz-2.475GHz - >5dB, 2.475GHz-4.125GHz - >12dB, 4.125GHz-5.1GHz - >20dB; Voltage Rating - 30V
DisplayPort Male to HDMI Male Cable: Voltage Rating: 30V; Conductor Resistance: @ 20°C Max; Insulation Resistance: 10M
/km; Time Delay: 5.2ns/m (Max); Attenuation: 5.02dB@100-450MHz 7.69dB@1GHz, 12.595dB@2GHz 17.495dB@3GHz, 22.395dB@4GHz 27.295dB@5GHz, 32.195dB@6GHz 37.095dB@7GHz
Physical Specifications
Operating Temperature: 0°C to 50°C
Storage Temperature: -25°C to 70°C
USB-C Power Supply Operating Temperature: 0°C to 40°C
USB-C Power Supply Storage Temperature: -20°C to +80°C
HDMI Cable: Operating Temperature: -20° to 80°C
HDMI Cable: Storage Temperature: -25° to 85°C
DisplayPort Male to HDMI Male Cable: Operating Temperature: 0°C to 50°C
DisplayPort Male to HDMI Male Cable: Storage Temperature: -25°C to 70°C
Physical Characteristics
USB-C Female: Contact Pin: Copper Alloy, Gold Plated; USB-C Shell: Stainless Steel, Nickel Plating; USB-C Insulation: LCP, Black
VGA: Female HD15; Contact Pin: C5191, Gold Plated; Shell: SPCC, Nickel Plating; Insulation: PA9T, Black
HDMI: Female 19pin; Contact Pin: C5191, Gold Plated; Shell: C2680, Nickel Plating; Insulation: LCP, Black
DisplayPort: Female 20pin; Contact Pin: C5191, Gold Plated; Shell: SPCC, Nickel Plating; Insulation: LCP, Black
USB-A 3.0: 9pin; Contact Pin: Copper Alloy; USB 3.0 Shell: SUS, Nickel Plating; Insulation: LCP, Blue
Dimensions: 127 ± 0.2 x 63.2 ± 0.2 x 14 ± 0.2mm
Regulatory Approvals: FCC, CE
HDMI Cable: Drain Wire - 30AWG (07/0.10), Tinned Copper
HDMI Cable: Foil Shield - Aluminum Foil, 100% Coverage
HDMI Cable: Braided Shield - 16/4/0.12, Al/Mg
HDMI Cable: Jacket - PVC, Black, O.D. - 6.0 ± 0.2mm
HDMI Cable: Minimum Bend Radius - 60°
HDMI Cable: RoHS Compliant
DisplayPort Male to HDMI Male Cable: Jacket: PVC; Shield: AL-Mylar-Coverage 100%; Braid-16/9/0.12; Drain: 2:30AWG (7/0.08 BC); OD: 6.5±0.2
DisplayPort Male to HDMI Male Cable: CE Compliant
