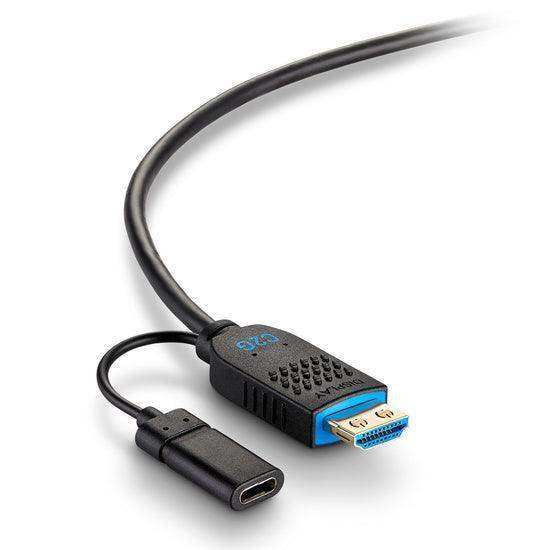

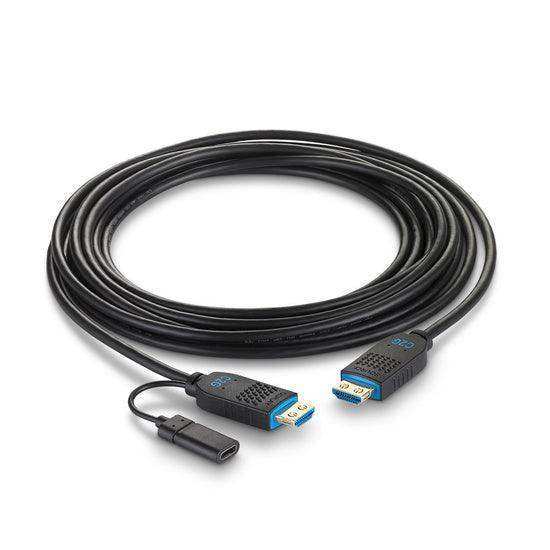

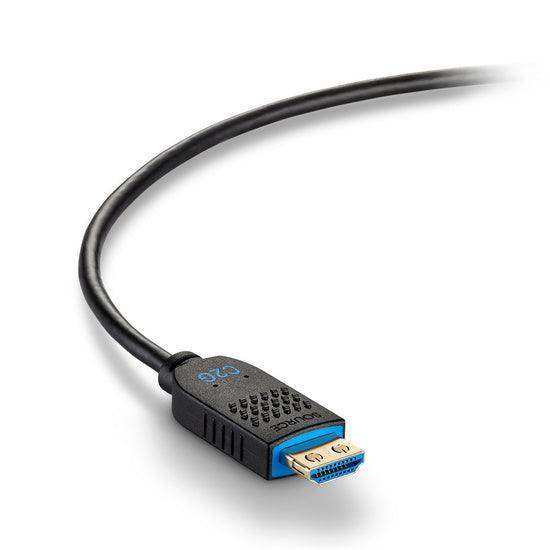

C2G C2G41489 – 200ft Plenum-Rated HDMI Active Optical Cable 4K 60Hz 18Gbps
C2G C2G41489 – 200ft Plenum-Rated HDMI Active Optical Cable 4K 60Hz 18Gbps is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
C2G C2G41489 – 200ft Plenum-Rated HDMI Active Optical Cable 4K 60Hz...
Product Overview
The C2G C2G41489 200ft Performance Series High Speed HDMI Active Optical Cable (AOC) — Plenum-Rated delivers 4K 60Hz HDMI at 18Gbps over 200 feet of fiber strand cable with a CMP plenum jacket for direct above-ceiling and in-wall installation. This plenum HDMI AOC meets NEC fire code requirements for air-handling spaces, making it the correct specification for classrooms, conference centers, auditoriums, and healthcare facilities where both long-run HDMI performance and plenum cable compliance are required. Kevlar reinforcement and increased wire gauge provide the pull strength needed for conduit installation.
Product Description
The C2G41489 uses fiber strand construction to carry the HDMI 2.0 signal immune to EMI and RFI — a critical advantage in commercial buildings where HVAC motors, fluorescent lighting, and dense network cabling create interference that degrades copper HDMI cable performance at extended distances. The 200-foot plenum cable is source-powered from the HDMI port with no external supply required in most installations.
This is the 200ft plenum model in C2G's Performance Series AOC line. For the 250ft plenum option, see C2G41490; for the 300ft non-plenum version, see C2G41491. The cable is directional and factory terminated — the TX end connects to the source and the RX end to the display. It carries a lifetime warranty from C2G.
Key Features
- 200ft (61m) Plenum-Rated HDMI Extension — CMP plenum jacket for code-compliant direct above-ceiling and in-wall installation.
- 4K 60Hz (4:4:4) at 18Gbps — Full HDMI 2.0 bandwidth with no signal degradation at 200 feet.
- EMI/RFI Immune Fiber Construction — Fiber strands eliminate interference from HVAC, lighting, and network equipment in commercial buildings.
- Kevlar Reinforced — Added pull strength for conduit and overhead cable installation.
- HDR Support (PQ and HLG) — Passes HDR10 and HLG metadata for compatible 4K displays.
- eARC, ARC, CEC Supported — Full HDMI 2.0 feature compliance.
- Source-Powered — No external power supply required in most installations.
- Lifetime Warranty — C2G commercial lifetime warranty.
Typical Applications
- Plenum above-ceiling HDMI runs in classrooms and conference rooms
- Auditorium and large venue 4K display extension through plenum airspace
- Healthcare facility display installation in high-EMI environments
- Digital signage in plenum-rated commercial spaces
- Government and education facilities requiring plenum cable compliance
Technical Specifications
| Cable Length | 200ft (61m) |
| Cable Type | Active Optical Cable (AOC), fiber strand |
| Jacket Rating | Plenum (CMP) |
| HDMI Standard | HDMI 2.0 |
| Max Resolution | 4K (4096x2160) at 60Hz, 4:4:4 |
| Bandwidth | 18 Gbps |
| HDR | PQ (HDR10) and HLG |
| Audio | Up to 32 channels; Dolby TrueHD, DTS-HD Master Audio, eARC/ARC |
| Power | Source-powered; no external supply required in most installations |
| Reinforcement | Kevlar strands, increased wire gauge |
| Directional | Yes — TX to source, RX to display |
| Warranty | Lifetime |
| SKU | C2G41489 |
Frequently Asked Questions
- How does this differ from the C2G41490 and C2G41491?
The C2G41489 is 200ft with a plenum (CMP) jacket. The C2G41490 is 250ft plenum-rated. The C2G41491 is 300ft with a standard non-plenum jacket. All three deliver 4K 60Hz at 18Gbps.
- Why is plenum rating required?
NEC and most local building codes require CMP-rated cable for installation in air-handling plenums such as above suspended ceilings. Non-plenum cable in these spaces is a fire code violation in most jurisdictions.
- Does this require an external power supply?
No. The cable is source-powered via the HDMI port. Some sources with limited HDMI power output may need a USB power injector, sold separately.
- Can it be cut or field-terminated?
No. AOC cables are factory terminated and cannot be cut or re-terminated.
- What warranty does C2G provide?
Lifetime warranty. Contact Creation Networks at creationnetworks.net for claims and support.
